360 view

N 1507 FLF PLD

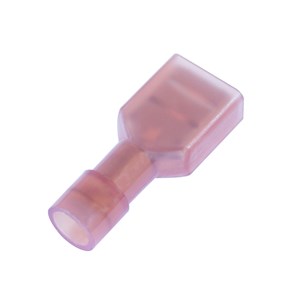

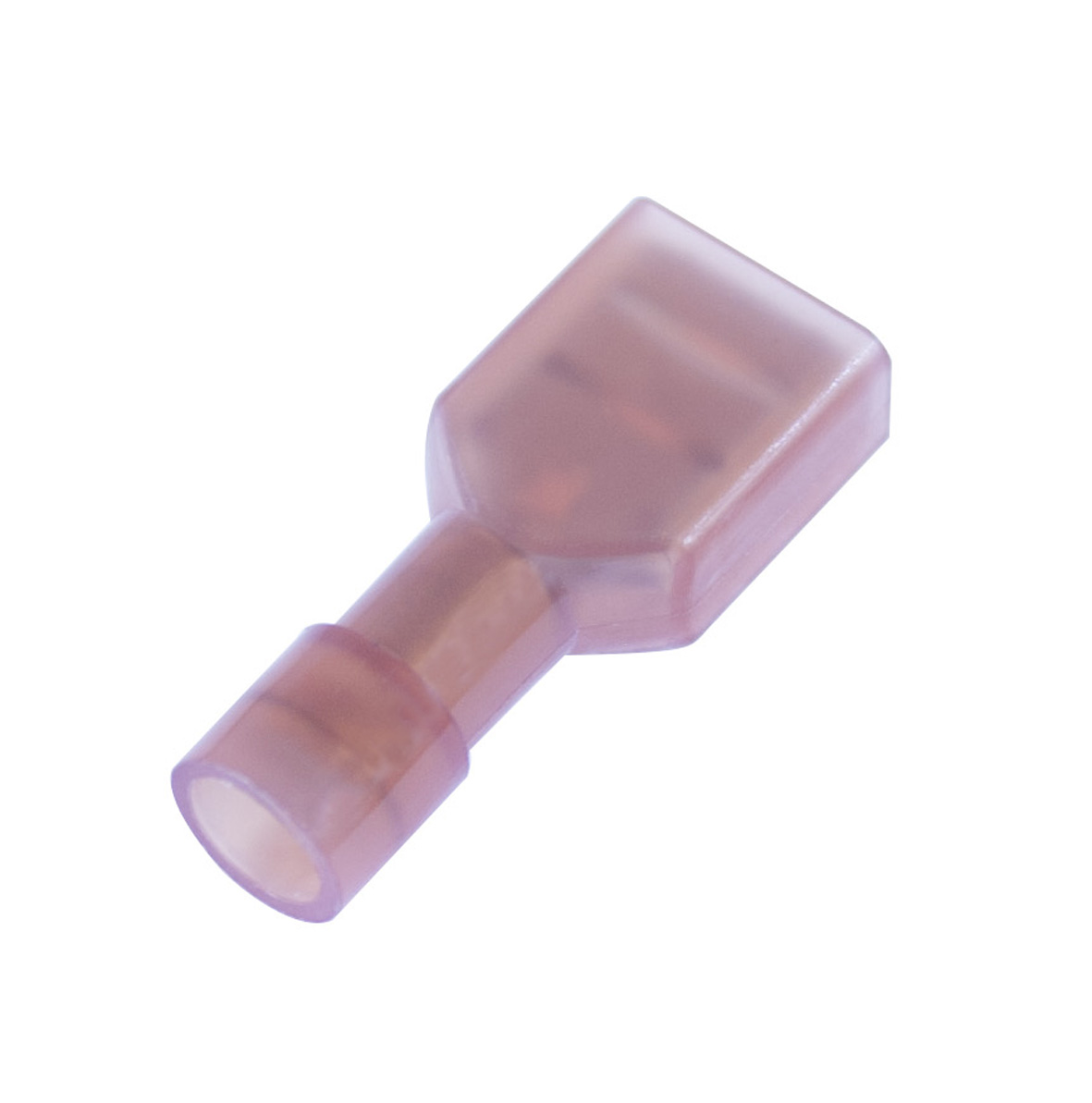

FULLY INSULATED RECEPTACLE RED, 6.3x0.8mm

Sku

N 1507 FLF PLD

Availability:: Yes

Page size:

Total: 1

	Product Description	Stock code
	Fully Insulated female disconnects A PLD-series	66303			.

Total: 1

Page size:

Total: 1

Related items

Fully Insulated female disconnects A PLD-series

66303

Long copper sleeve Easy Entry

Total: 1

Product Properties:

Suitable for Class 2 conductor	Yes
Suitable for Class 5 conductor	Yes
Model	Bushing
Max. current (Imax)	10 A
Insulation	Fully isolated
Colour insulation	Red
With cam clamp	No
With tap spreader	No
Material insulation	Polyamide (PA)
Fire classification	According to UL94V2
Operating temperature	-40-105 °C
Material	Brass
Voltage max	300V
Halogen free	Yes
Packaging	Loose piece

Dimensions:

ID	3.6 mm
L	21.5 mm
N	10.5 mm
W	6.3 mm
MOQ	100 .
Unit	pcs
Nominal cross section	0.5-1.65 mm²
AWG-range	22-16 .
Plug dimensions	Flat 6.3x0.8 mm

Approvals:

Approved according to CE	Yes
With approval according to UL	Yes
Inflammability class of insulation material according to with UL94	V2

Logistic information:

Barcode	733117610794
Country of origin	CN
Item status	Stock item, normally in stock with reservation for in between sales.
MOQ	100 .
Packaging	Loose piece
Stock code	N 1507 FLF PLD
Taric code	85369010
Unit	pcs

Other information:

ETIM-Class	EC000516 - Round or flat plug/receptacle
ETIM-Release	9.0
Trademark	NEMIQ
Product Group	Fully Insulated Receptacle - Polyamide
Alternative SKU	N1507FLFPLD

Compliance:

CA Proposition 65	Yes. CAS 7439-92-1
Conflict Minerals	Yes, see report under tab "Documents"
Iron and Steel Sanction	Contain no Iron or Steel
PFAS	No PFAS
REACH	No SVHC (242 Subs. 07 Nov 2024)
RoHS	RoHS 3 (2015/863)
SCIP	Not Applicable
US TSCA	No (5 PBT Subs, Feb 2021)

Genererate statement of compliance:

Product Properties

Suitable for Class 2 conductor	Yes
Suitable for Class 5 conductor	Yes
Model	Bushing
Max. current (Imax)	10 A
Insulation	Fully isolated
Colour insulation	Red
With cam clamp	No
With tap spreader	No
Material insulation	Polyamide (PA)
Fire classification	According to UL94V2
Operating temperature	-40-105 °C
Material	Brass
Voltage max	300V
Halogen free	Yes
Packaging	Loose piece

Dimensions

ID	3.6 mm
L	21.5 mm
N	10.5 mm
W	6.3 mm
MOQ	100 .
Unit	pcs
Nominal cross section	0.5-1.65 mm²
AWG-range	22-16 .
Plug dimensions	Flat 6.3x0.8 mm

Logistics

Barcode	733117610794
Country of origin	CN
Item status	Stock item, normally in stock with reservation for in between sales.
MOQ	100 .
Packaging	Loose piece
Stock code	N 1507 FLF PLD
Taric code	85369010
Unit	pcs

Approvals

Approved according to CE	Yes
With approval according to UL	Yes
Inflammability class of insulation material according to with UL94	V2

Other info

ETIM-Class	EC000516 - Round or flat plug/receptacle
ETIM-Release	9.0
Trademark	NEMIQ
Product Group	Fully Insulated Receptacle - Polyamide
Alternative SKU	N1507FLFPLD

Compliance

CA Proposition 65	Yes. CAS 7439-92-1
Conflict Minerals	Yes, see report under tab "Documents"
Iron and Steel Sanction	Contain no Iron or Steel
PFAS	No PFAS
REACH	No SVHC (242 Subs. 07 Nov 2024)
RoHS	RoHS 3 (2015/863)
SCIP	Not Applicable
US TSCA	No (5 PBT Subs, Feb 2021)

Genererate statement of compliance:

Accessories

Spare Parts

Product video

Documents

Manuals, Datasheets, Sketches & Drawings

Generate Datasheet:
