360 view
N 2504 FLF-8 PLD

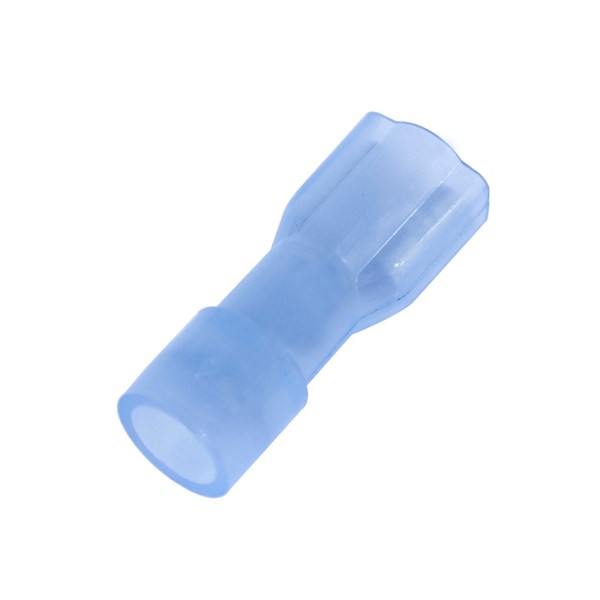

FULLY INSULATED RECEPTACLE BLUE, 4.8x0.8mm
N 2504 FLF-8 PLD
- Availability:
-
Yes
- Total: 1
Related items
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | Bushing |
| Max. current (Imax) | 15 A |
| Insulation | Fully isolated |
| Colour insulation | Blue |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyamide (PA) |
| Fire classification | According to UL94V0 |
| Operating temperature | -40-105 °C |
| Material | Brass |
| Voltage max | 300V |
| Halogen free | Yes |
| Packaging | Loose piece |
Dimensions
| ID | 4.3 mm |
|---|---|
| L | 20 mm |
| N | 11 mm |
| W | 4.8 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 1.04-2.63 mm² |
| AWG-range | 16-14 . |
| Plug dimensions | Flat 4.8x0.8 mm |
Logistics
| Barcode | 733117610846 |
|---|---|
| Country of origin | CN |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | N 2504 FLF-8 PLD |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| With approval according to UL | Yes |
| Inflammability class of insulation material according to with UL94 | V0 |
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Fully Insulated Receptacle - Polyamide |
| Alternative SKU | N2504FLF-8PLD |
Compliance
| CA Proposition 65 | Yes. CAS 7439-92-1 |
|---|---|
| Conflict Minerals | Yes, see report under tab "Documents" |
| PFAS | No PFAS |
| REACH | No SVHC (242 Subs. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
Genererate statement of compliance:
Accessories
Spare Parts
Product video
Documents
CE Declaration of Conformity_N PLD-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Generate Datasheet:
