ICTDN 2504 FLF-8
FULLY INSULATED RECEPTACLE BLUE, 4.8x0.8mm, PA, REEL
ICTDN 2504 FLF-8
- Availability:
-
Yes
- Total: 1
Related items

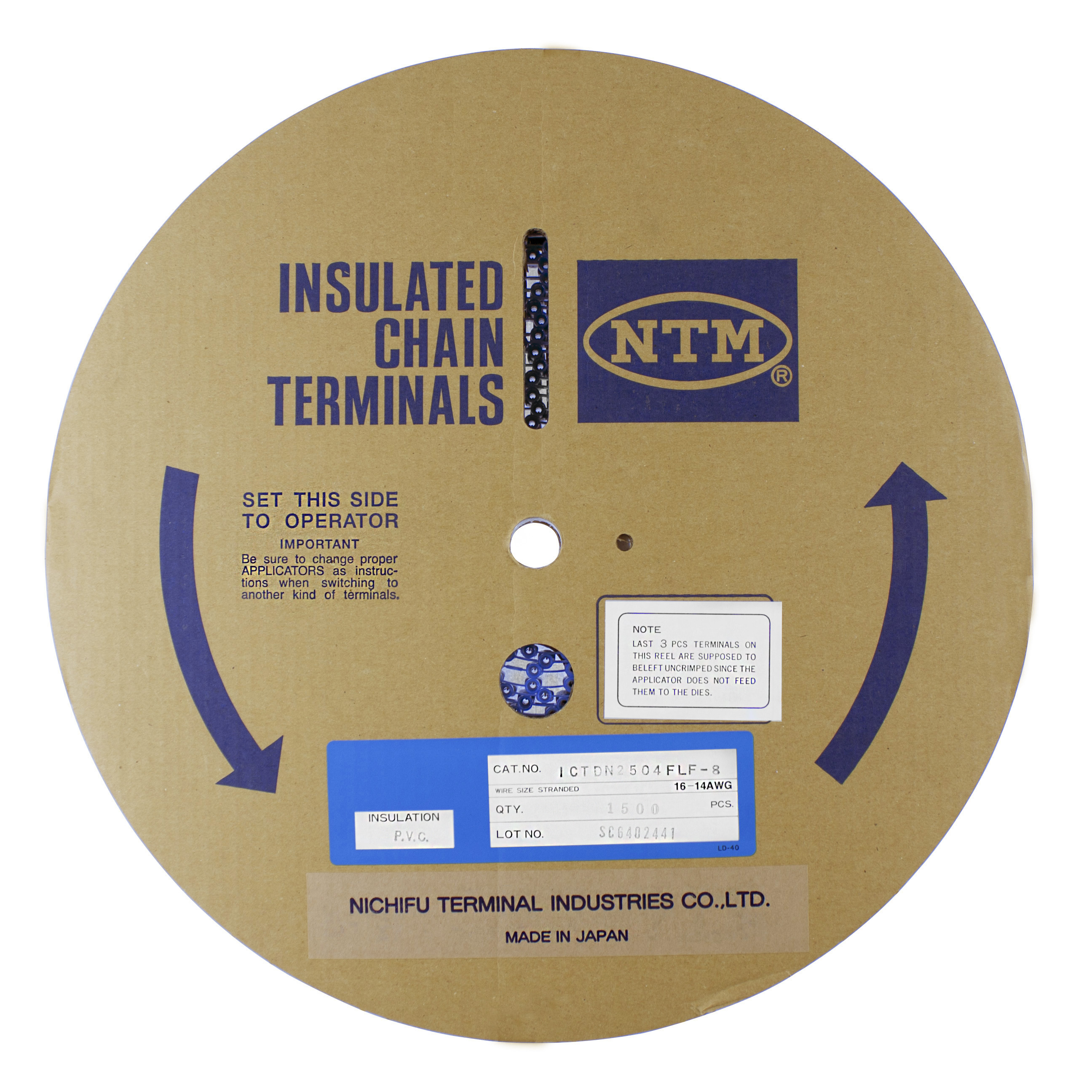

Fully Insulated Receptacle on reel, ICTDN FLF-series
Insulated terminal on reel from Nichifu.
Brazed seam
Easy entry
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | Bushing |
| Max. current (Imax) | 15 A |
| Insulation | Fully isolated |
| Colour insulation | Blue |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyamide (PA) |
| Fire classification | According to UL94V0 |
| Operating temperature | -40-105 °C |
| Material | Brass |
| Voltage max | 300V |
| Packaging | Tape on Reel |
Dimensions
| MOQ | 1500 . |
|---|---|
| Unit | pcs |
| Nominal cross section | 1.04-2.63 mm² |
| AWG-range | 16-14 . |
| Plug dimensions | Flat 4.8x0.8 mm |
Logistics
| Barcode | 733117630146 |
|---|---|
| Country of origin | JP |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1500 . |
| Packaging | Tape on Reel |
| Stock code | ICTDN 2504 FLF-8 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| UL-File No. | E78965 |
|---|---|
| Approved according to CE | Yes |
| Approved according to CSA | Yes |
| With approval according to UL | Yes |
| Inflammability class of insulation material according to with UL94 | V0 |
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Fully Insulated Receptacle - Reel |
| Search Description | NICHIFU, ICTDN 480820 FA |
| Alternative SKU | ICTDN2504FLF-8 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Compliance |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
