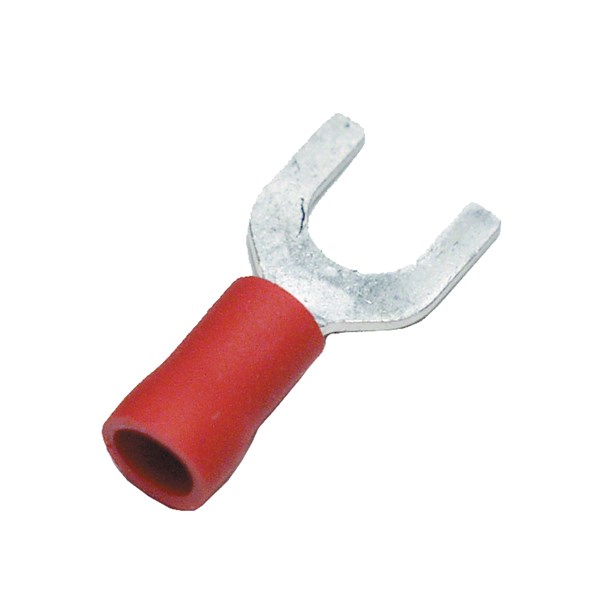

Spade terminals A-series
Brazed seam
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 16 A, 19 A, 27 A, 48 A
- Flange shape:
- Fork shape
- According to DIN:
- No
- Insulation:
- Polyvinyl chloride (PVC)
- Colour insulation:
- Yellow, Red, Blue
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -25-75 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- No
Show more
Item List
- Total: 17
- Total: 17
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_A-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 17
| Product Description | HS | ID | L | N | W | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED SPADE TERMINAL YELLOW, M3 | 3.2 mm | 2.9 mm | 16.5 mm | 8 mm | 5 mm | 100 . | pcs | 3 . | 0.14-0.5 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M3 | 3.2 mm | 4 mm | 20 mm | 9 mm | 5.8 mm | 100 . | pcs | 3 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M3.5 | 3.7 mm | 4 mm | 20 mm | 9 mm | 7.2 mm | 100 . | pcs | 3.5 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M3.5, SLIM | 3.7 mm | 4 mm | 19.6 mm | 9 mm | 6.4 mm | 100 . | pcs | 3.5 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M4 | 4.3 mm | 4 mm | 20 mm | 9 mm | 8.5 mm | 100 . | pcs | 4 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M4, SLIM | 4.3 mm | 4 mm | 19.6 mm | 9 mm | 6.4 mm | 100 . | pcs | 4 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M5 | 5.3 mm | 4 mm | 20 mm | 9 mm | 9.5 mm | 100 . | pcs | 5 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M6 | 6.4 mm | 4 mm | 26.2 mm | 9 mm | 12 mm | 100 . | pcs | 6 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M3.5 | 3.7 mm | 4.5 mm | 20.2 mm | 9 mm | 7.2 mm | 100 . | pcs | 3.5 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M3.5, SLIM | 3.7 mm | 4.5 mm | 19.6 mm | 9 mm | 6.4 mm | 100 . | pcs | 3.5 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M4 | 4.3 mm | 4.5 mm | 21 mm | 9 mm | 8.5 mm | 100 . | pcs | 4 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M4, SLIM | 4.3 mm | 4.5 mm | 19.6 mm | 9 mm | 6.4 mm | 100 . | pcs | 4 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M5 | 5.3 mm | 4.5 mm | 21 mm | 9 mm | 9.5 mm | 100 . | pcs | 5 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M6 | 6.4 mm | 4.5 mm | 26.2 mm | 9 mm | 12 mm | 100 . | pcs | 6 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4 | 4.3 mm | 6.8 mm | 26.5 mm | 13.5 mm | 9.5 mm | 100 . | pcs | 4 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4, SLIM | 4.3 mm | 6.8 mm | 26.2 mm | 13.5 mm | 8.5 mm | 100 . | pcs | 4 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M5 | 5.3 mm | 6.8 mm | 26.2 mm | 14 mm | 9.5 mm | 100 . | pcs | 5 . | 2.63-6.64 mm² |
Yes
|
|
|
- Total: 17
Similar Options
Approvals
- Total: 17
| Product Description | UL-File No. | Approved according to CE | Approved according to CSA | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED SPADE TERMINAL YELLOW, M3 | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M3 | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M3.5 | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M3.5, SLIM | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M4 | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M4, SLIM | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M5 | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M6 | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M3.5 | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M3.5, SLIM | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M4 | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M4, SLIM | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M5 | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M6 | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4 | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4, SLIM | E42024 |
|
|
|
|
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M5 | E42024 |
|
|
|
|
Yes
|
|
|
- Total: 17
Technical Properties
- Total: 17
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Operating temperature | Material | Voltage max | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED SPADE TERMINAL YELLOW, M3 | Yes | Yes | No | 16 A | Fork shape | No | Polyvinyl chloride (PVC) | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M3 | Yes | Yes | No | 19 A | Fork shape | No | Polyvinyl chloride (PVC) | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M3.5 | Yes | Yes | No | 19 A | Fork shape | No | Polyvinyl chloride (PVC) | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M3.5, SLIM | Yes | Yes | No | 19 A | Fork shape | No | Polyvinyl chloride (PVC) | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M4 | Yes | Yes | No | 19 A | Fork shape | No | Polyvinyl chloride (PVC) | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M4, SLIM | Yes | Yes | No | 19 A | Fork shape | No | Polyvinyl chloride (PVC) | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M5 | Yes | Yes | No | 19 A | Fork shape | No | Polyvinyl chloride (PVC) | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M6 | Yes | Yes | No | 19 A | Fork shape | No | Polyvinyl chloride (PVC) | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M3.5 | Yes | Yes | No | 27 A | Fork shape | No | Polyvinyl chloride (PVC) | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M3.5, SLIM | Yes | Yes | No | 27 A | Fork shape | No | Polyvinyl chloride (PVC) | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M4 | Yes | Yes | No | 27 A | Fork shape | No | Polyvinyl chloride (PVC) | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M4, SLIM | Yes | Yes | No | 27 A | Fork shape | No | Polyvinyl chloride (PVC) | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M5 | Yes | Yes | No | 27 A | Fork shape | No | Polyvinyl chloride (PVC) | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M6 | Yes | Yes | No | 27 A | Fork shape | No | Polyvinyl chloride (PVC) | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4 | Yes | Yes | No | 48 A | Fork shape | No | Polyvinyl chloride (PVC) | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4, SLIM | Yes | Yes | No | 48 A | Fork shape | No | Polyvinyl chloride (PVC) | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M5 | Yes | Yes | No | 48 A | Fork shape | No | Polyvinyl chloride (PVC) | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -25-75 °C | Copper | 600V | No |
Yes
|
|
|
- Total: 17
Other information
- Total: 17
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED SPADE TERMINAL YELLOW, M3 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - PVC | JST, 10211200 , FV0.5-3A (LF) | A0532G |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M3 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - PVC | JST, 10239000 , FV1.25-B3A (LF) | A1532G |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M3.5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - PVC | JST, 10241000 , FV1.25-S3A (LF) | A1537G |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M3.5, SLIM | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - PVC | JST, 10245000 , FV1.25-YS3A (LF) | A1537GS |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - PVC | JST, 10246500 , FV1.25-4A (LF) K , FV1.25-4A (LF) | A1543G |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M4, SLIM | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - PVC | JST, 10248000 , FV1.25-YS4A (LF) | A1543GS |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - PVC | JST, 10249000 , FV1.25-5A (LF) | A1553G |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - PVC | JST, 10251000 , FV1.25-6A (LF) | A1565G |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M3.5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - PVC | JST, 11146100 , FV2-S3A | A2537G |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M3.5, SLIM | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - PVC | JST, 11147100 , FV2-YS3A | A2537GS |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - PVC | JST, 11148100 , FV2-4A | A2543G |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M4, SLIM | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - PVC | JST, 11151100 , FV2-YS4A | A2543GS |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - PVC | JST, 11152100 , FV2-5A | A2553G |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - PVC | JST, 11153100 , FV2-6A | A2565G |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - PVC | JST, 12357200 , FV5.5-4A CLR | A4643G |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4, SLIM | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - PVC | JST, 12244300 , FV5.5-S4A CLR | A4643GS |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - PVC | JST, 12245300 , FV5.5-5A CLR | A4653G |
Yes
|
|
|
- Total: 17
