PB 0843 G

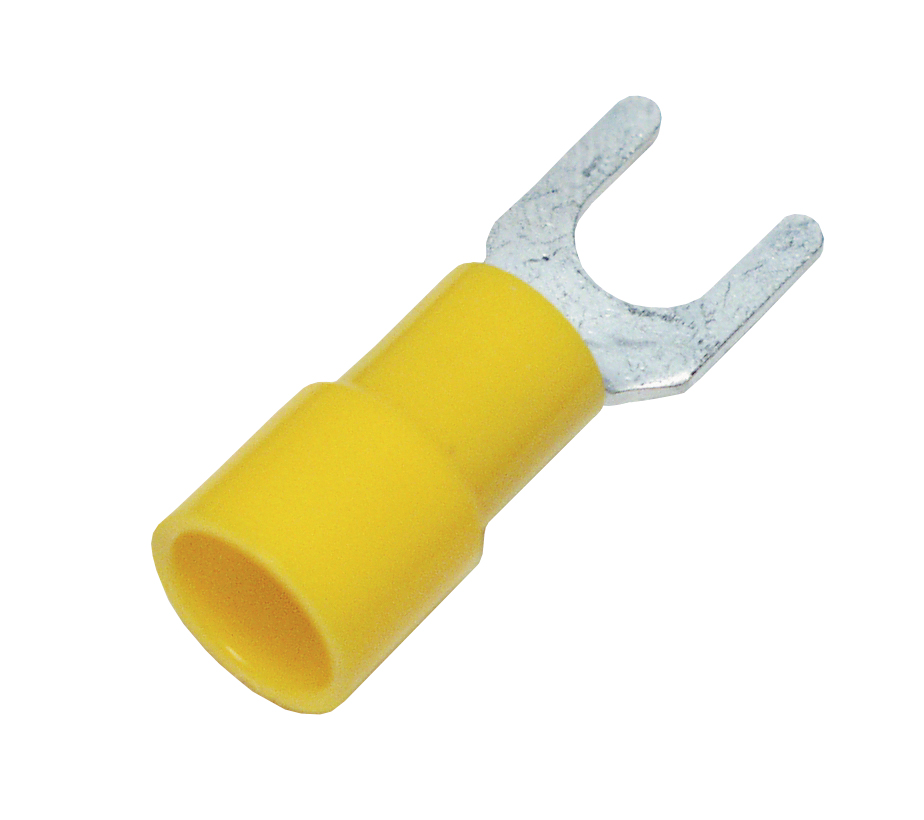

INSULATED SPADE TERMINAL YELLOW, M4
PB 0843 G
- Availability:
-
Yes
E0842114
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Reel/roll packaging | No |
| Max. current (Imax) | 19 A |
| Flange shape | Fork shape |
| According to DIN | No |
| Insulation | Partially isolated |
| Colour insulation | Yellow |
| Sleeve form | Short |
| Suitable for solid cores | No |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| Surface protection | Tinned |
| Material insulation | Polycarbonate (PC) |
| Fire classification | According to UL94V2 |
| Operating temperature | -40-125 °C |
| Material | Copper |
| Voltage max | 600V |
| Halogen free | Yes |
Dimensions
| HS | 4.3 mm |
|---|---|
| ID | 2.8 mm |
| L | 20.5 mm |
| N | 10 mm |
| W | 6.5 mm |
| MOQ | 100 . |
| Unit | pcs |
| Bolt dimension (metric) | 4 . |
| Nominal cross section | 0.2-0.5 mm² |
Logistics
| Barcode | 733117611433 |
|---|---|
| Country of origin | JP |
| E-no | E0842114 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Stock code | PB 0843 G |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| UL-File No. | E44245 |
|---|---|
| Approved according to CE | Yes |
| With approval according to UL | Yes |
| Inflammability class of insulation material according to with UL94 | V2 |
Other info
| ETIM-Class | EC001052 - Solderless copper terminals for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Spade terminals - Polycarbonate |
| Search Description | NICHIFU, TMEX 0.3Y-4N |
| Alternative SKU | PB0843G |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Compliance |
| PFAS | No PFAS |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
