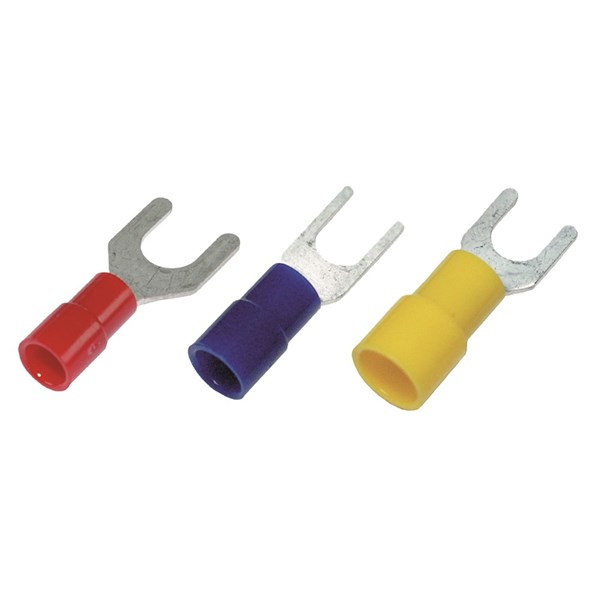

Spade terminals PB-series
Brazed seam
Easy entry
Halogen-free
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19 A, 27 A, 48 A, 37 A
- Flange shape:
- Fork shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Yellow, Red, Blue, Other
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-125 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
Show more
Item List
- Total: 28
- Total: 28
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_PB-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 28
| Product Description | HS | ID | L | N | W | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED SPADE TERMINAL RED, M8 | 8.4 mm | 4.1 mm | 25.7 mm | 10 mm | 14 mm | 100 . | pcs | 8 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M3 | 3.2 mm | 4.1 mm | 20.5 mm | 10 mm | 5.8 mm | 100 . | pcs | 3 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M3.5 | 3.7 mm | 4.1 mm | 20.5 mm | 10 mm | 5.8 mm | 100 . | pcs | 3.5 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M4 | 4.3 mm | 4.1 mm | 21.9 mm | 10 mm | 8.1 mm | 100 . | pcs | 4 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M4, SLIM | 4.3 mm | 4.1 mm | 21.9 mm | 10 mm | 6.4 mm | 100 . | pcs | 4 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M5 | 5.3 mm | 4.1 mm | 23 mm | 10 mm | 8 mm | 100 . | pcs | 5 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M6 | 6.4 mm | 4.1 mm | 25.5 mm | 10 mm | 11 mm | 100 . | pcs | 6 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M3 | 3.2 mm | 4.5 mm | 19.5 mm | 10 mm | 5.9 mm | 100 . | pcs | 3 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M3.5 | 3.7 mm | 4.5 mm | 21.3 mm | 10 mm | 6.4 mm | 100 . | pcs | 3.5 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M3.5, SLIM | 3.7 mm | 4.6 mm | 21.3 mm | 10 mm | 5.8 mm | 100 . | pcs | 3.5 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M4 | 4.3 mm | 4.5 mm | 21.5 mm | 10 mm | 8 mm | 100 . | pcs | 4 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M4, SLIM | 4.3 mm | 4.5 mm | 21.5 mm | 10 mm | 6.4 mm | 100 . | pcs | 4 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M5 | 5.3 mm | 4.5 mm | 22.6 mm | 10 mm | 10 mm | 100 . | pcs | 5 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M5, SLIM | 5.3 mm | 4.5 mm | 21.5 mm | 10 mm | 8 mm | 100 . | pcs | 5 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M6 | 6.4 mm | 4.5 mm | 25.5 mm | 10 mm | 12 mm | 100 . | pcs | 6 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M8 | 8.4 mm | 4.5 mm | 27.5 mm | 10 mm | 14 mm | 100 . | pcs | 8 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M2 | 2.2 mm | 2.8 mm | 17.5 mm | 10 mm | 5.2 mm | 100 . | pcs | 2 . | 0.2-0.5 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M3 | 3.2 mm | 2.8 mm | 17.5 mm | 10 mm | 5.2 mm | 100 . | pcs | 3 . | 0.2-0.5 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M3.5 | 3.7 mm | 2.8 mm | 20.5 mm | 10 mm | 6.5 mm | 100 . | pcs | 3.5 . | 0.2-0.5 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4 | 4.3 mm | 2.8 mm | 20.5 mm | 10 mm | 6.5 mm | 100 . | pcs | 4 . | 0.2-0.5 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4 | 5.3 mm | 2.8 mm | 21 mm | 10 mm | 8 mm | 100 . | pcs | 4 . | 0.2-0.5 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4 | 4.3 mm | 6.8 mm | 25.7 mm | 14 mm | 9 mm | 100 . | pcs | 4 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4, SLIM | 4.3 mm | 6.8 mm | 25.7 mm | 14 mm | 8.4 mm | 100 . | pcs | 4 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M5 | 5.3 mm | 6.8 mm | 25.7 mm | 14 mm | 9 mm | 100 . | pcs | 5 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M6 | 6.4 mm | 6.8 mm | 32.7 mm | 14 mm | 12.5 mm | 100 . | pcs | 6 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M8 | 8.4 mm | 6.8 mm | 36.2 mm | 14 mm | 15 mm | 100 . | pcs | 8 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL CLEAR, M4 | 4.3 mm | 6.5 mm | 25.7 mm | 14 mm | 9 mm | 100 . | pcs | 4 . | 2.5-4 mm² |
Yes
|
|
|
| INSULATED SPADE TERMINAL CLEAR, M5 | 5.3 mm | 6.5 mm | 25.7 mm | 14 mm | 9 mm | 100 . | pcs | 5 . | 2.5-4 mm² |
Yes
|
|
|
- Total: 28
Similar Options
Approvals
- Total: 28
- Total: 28
Technical Properties
- Total: 28
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED SPADE TERMINAL RED, M8 | Yes | Yes | No | 19 A | Fork shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | Yes |
Yes
|
|
|
|
| INSULATED SPADE TERMINAL RED, M3 | Yes | Yes | No | 19 A | Fork shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M3.5 | Yes | Yes | No | 19 A | Fork shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M4 | Yes | Yes | No | 19 A | Fork shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M4, SLIM | Yes | Yes | No | 19 A | Fork shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M5 | Yes | Yes | No | 19 A | Fork shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M6 | Yes | Yes | No | 19 A | Fork shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M3 | Yes | Yes | No | 27 A | Fork shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M3.5 | Yes | Yes | No | 27 A | Fork shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M3.5, SLIM | Yes | Yes | No | 27 A | Fork shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | Copper | 600V | Yes |
Yes
|
|
|
|
| INSULATED SPADE TERMINAL BLUE, M4 | Yes | Yes | No | 27 A | Fork shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M4, SLIM | Yes | Yes | No | 27 A | Fork shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M5 | Yes | Yes | No | 27 A | Fork shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M5, SLIM | Yes | Yes | No | 27 A | Fork shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M6 | Yes | Yes | No | 27 A | Fork shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M8 | Yes | Yes | No | 27 A | Fork shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M2 | Yes | Yes | No | 19 A | Fork shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M3 | Yes | Yes | No | 19 A | Fork shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M3.5 | Yes | Yes | No | 19 A | Fork shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4 | Yes | Yes | No | 19 A | Fork shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4 | Yes | Yes | No | 19 A | Fork shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4 | Yes | Yes | No | 48 A | Fork shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4, SLIM | Yes | Yes | No | 48 A | Fork shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M5 | Yes | Yes | No | 48 A | Fork shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M6 | Yes | Yes | No | 48 A | Fork shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M8 | Yes | Yes | No | 48 A | Fork shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL CLEAR, M4 | Yes | Yes | No | 37 A | Fork shape | No | Partially isolated | Other | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED SPADE TERMINAL CLEAR, M5 | Yes | Yes | No | 37 A | Fork shape | No | Partially isolated | Other | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V | Yes |
Yes
|
|
|
- Total: 28
Other information
- Total: 28
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED SPADE TERMINAL RED, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 1.25Y-8-RED | PB1585G |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M3 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 1.25Y-3 | PB1532G |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M3.5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 1.25Y-3.5 | PB1537G |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 1.25Y-4M | PB1543G |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M4, SLIM | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 1.25Y-4N | PB1543GS |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 1.25Y-5 | PB1553G |
Yes
|
|
|
| INSULATED SPADE TERMINAL RED, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 1.25Y-6 | PB1565G |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M3 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 2Y-3 | PB2532G |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M3.5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 2Y-3.5 | PB2537G |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M3.5, SLIM | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 2Y-3.5S-BLU | PB2537GS |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 2Y-4S | PB2543G |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M4, SLIM | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 2Y-4N | PB2543GS |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 2Y-5M | PB2553G |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M5, SLIM | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 2Y-5 | PB2553GS |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 2Y-6 | PB2565G |
Yes
|
|
|
| INSULATED SPADE TERMINAL BLUE, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 2Y-8 | PB2585G |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M2 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 0.3Y-2 | PB0822G |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M3 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 0.3Y-3 | PB0832G |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M3.5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 0.3Y-3.5N | PB0837G |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 0.3Y-4N | PB0843G |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 0.3Y-5 | PB0853G |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 5.5Y-4 | PB4643G |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M4, SLIM | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 5.5Y-4S | PB4643GS |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 5.5Y-5 | PB4653G |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 5.5Y-6 | PB4665G |
Yes
|
|
|
| INSULATED SPADE TERMINAL YELLOW, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 5.5Y-8 | PB4685G |
Yes
|
|
|
| INSULATED SPADE TERMINAL CLEAR, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 3.5Y-4 CLR | PB4043G |
Yes
|
|
|
| INSULATED SPADE TERMINAL CLEAR, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Spade terminals - Polycarbonate | NICHIFU, TMEX 3.5Y-5 CLR | PB4053G |
Yes
|
|
|
- Total: 28
