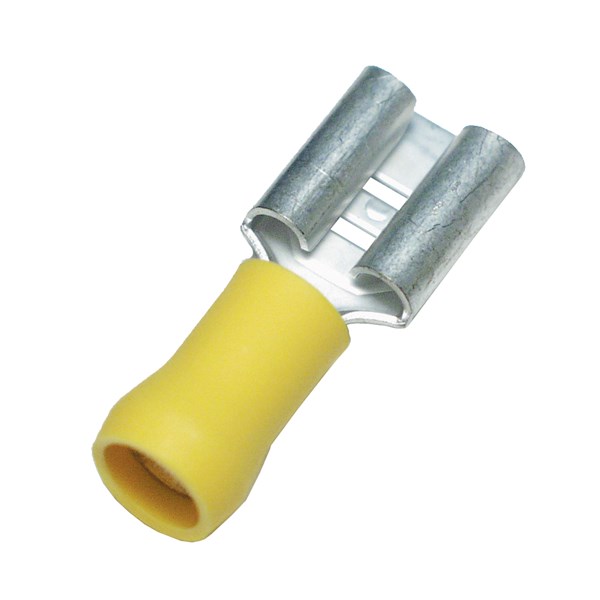

Tab female disconnects A-series
Long copper sleeve
Receptacles with suffix “BR” are made
in bronze, not brass.
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 8 A, 10 A, 15 A, 24 A
- Insulation:
- Partially isolated
- Colour insulation:
- Yellow, Red, Blue
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -25-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- No
- Packaging:
- Loose piece
Show more
Item List
- Total: 12
- Total: 12
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_A-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 12
| Product Description | ID | L | N | W | MOQ | Unit | Nominal cross section | AWG-range | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED RECEPTACLE YELLOW, 2.8x0.5mm | 2.2 mm | 16.4 mm | 8 mm | 2.8 mm | 100 . | pcs | 0.14-0.5 mm² | Flat 2.8x0.5 mm |
Yes
|
|
|
|
| INSULATED RECEPTACLE YELLOW, 2.8x0.8mm | 2.2 mm | 16.4 mm | 8 mm | 2.8 mm | 100 . | pcs | 0.14-0.5 mm² | Flat 2.8x0.8 mm |
Yes
|
|
|
|
| INSULATED RECEPTACLE RED, 2.8x0.5mm | 3.5 mm | 17.9 mm | 9.5 mm | 2.8 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 2.8x0.5 mm |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 2.8x0.8mm | 3.5 mm | 17.9 mm | 9.5 mm | 2.8 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 2.8x0.8 mm |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 4.8x0.5mm | 3.5 mm | 18.7 mm | 9.5 mm | 4.8 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 4.8x0.5 mm |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 4.8x0.8mm | 3.5 mm | 18.7 mm | 9.5 mm | 4.8 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 4.8x0.8 mm |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 6.3x0.8mm | 3.5 mm | 21 mm | 9.5 mm | 6.3 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 6.3x0.8 mm |
Yes
|
|
|
| INSULATED RECEPTACLE BLUE, 4.8x0.5mm | 4.3 mm | 18.7 mm | 9.5 mm | 4.8 mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Flat 4.8x0.5 mm |
Yes
|
|
|
| INSULATED RECEPTACLE BLUE, 4.8x0.8mm | 4.3 mm | 18.7 mm | 9.5 mm | 4.8 mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Flat 4.8x0.8 mm |
Yes
|
|
|
| INSULATED RECEPTACLE BLUE, 6.3x0.8mm | 4.3 mm | 20.5 mm | 9.5 mm | 6.3 mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Flat 6.3x0.8 mm |
Yes
|
|
|
| INSULATED RECEPTACLE YELLOW, 6.3x0.8mm | 6.2 mm | 24.5 mm | 13.5 mm | 6.3 mm | 100 . | pcs | 2.63-6.64 mm² | 12-10 . | Flat 6.3x0.8 mm |
Yes
|
|
|
| INSULATED RECEPTACLE YELLOW, 9.5x1.1mm | 6.2 mm | 29.2 mm | 13.5 mm | 9.5 mm | 100 . | pcs | 2.63-6.64 mm² | 12-10 . | Flat 9.5x1.2 mm |
Yes
|
|
|
- Total: 12
Similar Options
Approvals
- Total: 12
| Product Description | UL-File No. | Approved according to CE | Approved according to CSA | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED RECEPTACLE YELLOW, 2.8x0.5mm | E70188 |
|
|
|
|
Yes
|
|
|
| INSULATED RECEPTACLE YELLOW, 2.8x0.8mm | E70188 |
|
|
|
|
Yes
|
|
|
| INSULATED RECEPTACLE RED, 2.8x0.5mm | E70188 |
|
|
|
|
Yes
|
|
|
| INSULATED RECEPTACLE RED, 2.8x0.8mm | E70188 |
|
|
|
|
Yes
|
|
|
| INSULATED RECEPTACLE RED, 4.8x0.5mm | E70188 |
|
|
|
|
Yes
|
|
|
| INSULATED RECEPTACLE RED, 4.8x0.8mm | E70188 |
|
|
|
|
Yes
|
|
|
| INSULATED RECEPTACLE RED, 6.3x0.8mm | E70188 |
|
|
|
|
Yes
|
|
|
| INSULATED RECEPTACLE BLUE, 4.8x0.5mm | E70188 |
|
|
|
|
Yes
|
|
|
| INSULATED RECEPTACLE BLUE, 4.8x0.8mm | E70188 |
|
|
|
|
Yes
|
|
|
| INSULATED RECEPTACLE BLUE, 6.3x0.8mm | E70188 |
|
|
|
|
Yes
|
|
|
| INSULATED RECEPTACLE YELLOW, 6.3x0.8mm | E70188 |
|
|
|
|
Yes
|
|
|
| INSULATED RECEPTACLE YELLOW, 9.5x1.1mm | E70188 |
|
|
|
|
Yes
|
|
|
- Total: 12
Technical Properties
- Total: 12
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED RECEPTACLE YELLOW, 2.8x0.5mm | Yes | Yes | Bushing | 8 A | Partially isolated | Yellow | No | No | Polyvinyl chloride (PVC) | According to UL94V0 | -25-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| INSULATED RECEPTACLE YELLOW, 2.8x0.8mm | Yes | Yes | Bushing | 8 A | Partially isolated | Yellow | No | No | Polyvinyl chloride (PVC) | According to UL94V0 | -25-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 2.8x0.5mm | Yes | Yes | Bushing | 10 A | Partially isolated | Red | No | No | Polyvinyl chloride (PVC) | According to UL94V0 | -25-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 2.8x0.8mm | Yes | Yes | Bushing | 10 A | Partially isolated | Red | No | No | Polyvinyl chloride (PVC) | According to UL94V0 | -25-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 4.8x0.5mm | Yes | Yes | Bushing | 15 A | Partially isolated | Red | No | No | Polyvinyl chloride (PVC) | According to UL94V0 | -25-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 4.8x0.8mm | Yes | Yes | Bushing | 15 A | Partially isolated | Red | No | No | Polyvinyl chloride (PVC) | According to UL94V0 | -25-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 6.3x0.8mm | Yes | Yes | Bushing | 10 A | Partially isolated | Red | No | No | Polyvinyl chloride (PVC) | According to UL94V0 | -25-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| INSULATED RECEPTACLE BLUE, 4.8x0.5mm | Yes | Yes | Bushing | 15 A | Partially isolated | Blue | No | No | Polyvinyl chloride (PVC) | According to UL94V0 | -25-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| INSULATED RECEPTACLE BLUE, 4.8x0.8mm | Yes | Yes | Bushing | 15 A | Partially isolated | Blue | No | No | Polyvinyl chloride (PVC) | According to UL94V0 | -25-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| INSULATED RECEPTACLE BLUE, 6.3x0.8mm | Yes | Yes | Bushing | 15 A | Partially isolated | Blue | No | No | Polyvinyl chloride (PVC) | According to UL94V0 | -25-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| INSULATED RECEPTACLE YELLOW, 6.3x0.8mm | Yes | Yes | Bushing | 24 A | Partially isolated | Yellow | No | No | Polyvinyl chloride (PVC) | According to UL94V0 | -25-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
| INSULATED RECEPTACLE YELLOW, 9.5x1.1mm | Yes | Yes | Bushing | 24 A | Partially isolated | Yellow | No | No | Polyvinyl chloride (PVC) | According to UL94V0 | -25-75 °C | Brass | 300V | No | Loose piece |
Yes
|
|
|
- Total: 12
Other information
- Total: 12
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED RECEPTACLE YELLOW, 2.8x0.5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - PVC | JST, 19918700 , FVDDF0.5-110A-5 (LF) | A0103FL-5 |
Yes
|
|
|
| INSULATED RECEPTACLE YELLOW, 2.8x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - PVC | JST, 19919600 , FVDDF0.5-110A-8 (LF) | A0103FL-8 |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 2.8x0.5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - PVC | JST, 19867700 , FVDDF1.25-110A-5 (LF | A0503FL-5 |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 2.8x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - PVC | JST, 19919600 , FVDDF1.25-110A-8 (LF | A0503FL-8 |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 4.8x0.5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - PVC | JST, 19851200 , FVDDF1.25-187A-5 (LF | A1504FL-5 |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 4.8x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - PVC | JST, 19852200 , FVDDF1.25-187A-8 (LF | A1504FL-8 |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - PVC | JST, 19854200 , FVDDF1.25-250A (LF) | A1507FL |
Yes
|
|
|
| INSULATED RECEPTACLE BLUE, 4.8x0.5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - PVC | JST, 19880230 , FVDDF2-187A-5 | A2504FL-5 |
Yes
|
|
|
| INSULATED RECEPTACLE BLUE, 4.8x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - PVC | JST, 19754500 , FVDDF2-187A-8 (S) K | A2504FL-8 |
Yes
|
|
|
| INSULATED RECEPTACLE BLUE, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - PVC | JST, 19935400 , FVDDF2-250A (LF) | A2507FL |
Yes
|
|
|
| INSULATED RECEPTACLE YELLOW, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - PVC | JST, 19936300 , FVDDF5.5-250A (LF) | A4607FL |
Yes
|
|
|
| INSULATED RECEPTACLE YELLOW, 9.5x1.1mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - PVC | JST, 19938700 , FVDDF5.5-375A (LF) | A4609FL |
Yes
|
|
|
- Total: 12
