360 view
A 2507 H PL-PP10

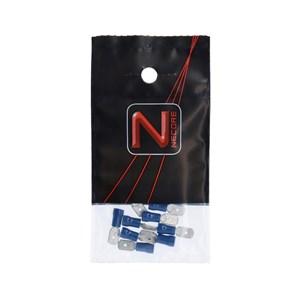

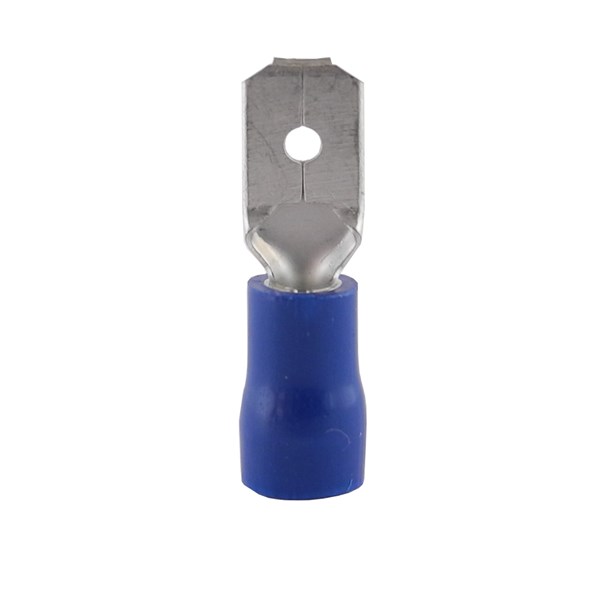

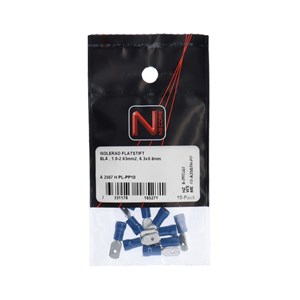

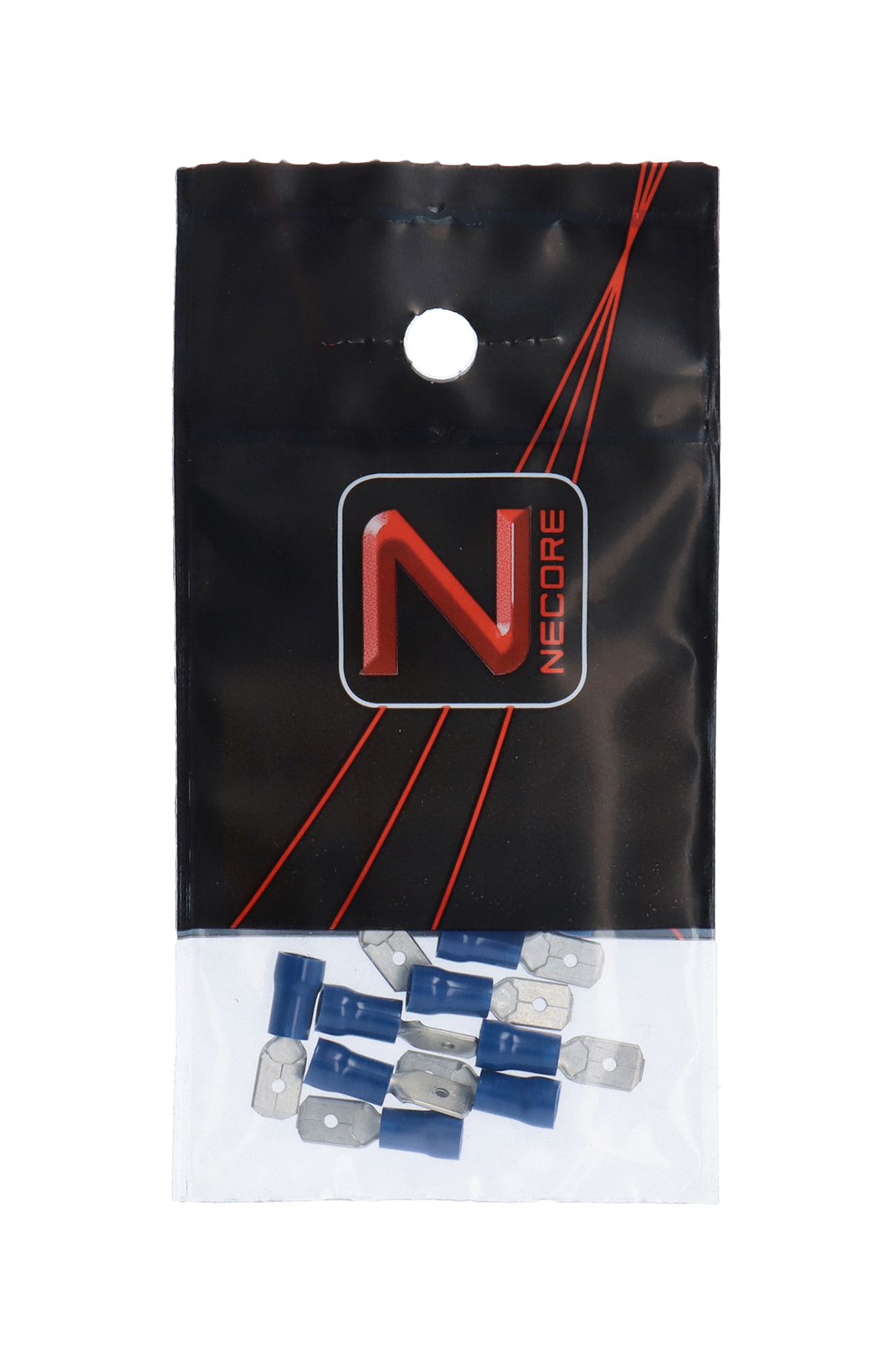

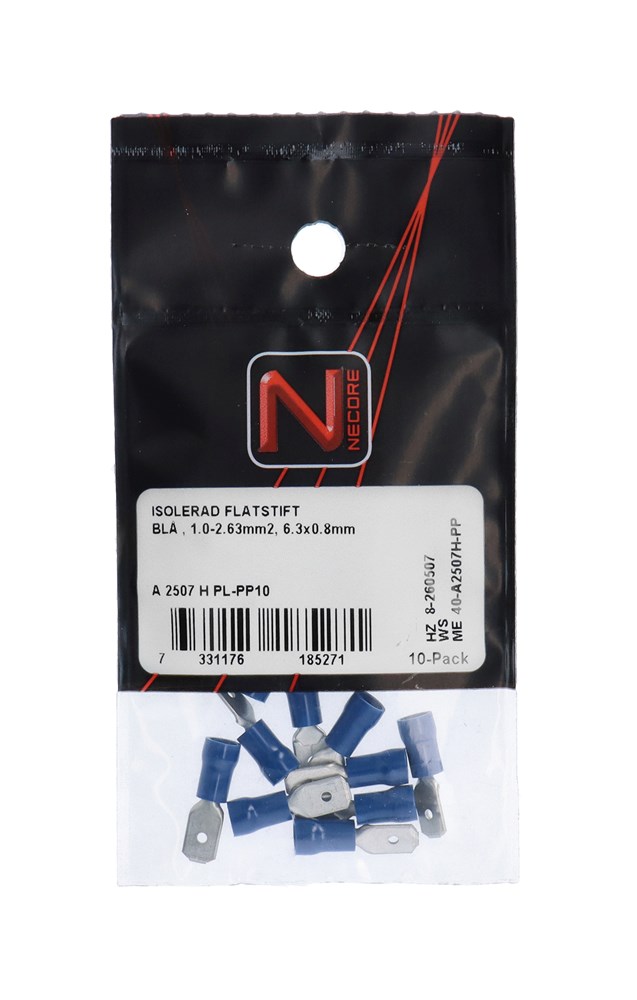

INSULATED TAB BLUE, 6.3x0.8mm, 10-PACK
A 2507 H PL-PP10
- Availability:
-
Yes
- Total: 1
Related items
Flatstift i Konsumentförpackning (PVC)
Ett stort urval av kabelskor(isolerade, oisolerade, rör, plåt & limkabelskor) förpackade i påse(Pin-Pac) med eurohål och streckkod, ett perfekt koncept för återförsäljare med butik.
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | Plug |
| Max. current (Imax) | 15 A |
| Insulation | Partially isolated |
| Colour insulation | Blue |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyvinyl chloride (PVC) |
| Fire classification | According to UL94V0 |
| Operating temperature | -40-75 °C |
| Material | Brass |
| Voltage max | 300V |
| Packaging | Bag |
Dimensions
| MOQ | 10 . |
|---|---|
| Unit | pck |
| Nominal cross section | 1.04-2.63 mm² |
| AWG-range | 16-14 . |
| Plug dimensions | Flat 6.3x0.8 mm |
Logistics
| Barcode | 733117618527 |
|---|---|
| Country of origin | TW |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 10 . |
| Packaging | Bag |
| Stock code | A 2507 H PL-PP10 |
| Taric code | 85369010 |
| Unit | pck |
Approvals
| Approved according to CE | Yes |
|---|---|
| Inflammability class of insulation material according to with UL94 | V0 |
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Tab - Pin-pac bags |
| Alternative SKU | A2507HPL-PP10 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Contain no Iron or Steel |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
Genererate statement of compliance:
Accessories
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Generate Datasheet:
