360 view
C 16-13
C-SLEEVE CONNECTORS 150/95mm2
C 16-13
- Availability:
-
Yes
- Total: 1
Related items
Avgreningshylsor & skarvar för enledare
Avgreningshylsor
C-hylsor som passar till mångtrådiga och fåtrådiga ledare.
Material: 99.9% ren Cu
- Total: 1
E0825356.
Product Properties
| Suitable for Class 1 conductor | Yes |
|---|---|
| Suitable for Class 2 conductor | Yes |
| Suitable for solid cores | Yes |
| Max Temp | 150 °C |
| Surface protection | Bare |
| Material | Copper |

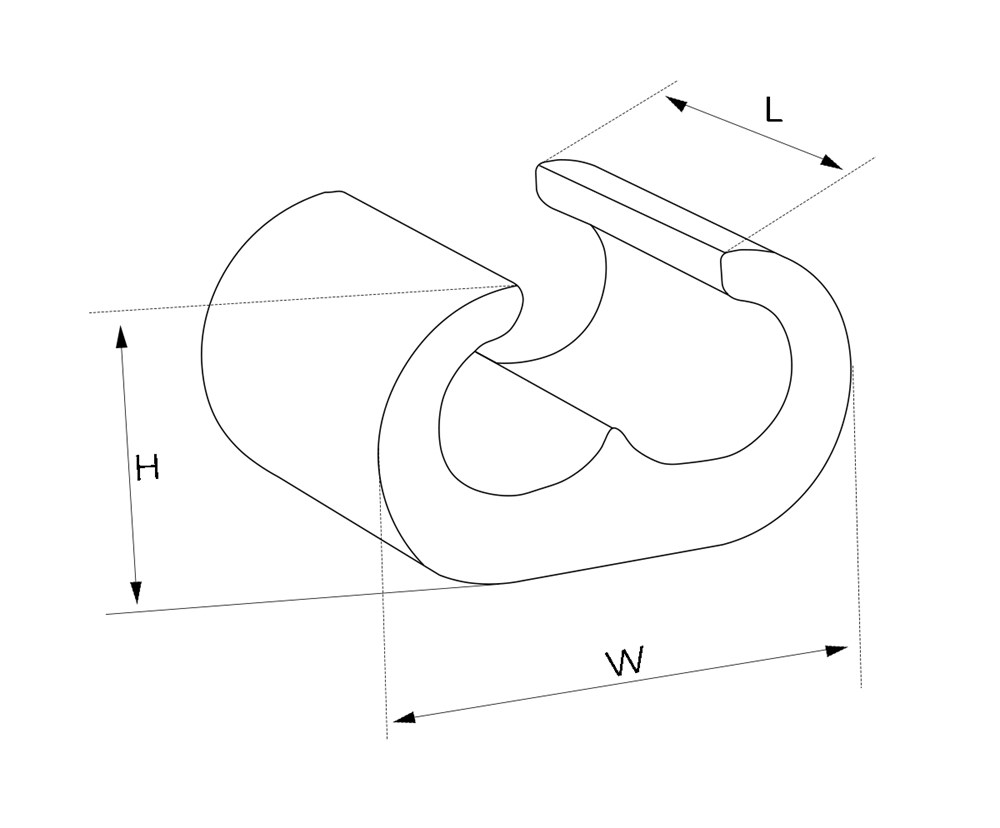

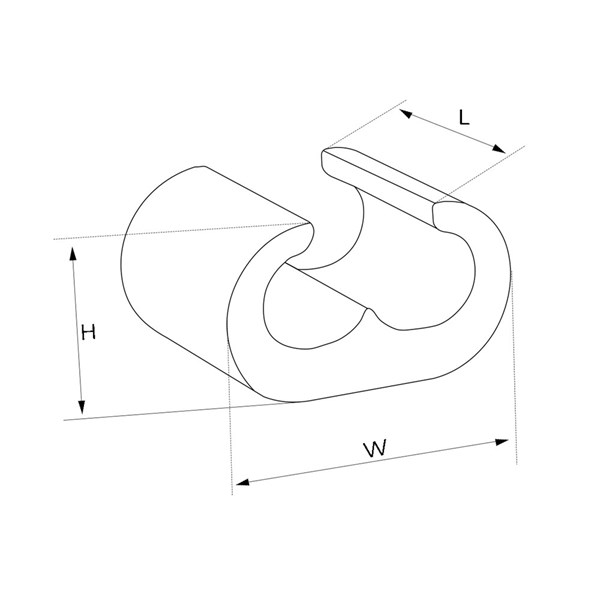

Dimensions
| H | 30 mm |
|---|---|
| L | 35 mm |
| W | 53 mm |
| MOQ | 10 . |
| Unit | pcs |
| Cross section through-wiring core | 150 mm² |
| Cross section branch core | 95 mm² |
| Nominal cross section | 95-150 mm² |
| Length | 35 mm |
Logistics
| Barcode | 733117620039 |
|---|---|
| Country of origin | SE |
| E-no | E0825356. |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 10 . |
| Stock code | C 16-13 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC002290 - C-clamp for round wire |
|---|---|
| ETIM-Release | DYNAMIC |
| Trademark | Elpress |
| Product Group | Branch connectors |
| Alternative SKU | C16-13 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
