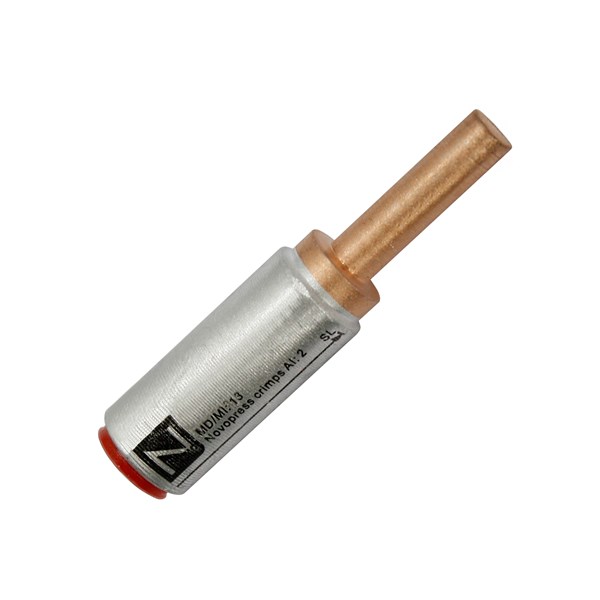

Aluminium-koppar pinnhylsor
AKP-series
Uninsulated terminals made in aluminium/copper
Technical properties
- Suitable for Class 1 conductor:
- Yes
- Suitable for Class 2 conductor:
- Yes
- For pull protected connections:
- No
- Voltage level:
- Other
- Oil stop/centre bar:
- Yes
- Cross section form:
- Round/sector-shaped
- Connection as copper bolt:
- Yes
- Suitable for Al/St-cables:
- No
- Suitable for Aldrey-cables:
- No
- Max Temp:
- 150 °C
- Surface protection:
- Untreated
- Material:
- Aluminium/copper
Show more
Item List
- Total: 11
- Total: 11
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_AK, AKK, AKP, AKS, AS

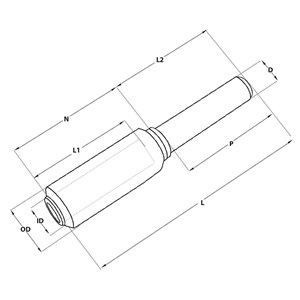

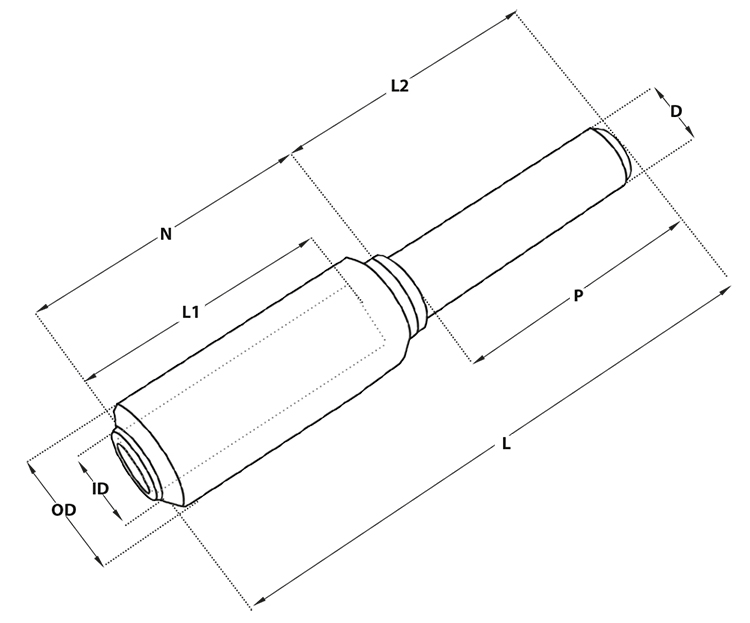

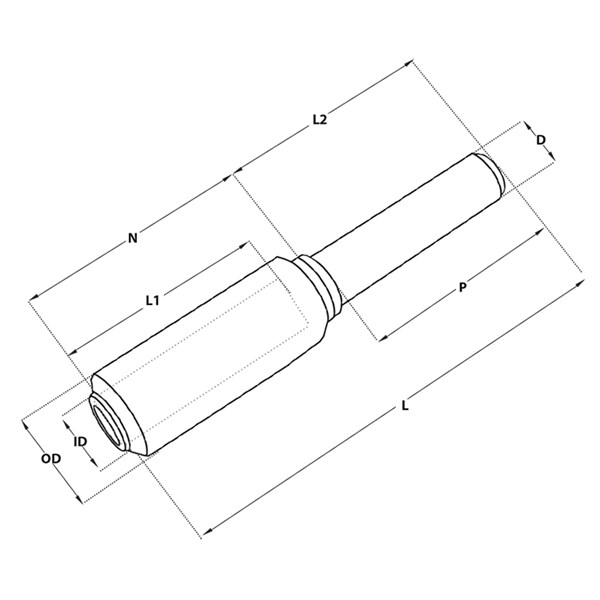

Dimensions
- Total: 11
| Product Description | D | ID | OD | P | L | L1 | L2 | N | MOQ | Unit | Nominal cross section aluminium, RM/SM | Nominal cross section aluminium, SE | Reduced Al nominal cross section | Nominal cross section Cu | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AL/CU BI-METAL PIN CONNECTOR 16mm2, AL13/5.8, CU8 | 6 mm | 5.9 mm | 13 mm | 22 mm | 56 mm | 26 mm | 25 mm | 31 mm | 10 . | pcs | 16 mm² | 25 mm² | 25 mm² | 16 mm² |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 25mm2, AL13/6.8, CU6 | 6 mm | 6.8 mm | 13 mm | 22 mm | 56 mm | 26 mm | 25 mm | 31 mm | 10 . | pcs | 25 mm² | 35 mm² | 35 mm² | 25 mm² |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 35mm2, AL20/8.5, CU12 | 9 mm | 8.5 mm | 20 mm | 25 mm | 78 mm | 43 mm | 28 mm | 50 mm | 5 . | pcs | 35 mm² | 50 mm² | 50 mm² | 35 mm² |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 50mm2, AL20/9.6, CU12 | 9 mm | 9.6 mm | 20 mm | 35 mm | 88 mm | 43 mm | 38 mm | 50 mm | 5 . | pcs | 50 mm² | 70 mm² | 70 mm² | 50 mm² |
No
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 70mm2, AL20/11.3, CU12 | 9 mm | 11.3 mm | 20 mm | 35 mm | 88 mm | 43 mm | 38 mm | 50 mm | 5 . | pcs | 70 mm² | 95 mm² | 95 mm² | 70 mm² |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 95mm2, AL25/13, CU14 | 12 mm | 13 mm | 25 mm | 35 mm | 103 mm | 59 mm | 38 mm | 65 mm | 5 . | pcs | 95 mm² | 120 mm² | 120 mm² | 95 mm² |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 120mm2, AL25/14, CU14 | 12 mm | 14 mm | 25 mm | 40 mm | 108 mm | 59 mm | 43 mm | 65 mm | 5 . | pcs | 120 mm² | 150 mm² | 150 mm² | 120 mm² |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 150mm2, AL25/15.8, CU14 | 12 mm | 15.8 mm | 25 mm | 40 mm | 108 mm | 59 mm | 43 mm | 65 mm | 5 . | pcs | 150 mm² | 185 mm² | 185 mm² | 150 mm² |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 185mm2, AL32/17.6, CU14 | 14 mm | 17.6 mm | 32 mm | 45 mm | 114 mm | 59 mm | 48 mm | 66 mm | 5 . | pcs | 185 mm² | 240 mm² | 240 mm² | 185 mm² |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 240mm2, AL32/19.9, CU14 | 14 mm | 19.9 mm | 32 mm | 45 mm | 114 mm | 59 mm | 48 mm | 66 mm | 5 . | pcs | 240 mm² | 300 mm² | 300 mm² | 240 mm² |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 300mm2, AL36/22, CU18 | 16 mm | 22 mm | 36 mm | 50 mm | 142 mm | 80 mm | 53 mm | 89 mm | 5 . | pcs | 300 mm² | 400 mm² | 400 mm² | 300 mm² |
Yes
|
|
|
- Total: 11
Similar Options
Approvals
- Total: 11
- Total: 11
Technical Properties
- Total: 11
| Product Description | Suitable for Class 1 conductor | Suitable for Class 2 conductor | For pull protected connections | Voltage level | Oil stop/centre bar | Cross section form | Connection as copper bolt | Suitable for Al/St-cables | Suitable for Aldrey-cables | Max Temp | Surface protection | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AL/CU BI-METAL PIN CONNECTOR 16mm2, AL13/5.8, CU8 | Yes | Yes | No | Other | Yes | Round/sector-shaped | Yes | No | No | 150 °C | Untreated | Aluminium/copper |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 25mm2, AL13/6.8, CU6 | Yes | Yes | No | Other | Yes | Round/sector-shaped | Yes | No | No | 150 °C | Untreated | Aluminium/copper |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 35mm2, AL20/8.5, CU12 | Yes | Yes | No | Other | Yes | Round/sector-shaped | Yes | No | No | 150 °C | Untreated | Aluminium/copper |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 50mm2, AL20/9.6, CU12 | Yes | Yes | No | Other | Yes | Round/sector-shaped | Yes | No | No | 150 °C | Untreated | Aluminium/copper |
No
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 70mm2, AL20/11.3, CU12 | Yes | Yes | No | Other | Yes | Round/sector-shaped | Yes | No | No | 150 °C | Untreated | Aluminium/copper |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 95mm2, AL25/13, CU14 | Yes | Yes | No | Other | Yes | Round/sector-shaped | Yes | No | No | 150 °C | Untreated | Aluminium/copper |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 120mm2, AL25/14, CU14 | Yes | Yes | No | Other | Yes | Round/sector-shaped | Yes | No | No | 150 °C | Untreated | Aluminium/copper |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 150mm2, AL25/15.8, CU14 | Yes | Yes | No | Other | Yes | Round/sector-shaped | Yes | No | No | 150 °C | Untreated | Aluminium/copper |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 185mm2, AL32/17.6, CU14 | Yes | Yes | No | Other | Yes | Round/sector-shaped | Yes | No | No | 150 °C | Untreated | Aluminium/copper |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 240mm2, AL32/19.9, CU14 | Yes | Yes | No | Other | Yes | Round/sector-shaped | Yes | No | No | 150 °C | Untreated | Aluminium/copper |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 300mm2, AL36/22, CU18 | Yes | Yes | No | Other | Yes | Round/sector-shaped | Yes | No | No | 150 °C | Untreated | Aluminium/copper |
Yes
|
|
|
- Total: 11
Other information
- Total: 11
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| AL/CU BI-METAL PIN CONNECTOR 16mm2, AL13/5.8, CU8 | EC001060 - Crimp splices for aluminium conductor | 9.0 |
|
AL/CU Bi-metal pin connectors (AKP) | AKP16 |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 25mm2, AL13/6.8, CU6 | EC001060 - Crimp splices for aluminium conductor | 9.0 |
|
AL/CU Bi-metal pin connectors (AKP) | AKP25 |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 35mm2, AL20/8.5, CU12 | EC001060 - Crimp splices for aluminium conductor | 9.0 |
|
AL/CU Bi-metal pin connectors (AKP) | AKP35 |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 50mm2, AL20/9.6, CU12 | EC001060 - Crimp splices for aluminium conductor | 9.0 |
|
AL/CU Bi-metal pin connectors (AKP) | AKP50 |
No
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 70mm2, AL20/11.3, CU12 | EC001060 - Crimp splices for aluminium conductor | 9.0 |
|
AL/CU Bi-metal pin connectors (AKP) | AKP70 |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 95mm2, AL25/13, CU14 | EC001060 - Crimp splices for aluminium conductor | 9.0 |
|
AL/CU Bi-metal pin connectors (AKP) | AKP95 |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 120mm2, AL25/14, CU14 | EC001060 - Crimp splices for aluminium conductor | 9.0 |
|
AL/CU Bi-metal pin connectors (AKP) | AKP120 |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 150mm2, AL25/15.8, CU14 | EC001060 - Crimp splices for aluminium conductor | 9.0 |
|
AL/CU Bi-metal pin connectors (AKP) | AKP150 |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 185mm2, AL32/17.6, CU14 | EC001060 - Crimp splices for aluminium conductor | 9.0 |
|
AL/CU Bi-metal pin connectors (AKP) | AKP185 |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 240mm2, AL32/19.9, CU14 | EC001060 - Crimp splices for aluminium conductor | 9.0 |
|
AL/CU Bi-metal pin connectors (AKP) | AKP240 |
Yes
|
|
|
| AL/CU BI-METAL PIN CONNECTOR 300mm2, AL36/22, CU18 | EC001060 - Crimp splices for aluminium conductor | 9.0 |
|
AL/CU Bi-metal pin connectors (AKP) | AKP300 |
Yes
|
|
|
- Total: 11
