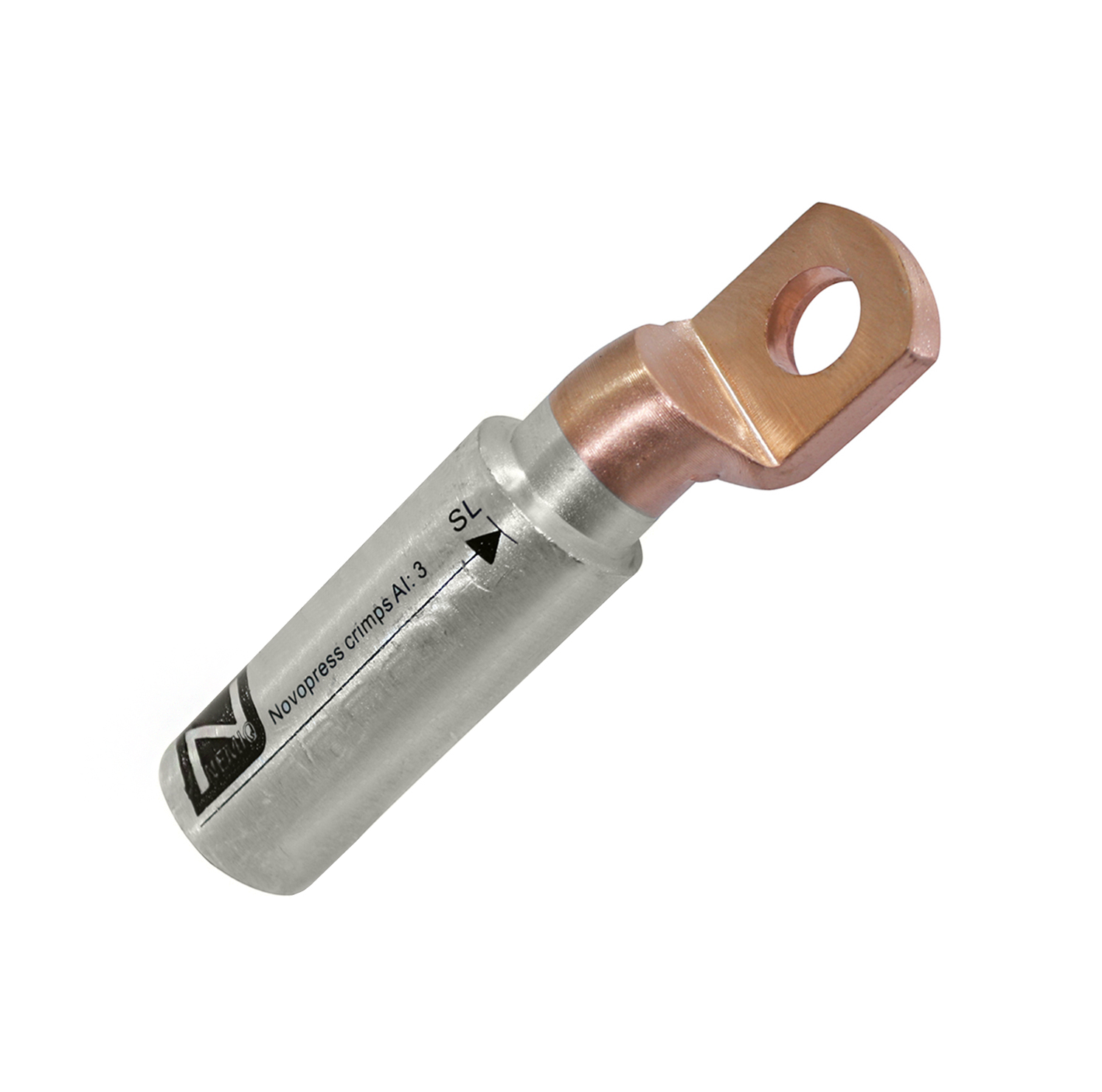

Aluminium copper lugs
AKK-series
Uninsulated terminals made in aluminium/copper
Technical properties
- Suitable for Class 1 conductor:
- Yes
- Suitable for Class 2 conductor:
- Yes
- Number of mounting holes:
- 0 ., 1 .
- Code digit:
- 60 ., 25 ., 32 ., 13 ., 20 ., 40 ., 36 .
- According to DIN:
- No
- Sleeve form:
- Long
- Cross section form:
- Round
- Suitable for Al/St-cables:
- No
- Longitudinal sealed:
- Yes
- Max Temp:
- 150 °C
- Colour:
- Other
- Surface protection:
- Untreated
- Material:
- Aluminium/copper
Show more
Item List
- Total: 52
- Total: 52
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_AK, AKK, AKP, AKS, AS

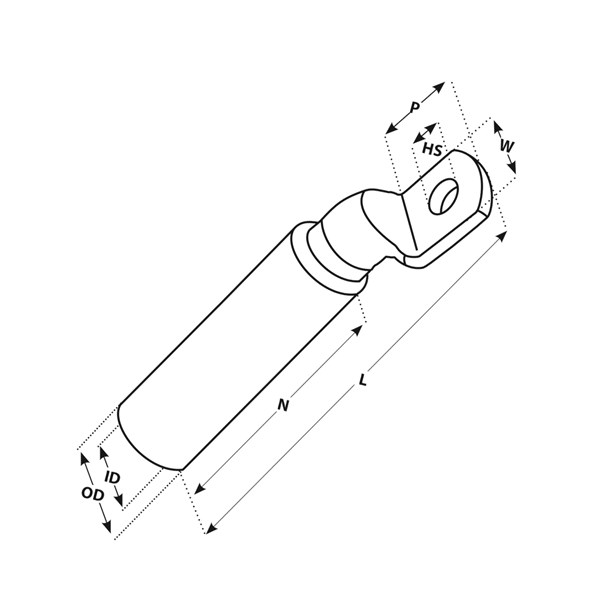

Dimensions
- Total: 52
| Product Description | HS | ID | OD | P | L | N | W | MOQ | Unit | Bolt dimension (metric) | Nominal cross section aluminium, RM/SM | Nominal cross section aluminium, SE | St nominal cross section | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AC/CU BI-METAL CABLE LUG 16mm2, M8 | 8.5 mm | 6 mm | 13 mm | 18.5 mm | 66 mm | 39 mm | 16 mm | 10 . | pcs | 8 . | 16 mm² | 25 mm² | 0 N/A | 16 mm² |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 25mm2, M8, AL13/6.8 | 8 mm | 6 mm | 13 mm | 30 mm | 29 mm | 10 . | pcs | 8 . | 25 mm² | 35 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 25mm2, M10, AL13/6.8 | 10 mm | 6 mm | 13 mm | 31 mm | 29 mm | 10 . | pcs | 10 . | 25 mm² | 35 mm² | 0 N/A |
Yes
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 25mm2, M10, AL13/6.8 | 10 mm | 6 mm | 13 mm | 31 mm | 29 mm | 10 . | pcs | 10 . | 25 mm² | 35 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 25mm2, M12, AL13/6.8 | 12 mm | 6 mm | 13 mm | 31 mm | 29 mm | 10 . | pcs | 12 . | 25 mm² | 35 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 35mm2, M8, AL20/8.5 | 8 mm | 7 mm | 20 mm | 45 mm | 45 mm | 5 . | pcs | 8 . | 35 mm² | 50 mm² | 0 N/A |
Yes
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 35mm2, M12, AL20/8.5 | 12 mm | 7 mm | 20 mm | 44 mm | 45 mm | 5 . | pcs | 12 . | 35 mm² | 50 mm² | 0 N/A |
Yes
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 35mm2, M12, AL20/8.5 | 12 mm | 7 mm | 20 mm | 44 mm | 45 mm | 5 . | pcs | 12 . | 35 mm² | 50 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 50mm2, M8, AL20/9.6 | 8 mm | 9 mm | 20 mm | 74 mm | 45 mm | 5 . | pcs | 8 . | 50 mm² | 70 mm² | 0 N/A |
Yes
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 50mm2, M8, AL20/9.6 | 8 mm | 9 mm | 20 mm | 74 mm | 45 mm | 5 . | pcs | 8 . | 50 mm² | 70 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 50mm2, M10, AL20/9.6 | 10 mm | 9 mm | 20 mm | 25 mm | 83 mm | 45 mm | 25 mm | 5 . | pcs | 10 . | 50 mm² | 70 mm² | 0 N/A |
No
|
|
|
|
| AC/CU BI-METAL CABLE LUG 50mm2, M10, AL20/9.6 | 10 mm | 9 mm | 20 mm | 25 mm | 83 mm | 45 mm | 25 mm | 5 . | pcs | 10 . | 50 mm² | 70 mm² | 0 N/A |
Yes
|
|
|
|
| AC/CU BI-METAL CABLE LUG 50mm2, M12, AL20/9.6 | 12 mm | 9 mm | 20 mm | 25 mm | 87 mm | 45 mm | 25 mm | 5 . | pcs | 12 . | 50 mm² | 70 mm² | 0 N/A |
Yes
|
|
|
|
| AC/CU BI-METAL CABLE LUG 70mm2, M8, AL20/11.3 | 8 mm | 11 mm | 20 mm | 74 mm | 45 mm | 5 . | pcs | 8 . | 70 mm² | 95 mm² | 0 N/A |
Yes
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 70mm2, M8, AL20/11.3 | 8 mm | 11 mm | 20 mm | 74 mm | 45 mm | 5 . | pcs | 8 . | 70 mm² | 95 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 70mm2, M10, AL20/11.3 | 10 mm | 11 mm | 20 mm | 25 mm | 81 mm | 45 mm | 25 mm | 5 . | pcs | 10 . | 70 mm² | 95 mm² | 0 N/A |
Yes
|
|
|
|
| AC/CU BI-METAL CABLE LUG 70mm2, M12, AL20/11.3 | 13 mm | 11 mm | 20 mm | 86 mm | 45 mm | 5 . | pcs | 12 . | 70 mm² | 95 mm² | 0 N/A |
Yes
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 70mm2, M12, AL20/11.3 | 13 mm | 11 mm | 20 mm | 86 mm | 45 mm | 5 . | pcs | 12 . | 70 mm² | 95 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 95mm2, M10, AL25/13 | 10 mm | 13 mm | 25 mm | 25 mm | 111 mm | 60 mm | 25 mm | 5 . | pcs | 10 . | 95 mm² | 120 mm² | 0 N/A |
Yes
|
|
|
|
| AC/CU BI-METAL CABLE LUG 95mm2, M12, AL25/13 | 12 mm | 13 mm | 25 mm | 26 mm | 108 mm | 60 mm | 25 mm | 5 . | pcs | 12 . | 95 mm² | 120 mm² | 0 N/A |
Yes
|
|
|
|
| AC/CU BI-METAL CABLE LUG 95mm2, M16, AL25/13 | 16 mm | 13 mm | 25 mm | 106 mm | 60 mm | 5 . | pcs | 16 . | 95 mm² | 120 mm² | 0 N/A |
Yes
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 95mm2, M16, AL25/13 | 16 mm | 13 mm | 25 mm | 106 mm | 60 mm | 5 . | pcs | 16 . | 95 mm² | 120 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 120mm2, M10, AL25/14 | 10 mm | 14 mm | 25 mm | 109 mm | 60 mm | 5 . | pcs | 10 . | 120 mm² | 150 mm² | 0 N/A |
Yes
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 120mm2, M10, AL25/14 | 10 mm | 14 mm | 25 mm | 109 mm | 60 mm | 5 . | pcs | 10 . | 120 mm² | 150 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 120mm2, M12, AL25/14 | 12 mm | 14 mm | 25 mm | 25 mm | 109 mm | 60 mm | 25 mm | 5 . | pcs | 12 . | 120 mm² | 150 mm² | 0 N/A |
Yes
|
|
|
|
| AC/CU BI-METAL CABLE LUG 120mm2, M16, AL25/14 | 13 mm | 14 mm | 25 mm | 109 mm | 60 mm | 5 . | pcs | 16 . | 120 mm² | 150 mm² | 0 N/A |
Yes
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 120mm2, M16, AL25/14 | 13 mm | 14 mm | 25 mm | 109 mm | 60 mm | 5 . | pcs | 16 . | 120 mm² | 150 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 150mm2, M10, AL25/15.8 | 10 mm | 16 mm | 25 mm | 109 mm | 60 mm | 5 . | pcs | 10 . | 150 mm² | 185 mm² | 0 N/A |
Yes
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 150mm2, M10, AL25/15.8 | 10 mm | 16 mm | 25 mm | 109 mm | 60 mm | 5 . | pcs | 10 . | 150 mm² | 185 mm² | 0 N/A |
Yes
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 150mm2, M12, AL25/15.8 | 12 mm | 16 mm | 25 mm | 25 mm | 108 mm | 60 mm | 25 mm | 5 . | pcs | 12 . | 150 mm² | 185 mm² | 0 N/A |
Yes
|
|
|
|
| AC/CU BI-METAL CABLE LUG 150mm2, 14mm, AL25/15.8 | 14 mm | 16 mm | 25 mm | 109 mm | 60 mm | 5 . | pcs | 14 . | 150 mm² | 185 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 150mm2, M16, AL25/15.8 | 17 mm | 16 mm | 25 mm | 109 mm | 60 mm | 5 . | pcs | 16 . | 150 mm² | 185 mm² | 0 N/A |
Yes
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 150mm2, M16, AL25/15.8 | 17 mm | 16 mm | 25 mm | 109 mm | 60 mm | 5 . | pcs | 16 . | 150 mm² | 185 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 185mm2, M12, AL32/17.6 | 12 mm | 17 mm | 32 mm | 30 mm | 109 mm | 60 mm | 30 mm | 5 . | pcs | 12 . | 185 mm² | 240 mm² | 0 N/A |
Yes
|
|
|
|
| AC/CU BI-METAL CABLE LUG 185mm2, M16, AL32/17.6 | 16 mm | 17 mm | 32 mm | 109 mm | 60 mm | 5 . | pcs | 16 . | 185 mm² | 240 mm² | 0 N/A |
Yes
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 185mm2, M16, AL32/17.6 | 16 mm | 17 mm | 32 mm | 109 mm | 60 mm | 5 . | pcs | 16 . | 185 mm² | 240 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 240mm2, M12, AL32/19.9 | 20 mm | 32 mm | 60 mm | 5 . | pcs | 12 . | 240 mm² | 0 N/A | 185 mm² |
No
|
|
|
|||||
| AC/CU BI-METAL CABLE LUG 240mm2, M12, AL32/19.9 | 12 mm | 20 mm | 32 mm | 30 mm | 59 mm | 60 mm | 30 mm | 5 . | pcs | 12 . | 240 mm² | 0 N/A |
No
|
|
|
||
| AC/CU BI-METAL CABLE LUG 240mm2, M16, AL32/19.9 | 16 mm | 20 mm | 32 mm | 59 mm | 60 mm | 5 . | pcs | 16 . | 240 mm² | 300 mm² | 0 N/A |
Yes
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 240mm2, M16, AL32/19.9 | 16 mm | 20 mm | 32 mm | 59 mm | 60 mm | 5 . | pcs | 16 . | 240 mm² | 300 mm² | 0 N/A |
Yes
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 300mm2, M16, AL36/22 | 16 mm | 20 mm | 36 mm | 37 mm | 85 mm | 83 mm | 37 mm | 5 . | pcs | 16 . | 300 mm² | 400 mm² | 0 N/A |
Yes
|
|
|
|
| AC/CU BI-METAL CABLE LUG 300mm2, M20, AL36/22 | 20 mm | 20 mm | 36 mm | 85 mm | 83 mm | 5 . | pcs | 20 . | 300 mm² | 400 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 400mm2, M16, AL40/25 | 16 mm | 24 mm | 40 mm | 83 mm | 83 mm | 5 . | pcs | 16 . | 400 mm² | 500 mm² | 0 N/A |
Yes
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 400mm2, M16, AL40/25 | 16 mm | 24 mm | 40 mm | 83 mm | 83 mm | 5 . | pcs | 16 . | 400 mm² | 500 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 400mm2, M20, AL40/25 | 20 mm | 25 mm | 40 mm | 86 mm | 83 mm | 5 . | pcs | 20 . | 400 mm² | 500 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 500mm2, M16, AL40/28 | 16 mm | 28 mm | 40 mm | 144 mm | 83 mm | 1 . | pcs | 16 . | 500 mm² | 630 mm² | 0 N/A |
Yes
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 500mm2, M16, AL40/28 | 16 mm | 28 mm | 40 mm | 144 mm | 83 mm | 1 . | pcs | 16 . | 500 mm² | 630 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 500mm2, M20, AL40/28 | 20 mm | 28 mm | 40 mm | 144 mm | 83 mm | 1 . | pcs | 20 . | 500 mm² | 630 mm² | 0 N/A |
No
|
|
|
|||
| AC/CU BI-METAL CABLE LUG 500mm2, 60x60mm, AL40/28 | 28 mm | 40 mm | 183 mm | 83 mm | 1 . | pcs | 0 . | 500 mm² | 630 mm² | 0 N/A |
Yes
|
|
|
||||
| AC/CU BI-METAL CABLE LUG 630mm2, 60x60mm | 32 mm | 47 mm | 200 mm | 97 mm | 1 . | pcs | 0 . | 630 mm² | 800 mm² | 0 N/A |
Yes
|
|
|
||||
| AC/CU BI-METAL CABLE LUG 630mm2, 60x60mm | 32 mm | 60 mm | 232 mm | 128 mm | 1 . | pcs | 0 . | 630 mm² | 800 mm² | 0 N/A |
Yes
|
|
|
||||
| AC/CU BI-METAL CABLE LUG 1000mm2, 80x80mm | 41 mm | 60 mm | 265 mm | 133 mm | 1 . | pcs | 0 . | 1000 mm² | 1200 mm² | 0 N/A |
Yes
|
|
|
- Total: 52
Similar Options
Approvals
- Total: 52
- Total: 52
Technical Properties
- Total: 52
| Product Description | Suitable for Class 1 conductor | Suitable for Class 2 conductor | Number of mounting holes | Code digit | According to DIN | Sleeve form | Cross section form | Suitable for Al/St-cables | Longitudinal sealed | Max Temp | Colour | Surface protection | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AC/CU BI-METAL CABLE LUG 16mm2, M8 | Yes | Yes | 1 . | 13 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 25mm2, M8, AL13/6.8 | Yes | Yes | 1 . | 13 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 25mm2, M10, AL13/6.8 | Yes | Yes | 1 . | 13 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 25mm2, M10, AL13/6.8 | Yes | Yes | 1 . | 13 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 25mm2, M12, AL13/6.8 | Yes | Yes | 1 . | 13 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 35mm2, M8, AL20/8.5 | Yes | Yes | 1 . | 20 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 35mm2, M12, AL20/8.5 | Yes | Yes | 1 . | 20 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 35mm2, M12, AL20/8.5 | Yes | Yes | 1 . | 20 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 50mm2, M8, AL20/9.6 | Yes | Yes | 1 . | 20 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 50mm2, M8, AL20/9.6 | Yes | Yes | 1 . | 20 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 50mm2, M10, AL20/9.6 | Yes | Yes | 1 . | 20 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 50mm2, M10, AL20/9.6 | Yes | Yes | 1 . | 20 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 50mm2, M12, AL20/9.6 | Yes | Yes | 1 . | 20 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 70mm2, M8, AL20/11.3 | Yes | Yes | 1 . | 20 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 70mm2, M8, AL20/11.3 | Yes | Yes | 1 . | 20 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 70mm2, M10, AL20/11.3 | Yes | Yes | 1 . | 20 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 70mm2, M12, AL20/11.3 | Yes | Yes | 1 . | 20 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 70mm2, M12, AL20/11.3 | Yes | Yes | 1 . | 20 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 95mm2, M10, AL25/13 | Yes | Yes | 1 . | 25 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 95mm2, M12, AL25/13 | Yes | Yes | 1 . | 25 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 95mm2, M16, AL25/13 | Yes | Yes | 1 . | 25 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 95mm2, M16, AL25/13 | Yes | Yes | 1 . | 25 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 120mm2, M10, AL25/14 | Yes | Yes | 1 . | 25 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 120mm2, M10, AL25/14 | Yes | Yes | 1 . | 25 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 120mm2, M12, AL25/14 | Yes | Yes | 1 . | 25 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 120mm2, M16, AL25/14 | Yes | Yes | 1 . | 25 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 120mm2, M16, AL25/14 | Yes | Yes | 1 . | 25 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 150mm2, M10, AL25/15.8 | Yes | Yes | 1 . | 25 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 150mm2, M10, AL25/15.8 | Yes | Yes | 1 . | 25 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 150mm2, M12, AL25/15.8 | Yes | Yes | 1 . | 25 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 150mm2, 14mm, AL25/15.8 | Yes | Yes | 1 . | 25 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 150mm2, M16, AL25/15.8 | Yes | Yes | 1 . | 25 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 150mm2, M16, AL25/15.8 | Yes | Yes | 1 . | 25 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 185mm2, M12, AL32/17.6 | Yes | Yes | 1 . | 32 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 185mm2, M16, AL32/17.6 | Yes | Yes | 1 . | 32 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 185mm2, M16, AL32/17.6 | Yes | Yes | 1 . | 32 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 240mm2, M12, AL32/19.9 | Yes | Yes | 1 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
|
| AC/CU BI-METAL CABLE LUG 240mm2, M12, AL32/19.9 | Yes | Yes | 1 . | 32 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 240mm2, M16, AL32/19.9 | Yes | Yes | 1 . | 32 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 240mm2, M16, AL32/19.9 | Yes | Yes | 1 . | 32 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 300mm2, M16, AL36/22 | Yes | Yes | 1 . | 36 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 300mm2, M20, AL36/22 | Yes | Yes | 1 . | 36 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 400mm2, M16, AL40/25 | Yes | Yes | 1 . | 40 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 400mm2, M16, AL40/25 | Yes | Yes | 1 . | 40 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 400mm2, M20, AL40/25 | Yes | Yes | 1 . | 40 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 500mm2, M16, AL40/28 | Yes | Yes | 1 . | 40 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 500mm2, M16, AL40/28 | Yes | Yes | 1 . | 40 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 500mm2, M20, AL40/28 | Yes | Yes | 1 . | 40 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 500mm2, 60x60mm, AL40/28 | Yes | Yes | 1 . | 40 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 630mm2, 60x60mm | Yes | Yes | 0 . | 60 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 630mm2, 60x60mm | Yes | Yes | 0 . | 60 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 1000mm2, 80x80mm | Yes | Yes | 0 . | 60 . | No | Long | Round | No | Yes | 150 °C | Other | Untreated | Aluminium/copper |
Yes
|
|
|
- Total: 52
Other information
- Total: 52
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| AC/CU BI-METAL CABLE LUG 16mm2, M8 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK16-8-N |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 25mm2, M8, AL13/6.8 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK25-8-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 25mm2, M10, AL13/6.8 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK25-10 |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 25mm2, M10, AL13/6.8 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK25-10-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 25mm2, M12, AL13/6.8 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK25-12-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 35mm2, M8, AL20/8.5 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK35-8-N |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 35mm2, M12, AL20/8.5 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK35-12 |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 35mm2, M12, AL20/8.5 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK35-12-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 50mm2, M8, AL20/9.6 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK50-8 |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 50mm2, M8, AL20/9.6 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK50-8-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 50mm2, M10, AL20/9.6 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK50-10 |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 50mm2, M10, AL20/9.6 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK50-10-N |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 50mm2, M12, AL20/9.6 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK50-12-N |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 70mm2, M8, AL20/11.3 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK70-8 |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 70mm2, M8, AL20/11.3 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK70-8-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 70mm2, M10, AL20/11.3 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK70-10-N |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 70mm2, M12, AL20/11.3 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK70-12 |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 70mm2, M12, AL20/11.3 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK70-12-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 95mm2, M10, AL25/13 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK95-10-N |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 95mm2, M12, AL25/13 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK95-12-N |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 95mm2, M16, AL25/13 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK95-16 |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 95mm2, M16, AL25/13 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK95-16-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 120mm2, M10, AL25/14 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK120-10 |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 120mm2, M10, AL25/14 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK120-10-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 120mm2, M12, AL25/14 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK120-12-N |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 120mm2, M16, AL25/14 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK120-16 |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 120mm2, M16, AL25/14 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK120-16-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 150mm2, M10, AL25/15.8 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK150-10 |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 150mm2, M10, AL25/15.8 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK150-10-N |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 150mm2, M12, AL25/15.8 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK150-12-N |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 150mm2, 14mm, AL25/15.8 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK150-14-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 150mm2, M16, AL25/15.8 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK150-16 |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 150mm2, M16, AL25/15.8 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK150-16-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 185mm2, M12, AL32/17.6 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK185-12-N |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 185mm2, M16, AL32/17.6 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK185-16 |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 185mm2, M16, AL32/17.6 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK185-16-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 240mm2, M12, AL32/19.9 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK240-10-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 240mm2, M12, AL32/19.9 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK240-12-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 240mm2, M16, AL32/19.9 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK240-16 |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 240mm2, M16, AL32/19.9 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK240-16-N |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 300mm2, M16, AL36/22 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK300-16-N |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 300mm2, M20, AL36/22 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK300-20-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 400mm2, M16, AL40/25 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK400-16 |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 400mm2, M16, AL40/25 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK400-16-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 400mm2, M20, AL40/25 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK400-20-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 500mm2, M16, AL40/28 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK500-16 |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 500mm2, M16, AL40/28 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK500-16-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 500mm2, M20, AL40/28 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK500-20-N |
No
|
|
|
| AC/CU BI-METAL CABLE LUG 500mm2, 60x60mm, AL40/28 | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK500YD40 |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 630mm2, 60x60mm | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK630UTANHÅL |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 630mm2, 60x60mm | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK630YD60 |
Yes
|
|
|
| AC/CU BI-METAL CABLE LUG 1000mm2, 80x80mm | EC001053 - Crimp cable lug for aluminium conductors | 9.0 |
|
AL/CU Bi-metal cable lugs (AKK) | AKK1000YD60 |
Yes
|
|
|
- Total: 52
Back to top
Do you need help finding the right product or other advice contact us.
