Jordningshylsor för skärmad kabel
RSK-serien

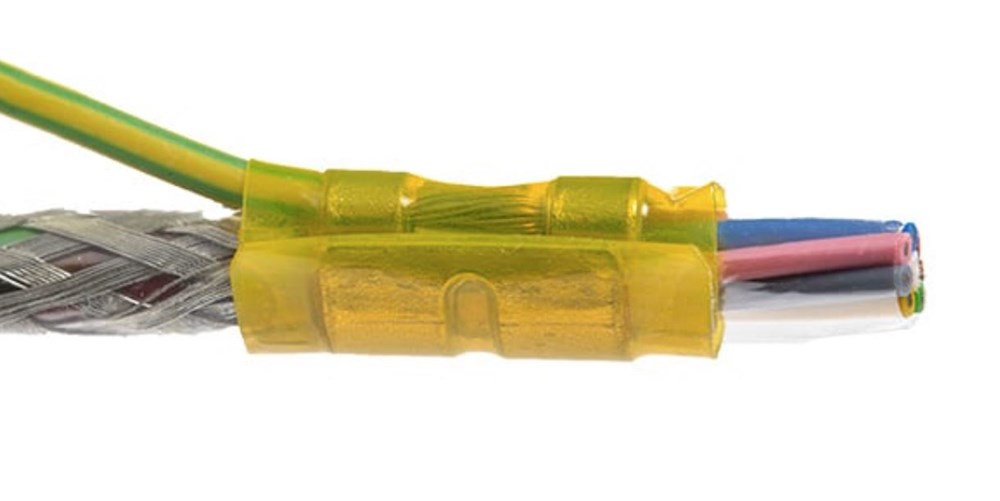

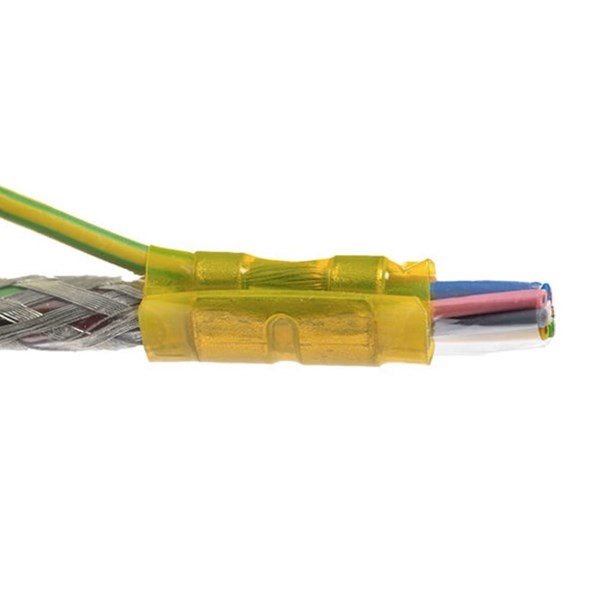

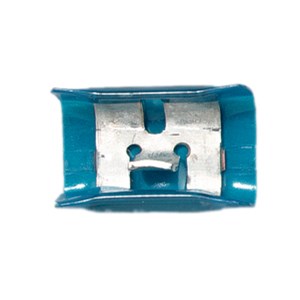

Shield-Kon jordningshylsor för skärmad kabel.
Utvecklad för att möta krav där låg storlek och vikt är av stor betydelse. Möter kraven enligt MIL-F-21608.

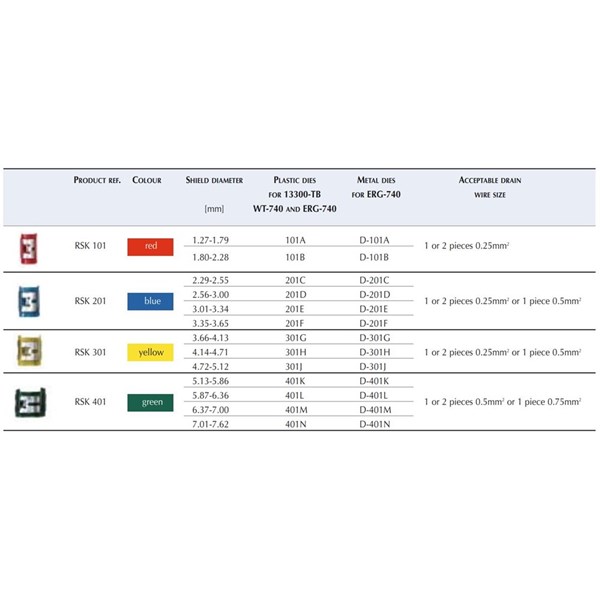

Finns i 4 storlekar för skärmdiameter från 1.27-7.62 mm.
Material: Koppar
Plättering: Elektro-plätterad tenn enligt MIL-T-10727A
Isolering: Polyester
Temperaturområde: -65º C till +125º C
Technical properties
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Shield-Kon catalog TnB ABB
Dimensions
- Total: 4
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| One-Piece Grounding Connector RED | 100 . | pcs |
Yes
|
|
|
| One-Piece Grounding Connector BLUE | 1000 . | pcs |
Yes
|
|
|
| One-Piece Grounding Connector YELLOW | 100 . | pcs |
Yes
|
|
|
| One-Piece Grounding Connector GREEN | 500 . | pcs |
No
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
| Product Description | Availability | ||
|---|---|---|---|
| One-Piece Grounding Connector RED |
Yes
|
|
|
| One-Piece Grounding Connector BLUE |
Yes
|
|
|
| One-Piece Grounding Connector YELLOW |
Yes
|
|
|
| One-Piece Grounding Connector GREEN |
No
|
|
|
- Total: 4
Technical Properties
- Total: 4
| Product Description | Availability | ||
|---|---|---|---|
| One-Piece Grounding Connector RED |
Yes
|
|
|
| One-Piece Grounding Connector BLUE |
Yes
|
|
|
| One-Piece Grounding Connector YELLOW |
Yes
|
|
|
| One-Piece Grounding Connector GREEN |
No
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| One-Piece Grounding Connector RED | EC002020 - Shield connection clamp | 9.0 |
|
Shield grounding connectors | RSK101, 7TCI029060R0026 | RSK101 |
Yes
|
|
|
| One-Piece Grounding Connector BLUE | EC002020 - Shield connection clamp | 9.0 |
|
Shield grounding connectors | RSK201, 7TCI029060R0027 | RSK201 |
Yes
|
|
|
| One-Piece Grounding Connector YELLOW | EC002020 - Shield connection clamp | 9.0 |
|
Shield grounding connectors | RSK301, 7TCI029060R0029 | RSK301 |
Yes
|
|
|
| One-Piece Grounding Connector GREEN | EC002020 - Shield connection clamp | 9.0 |
|
Shield grounding connectors | RSK401, 7TCI029060R0031 | RSK401 |
No
|
|
|
- Total: 4
