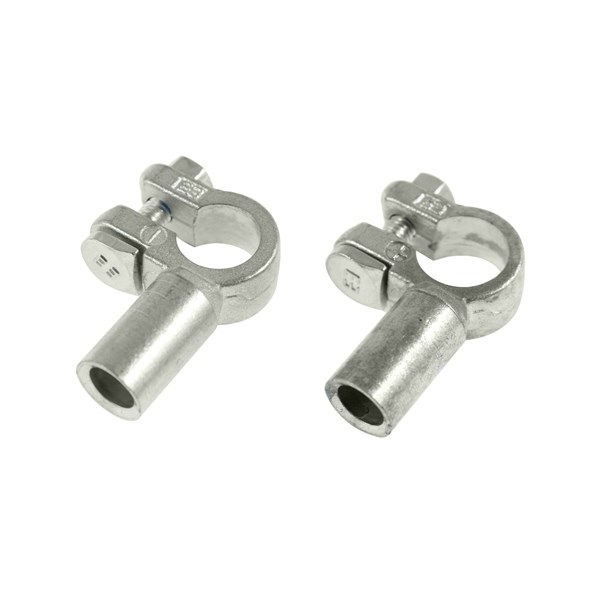

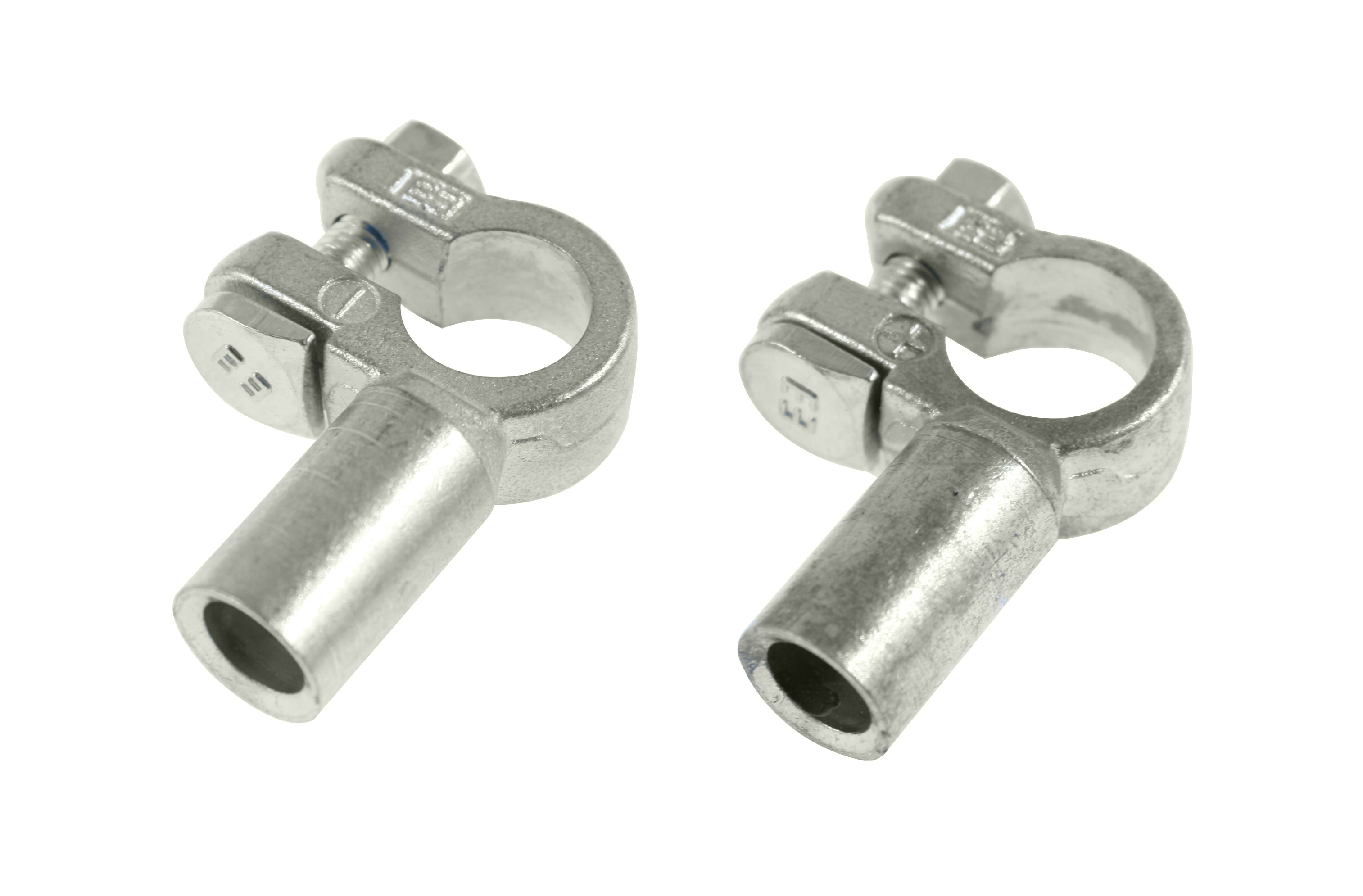

Angled Battery terminal, crimping
BTCx-serien Batterikabelsko i förtent mässing.
Högervinklade (från kabeln sett): BTCR 25 M TP (-) / BTCR 25 P TP (+): 25 mm²
Pressas med pressback: NH 10-12
Backmärkning: 12 BTCR 35 M TP (-) / BTCR 35 M TP (+): 35 mm²
Pressas med pressback: AHE 5070
Backmärkning: CU50/AL35 BTCR 50 M TP (-): 50 mm²
Pressas med pressback: AHE 5070
Backmärkning: CU70/AL50 BTCR 70 M TP (-) / BTCR 70 P TP (+): 70 mm²
Pressas med pressback: AHE 95120
Backmärkning: CU95/AL70
Vänstervinklade (från kabeln sett): BTCL 25 M TP (-) / BTCL 25 P TP (+): 25 mm²
Pressas med pressback: NH 10-12
Backmärkning: 12 BTCL 35 M TP (-) / BTCL 35 P TP (+): 35 mm²
Pressas med pressback: AHE 5070
Backmärkning: CU50/AL35 BTCL 70 M TP (-) / BTCL 70 P TP (+): 70 mm²
Pressas med pressback: AHE 95120
Backmärkning: CU95/AL70
Technical properties
- Type of accessory/spare part:
- Battery terminal
- Insulated:
- No
- Surface protection:
- Tinned
- Cable connection type:
- Kontaktpressning
- Connection around pole:
- Skruvförband
- Packaging:
- Loose piece
- Accessory:
- Yes
- Spare part:
- No
Show more
Item List
- Total: 20
- Total: 20
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 20
- Total: 20
Similar Options
Approvals
- Total: 20
- Total: 20
Technical Properties
- Total: 20
| Product Description | Type of accessory/spare part | Insulated | Surface protection | Cable connection type | Connection around pole | Packaging | Accessory | Spare part | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| BATTERY TERMINAL (-) 50 mm2, LEFT, FT | Battery terminal | No | Tinned | Kontaktpressning | Skruvförband | Loose piece | Yes | No |
Yes
|
|
|
| BATTERY TERMINAL (+) 50 mm2, LEFT, FT | Battery terminal | No | Tinned | Kontaktpressning | Skruvförband | Loose piece | Yes | No |
Yes
|
|
|
| BATTERY TERMINAL (+) 50 mm2, RIGHT, FT | Battery terminal | No | Tinned | Kontaktpressning | Skruvförband | Loose piece | Yes | No |
Yes
|
|
|
| BATTERY TERMINAL (-) 25 mm2, LEFT, FT | Battery terminal | No | Tinned | Kontaktpressning | Skruvförband | Loose piece | Yes | No |
Yes
|
|
|
| BATTERY TERMINAL (+) 25 mm2, LEFT, FT | Battery terminal | No | Tinned | Kontaktpressning | Skruvförband | Loose piece | Yes | No |
Yes
|
|
|
| BATTERY TERMINAL (-) 35 mm2, LEFT, FT | Battery terminal | No | Tinned | Kontaktpressning | Skruvförband | Loose piece | Yes | No |
Yes
|
|
|
| BATTERY TERMINAL (+) 35 mm2, LEFT, FT | Battery terminal | No | Tinned | Kontaktpressning | Skruvförband | Loose piece | Yes | No |
Yes
|
|
|
| BATTERY TERMINAL (-) 70 mm2, LEFT, FT. ID=11.2mm | Battery terminal | No | Tinned | Kontaktpressning | Skruvförband | Loose piece | Yes | No |
Yes
|
|
|
| BATTERY TERMINAL (+) 70 mm2, LEFT, FT. ID=11.2mm | Battery terminal | No | Tinned | Kontaktpressning | Skruvförband | Loose piece | Yes | No |
Yes
|
|
|
| BATTERY TERMINAL (-) 70 mm2, LEFT, FT. ID=12mm | Battery terminal | No | Yes | No |
No
|
|
|
||||
| BATTERY TERMINAL (+) 70 mm2, LEFT, FT. ID=12mm | Battery terminal | No | Yes | No |
No
|
|
|
||||
| BATTERY TERMINAL (-) 25 mm2, RIGHT, FT | Battery terminal | No | Tinned | Kontaktpressning | Skruvförband | Loose piece | Yes | No |
Yes
|
|
|
| BATTERY TERMINAL (+) 25 mm2, RIGHT, FT | Battery terminal | No | Tinned | Kontaktpressning | Skruvförband | Loose piece | Yes | No |
Yes
|
|
|
| BATTERY TERMINAL (-) 35 mm2, RIGHT, FT | Battery terminal | No | Tinned | Kontaktpressning | Skruvförband | Loose piece | Yes | No |
Yes
|
|
|
| BATTERY TERMINAL (-) 70 mm2, RIGHT, FT | Battery terminal | No | Tinned | Kontaktpressning | Skruvförband | Loose piece | Yes | No |
Yes
|
|
|
| BATTERY TERMINAL (+) 35 mm2, RIGHT, FT | Battery terminal | No | Tinned | Kontaktpressning | Skruvförband | Loose piece | Yes | No |
Yes
|
|
|
| BATTERY TERMINAL (-) 50 mm2, RIGHT, FT | Battery terminal | No | Tinned | Kontaktpressning | Skruvförband | Loose piece | Yes | No |
Yes
|
|
|
| BATTERY TERMINAL (+) 70 mm2, RIGHT, FT | Battery terminal | No | Tinned | Kontaktpressning | Skruvförband | Loose piece | Yes | No |
Yes
|
|
|
| BATTERY TERMINAL (-) 70 mm2, RIGHT, FT | Battery terminal | No | Yes | No |
No
|
|
|
||||
| BATTERY TERMINAL (+) 70 mm2, RIGHT, FT | Battery terminal | No | Yes | No |
Yes
|
|
|
- Total: 20
Other information
- Total: 20
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| BATTERY TERMINAL (-) 50 mm2, LEFT, FT | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCL50MTP |
Yes
|
|
|
| BATTERY TERMINAL (+) 50 mm2, LEFT, FT | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCL50PTP |
Yes
|
|
|
| BATTERY TERMINAL (+) 50 mm2, RIGHT, FT | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCR50PTP |
Yes
|
|
|
| BATTERY TERMINAL (-) 25 mm2, LEFT, FT | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCL25MTP |
Yes
|
|
|
| BATTERY TERMINAL (+) 25 mm2, LEFT, FT | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCL25PTP |
Yes
|
|
|
| BATTERY TERMINAL (-) 35 mm2, LEFT, FT | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCL35MTP |
Yes
|
|
|
| BATTERY TERMINAL (+) 35 mm2, LEFT, FT | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCL35PTP |
Yes
|
|
|
| BATTERY TERMINAL (-) 70 mm2, LEFT, FT. ID=11.2mm | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCL70MTP |
Yes
|
|
|
| BATTERY TERMINAL (+) 70 mm2, LEFT, FT. ID=11.2mm | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCL70PTP |
Yes
|
|
|
| BATTERY TERMINAL (-) 70 mm2, LEFT, FT. ID=12mm | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCL70MTP-ID12 |
No
|
|
|
| BATTERY TERMINAL (+) 70 mm2, LEFT, FT. ID=12mm | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCL70PTP-ID12 |
No
|
|
|
| BATTERY TERMINAL (-) 25 mm2, RIGHT, FT | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCR25MTP |
Yes
|
|
|
| BATTERY TERMINAL (+) 25 mm2, RIGHT, FT | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCR25PTP |
Yes
|
|
|
| BATTERY TERMINAL (-) 35 mm2, RIGHT, FT | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCR35MTP |
Yes
|
|
|
| BATTERY TERMINAL (-) 70 mm2, RIGHT, FT | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCR70MTP |
Yes
|
|
|
| BATTERY TERMINAL (+) 35 mm2, RIGHT, FT | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCR35PTP |
Yes
|
|
|
| BATTERY TERMINAL (-) 50 mm2, RIGHT, FT | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCR50MTP |
Yes
|
|
|
| BATTERY TERMINAL (+) 70 mm2, RIGHT, FT | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCR70PTP |
Yes
|
|
|
| BATTERY TERMINAL (-) 70 mm2, RIGHT, FT | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCR70MTP-ID12 |
No
|
|
|
| BATTERY TERMINAL (+) 70 mm2, RIGHT, FT | EC002839 - Accessories/spare parts for battery/charger | DYNAMIC |
|
Battery Terminals - Crimping | BTCR70PTP-ID12 |
Yes
|
|
|
- Total: 20
