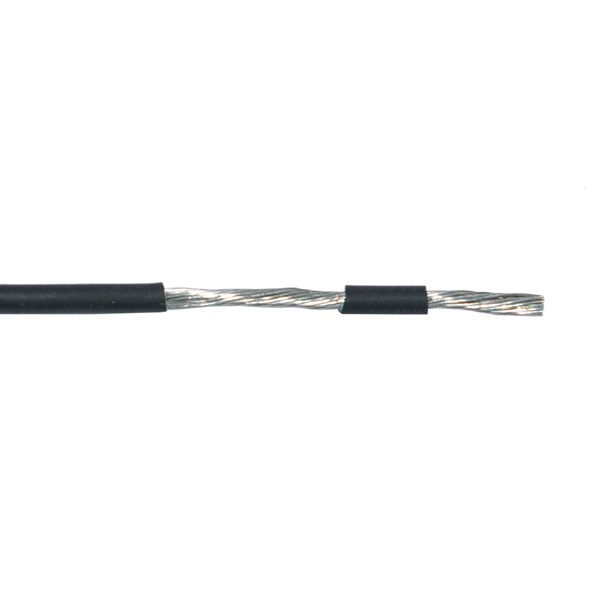

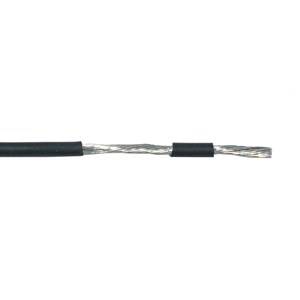

RADOX UL3266
Flexibel kopplingskabel för intern kabeldragning i lampor, uppvärmningsanordningar, elektriska maskiner, styr- och apparatskåp, samt inom byggnadsindustrin. Idealisk för installation inuti rör samt för utanpåliggande installation.
Mycket goda elektriska och mekaniska egenskaper. Brett temperaturområde samt hög tålighet mot oljor, ozon, hydrolys och mekanisk påverkan. Kopplingstråden är svårantändlig, vid brand utvecklas minimalt med rök och inga korrosiva gaser avges.
Technical properties
- Number of cores:
- 1 .
- Material core insulation:
- Polyolefin
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Blue, Brown, Yellow, Grey, Green, Orange, Red, Black, White, Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -40-125 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 125 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 300 V
- Halogen free:
- Yes, Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Brown, White, Blue, Green, Yellow, Orange, Red, Black, Grey, Purple
- Material insulation:
- Polyolefin (POE)
- Operating temperature:
- -40-125 °C
- Core colour:
- Blue, Brown, Yellow, Grey, Green, Purple, Orange, Red, Black, White
- Conductor surface:
- Tinned
- Packaging:
- Spool HS200, Spool HS151, Spool HS400
- Min. permitted bending radius, stationary application/permanent installation:
- 4.95 mm, 5.55 mm, 4.35 mm, 3.96 mm, 6.3 mm, 7.23 mm
Show more
Item List
- Total: 43
- Total: 43
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Dimensions
- Total: 43
- Total: 43
Similar Options
Approvals
- Total: 43
Product Description | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Approved according to CSA | With approval according to UL | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RADOX UL3266, AWG 16, BLACK SPOOL HS400, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
||
RADOX UL3271, AWG 18, GREEN/YELLOW SPOOL B5, 300V, HF, FT, 125C |
No
|
|
|
|||||||||||
RADOX UL3266, AWG 18, BLACK SPOOL HS151, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 18, RED SPOOL HS151, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 18, WHITE SPOOL B5, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 18, BROWN SPOOL HS151, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 18, BLACK BOBIN HS151, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 18, BRAUN BOBIN HS151, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 18, RED BOBIN HS151, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 18, WHITE BOBIN HS151, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 20, BLACK SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 20, RED SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 20, WHITE SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 20, BLUE SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 20, GREY SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 20, VIOLET SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 20, YELLOW SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 20, BROWN SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 20, ORANGE SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 20, GREEN SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 22, BLACK SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 22, RED SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 22, WHITE SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 22, BLUE SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 22, YELLOW SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 22, PURPLE SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 22, ORANGE SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 22, GREEN SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 22, GREY SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 22, BROWN SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 22, BROWN SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 24, WHITE SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 24, BLACK SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 24, RED SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 24, BLUE SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 24, PURPLE SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 24, ORANGE SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 24, YELLOW SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
No
|
|
|
RADOX UL3266, AWG 24, GREEN SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 24, GREY SPOOL B5, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 24, BROWN SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 26, BROWN SPOOL HS200, 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
RADOX UL3266, AWG 26, GREY 300V, HF, FT, 125C | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
|
|
Yes
|
|
|
- Total: 43
Technical Properties
- Total: 43
Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Packaging | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RADOX UL3266, AWG 16, BLACK SPOOL HS400, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | Yes | Class 5 = flexible | Black | Black | Tinned | Yes | Spool HS400 | 7.23 mm |
No
|
|
|
|||
RADOX UL3271, AWG 18, GREEN/YELLOW SPOOL B5, 300V, HF, FT, 125C |
No
|
|
|
|||||||||||||||||||||||||||||
RADOX UL3266, AWG 18, BLACK SPOOL HS151, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Black | Polyolefin (POE) | -40-125 °C | Black | Tinned | Yes | Spool HS151 | 6.3 mm |
Yes
|
|
|
RADOX UL3266, AWG 18, RED SPOOL HS151, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Red | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Red | Polyolefin (POE) | -40-125 °C | Red | Tinned | Yes | Spool HS151 | 6.3 mm |
Yes
|
|
|
RADOX UL3266, AWG 18, WHITE SPOOL B5, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | White | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | White | Polyolefin (POE) | -40-125 °C | White | Tinned | Yes | Spool HS151 | 6.3 mm |
Yes
|
|
|
RADOX UL3266, AWG 18, BROWN SPOOL HS151, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Brown | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Brown | Polyolefin (POE) | -40-125 °C | Brown | Tinned | Yes | Spool HS151 | 6.3 mm |
Yes
|
|
|
RADOX UL3266, AWG 18, BLACK BOBIN HS151, 300V, HF, FT, 125C | Polyolefin | None | No | None | Black | According to IEC/EN 60332-1-2 | Copper | No | N/A | None | N/A | No | Yes | Class 5 = flexible | Black | Polyolefin (POE) | Tinned | Yes | Spool HS151 |
No
|
|
|
||||||||||
RADOX UL3266, AWG 18, BRAUN BOBIN HS151, 300V, HF, FT, 125C | Polyolefin | None | No | None | Brown | According to IEC/EN 60332-1-2 | Copper | No | N/A | None | N/A | No | Yes | Class 5 = flexible | Brown | Polyolefin (POE) | Tinned | Yes | Spool HS151 |
No
|
|
|
||||||||||
RADOX UL3266, AWG 18, RED BOBIN HS151, 300V, HF, FT, 125C | Polyolefin | None | No | None | Red | According to IEC/EN 60332-1-2 | Copper | No | N/A | None | N/A | No | Yes | Class 5 = flexible | Red | Polyolefin (POE) | Tinned | Yes | Spool HS151 |
No
|
|
|
||||||||||
RADOX UL3266, AWG 18, WHITE BOBIN HS151, 300V, HF, FT, 125C | Polyolefin | None | No | None | White | According to IEC/EN 60332-1-2 | Copper | No | N/A | None | N/A | No | Yes | Class 5 = flexible | White | Polyolefin (POE) | Tinned | Yes | Spool HS151 |
No
|
|
|
||||||||||
RADOX UL3266, AWG 20, BLACK SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Black | Polyolefin (POE) | -40-125 °C | Black | Tinned | Yes | Spool HS200 | 5.55 mm |
No
|
|
|
RADOX UL3266, AWG 20, RED SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Red | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Red | Polyolefin (POE) | -40-125 °C | Red | Tinned | Yes | Spool HS200 | 5.55 mm |
No
|
|
|
RADOX UL3266, AWG 20, WHITE SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | White | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | White | Polyolefin (POE) | -40-125 °C | White | Tinned | Yes | Spool HS200 | 5.55 mm |
No
|
|
|
RADOX UL3266, AWG 20, BLUE SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Blue | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Blue | Polyolefin (POE) | -40-125 °C | Blue | Tinned | Yes | Spool HS200 | 5.55 mm |
No
|
|
|
RADOX UL3266, AWG 20, GREY SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Grey | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Grey | Polyolefin (POE) | -40-125 °C | Grey | Tinned | Yes | Spool HS200 | 5.55 mm |
Yes
|
|
|
RADOX UL3266, AWG 20, VIOLET SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Purple | Polyolefin (POE) | -40-125 °C | Purple | Tinned | Yes | Spool HS200 | 5.55 mm |
No
|
|
|
RADOX UL3266, AWG 20, YELLOW SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Yellow | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Yellow | Polyolefin (POE) | -40-125 °C | Yellow | Tinned | Yes | Spool HS200 | 5.55 mm |
Yes
|
|
|
RADOX UL3266, AWG 20, BROWN SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Brown | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Brown | Polyolefin (POE) | -40-125 °C | Brown | Tinned | Yes | Spool HS200 | 5.55 mm |
Yes
|
|
|
RADOX UL3266, AWG 20, ORANGE SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Orange | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Orange | Polyolefin (POE) | -40-125 °C | Orange | Tinned | Yes | Spool HS200 | 5.55 mm |
Yes
|
|
|
RADOX UL3266, AWG 20, GREEN SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Green | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Green | Polyolefin (POE) | -40-125 °C | Green | Tinned | Yes | Spool HS200 | 5.55 mm |
No
|
|
|
RADOX UL3266, AWG 22, BLACK SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Black | Polyolefin (POE) | -40-125 °C | Black | Tinned | Yes | Spool HS200 | 4.95 mm |
No
|
|
|
RADOX UL3266, AWG 22, RED SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Red | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Red | Polyolefin (POE) | -40-125 °C | Red | Tinned | Yes | Spool HS200 | 4.95 mm |
No
|
|
|
RADOX UL3266, AWG 22, WHITE SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | White | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | White | Polyolefin (POE) | -40-125 °C | White | Tinned | Yes | Spool HS200 | 4.95 mm |
No
|
|
|
RADOX UL3266, AWG 22, BLUE SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Blue | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Blue | Polyolefin (POE) | -40-125 °C | Blue | Tinned | Yes | Spool HS200 | 4.95 mm |
No
|
|
|
RADOX UL3266, AWG 22, YELLOW SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Yellow | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Yellow | Polyolefin (POE) | -40-125 °C | Yellow | Tinned | Yes | Spool HS200 | 4.95 mm |
No
|
|
|
RADOX UL3266, AWG 22, PURPLE SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Purple | Polyolefin (POE) | -40-125 °C | Purple | Tinned | Yes | Spool HS200 | 4.95 mm |
Yes
|
|
|
RADOX UL3266, AWG 22, ORANGE SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Orange | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Orange | Polyolefin (POE) | -40-125 °C | Orange | Tinned | Yes | Spool HS200 | 4.95 mm |
No
|
|
|
RADOX UL3266, AWG 22, GREEN SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Green | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Green | Polyolefin (POE) | -40-125 °C | Green | Tinned | Yes | Spool HS200 | 4.95 mm |
No
|
|
|
RADOX UL3266, AWG 22, GREY SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Grey | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Grey | Polyolefin (POE) | -40-125 °C | Grey | Tinned | Yes | Spool HS200 | 4.95 mm |
No
|
|
|
RADOX UL3266, AWG 22, BROWN SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Brown | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Brown | Polyolefin (POE) | -40-125 °C | Brown | Tinned | Yes | Spool HS200 | 4.95 mm |
Yes
|
|
|
RADOX UL3266, AWG 22, BROWN SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Brown | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Brown | Polyolefin (POE) | -40-125 °C | Brown | Tinned | Yes | Spool HS200 | 4.95 mm |
Yes
|
|
|
RADOX UL3266, AWG 24, WHITE SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | White | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | White | Polyolefin (POE) | -40-125 °C | White | Tinned | Yes | Spool HS200 | 4.35 mm |
No
|
|
|
RADOX UL3266, AWG 24, BLACK SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Black | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Black | Polyolefin (POE) | -40-125 °C | Black | Tinned | Yes | Spool HS200 | 4.35 mm |
No
|
|
|
RADOX UL3266, AWG 24, RED SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Red | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Red | Polyolefin (POE) | -40-125 °C | Red | Tinned | Yes | Spool HS200 | 4.35 mm |
Yes
|
|
|
RADOX UL3266, AWG 24, BLUE SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Blue | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Blue | Polyolefin (POE) | -40-125 °C | Blue | Tinned | Yes | Spool HS200 | 4.35 mm |
No
|
|
|
RADOX UL3266, AWG 24, PURPLE SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Purple | Polyolefin (POE) | -40-125 °C | Purple | Tinned | Yes | Spool HS200 | 4.35 mm |
Yes
|
|
|
RADOX UL3266, AWG 24, ORANGE SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Orange | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Orange | Polyolefin (POE) | -40-125 °C | Orange | Tinned | Yes | Spool HS200 | 4.35 mm |
Yes
|
|
|
RADOX UL3266, AWG 24, YELLOW SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Yellow | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Yellow | Polyolefin (POE) | -40-125 °C | Yellow | Tinned | Yes | Spool HS200 | 4.35 mm |
No
|
|
|
RADOX UL3266, AWG 24, GREEN SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Green | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Green | Polyolefin (POE) | -40-125 °C | Green | Tinned | Yes | Spool HS200 | 4.35 mm |
Yes
|
|
|
RADOX UL3266, AWG 24, GREY SPOOL B5, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Grey | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Grey | Polyolefin (POE) | -40-125 °C | Grey | Tinned | Yes | Spool HS200 | 4.35 mm |
Yes
|
|
|
RADOX UL3266, AWG 24, BROWN SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Brown | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Brown | Polyolefin (POE) | -40-125 °C | Brown | Tinned | Yes | Spool HS200 | 4.35 mm |
Yes
|
|
|
RADOX UL3266, AWG 26, BROWN SPOOL HS200, 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Brown | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Brown | Polyolefin (POE) | -40-125 °C | Brown | Tinned | Yes | Spool HS200 | 3.96 mm |
Yes
|
|
|
RADOX UL3266, AWG 26, GREY 300V, HF, FT, 125C | 1 . | Polyolefin | Other | None | No | None | Other | Grey | According to IEC/EN 60332-1-2 | -40-125 °C | Copper | No | 125 °C | No | N/A | None | N/A | No | 300 V | Yes | Class 5 = flexible | Grey | Polyolefin (POE) | -40-125 °C | Grey | Tinned | Yes | Spool HS200 | 3.96 mm |
Yes
|
|
|
- Total: 43
Other information
- Total: 43
Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
---|---|---|---|---|---|---|---|---|---|
RADOX UL3266, AWG 16, BLACK SPOOL HS400, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12565686-1000 |
No
|
|
|
RADOX UL3271, AWG 18, GREEN/YELLOW SPOOL B5, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12565700-1000 |
No
|
|
|
RADOX UL3266, AWG 18, BLACK SPOOL HS151, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12559821-300 |
Yes
|
|
|
RADOX UL3266, AWG 18, RED SPOOL HS151, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12565697-300 |
Yes
|
|
|
RADOX UL3266, AWG 18, WHITE SPOOL B5, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12565698-300 |
Yes
|
|
|
RADOX UL3266, AWG 18, BROWN SPOOL HS151, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12565695-300 |
Yes
|
|
|
RADOX UL3266, AWG 18, BLACK BOBIN HS151, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12559821-1000 |
No
|
|
|
RADOX UL3266, AWG 18, BRAUN BOBIN HS151, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12565695-1000 |
No
|
|
|
RADOX UL3266, AWG 18, RED BOBIN HS151, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12565697-1000 |
No
|
|
|
RADOX UL3266, AWG 18, WHITE BOBIN HS151, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12565698-1000 |
No
|
|
|
RADOX UL3266, AWG 20, BLACK SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12556835-1000 |
No
|
|
|
RADOX UL3266, AWG 20, RED SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12556833-1000 |
No
|
|
|
RADOX UL3266, AWG 20, WHITE SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12556828-1000 |
No
|
|
|
RADOX UL3266, AWG 20, BLUE SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12556829-1000 |
No
|
|
|
RADOX UL3266, AWG 20, GREY SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12556925-1000 |
Yes
|
|
|
RADOX UL3266, AWG 20, VIOLET SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12558898-1000 |
No
|
|
|
RADOX UL3266, AWG 20, YELLOW SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12556831-1000 |
Yes
|
|
|
RADOX UL3266, AWG 20, BROWN SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12556834-1000 |
Yes
|
|
|
RADOX UL3266, AWG 20, ORANGE SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12556832-1000 |
Yes
|
|
|
RADOX UL3266, AWG 20, GREEN SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12556830-1000 |
No
|
|
|
RADOX UL3266, AWG 22, BLACK SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12558493-1000 |
No
|
|
|
RADOX UL3266, AWG 22, RED SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12558494-1000 |
No
|
|
|
RADOX UL3266, AWG 22, WHITE SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12558498-1000 |
No
|
|
|
RADOX UL3266, AWG 22, BLUE SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12558496-1000 |
No
|
|
|
RADOX UL3266, AWG 22, YELLOW SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12557161-1000 |
No
|
|
|
RADOX UL3266, AWG 22, PURPLE SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12558497-1000 |
Yes
|
|
|
RADOX UL3266, AWG 22, ORANGE SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12558495-1000 |
No
|
|
|
RADOX UL3266, AWG 22, GREEN SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12559058-1000 |
No
|
|
|
RADOX UL3266, AWG 22, GREY SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12557321-1000 |
No
|
|
|
RADOX UL3266, AWG 22, BROWN SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12562263-1000 |
Yes
|
|
|
RADOX UL3266, AWG 22, BROWN SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12522885-1000 |
Yes
|
|
|
RADOX UL3266, AWG 24, WHITE SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12556856-1000 |
No
|
|
|
RADOX UL3266, AWG 24, BLACK SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12556850-1000 |
No
|
|
|
RADOX UL3266, AWG 24, RED SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12556852-1000 |
Yes
|
|
|
RADOX UL3266, AWG 24, BLUE SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12556855-1000 |
No
|
|
|
RADOX UL3266, AWG 24, PURPLE SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12557175-1000 |
Yes
|
|
|
RADOX UL3266, AWG 24, ORANGE SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12557517-1000 |
Yes
|
|
|
RADOX UL3266, AWG 24, YELLOW SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12556853-1000 |
No
|
|
|
RADOX UL3266, AWG 24, GREEN SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12556854-1000 |
Yes
|
|
|
RADOX UL3266, AWG 24, GREY SPOOL B5, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12558484-1000 |
Yes
|
|
|
RADOX UL3266, AWG 24, BROWN SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12556851-1000 |
Yes
|
|
|
RADOX UL3266, AWG 26, BROWN SPOOL HS200, 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12557567-1000 |
Yes
|
|
|
RADOX UL3266, AWG 26, GREY 300V, HF, FT, 125C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox, UL3266 | RXL UL3266 | 12557573-1000 |
Yes
|
|
|
- Total: 43
Back to top
Do you need help finding the right product or other advice contact us.
