050980

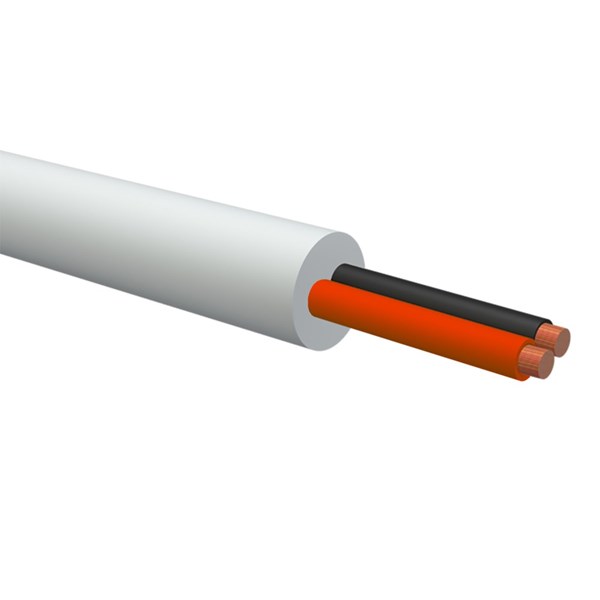

RKKB, 2x4.0mm2, GREY SPOOL B5, 60V, PVC, 70C, RED/BLACK

Sku

050980

Availability:
Yes
  • Total: 1
Product Description
RKKB - Spool
  • Total: 1
  • Total: 1

Related items

RKKB - Spool

  • Total: 1
Number of cores 2 .
Material core insulation Polyvinyl chloride (PVC)
Specification core insulation Other
Core identification Colour
Protective conductor No
Material outer sheath Polyvinyl chloride (PVC)
Specification material outer sheath Other
Colour outer sheath Other
Flame retardant According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration -30-70 °C
Conductor material Copper
Twisted cores No
Max. conductor temperature 70 °C
Screen No
Protective barrier N/A
Armouring/reinforcement None
Insulation integrity N/A
Drain wire No
Nominal voltage 60 V
Halogen free No
Conductor category Class 5 = flexible
Single insulated/Double insulated Double insulated
Colour Grey
Operating temperature -25-70 °C
Core colour Several
Conductor surface Bare
Packaging Reel B5
Min. permitted bending radius, stationary application/permanent installation 34.4 mm
Nominal cross section conductor 4 mm²
MOQ 100 .
Outer diameter approx. 8.6 mm
Min. permitted bending radius, stationary application/permanent installation 34.4 mm
Diameter conductor 4 mm
Unit m
Nominal voltage 60 V
Barcode 733117636439
Country of origin SE
Item status Stock item, normally in stock with reservation for in between sales.
MOQ 100 .
Packaging Reel B5
Stock code 050980
Taric code 85444991
Unit m
Reaction-to-fire according to EN 13501-6: Class N/A
Reaction-to-fire according to EN 13501-6: Smoke production N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles N/A
Reaction-to-fire according to EN 13501-6: Acidity N/A
Halogen free No
Low smoke (according to EN 61034-2) No
Low temperature resistant (according to EN 60811-504+505+506) No
Oil resistant according to EN IEC 60811-404 No
Flame retardant According to IEC/EN 60332-1-2
Approved according to CE Yes
ETIM-Class EC003248 - Power cable < 1 kV, for permanent installation
ETIM-Release 9.0
Trademark NEMIQ
Product Group Cable - RKKB, Multi-conductor, Red copper
Alternative SKU 050980
CA Proposition 65 No CA Prop65
Conflict Minerals N/A, Contains no conflict minerals
Extended Minerals N/A, contains no extended minerals
PFAS No PFAS
POPs No POPs
REACH No SVHC (240 Subs. 23 Jan 2024)
RoHS RoHS 3 (2015/863)
SCIP Not Applicable
US TSCA No (5 PBT Subs, Feb 2021)

Genererate statement of compliance:

Manuals, Datasheets, Sketches & Drawings

Generate Datasheet:
