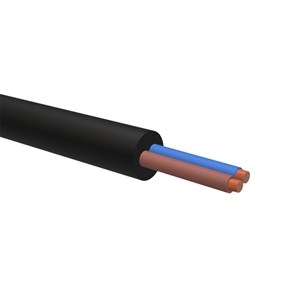

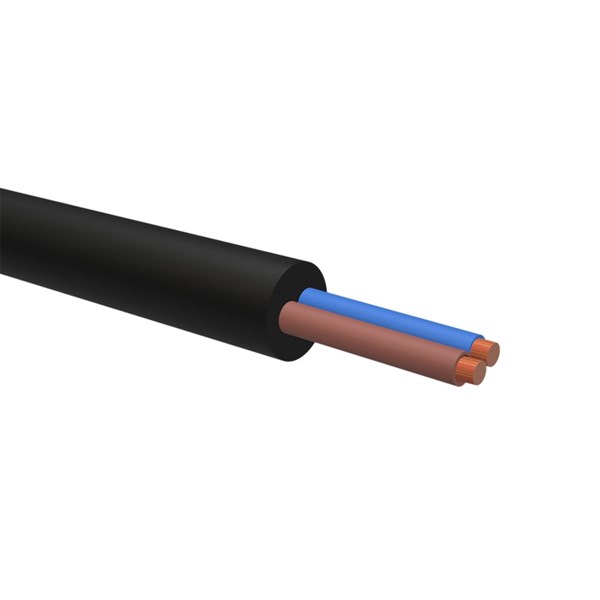

RDOE, 2X1.5mm2, BLACK H07RN-F, 750V, EPDM, 60C
040910
- Availability:
-
No
- Total: 1
Related items
RDOE (H07RN-F) - Spool
H07RN-F Connection cable of rubber for use in heavy equipment and farm machinery, where high mechanical stresses occur, in both dry and humid areas, both outdoors and in water.
Structure:
Conductors: Extra stranded copper according to IEC 60228 class 5
Conductor Insulation: EPDM rubber
Sheath Colour: Black
Technical data:
Rated voltage Uo / U:H07RN-F: 450/750V
Test voltage: H07RN-F: 2500V
Insulation Resistance: > 1 Gohma x cm
Core identification H07RN-F:
2-conductor: blue, brown
3-conductor: Green / yellow, blue, brown
4-conductor: Green / yellow, brown, black, gray
5-conductor: Green / yellow, blue, brown, black, gray
7-conductor: sv"1", sv"2", sv"3", sv"4", sv"5", sv"6", green/yellow
Temperature range: Flexible -25ºC to +60ºC (-13ºF to +140ºF)
Minimum bend radius: Flexible 6 x cable diameter
- Total: 1
Product Properties
| Number of cores | 2 . |
|---|---|
| Material core insulation | Rubber |
| Specification core insulation | Rubber - ethylene propylene rubber (EPR) |
| Core identification | Colour |
| Protective conductor | No |
| Material outer sheath | Rubber |
| Specification material outer sheath | Rubber - chlorinated/chlorosulfonated polyethylene (CPE/CSP) |
| Colour outer sheath | Black |
| Flame retardant | According to IEC/EN 60332-1-2 |
| Permitted cable outer temperature after assembling without vibration | -30-60 °C |
| Conductor material | Copper |
| Twisted cores | No |
| Max. conductor temperature | 60 °C |
| Screen | No |
| Armouring/reinforcement | None |
| Drain wire | No |
| Nominal voltage | 750 V |
| Halogen free | No |
| Conductor category | Class 5 = flexible |
| Single insulated/Double insulated | Double insulated |
| Colour | Black |
| Material insulation | EPDM |
| Operating temperature | -25-60 °C |
| Core colour | Several |
| Conductor surface | Bare |
| Min. permitted bending radius, stationary application/permanent installation | 55 mm |
Dimensions
| Nominal cross section conductor | 1.5 mm² |
|---|---|
| MOQ | 100 . |
| Outer diameter approx. | 11 mm |
| Min. permitted bending radius, stationary application/permanent installation | 55 mm |
| Diameter conductor | 1.5 mm |
| Unit | m |
| Nominal voltage | 750 V |
Logistics
| Barcode | 733117612911 |
|---|---|
| Country of origin | CN |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Stock code | 040910 |
| Taric code | 85444999 |
| Unit | m |
Approvals
| Reaction-to-fire according to EN 13501-6: Class | N/A |
|---|---|
| Reaction-to-fire according to EN 13501-6: Smoke production | N/A |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | N/A |
| Reaction-to-fire according to EN 13501-6: Acidity | N/A |
| Halogen free | No |
| Low smoke (according to EN 61034-2) | No |
| Low temperature resistant (according to EN 60811-504+505+506) | No |
| Oil resistant according to EN IEC 60811-404 | No |
| Flame retardant | According to IEC/EN 60332-1-2 |
| Approved according to CE | Yes |
| Approved according to VDE | Ja |
Other info
| ETIM-Class | EC003248 - Power cable < 1 kV, for permanent installation |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Cable - RDOE |
| Alternative SKU | 040910 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| REACH | No SVHC (235 Subs. 14 June 2023) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
