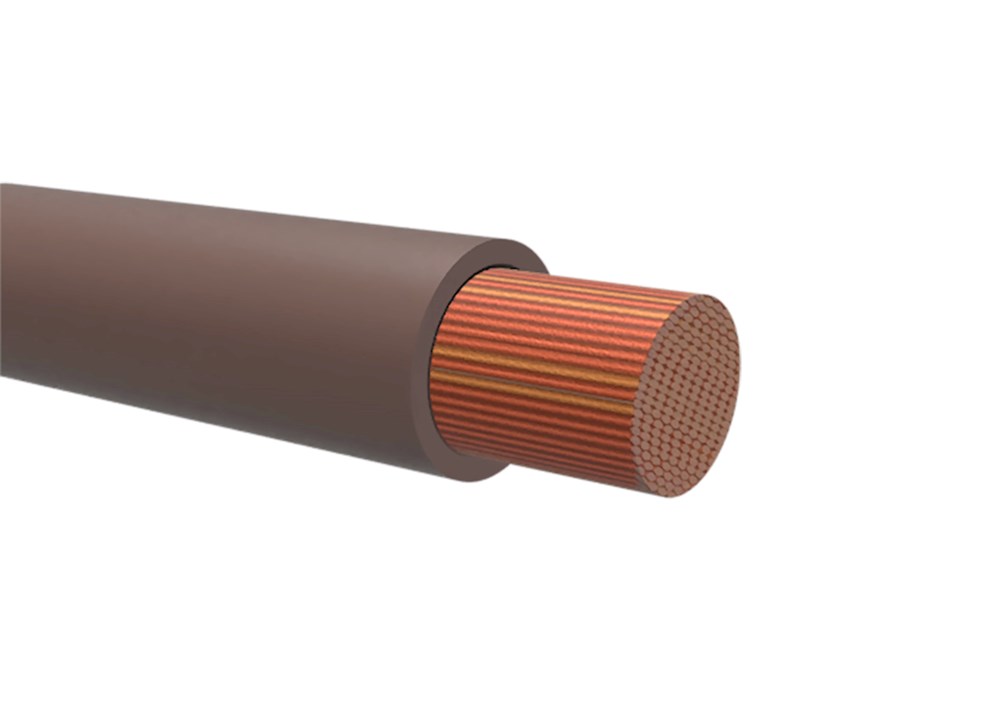

RK, 2.5mm2, BROWN BOX, 600V, PVC, 70C
050302
- Availability:
-
Yes
- Total: 1
Related items
RK (H05V-K, H07V-K)
Used as connectors line and installation line.
Structure
Conductors: Bare stranded copper
Conductor Insulation: PVC
Core identification: The table below
Technical data:
Rated voltage:
HO5V-K 0.5-1.0 mm²: 300/500
VHO7V-K 1.5-120 mm²: 450/750 V
Test voltage:
HO5V-K 0.5-1.0 mm²: 2000
VHO7V-K 1.5-120 mm²: 2500 V
Temperature range: -5ºC to +70ºC (+23ºF to +158ºF).
Minimum bend radius: 12 x cable diameter
- Total: 1
E0316282
Product Properties
| Number of cores | 1 . |
|---|---|
| Material core insulation | Polyvinyl chloride (PVC) |
| Specification core insulation | Other |
| Core identification | None |
| Protective conductor | No |
| Material outer sheath | None |
| Specification material outer sheath | Other |
| Colour outer sheath | Brown |
| Flame retardant | According to IEC/EN 60332-1-2 |
| Permitted cable outer temperature after assembling without vibration | -30-70 °C |
| Conductor material | Copper |
| Twisted cores | No |
| Max. conductor temperature | 70 °C |
| Screen | No |
| Protective barrier | N/A |
| Armouring/reinforcement | None |
| Insulation integrity | N/A |
| Drain wire | No |
| Nominal voltage | 600 V |
| Halogen free | No |
| Conductor category | Class 5 = flexible |
| Single insulated/Double insulated | Single insulated |
| Colour | Brown |
| Material insulation | Polyvinyl chloride (PVC) |
| Designations | H07V-K (RK 1.5 - 400mm2) |
| Operating temperature | -5-70 °C |
| Core colour | Brown |
| Conductor surface | Bare |
| Packaging | Carton (box) |
| Min. permitted bending radius, stationary application/permanent installation | 15.2 mm |
Dimensions
| Nominal cross section conductor | 2.5 mm² |
|---|---|
| MOQ | 100 . |
| Outer diameter approx. | 3.8 mm |
| Min. permitted bending radius, stationary application/permanent installation | 15.2 mm |
| Diameter conductor | 2.5 mm |
| Unit | m |
| Nominal voltage | 600 V |
Logistics
| Barcode | 733117613121 |
|---|---|
| Country of origin | IT |
| E-no | E0316282 |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 100 . |
| Packaging | Carton (box) |
| Stock code | 050302 |
| Taric code | 85444991 |
| Unit | m |
Approvals
| Reaction-to-fire according to EN 13501-6: Class | N/A |
|---|---|
| Reaction-to-fire according to EN 13501-6: Smoke production | N/A |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | N/A |
| Reaction-to-fire according to EN 13501-6: Acidity | N/A |
| Halogen free | No |
| Low smoke (according to EN 61034-2) | No |
| Low temperature resistant (according to EN 60811-504+505+506) | No |
| Oil resistant according to EN IEC 60811-404 | No |
| Flame retardant | According to IEC/EN 60332-1-2 |
| Approved according to CE | Yes |
Other info
| ETIM-Class | EC003248 - Power cable < 1 kV, for permanent installation |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | - |
| Product Group | Cable - RK, <10mm2 Red copper |
| Alternative SKU | 050302 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| PFAS | No PFAS |
| PFOA | No PFOA |
| PFOS | No PFOS |
| POPs | No POPs |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
