030152

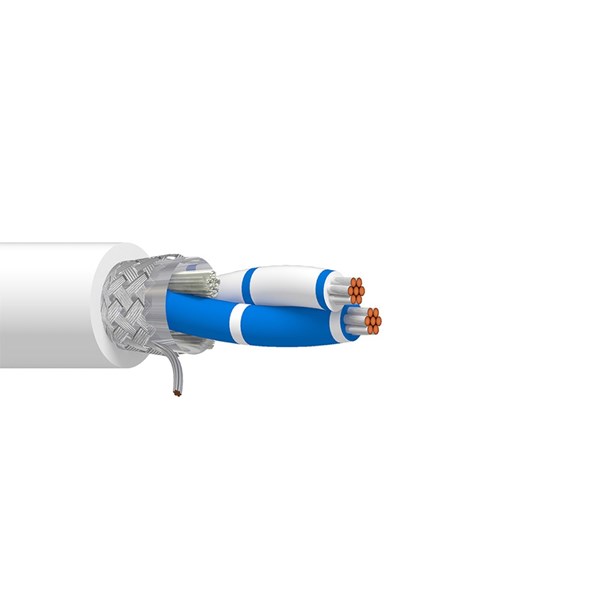

BELDEN 9841, .
030152
- Availability:
-
No
Product Properties
| Number of cores | 2 . |
|---|---|
| Material core insulation | Polyvinyl chloride (PVC) |
| Specification core insulation | Polyethylene (PE) |
| Core identification | Colour |
| Protective conductor | No |
| Material outer sheath | Polyvinyl chloride (PVC) |
| Specification material outer sheath | Other |
| Colour outer sheath | Other |
| Permitted cable outer temperature after assembling without vibration | -25-80 °C |
| Conductor material | Copper |
| Twisted cores | Yes |
| Max. conductor temperature | 80 °C |
| Screen | Yes |
| Protective barrier | N/A |
| Armouring/reinforcement | Other |
| Insulation integrity | N/A |
| Drain wire | No |
| Halogen free | No |
| Conductor category | Class 5 = flexible |
| Core colour | Several |
| Conductor surface | Bare |
| Min. permitted bending radius, stationary application/permanent installation | 17.6784 mm |
Dimensions
| MOQ | 305 . |
|---|---|
| Outer diameter approx. | 5.8928 mm |
| Min. permitted bending radius, stationary application/permanent installation | 17.6784 mm |
| Diameter conductor | 0.25 mm |
| Unit | m |
| AWG size | 24 |
Logistics
| Barcode | |
|---|---|
| Country of origin | US |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 305 . |
| Stock code | 030152 |
| Taric code | 85444991 |
| Unit | m |
Approvals
| Reaction-to-fire class according to EN 13501-6 | N/A |
|---|---|
| Smoke development class according to EN 13501-6 | N/A |
| Euro class flaming droplets/particles according to EN 13501-6 | N/A |
| Euro class acidity according to EN 13501-6 | N/A |
| Halogen free | No |
| Low smoke (according to EN 61034-2) | No |
| Low temperature resistant (according to EN 60811-504+505+506) | No |
| Oil resistant (according to EN 60811-404) | No |
Other info
| ETIM-Class | EC003248 - Power cable < 1 kV, for permanent installation |
|---|---|
| ETIM-Release | 7.0 |
| Trademark | - |
| Product Group | Cable - Belden |
| Alternative SKU | 030152 |
Compliance
| REACH | No SVHC (209 Subs. 25 June 2020) |
|---|---|
| RoHS | RoHS 3 (2015/863) |
