010460-1

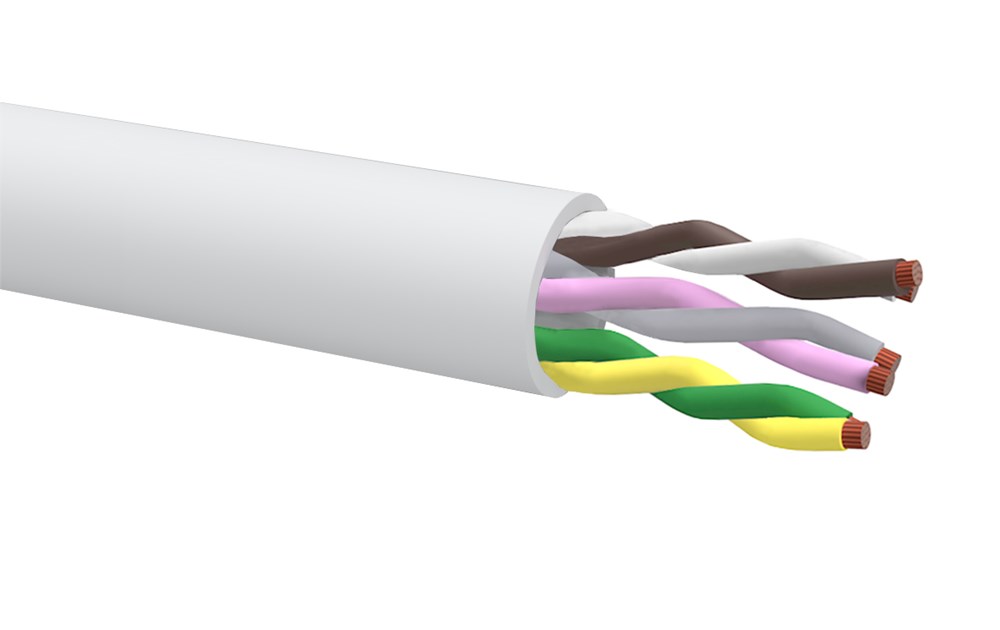

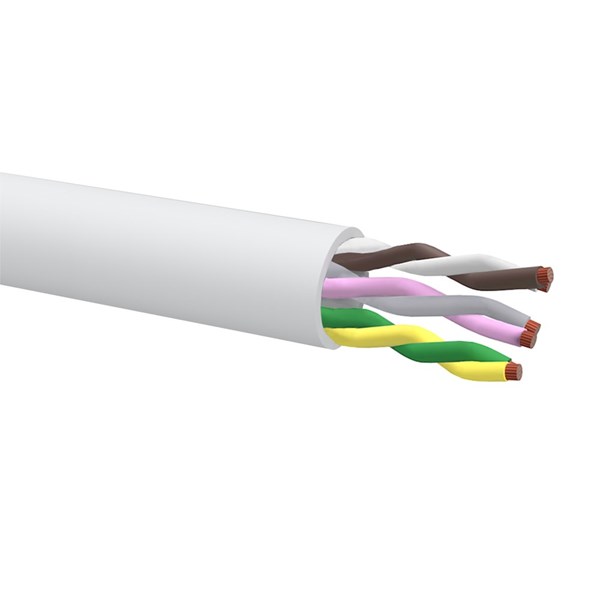

DINFLEX-Y, 2x2x0.25mm2, WHITE DIN 47100, 500V, PVC, 70C
010460-1
- Availability:
-
No
- Total: 1
Related items
DINFLEX-Y (LiYY) - Korta längder, parttvinnade
Flexible electronic cable with fine wire conductor structure, as in combination with PVC sheath it provides a very flexible cable with a small bending radius. It is used for signal, measurement, control and tone-frequency transmission in electronics, computers and signal systems.
Structure Conductor: Blank stranded copper
Conductor insulation: PVC
Core identification: According to DIN 47100
Outer Sheath: PVC
Sheath identification: Grey
Technical data:
Rating voltage: 0.14 mm² = 350 V >; 0.14 mm² = 500 V
Test voltage: 0.14 mm² = 800 V >; 0.14 mm² = 1200 V
Temperature range: Fixed min/max: -30ºC to +70ºC (-22ºF to +158ºF)Moving min/max: -5ºC to +70ºC (-22ºF to +158ºF)
Radiation Resistance: 8 x 107 cJ/kg
Minimum bending radius: 10 x cable diameter
Oil resistance: Good
Flame resistance: IEC 332-1
- Total: 1
Product Properties
| Number of cores | 4 . |
|---|---|
| Material core insulation | Polyvinyl chloride (PVC) |
| Specification core insulation | Other |
| Core identification | Colour |
| Protective conductor | No |
| Material outer sheath | Polyvinyl chloride (PVC) |
| Specification material outer sheath | Other |
| Colour outer sheath | Other |
| Flame retardant | According to IEC/EN 60332-1-2 |
| Permitted cable outer temperature after assembling without vibration | -30-70 °C |
| Conductor material | Copper |
| Twisted cores | Yes |
| Max. conductor temperature | 70 °C |
| Screen | No |
| Protective barrier | N/A |
| Armouring/reinforcement | None |
| Insulation integrity | N/A |
| Drain wire | No |
| Halogen free | No |
| Conductor category | Class 5 = flexible |
| Core colour | Several |
| Conductor surface | Bare |
| Min. permitted bending radius, stationary application/permanent installation | 27 mm |
Dimensions
| Nominal cross section conductor | 0.25 mm² |
|---|---|
| MOQ | 10000 . |
| Outer diameter approx. | 5.4 mm |
| Min. permitted bending radius, stationary application/permanent installation | 27 mm |
| Diameter conductor | 0.25 mm |
| Unit | m |
Logistics
| Barcode | |
|---|---|
| Country of origin | IT |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 10000 . |
| Stock code | 010460-1 |
| Taric code | 85444999 |
| Unit | m |
Approvals
| Reaction-to-fire according to EN 13501-6: Class | N/A |
|---|---|
| Reaction-to-fire according to EN 13501-6: Smoke production | N/A |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | N/A |
| Reaction-to-fire according to EN 13501-6: Acidity | N/A |
| Halogen free | No |
| Low smoke (according to EN 61034-2) | No |
| Low temperature resistant (according to EN 60811-504+505+506) | No |
| Oil resistant according to EN IEC 60811-404 | No |
| Flame retardant | According to IEC/EN 60332-1-2 |
Other info
| ETIM-Class | EC003248 - Power cable < 1 kV, for permanent installation |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Cable - DINFLEX-Y (LiYY) - Twisted pair |
| Search Description | DINFLEX-Y, 2X2X0.25MM2, VIT |
| Alternative SKU | 010460-1 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Iron and Steel Sanction | Compliance |
| POPs | Compliance |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | Compliance |
