050852

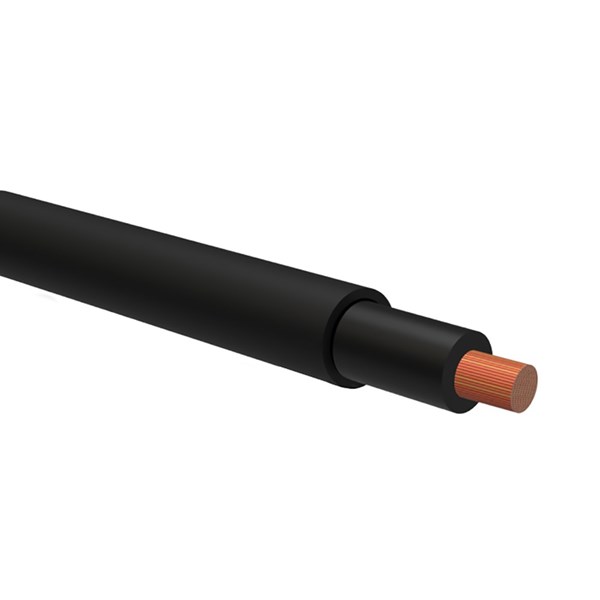

RKKB, 1x2.5mm2, BLACK/BLACK SPOOL B3, 60V, PVC, 70C
050852
- Availability:
-
Yes
- Total: 1
Related items
RKKB Single conductor
Round double-insulated flexible connection cable for vehicle applications that comply with ISO 6722, class A.
Packaging (YD x Hub x Width):
Spool B3: 160mm x 56mm x 50mm
Construction
Conductor: Glossy multi-wire copper
Conductor insulation: PVC
Conductor color scheme: black, red
Coat color: black, red
- Total: 1
Product Properties
| Number of cores | 1 . |
|---|---|
| Material core insulation | Polyvinyl chloride (PVC) |
| Specification core insulation | Other |
| Core identification | Colour |
| Protective conductor | No |
| Material outer sheath | None |
| Specification material outer sheath | Other |
| Colour outer sheath | Other |
| Flame retardant | According to IEC/EN 60332-1-2 |
| Permitted cable outer temperature after assembling without vibration | -30-70 °C |
| Conductor material | Copper |
| Twisted cores | No |
| Max. conductor temperature | 70 °C |
| Screen | No |
| Protective barrier | N/A |
| Armouring/reinforcement | None |
| Insulation integrity | N/A |
| Drain wire | No |
| Nominal voltage | 60 V |
| Halogen free | No |
| Conductor category | Class 5 = flexible |
| Single insulated/Double insulated | Double insulated |
| Colour | Black/Black |
| Operating temperature | -25-70 °C |
| Core colour | Several |
| Conductor surface | Bare |
| Packaging | Reel B3 |
| Min. permitted bending radius, stationary application/permanent installation | 15 mm |
Dimensions
| Nominal cross section conductor | 2.5 mm² |
|---|---|
| MOQ | 100 . |
| Outer diameter approx. | 3.75 mm |
| Min. permitted bending radius, stationary application/permanent installation | 15 mm |
| Diameter conductor | 2.5 mm |
| Unit | m |
| Nominal voltage | 60 V |
Logistics
| Barcode | 733117636355 |
|---|---|
| Country of origin | SE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Reel B3 |
| Stock code | 050852 |
| Taric code | 85444995 |
| Unit | m |
Approvals
| Reaction-to-fire according to EN 13501-6: Class | N/A |
|---|---|
| Reaction-to-fire according to EN 13501-6: Smoke production | N/A |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | N/A |
| Reaction-to-fire according to EN 13501-6: Acidity | N/A |
| Halogen free | No |
| Low smoke (according to EN 61034-2) | No |
| Low temperature resistant (according to EN 60811-504+505+506) | No |
| Oil resistant according to EN IEC 60811-404 | No |
| Flame retardant | According to IEC/EN 60332-1-2 |
| Approved according to CE | Yes |
Other info
| ETIM-Class | EC003248 - Power cable < 1 kV, for permanent installation |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Cable - RKKB, Single conductor, Red copper |
| Search Description | DUBBELISOL: SVART YTTERM,SVART INNERM.BOBIN 100 M |
| Alternative SKU | 050852 |
Compliance
| CA Proposition 65 | No CA Prop65 |
|---|---|
| Conflict Minerals | N/A, Contains no conflict minerals |
| Extended Minerals | N/A, contains no extended minerals |
| PFAS | No PFAS |
| POPs | No POPs |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
Genererate statement of compliance:
Accessories
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_RKKB, RKXB, RKUB, R2G4
