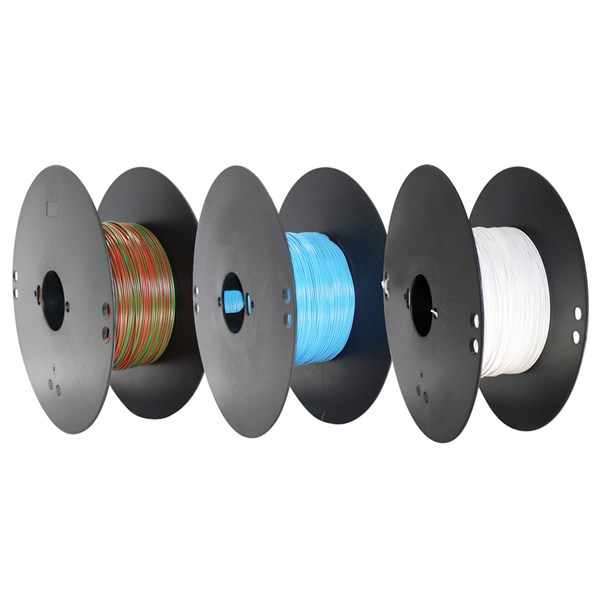

R2G4 - 400 m spool 2-colors
Thin-walled car cable with PVC insulation and fine wire copper conductors for maximum 100ºC conductor temperature.
Packaging (OD x Hub x Width):
Spool B6: 250mm x 56mm x 95mm
Structure
Conductor: Blank stranded copper
Conductor insulation: PVC
Conductor identification: Multiple color combinations
Technical data:
Rating voltage: 100V
Temperature range: -40ºC to +100ºC (-40ºF to +212ºF)
Approvals: According to Volvo 7613 R2, 111 / 3
Technical properties
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -40-100 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 100 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 100 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Colour:
- Yellow/black, Red/black, Green/yellow, Other, Black/white, Red/Blue, Blue/Brown, Blue/Yellow, Blue/Pink, Blue/Red, Blue/Black, Blue/White, Brown/Orange, Brown/Pink, Brown/Black, Brown/White, Grey/Blue, Grey/Green, Grey/Red, Grey/Black, Grey/White, Green/Red, Green/Black, Green/White, Yellow/Purple, Yellow/Red, Yellow/Violet, Yellow/White, Orange/Black, Orange/White, Pink/Brown, Pink/White, Red/Green, Red/White, Violet/Yellow, White/Violet
- Operating temperature:
- -40-100 °C
- Core colour:
- Green/yellow, Several
- Conductor surface:
- Bare
- Packaging:
- Reel B3, Reel B5, Reel B6
- Min. permitted bending radius, stationary application/permanent installation:
- 8 mm, 9.5 mm, 12 mm, 14 mm
Show more
Item List
- Total: 63
- Total: 63
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_RKKB, RKXB, RKUB, R2G4
Dimensions
- Total: 63
- Total: 63
Similar Options
Approvals
- Total: 63
| Product Description | Approved according to Volvo R2 7613, 111/3 | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Approved according to CE | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R2G4, 0.5mm2, VIOLET/BLACK SPOOL B6, 100V, PVC, 100C |
Yes
|
|
|
|||||||||||
| R2G4, 0.5mm2, GREEN/BLACK SPOOL B6, 100V, PVC, 100C |
Yes
|
|
|
|||||||||||
| R2G4, 0.5mm2, YELLOW/BLACK SPOOL B6, 100V, PVC, 100C |
Yes
|
|
|
|||||||||||
| R2G4, 2.5mm2, BROWN/BLACK SPOOL B6, 100V, PVC, 100C |
No
|
|
|
|||||||||||
| R2G4, 0.5mm2, BLUE/BLACK SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| R2G4, 0.5mm2, BLACK/WHITE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, BROWN/WHITE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, ORANGE/WHITE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, RED/BLUE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, RED/BLACK SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, RED/GREY SPOOL B6, 100V, PVC, 100C |
No
|
|
|
|||||||||||
| R2G4, 0.5mm2, BLUE/BROWN SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, BLUE/YELLOW SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, BLUE/WHITE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, BROWN/ORANGE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, BROWN/PINK SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, BROWN/BLACK SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, GREY/BLACK SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, GREEN/RED SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, GREEN/WHITE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, GREY/WHITE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, YELLOW/PURPLE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, YELLOW/RED SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, YELLOW/WHITE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, PURPLE/WHITE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, ORANGE/BLACK SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.5mm2, RED/WHITE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.75mm2, RED/BLACK SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| R2G4, 0.75mm2, BLUE/GREY SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.75mm2, BLUE/PINK SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.75mm2, BLUE/RED SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.75mm2, BLUE/BLACK SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.75mm2, BLUE/WHITE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.75mm2, BROWN/PINK SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.75mm2, GREY/GREEN SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| R2G4, 0.75mm2, BLUE/YELLOW SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| R2G4, 0.75mm2, YELLOW/BLACK SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.75mm2, GREEN/YELLOW SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.75mm2, GREEN/BLACK SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.75mm2, GREY/RED SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| R2G4, 0.75mm2, YELLOW/PURPLE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.75mm2, YELLOW/RED SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.75mm2, PINK/WHITE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 0.75mm2, RED/WHITE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 1.0mm2, BLUE/BLACK SPOOL B6, 100V, PVC, 100C |
Yes
|
|
|
|||||||||||
| R2G4, 1.0mm2, ORANGE/BLACK SPOOL B6, 100V, PVC, 100C |
Yes
|
|
|
|||||||||||
| R2G4, 1.5mm2, BLUE/PINK SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| R2G4, 1.5mm2, BLUE/YELLOW SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 1.5mm2, BROWN/WHITE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 1.5mm2, GREY/GREEN SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 1.5mm2, GREY/WHITE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 1.5mm2, GREEN/YELLOW SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 1.5mm2, GREEN/WHITE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 1.5mm2, BLUE/BLACK SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| R2G4, 1.5mm2, YELLOW/PURPLE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 1.5mm2, GREY/RED SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| R2G4, 1.5mm2, BROWN/BLACK SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
|
| R2G4, 1.5mm2, VIOLET/WHITE SPOOL B6, 100V, PVC, 100C |
Yes
|
|
|
|||||||||||
| R2G4, 1.5mm2, YELLOW/WHITE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 1.5mm2, ORANGE/WHITE SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| R2G4, 2.5mm2, GREY/BLACK SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 2.5mm2, GREEN/YELLOW SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| R2G4, 2.5mm2, GREEN/RED SPOOL B6, 100V, PVC, 100C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
- Total: 63
Technical Properties
- Total: 63
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Single insulated/Double insulated | Colour | Operating temperature | Core colour | Conductor surface | Packaging | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R2G4, 0.5mm2, VIOLET/BLACK SPOOL B6, 100V, PVC, 100C | 1 . | -40-100 °C | 100 °C | 8 mm |
Yes
|
|
|
||||||||||||||||||||||||
| R2G4, 0.5mm2, GREEN/BLACK SPOOL B6, 100V, PVC, 100C | 1 . | -40-100 °C | 100 °C | 8 mm |
Yes
|
|
|
||||||||||||||||||||||||
| R2G4, 0.5mm2, YELLOW/BLACK SPOOL B6, 100V, PVC, 100C | 1 . | -40-100 °C | 100 °C | 8 mm |
Yes
|
|
|
||||||||||||||||||||||||
| R2G4, 2.5mm2, BROWN/BLACK SPOOL B6, 100V, PVC, 100C | 1 . | -40-100 °C | 100 °C | 14 mm |
No
|
|
|
||||||||||||||||||||||||
| R2G4, 0.5mm2, BLUE/BLACK SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Green/White | -40-100 °C | Several | Bare | Reel B5 | 8 mm |
Yes
|
|
|
|
| R2G4, 0.5mm2, BLACK/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Black/white | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, BROWN/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Brown/White | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, ORANGE/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Orange/White | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, RED/BLUE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Red/Blue | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, RED/BLACK SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Red/black | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, RED/GREY SPOOL B6, 100V, PVC, 100C | 1 . | -40-100 °C | 100 °C | 100 V | -40-100 °C | 8 mm |
No
|
|
|
||||||||||||||||||||||
| R2G4, 0.5mm2, BLUE/BROWN SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Blue/Brown | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, BLUE/YELLOW SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Blue/Yellow | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, BLUE/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Blue/White | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, BROWN/ORANGE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Brown/Orange | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, BROWN/PINK SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Pink/Brown | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, BROWN/BLACK SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Brown/Black | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, GREY/BLACK SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Grey/Black | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, GREEN/RED SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Red/Green | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, GREEN/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Green/White | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, GREY/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Grey/White | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, YELLOW/PURPLE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Violet/Yellow | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, YELLOW/RED SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Yellow/Red | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, YELLOW/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Yellow/White | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, PURPLE/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | White/Violet | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, ORANGE/BLACK SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Orange/Black | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.5mm2, RED/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Red/White | -40-100 °C | Several | Bare | Reel B6 | 8 mm |
Yes
|
|
|
| R2G4, 0.75mm2, RED/BLACK SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Red/black | -40-100 °C | Several | Bare | Reel B3 | 9.5 mm |
Yes
|
|
|
|
| R2G4, 0.75mm2, BLUE/GREY SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Grey/Blue | -40-100 °C | Several | Bare | Reel B6 | 9.5 mm |
Yes
|
|
|
| R2G4, 0.75mm2, BLUE/PINK SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Blue/Pink | -40-100 °C | Several | Bare | Reel B6 | 9.5 mm |
Yes
|
|
|
| R2G4, 0.75mm2, BLUE/RED SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Blue/Red | -40-100 °C | Several | Bare | Reel B6 | 9.5 mm |
Yes
|
|
|
| R2G4, 0.75mm2, BLUE/BLACK SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Blue/Black | -40-100 °C | Several | Bare | Reel B6 | 9.5 mm |
Yes
|
|
|
| R2G4, 0.75mm2, BLUE/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Blue/White | -40-100 °C | Several | Bare | Reel B6 | 9.5 mm |
Yes
|
|
|
| R2G4, 0.75mm2, BROWN/PINK SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Brown/Pink | -40-100 °C | Several | Bare | Reel B6 | 9.5 mm |
Yes
|
|
|
| R2G4, 0.75mm2, GREY/GREEN SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Other | -40-100 °C | Several | Bare | Reel B6 | 9.5 mm |
No
|
|
|
| R2G4, 0.75mm2, BLUE/YELLOW SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Blue/Yellow | -40-100 °C | Several | Bare | Reel B3 | 9.5 mm |
Yes
|
|
|
|
| R2G4, 0.75mm2, YELLOW/BLACK SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Yellow/black | -40-100 °C | Several | Bare | Reel B6 | 9.5 mm |
Yes
|
|
|
| R2G4, 0.75mm2, GREEN/YELLOW SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Green/yellow | -40-100 °C | Green/yellow | Bare | Reel B6 | 9.5 mm |
Yes
|
|
|
| R2G4, 0.75mm2, GREEN/BLACK SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Green/Black | -40-100 °C | Several | Bare | Reel B6 | 9.5 mm |
Yes
|
|
|
| R2G4, 0.75mm2, GREY/RED SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Grey/Red | -40-100 °C | Several | Bare | Reel B3 | 9.5 mm |
Yes
|
|
|
|
| R2G4, 0.75mm2, YELLOW/PURPLE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Yellow/Purple | -40-100 °C | Several | Bare | Reel B6 | 9.5 mm |
Yes
|
|
|
| R2G4, 0.75mm2, YELLOW/RED SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Yellow/Red | -40-100 °C | Several | Bare | Reel B6 | 9.5 mm |
Yes
|
|
|
| R2G4, 0.75mm2, PINK/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Pink/White | -40-100 °C | Several | Bare | Reel B6 | 9.5 mm |
Yes
|
|
|
| R2G4, 0.75mm2, RED/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Red/White | -40-100 °C | Several | Bare | Reel B6 | 9.5 mm |
Yes
|
|
|
| R2G4, 1.0mm2, BLUE/BLACK SPOOL B6, 100V, PVC, 100C |
Yes
|
|
|
||||||||||||||||||||||||||||
| R2G4, 1.0mm2, ORANGE/BLACK SPOOL B6, 100V, PVC, 100C |
Yes
|
|
|
||||||||||||||||||||||||||||
| R2G4, 1.5mm2, BLUE/PINK SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Blue/Pink | -40-100 °C | Several | Bare | Reel B6 | 12 mm |
No
|
|
|
| R2G4, 1.5mm2, BLUE/YELLOW SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Blue/Yellow | -40-100 °C | Several | Bare | Reel B6 | 12 mm |
Yes
|
|
|
| R2G4, 1.5mm2, BROWN/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Brown/White | -40-100 °C | Several | Bare | Reel B6 | 12 mm |
Yes
|
|
|
| R2G4, 1.5mm2, GREY/GREEN SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Grey/Green | -40-100 °C | Several | Bare | Reel B6 | 12 mm |
Yes
|
|
|
| R2G4, 1.5mm2, GREY/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Grey/White | -40-100 °C | Several | Bare | Reel B6 | 12 mm |
Yes
|
|
|
| R2G4, 1.5mm2, GREEN/YELLOW SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Green/yellow | -40-100 °C | Green/yellow | Bare | Reel B6 | 12 mm |
Yes
|
|
|
| R2G4, 1.5mm2, GREEN/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Green/White | -40-100 °C | Several | Bare | Reel B6 | 12 mm |
Yes
|
|
|
| R2G4, 1.5mm2, BLUE/BLACK SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Blue/Black | -40-100 °C | Several | Bare | Reel B3 | 12 mm |
Yes
|
|
|
|
| R2G4, 1.5mm2, YELLOW/PURPLE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Yellow/Violet | -40-100 °C | Several | Bare | Reel B6 | 12 mm |
Yes
|
|
|
| R2G4, 1.5mm2, GREY/RED SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Grey/Red | -40-100 °C | Several | Bare | Reel B3 | 12 mm |
Yes
|
|
|
|
| R2G4, 1.5mm2, BROWN/BLACK SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Green/White | -40-100 °C | Several | Bare | Reel B3 | 12 mm |
Yes
|
|
|
|
| R2G4, 1.5mm2, VIOLET/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | -40-100 °C | 100 °C | 100 V | -40-100 °C | 12 mm |
Yes
|
|
|
||||||||||||||||||||||
| R2G4, 1.5mm2, YELLOW/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Yellow/White | -40-100 °C | Several | Bare | Reel B6 | 12 mm |
Yes
|
|
|
| R2G4, 1.5mm2, ORANGE/WHITE SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Orange/White | -40-100 °C | Several | Bare | Reel B6 | 12 mm |
No
|
|
|
| R2G4, 2.5mm2, GREY/BLACK SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Grey/Black | -40-100 °C | Several | Bare | Reel B6 | 14 mm |
Yes
|
|
|
| R2G4, 2.5mm2, GREEN/YELLOW SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Green/yellow | -40-100 °C | Green/yellow | Bare | Reel B6 | 14 mm |
Yes
|
|
|
| R2G4, 2.5mm2, GREEN/RED SPOOL B6, 100V, PVC, 100C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | 100 V | No | Class 5 = flexible | Single insulated | Green/Red | -40-100 °C | Several | Bare | Reel B6 | 14 mm |
Yes
|
|
|
- Total: 63
Other information
- Total: 63
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| R2G4, 0.5mm2, VIOLET/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 | R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, LILA/SVART | 050611-45 |
Yes
|
|
|
|
| R2G4, 0.5mm2, GREEN/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 | R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, GRÖN/SVART | 050611-65 |
Yes
|
|
|
|
| R2G4, 0.5mm2, YELLOW/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 | R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, GUL/SVART | 050611-66 |
Yes
|
|
|
|
| R2G4, 2.5mm2, BROWN/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 | R2G4, Single Conductor, Red copper | R2G4, 2.5MM2, BRUN/SVART | 050995-37 |
No
|
|
|
|
| R2G4, 0.5mm2, BLUE/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, BLÅ/SVART | 050611-14 |
Yes
|
|
|
| R2G4, 0.5mm2, BLACK/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, SVART/VIT | 050611-32 |
Yes
|
|
|
| R2G4, 0.5mm2, BROWN/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, BRUN/VIT | 050611-33 |
Yes
|
|
|
| R2G4, 0.5mm2, ORANGE/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, ORANGE/VIT | 050611-34 |
Yes
|
|
|
| R2G4, 0.5mm2, RED/BLUE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, RÖD/BLÅ | 050611-35 |
Yes
|
|
|
| R2G4, 0.5mm2, RED/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, RÖD/SVART | 050611-36 |
Yes
|
|
|
| R2G4, 0.5mm2, RED/GREY SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, RÖD/GRÅ | 050611-37 |
No
|
|
|
| R2G4, 0.5mm2, BLUE/BROWN SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, BLÅ/BRUN | 050611-18 |
Yes
|
|
|
| R2G4, 0.5mm2, BLUE/YELLOW SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4 0.5 BLÅ/GUL | 050611-25 |
Yes
|
|
|
| R2G4, 0.5mm2, BLUE/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4 0.5 BLÅ/VIT | 050611-17 |
Yes
|
|
|
| R2G4, 0.5mm2, BROWN/ORANGE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050611-22 |
Yes
|
|
|
|
| R2G4, 0.5mm2, BROWN/PINK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050611-27 |
Yes
|
|
|
|
| R2G4, 0.5mm2, BROWN/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, BRUN/SVART | 050611-19 |
Yes
|
|
|
| R2G4, 0.5mm2, GREY/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4 0.5 SVART/GRÅ | 050611-16 |
Yes
|
|
|
| R2G4, 0.5mm2, GREEN/RED SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050611-20 |
Yes
|
|
|
|
| R2G4, 0.5mm2, GREEN/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, GRÖN/VIT | 050611-31 |
Yes
|
|
|
| R2G4, 0.5mm2, GREY/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4 0.5 VIT/GRÅ | 050611-26 |
Yes
|
|
|
| R2G4, 0.5mm2, YELLOW/PURPLE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4 0.5 VIOLETT/GUL | 050611-24 |
Yes
|
|
|
| R2G4, 0.5mm2, YELLOW/RED SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4 0.5 RÖD/GUL | 050611-23 |
Yes
|
|
|
| R2G4, 0.5mm2, YELLOW/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050611-30 |
Yes
|
|
|
|
| R2G4, 0.5mm2, PURPLE/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4 0.5 VIT/VIOLETT | 050611-15 |
Yes
|
|
|
| R2G4, 0.5mm2, ORANGE/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4 0.5 ORANGE/SVART | 050611-21 |
Yes
|
|
|
| R2G4, 0.5mm2, RED/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4 0.5 RÖD/VIT | 050611-28 |
Yes
|
|
|
| R2G4, 0.75mm2, RED/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.75MM2, RÖD/SVART | 050992-22 |
Yes
|
|
|
| R2G4, 0.75mm2, BLUE/GREY SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.75MM2, BLÅ/GRÅ | 050992-66 |
Yes
|
|
|
| R2G4, 0.75mm2, BLUE/PINK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050992-54 |
Yes
|
|
|
|
| R2G4, 0.75mm2, BLUE/RED SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050992-17 |
Yes
|
|
|
|
| R2G4, 0.75mm2, BLUE/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050992-13 |
Yes
|
|
|
|
| R2G4, 0.75mm2, BLUE/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050992-12 |
Yes
|
|
|
|
| R2G4, 0.75mm2, BROWN/PINK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050992-63 |
Yes
|
|
|
|
| R2G4, 0.75mm2, GREY/GREEN SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.75MM2, GRÅ/GRÖN | 050992-68 |
No
|
|
|
| R2G4, 0.75mm2, BLUE/YELLOW SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.75MM2, BLÅ/GUL | 050992-56 |
Yes
|
|
|
| R2G4, 0.75mm2, YELLOW/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050992-14 |
Yes
|
|
|
|
| R2G4, 0.75mm2, GREEN/YELLOW SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050992-3 |
Yes
|
|
|
|
| R2G4, 0.75mm2, GREEN/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050992-65 |
Yes
|
|
|
|
| R2G4, 0.75mm2, GREY/RED SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.75MM2, GRÅ/RÖD | 050992-42 |
Yes
|
|
|
| R2G4, 0.75mm2, YELLOW/PURPLE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.75MM2, GUL/LILA | 050992-53 |
Yes
|
|
|
| R2G4, 0.75mm2, YELLOW/RED SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050992-11 |
Yes
|
|
|
|
| R2G4, 0.75mm2, PINK/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050992-62 |
Yes
|
|
|
|
| R2G4, 0.75mm2, RED/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050992-64 |
Yes
|
|
|
|
| R2G4, 1.0mm2, BLUE/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 | R2G4, Single Conductor, Red copper | R2G4, 1.0MM2, BLÅ/SVART | 050993-14 |
Yes
|
|
|
|
| R2G4, 1.0mm2, ORANGE/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 | R2G4, Single Conductor, Red copper | R2G4, 1.0MM2, ORANGE/SVART | 050993-27 |
Yes
|
|
|
|
| R2G4, 1.5mm2, BLUE/PINK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 1.5MM2, BLÅ/ROSA | 050994-51 |
No
|
|
|
| R2G4, 1.5mm2, BLUE/YELLOW SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050994-39 |
Yes
|
|
|
|
| R2G4, 1.5mm2, BROWN/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050994-38 |
Yes
|
|
|
|
| R2G4, 1.5mm2, GREY/GREEN SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 1.5MM2, GRÅ/GRÖN | 050994-48 |
Yes
|
|
|
| R2G4, 1.5mm2, GREY/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 1.5MM2, GRÅ/VIT | 050994-50 |
Yes
|
|
|
| R2G4, 1.5mm2, GREEN/YELLOW SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050994-3 |
Yes
|
|
|
|
| R2G4, 1.5mm2, GREEN/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050994-42 |
Yes
|
|
|
|
| R2G4, 1.5mm2, BLUE/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 1.5MM2, BLÅ/SVART | 050994-19 |
Yes
|
|
|
| R2G4, 1.5mm2, YELLOW/PURPLE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 1.5MM2, LILA/GUL | 050994-40 |
Yes
|
|
|
| R2G4, 1.5mm2, GREY/RED SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 1.5MM2, GRÅ/RÖD | 050994-11 |
Yes
|
|
|
| R2G4, 1.5mm2, BROWN/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 1.5MM2, BRUN/SVART | 050994-46 |
Yes
|
|
|
| R2G4, 1.5mm2, VIOLET/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 1.5MM2, LILA/VIT | 050994-52 |
Yes
|
|
|
| R2G4, 1.5mm2, YELLOW/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050994-37 |
Yes
|
|
|
|
| R2G4, 1.5mm2, ORANGE/WHITE SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 1.5MM2, ORANGE/VIT | 050994-49 |
No
|
|
|
| R2G4, 2.5mm2, GREY/BLACK SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 2.5MM2, GRÅ/SVART | 050995-28 |
Yes
|
|
|
| R2G4, 2.5mm2, GREEN/YELLOW SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050995-3 |
Yes
|
|
|
|
| R2G4, 2.5mm2, GREEN/RED SPOOL B6, 100V, PVC, 100C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | 050995-24 |
Yes
|
|
|
- Total: 63
Back to top
Do you need help finding the right product or other advice contact us.
