85066292

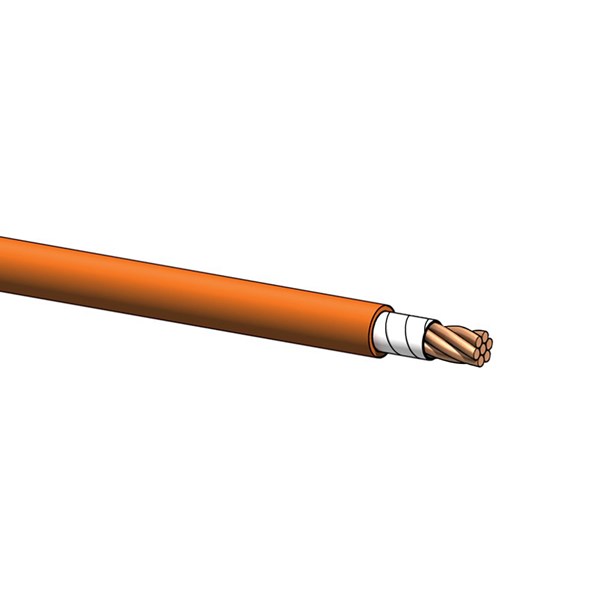

Battery cable that has (FHLR91X According to DIN76722) excellent resistance to high and low temperature, ozone and weather resistance, resistant to high pressure, temperature, engine oil, fuels and hydrolysis, flame retardant, high abrasion resistant, solder resistant, easy to strip and process, according to ISO 6722 class D, LV 112, ISO 14572, LV 212, DIN 76722. Complies with EU Directive 2000/53 / EC on end-of-life vehicles. It is free of lead, mercury, cadmium and chromium VI. Use: Low voltage cable, for use in hybrid and electric vehicles, trucks, among others. CAUTION: Special care must be taken for cables used with voltages above 60 VDC to protect them from mechanical stress to avoid shocks (ISO 6722: 2006) Conductor: Annealed copper according to ISO C flexible 6 Conductor insulation: 155S (polyolefin) Coat color: See product data. Technical data: Operating voltage: 1000V AC 1500V DC Test voltage AC: < Temp. range: -40ºC to + 150ºC (3000H) Minimum bending radius: 3 x the diameter of the cable Approvals, Standards: ISO 6722 class D iSO 19642-9
