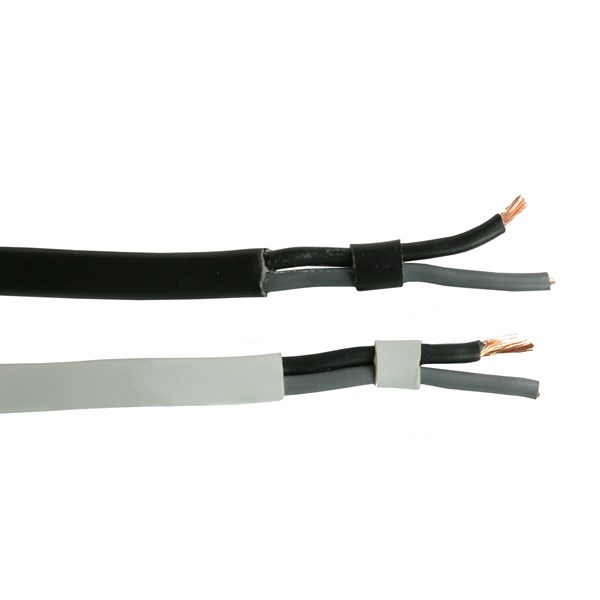

RKXB - Spool
Flat flexible connection cable for car and boat applications.
Packaging (OD x Hub x Width):
Spool B3: 160mm x 56mm x 50mm
Spool B4: 160mm x 56mm x 90mm
Spool B5: 200mm x 56mm x 88mm
Structure
Conductor: Blank stranded copper
Conductor insulation: PVC
Core color (unless otherwise specified): Gray, black
Outer Sheath: PVC
Sheath Colour: Grey, black
Technical data:
Rating voltage: 60V
Temperature range: -25ºC to +70ºC (-13ºF to +158ºF)
Technical properties
- Number of cores:
- 2 ., 3 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 60 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Black, Grey
- Operating temperature:
- -25-70 °C
- Core colour:
- Several
- Conductor surface:
- Bare
- Packaging:
- Ring, Reel B3, Reel B4, Reel B5
- Min. permitted bending radius, stationary application/permanent installation:
- 20.8 mm, 37.2 mm, 25.6 mm, 30.4 mm, 34.4 mm
Show more
Item List
- Total: 19
- Total: 19
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_RKKB, RKXB, RKUB, R2G4
Dimensions
- Total: 19
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| RKXB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, 70C | 0.75 mm² | 50 . | 5.2 mm | 20.8 mm | 0.75 mm | m | 60 V |
Yes
|
|
|
| RKXB, 2x0.75mm2, BLACK SPOOL B4, 60V, PVC, 70C | 0.75 mm² | 100 . | 5.2 mm | 20.8 mm | 0.75 mm | m | 60 V |
Yes
|
|
|
| RKXB, 2x0.75mm2, BLACK SPOOL B4, 60V, PVC, RED/BLACK, 70C | 0.75 mm² | 50 . | 5.2 mm | 20.8 mm | 0.75 mm | m | 60 V |
Yes
|
|
|
| RKXB, 2x0.75mm2, GREY SPOOL B3, 60V, PVC, 70C | 0.75 mm² | 50 . | 5.2 mm | 20.8 mm | 0.75 mm | m | 60 V |
Yes
|
|
|
| RKXB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, BLUE/BROWN, 70C | 0.75 mm² | 100 . | 5.2 mm | 20.8 mm | 0.75 mm | m | 60 V |
No
|
|
|
| RKXB, 2x1.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | 1.5 mm² | 50 . | 6.4 mm | 25.6 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
| RKXB, 2x1.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | 1.5 mm² | 100 . | 6.4 mm | 25.6 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
| RKXB, 2x1.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | 1.5 mm² | 25 . | 6.4 mm | 25.6 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
| RKXB, 2x1.5mm2, BLACK SPOOL B5, 60V, PVC, RED/BLACK, 70C | 1.5 mm² | 100 . | 6.4 mm | 25.6 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
| RKXB, 2x1.5mm2, GREY SPOOL B3, 60V, PVC, 70C | 1.5 mm² | 50 . | 6.4 mm | 25.6 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
| RKXB, 2X1.5mm2, BLACK SPOOL B5, 60V, PVC, RED/BLACK, 70C | 1.5 mm² | 25 . | 6.4 mm | 25.6 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
| RKXB, 2X2.5mm2, BLACK SPOOL B3, 60V, PVC, RED/BLACK, 70C | 2.5 mm² | 15 . | 7.6 mm | 30.4 mm | 2.5 mm | m | 60 V |
Yes
|
|
|
| RKXB, 2x2.5mm2, GREY SPOOL B5, 60V, PVC, 70C | 2.5 mm² | 50 . | 7.6 mm | 30.4 mm | 2.5 mm | m | 60 V |
Yes
|
|
|
| RKXB, 2X2.5mm2, BLACK SPOOL B5, 60V, PVC, RED/BLACK, 70C | 2.5 mm² | 100 . | 7.6 mm | 30.4 mm | 2.5 mm | m | 60 V |
Yes
|
|
|
| RKXB, 2x2.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | 2.5 mm² | 15 . | 7.6 mm | 30.4 mm | 2.5 mm | m | 60 V |
Yes
|
|
|
| RKXB, 2x2.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | 2.5 mm² | 50 . | 7.6 mm | 30.4 mm | 2.5 mm | m | 60 V |
Yes
|
|
|
| RKXB, 2x2.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | 2.5 mm² | 100 . | 7.6 mm | 30.4 mm | 2.5 mm | m | 60 V |
Yes
|
|
|
| RKXB, 2x4.0mm2, BLACK SPOOL B5, 60V, PVC, RED/BLACK, 70C | 4 mm² | 50 . | 8.6 mm | 34.4 mm | 4 mm | m | 60 V |
Yes
|
|
|
| RKXB, 3x1.5mm2, BLACK SPOOL B3, 60V, PVC, BLACK/WHITE/BROWN, 70C | 1.5 mm² | 50 . | 9.3 mm | 37.2 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
- Total: 19
Similar Options
Approvals
- Total: 19
| Product Description | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Approved according to CE | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RKXB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKXB, 2x0.75mm2, BLACK SPOOL B4, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKXB, 2x0.75mm2, BLACK SPOOL B4, 60V, PVC, RED/BLACK, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKXB, 2x0.75mm2, GREY SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKXB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, BLUE/BROWN, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| RKXB, 2x1.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKXB, 2x1.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKXB, 2x1.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKXB, 2x1.5mm2, BLACK SPOOL B5, 60V, PVC, RED/BLACK, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKXB, 2x1.5mm2, GREY SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKXB, 2X1.5mm2, BLACK SPOOL B5, 60V, PVC, RED/BLACK, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKXB, 2X2.5mm2, BLACK SPOOL B3, 60V, PVC, RED/BLACK, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKXB, 2x2.5mm2, GREY SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKXB, 2X2.5mm2, BLACK SPOOL B5, 60V, PVC, RED/BLACK, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKXB, 2x2.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKXB, 2x2.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKXB, 2x2.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKXB, 2x4.0mm2, BLACK SPOOL B5, 60V, PVC, RED/BLACK, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKXB, 3x1.5mm2, BLACK SPOOL B3, 60V, PVC, BLACK/WHITE/BROWN, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
- Total: 19
Technical Properties
- Total: 19
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Single insulated/Double insulated | Colour | Operating temperature | Core colour | Conductor surface | Packaging | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RKXB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B3 | 20.8 mm |
Yes
|
|
|
| RKXB, 2x0.75mm2, BLACK SPOOL B4, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B4 | 20.8 mm |
Yes
|
|
|
| RKXB, 2x0.75mm2, BLACK SPOOL B4, 60V, PVC, RED/BLACK, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B4 | 20.8 mm |
Yes
|
|
|
| RKXB, 2x0.75mm2, GREY SPOOL B3, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Grey | -25-70 °C | Several | Bare | Reel B3 | 20.8 mm |
Yes
|
|
|
| RKXB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, BLUE/BROWN, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B3 | 20.8 mm |
No
|
|
|
| RKXB, 2x1.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B3 | 25.6 mm |
Yes
|
|
|
| RKXB, 2x1.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B5 | 25.6 mm |
Yes
|
|
|
| RKXB, 2x1.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B3 | 25.6 mm |
Yes
|
|
|
| RKXB, 2x1.5mm2, BLACK SPOOL B5, 60V, PVC, RED/BLACK, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B5 | 25.6 mm |
Yes
|
|
|
| RKXB, 2x1.5mm2, GREY SPOOL B3, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Grey | -25-70 °C | Several | Bare | Reel B3 | 25.6 mm |
Yes
|
|
|
| RKXB, 2X1.5mm2, BLACK SPOOL B5, 60V, PVC, RED/BLACK, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B5 | 25.6 mm |
Yes
|
|
|
| RKXB, 2X2.5mm2, BLACK SPOOL B3, 60V, PVC, RED/BLACK, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B3 | 30.4 mm |
Yes
|
|
|
| RKXB, 2x2.5mm2, GREY SPOOL B5, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Grey | -25-70 °C | Several | Bare | Reel B5 | 30.4 mm |
Yes
|
|
|
| RKXB, 2X2.5mm2, BLACK SPOOL B5, 60V, PVC, RED/BLACK, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B5 | 30.4 mm |
Yes
|
|
|
| RKXB, 2x2.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B3 | 30.4 mm |
Yes
|
|
|
| RKXB, 2x2.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B5 | 30.4 mm |
Yes
|
|
|
| RKXB, 2x2.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B5 | 30.4 mm |
Yes
|
|
|
| RKXB, 2x4.0mm2, BLACK SPOOL B5, 60V, PVC, RED/BLACK, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B5 | 34.4 mm |
Yes
|
|
|
| RKXB, 3x1.5mm2, BLACK SPOOL B3, 60V, PVC, BLACK/WHITE/BROWN, 70C | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Ring | 37.2 mm |
Yes
|
|
|
- Total: 19
Other information
- Total: 19
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| RKXB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050883 |
Yes
|
|
|
| RKXB, 2x0.75mm2, BLACK SPOOL B4, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050883-100 |
Yes
|
|
|
| RKXB, 2x0.75mm2, BLACK SPOOL B4, 60V, PVC, RED/BLACK, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050883-2 |
Yes
|
|
|
| RKXB, 2x0.75mm2, GREY SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050883-1 |
Yes
|
|
|
| RKXB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, BLUE/BROWN, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050883-3 |
No
|
|
|
| RKXB, 2x1.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050886 |
Yes
|
|
|
| RKXB, 2x1.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050886-100 |
Yes
|
|
|
| RKXB, 2x1.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050886-25 |
Yes
|
|
|
| RKXB, 2x1.5mm2, BLACK SPOOL B5, 60V, PVC, RED/BLACK, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050900-100 |
Yes
|
|
|
| RKXB, 2x1.5mm2, GREY SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050887 |
Yes
|
|
|
| RKXB, 2X1.5mm2, BLACK SPOOL B5, 60V, PVC, RED/BLACK, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050900-25 |
Yes
|
|
|
| RKXB, 2X2.5mm2, BLACK SPOOL B3, 60V, PVC, RED/BLACK, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050901-15 |
Yes
|
|
|
| RKXB, 2x2.5mm2, GREY SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050889 |
Yes
|
|
|
| RKXB, 2X2.5mm2, BLACK SPOOL B5, 60V, PVC, RED/BLACK, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050901-100 |
Yes
|
|
|
| RKXB, 2x2.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050888-15 |
Yes
|
|
|
| RKXB, 2x2.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050888 |
Yes
|
|
|
| RKXB, 2x2.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050888-100 |
Yes
|
|
|
| RKXB, 2x4.0mm2, BLACK SPOOL B5, 60V, PVC, RED/BLACK, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050991 |
Yes
|
|
|
| RKXB, 3x1.5mm2, BLACK SPOOL B3, 60V, PVC, BLACK/WHITE/BROWN, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKXB, Multi-conductor, Red copper | 050885 |
Yes
|
|
|
