RKKB - Spool

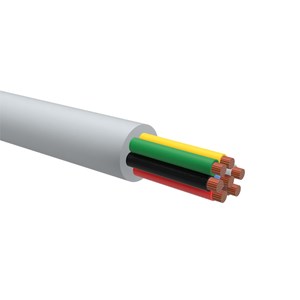

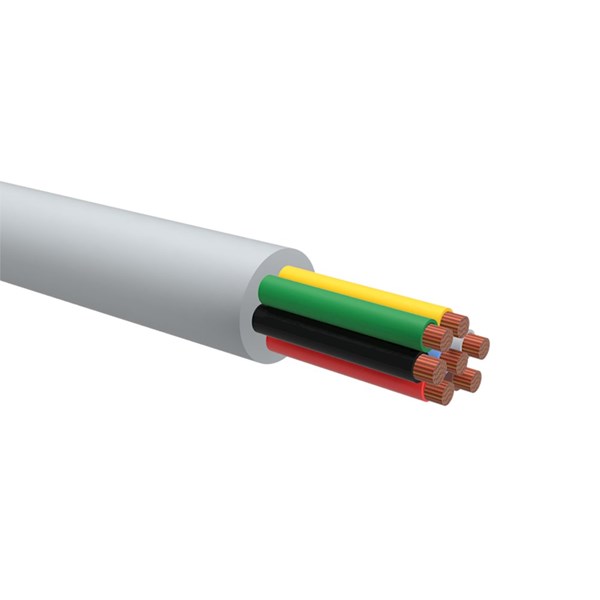

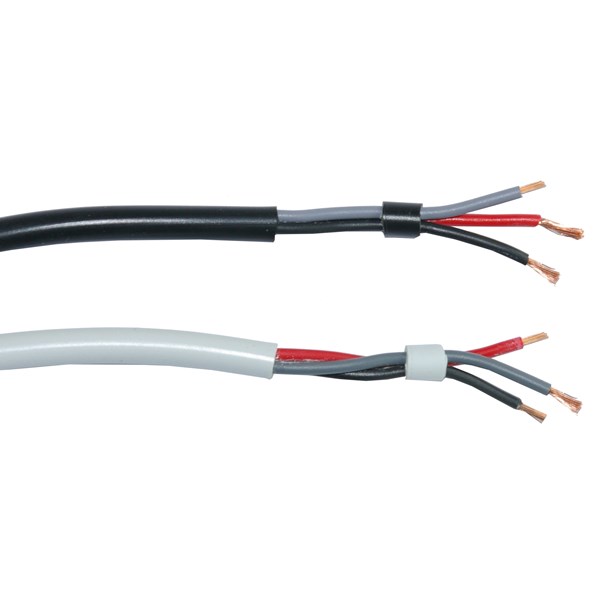

Round flexible cable for car and boat applications.
Packaging (OD x Hub x Width):
Spool B3: 160mm x 56mm x 50mm
Spool B4: 160mm x 56mm x 90mm
Spool B5: 200mm x 56mm x 88mm
Drum
Structure
Conductor: Blank stranded copper
Conductor insulation: PVC
Identification line up on conductors: Grey, black, red, blue, yellow, green, brown, white, purple, pink
Outer Sheath: PVC
Sheath identification: Grey, black, white
Technical data:
Rating voltage: 60V
Temperature range: -25ºC to +70ºC (-13ºF to +158ºF)
Technical properties
- Number of cores:
- 2 ., 4 ., 3 ., 5 ., 7 ., 17 ., 13 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 60 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Black, Grey, White
- Operating temperature:
- -25-70 °C
- Core colour:
- Several
- Conductor surface:
- Bare
- Packaging:
- Reel B3, Reel B4, Reel B5
- Min. permitted bending radius, stationary application/permanent installation:
- 18.4 mm, 22 mm, 20.4 mm, 21.2 mm, 23.2 mm, 20.8 mm, 25.6 mm, 27.6 mm, 24.8 mm, 26.4 mm, 29.6 mm, 34.4 mm, 31.6 mm, 61.2 mm, 52 mm
Show more
Item List
- Total: 35
- Total: 35
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
FÄRGKODER RKKB
Dimensions
- Total: 35
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Nominal cross section pilot/reduced core | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| RKKB, 2x6.0mm2, SVART SPOOL B5, 60V, PVC, 70C, RED/BLACK | 1.5 mm² | 50 . | 13.9 mm | 52 mm | 1.5 mm | m |
Yes
|
|
|
||
| RKKB, 2x0.5mm2, GREY SPOOL B3, 60V, PVC, 70C | 0.5 mm² | 100 . | 4.6 mm | 18.4 mm | 0.5 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 3x2.5mm2, GREY SPOOL B5, 60V, PVC, 70C | 2.5 mm² | 50 . | 7.9 mm | 31.6 mm | 2.5 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 2x0.5mm2, YELLOW SPOOL B3, 60V, PVC, 70C | 0.5 mm² | 3000 . | 4.6 mm | 18.4 mm | 0.5 mm | m |
No
|
|
|
||
| RKKB, 2x0.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | 0.5 mm² | 100 . | 4.6 mm | 18.4 mm | 0.5 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 4x0.5mm2, GREY SPOOL B5, 60V, PVC, 70C | 0.5 mm² | 50 . | 5.5 mm | 22 mm | 0.5 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, 70C, GREY/BLACK | 0.75 mm² | 50 . | 5.1 mm | 20.4 mm | 0.75 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, 70C, RED/BLACK | 0.75 mm² | 50 . | 5.1 mm | 20.4 mm | 0.75 mm | m |
Yes
|
|
|
||
| RKKB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, 70C, BLUE/BROWN MOQ 5000M | 0.75 mm² | 5000 . | 5.1 mm | 20.4 mm | 0.75 mm | m |
No
|
|
|
||
| RKKB, 3x0.75mm2, GREY SPOOL B5, 60V, PVC, 70C | 0.75 mm² | 50 . | 5.3 mm | 21.2 mm | 0.75 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 3x0.75mm2, BLACK SPOOL B5, 60V, PVC, 70C | 0.75 mm² | 50 . | 5.3 mm | 21.2 mm | 0.75 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 3x0.75mm2, BLACK SPOOL B5, 60V, PVC, 70C | 0.75 mm² | 50 . | 5.3 mm | 21.2 mm | 0.75 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 3x0.75mm2, WHITE SPOOL B5, 60V, PVC, 70C | 0.75 mm² | 50 . | 5.3 mm | 21.2 mm | 0.75 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 3x0.75mm2,WHITE SPOOL B5, 60V, PVC, 70C, CORE COL: RED,BLUE,BLACK | 0.75 mm² | 3000 . | 5.3 mm | 21.2 mm | 0.75 mm | m |
No
|
|
|
||
| RKKB, 3x0.75mm2,WHITE SPOOL B5, 60V, PVC, 70C, CORE COL: RED, BLUE, PURP | 0.75 mm² | 3000 . | 5.3 mm | 21.2 mm | 0.75 mm | m |
No
|
|
|
||
| RKKB, 4x0.75mm2, GREY SPOOL B5, 60V, PVC, 70C | 0.75 mm² | 50 . | 5.8 mm | 23.2 mm | 0.75 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 4x0.75mm2, BLACK SPOOL B5, 60V, PVC, 70C | 0.75 mm² | 50 . | 5.8 mm | 23.2 mm | 0.75 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 4x0.75mm2, WHITE SPOOL B5, 60V, PVC, 70C | 0.75 mm² | 3000 . | 5.8 mm | 23.2 mm | 0.75 mm | m | 60 V |
No
|
|
|
|
| RKKB, 5x0.75mm2, GREY SPOOL B5, 60V, PVC, 70C | 0.75 mm² | 50 . | 6.4 mm | 25.6 mm | 0.75 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 7x0.75mm2, GREY SPOOL, 60V, PVC, 70C | 0.75 mm² | 50 . | 6.9 mm | 27.6 mm | 0.75 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 7x0.75mm2, BLACK SPOOL, 60V, PVC, 70C | 0.75 mm² | 50 . | 6.9 mm | 27.6 mm | 0.75 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 5x0.75mm2, BLACK SPOOL B5, 60V, PVC, 70C | 0.75 mm² | 50 . | 6.4 mm | 25.6 mm | 0.75 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 2x1.0mm2, BLACK SPOOL B3, 60V, PVC, 70C | 1 mm² | 50 . | 5.2 mm | 20.8 mm | 1 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 2x1.5mm2, WHITE SPOOL B3, 60V, PVC, 70C | 1.5 mm² | 50 . | 6.2 mm | 24.8 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 2x1.5mm2, BLACK SPOOL B4, 60V, PVC, 70C, RED/BLACK | 1.5 mm² | 50 . | 6.2 mm | 24.8 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 2x1.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | 1.5 mm² | 50 . | 6.2 mm | 24.8 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 2x1.5mm2, GREY SPOOL B3, 60V, PVC, 70C | 1.5 mm² | 50 . | 6.2 mm | 24.8 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 3x1.5mm2, GREY SPOOL B5, 60V, PVC, 70C | 1.5 mm² | 50 . | 6.6 mm | 26.4 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 3x1.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | 1.5 mm² | 50 . | 6.6 mm | 26.4 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 3x1.5mm2, WHITE SPOOL B5, 60V, PVC, 70C | 1.5 mm² | 50 . | 6.6 mm | 26.4 mm | 1.5 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 2x2.5mm2, BLACK SPOOL B4, 60V, PVC, 70C | 2.5 mm² | 50 . | 7.4 mm | 29.6 mm | 2.5 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 2x2.5mm2, GREY SPOOL B4, 60V, PVC, 70C | 2.5 mm² | 50 . | 7.4 mm | 29.6 mm | 2.5 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 3x2.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | 2.5 mm² | 50 . | 7.9 mm | 31.6 mm | 2.5 mm | m | 60 V |
No
|
|
|
|
| RKKB, 2x4.0mm2, GREY SPOOL B5, 60V, PVC, 70C, RED/BLACK | 4 mm² | 100 . | 8.6 mm | 34.4 mm | 4 mm | m | 60 V |
Yes
|
|
|
|
| RKKB, 15x1.5mm2 + 2x2.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | 1.5 mm² | 50 . | 15.3 mm | 61.2 mm | 1.5 mm | 2.5 mm² | m |
No
|
|
|
- Total: 35
Similar Options
Approvals
- Total: 35
| Product Description | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Approved according to CE | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RKKB, 2x6.0mm2, SVART SPOOL B5, 60V, PVC, 70C, RED/BLACK |
|
Yes
|
|
|
|||||||||
| RKKB, 2x0.5mm2, GREY SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 3x2.5mm2, GREY SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 2x0.5mm2, YELLOW SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| RKKB, 2x0.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 4x0.5mm2, GREY SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, 70C, GREY/BLACK | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, 70C, RED/BLACK |
|
Yes
|
|
|
|||||||||
| RKKB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, 70C, BLUE/BROWN MOQ 5000M | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| RKKB, 3x0.75mm2, GREY SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 3x0.75mm2, BLACK SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 3x0.75mm2, BLACK SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 3x0.75mm2, WHITE SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 3x0.75mm2,WHITE SPOOL B5, 60V, PVC, 70C, CORE COL: RED,BLUE,BLACK | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| RKKB, 3x0.75mm2,WHITE SPOOL B5, 60V, PVC, 70C, CORE COL: RED, BLUE, PURP | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| RKKB, 4x0.75mm2, GREY SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 4x0.75mm2, BLACK SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 4x0.75mm2, WHITE SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| RKKB, 5x0.75mm2, GREY SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 7x0.75mm2, GREY SPOOL, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 7x0.75mm2, BLACK SPOOL, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 5x0.75mm2, BLACK SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 2x1.0mm2, BLACK SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 2x1.5mm2, WHITE SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 2x1.5mm2, BLACK SPOOL B4, 60V, PVC, 70C, RED/BLACK | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 2x1.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 2x1.5mm2, GREY SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 3x1.5mm2, GREY SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 3x1.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 3x1.5mm2, WHITE SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 2x2.5mm2, BLACK SPOOL B4, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 2x2.5mm2, GREY SPOOL B4, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 3x2.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| RKKB, 2x4.0mm2, GREY SPOOL B5, 60V, PVC, 70C, RED/BLACK | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
Yes
|
|
|
| RKKB, 15x1.5mm2 + 2x2.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
- Total: 35
Technical Properties
- Total: 35
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Single insulated/Double insulated | Colour | Operating temperature | Core colour | Conductor surface | Packaging | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RKKB, 2x6.0mm2, SVART SPOOL B5, 60V, PVC, 70C, RED/BLACK | 13 . | -30-70 °C | 70 °C | 52 mm |
Yes
|
|
|
||||||||||||||||||||||||
| RKKB, 2x0.5mm2, GREY SPOOL B3, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Grey | -25-70 °C | Several | Bare | Reel B3 | 18.4 mm |
Yes
|
|
|
| RKKB, 3x2.5mm2, GREY SPOOL B5, 60V, PVC, 70C | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Grey | -25-70 °C | Several | Bare | Reel B5 | 31.6 mm |
Yes
|
|
|
| RKKB, 2x0.5mm2, YELLOW SPOOL B3, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Double insulated | Several | Bare | 18.4 mm |
No
|
|
|
||||
| RKKB, 2x0.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B3 | 18.4 mm |
Yes
|
|
|
| RKKB, 4x0.5mm2, GREY SPOOL B5, 60V, PVC, 70C | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Grey | -25-70 °C | Several | Bare | Reel B5 | 22 mm |
Yes
|
|
|
| RKKB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, 70C, GREY/BLACK | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B3 | 20.4 mm |
Yes
|
|
|
| RKKB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, 70C, RED/BLACK | 2 . | -30-70 °C | 70 °C | Double insulated | 20.4 mm |
Yes
|
|
|
|||||||||||||||||||||||
| RKKB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, 70C, BLUE/BROWN MOQ 5000M | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Double insulated | Several | Bare | 20.4 mm |
No
|
|
|
||||
| RKKB, 3x0.75mm2, GREY SPOOL B5, 60V, PVC, 70C | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Grey | -25-70 °C | Several | Bare | Reel B5 | 21.2 mm |
Yes
|
|
|
| RKKB, 3x0.75mm2, BLACK SPOOL B5, 60V, PVC, 70C | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B5 | 21.2 mm |
Yes
|
|
|
| RKKB, 3x0.75mm2, BLACK SPOOL B5, 60V, PVC, 70C | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B5 | 21.2 mm |
Yes
|
|
|
| RKKB, 3x0.75mm2, WHITE SPOOL B5, 60V, PVC, 70C | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | White | -25-70 °C | Several | Bare | Reel B5 | 21.2 mm |
Yes
|
|
|
| RKKB, 3x0.75mm2,WHITE SPOOL B5, 60V, PVC, 70C, CORE COL: RED,BLUE,BLACK | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Double insulated | Several | Bare | 21.2 mm |
No
|
|
|
||||
| RKKB, 3x0.75mm2,WHITE SPOOL B5, 60V, PVC, 70C, CORE COL: RED, BLUE, PURP | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Double insulated | Several | Bare | 21.2 mm |
No
|
|
|
||||
| RKKB, 4x0.75mm2, GREY SPOOL B5, 60V, PVC, 70C | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Grey | -25-70 °C | Several | Bare | Reel B5 | 23.2 mm |
Yes
|
|
|
| RKKB, 4x0.75mm2, BLACK SPOOL B5, 60V, PVC, 70C | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B5 | 23.2 mm |
Yes
|
|
|
| RKKB, 4x0.75mm2, WHITE SPOOL B5, 60V, PVC, 70C | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | White | -25-70 °C | Several | Bare | Reel B5 | 23.2 mm |
No
|
|
|
| RKKB, 5x0.75mm2, GREY SPOOL B5, 60V, PVC, 70C | 5 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Grey | -25-70 °C | Several | Bare | Reel B5 | 25.6 mm |
Yes
|
|
|
| RKKB, 7x0.75mm2, GREY SPOOL, 60V, PVC, 70C | 7 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Grey | -25-70 °C | Several | Bare | 27.6 mm |
Yes
|
|
|
|
| RKKB, 7x0.75mm2, BLACK SPOOL, 60V, PVC, 70C | 7 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | 27.6 mm |
Yes
|
|
|
|
| RKKB, 5x0.75mm2, BLACK SPOOL B5, 60V, PVC, 70C | 5 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B5 | 25.6 mm |
Yes
|
|
|
| RKKB, 2x1.0mm2, BLACK SPOOL B3, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B3 | 20.8 mm |
Yes
|
|
|
| RKKB, 2x1.5mm2, WHITE SPOOL B3, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | White | -25-70 °C | Several | Bare | Reel B3 | 24.8 mm |
Yes
|
|
|
| RKKB, 2x1.5mm2, BLACK SPOOL B4, 60V, PVC, 70C, RED/BLACK | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B4 | 24.8 mm |
Yes
|
|
|
| RKKB, 2x1.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B3 | 24.8 mm |
Yes
|
|
|
| RKKB, 2x1.5mm2, GREY SPOOL B3, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Grey | -25-70 °C | Several | Bare | Reel B3 | 24.8 mm |
Yes
|
|
|
| RKKB, 3x1.5mm2, GREY SPOOL B5, 60V, PVC, 70C | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Grey | -25-70 °C | Several | Bare | Reel B5 | 26.4 mm |
Yes
|
|
|
| RKKB, 3x1.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B5 | 26.4 mm |
Yes
|
|
|
| RKKB, 3x1.5mm2, WHITE SPOOL B5, 60V, PVC, 70C | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | White | -25-70 °C | Several | Bare | Reel B5 | 26.4 mm |
Yes
|
|
|
| RKKB, 2x2.5mm2, BLACK SPOOL B4, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B4 | 29.6 mm |
Yes
|
|
|
| RKKB, 2x2.5mm2, GREY SPOOL B4, 60V, PVC, 70C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Grey | -25-70 °C | Several | Bare | Reel B4 | 29.6 mm |
Yes
|
|
|
| RKKB, 3x2.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Several | Bare | Reel B5 | 31.6 mm |
No
|
|
|
| RKKB, 2x4.0mm2, GREY SPOOL B5, 60V, PVC, 70C, RED/BLACK | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Grey | -25-70 °C | Several | Bare | Reel B5 | 34.4 mm |
Yes
|
|
|
| RKKB, 15x1.5mm2 + 2x2.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | 17 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Double insulated | Several | Bare | 61.2 mm |
No
|
|
|
- Total: 35
Other information
- Total: 35
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | E-no | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| RKKB, 2x6.0mm2, SVART SPOOL B5, 60V, PVC, 70C, RED/BLACK | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | RKKB, 2X6.0MM2, SVART | 050983 |
Yes
|
|
|
|
| RKKB, 2x0.5mm2, GREY SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | FÄRGK:GR,SV, BOBIN 100 M | 050912 |
Yes
|
|
|
|
| RKKB, 3x2.5mm2, GREY SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | 050987 |
Yes
|
|
|
||
| RKKB, 2x0.5mm2, YELLOW SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | FÄRGK:GR,SV, BOBIN 100 M | 050913 |
No
|
|
|
|
| RKKB, 2x0.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | FÄRGK:GR,SV, BOBIN 100 M | 050910 |
Yes
|
|
|
|
| RKKB, 4x0.5mm2, GREY SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | FÄRGK:GR,SV,RÖ,BLÅ, BOBIN 50 M | 050917 | E4899000 |
Yes
|
|
|
| RKKB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, 70C, GREY/BLACK | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | FÄRGK:GR,SV, BOBIN 50 M | 050923 |
Yes
|
|
|
|
| RKKB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, 70C, RED/BLACK | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | FÄRGK:RÖ,SV, BOBIN 50 M | 050923-50 |
Yes
|
|
|
|
| RKKB, 2x0.75mm2, BLACK SPOOL B3, 60V, PVC, 70C, BLUE/BROWN MOQ 5000M | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | FÄRGK:BLÅ/BRU BOBIN 50M | 050923-1 |
No
|
|
|
|
| RKKB, 3x0.75mm2, GREY SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | FÄRGK:GRÅ,SVART,RÖD,BOBIN 50 M | 050927 |
Yes
|
|
|
|
| RKKB, 3x0.75mm2, BLACK SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | FÄRGK:GU,BLÅ,BRU,BOBIN 50 M | 050925-1 |
Yes
|
|
|
|
| RKKB, 3x0.75mm2, BLACK SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | FÄRGK:GR,SV,RÖ,BOBIN 50 M | 050925 |
Yes
|
|
|
|
| RKKB, 3x0.75mm2, WHITE SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | FÄRGK:GR,SV,RÖ,BOBIN 50 M | 050926 |
Yes
|
|
|
|
| RKKB, 3x0.75mm2,WHITE SPOOL B5, 60V, PVC, 70C, CORE COL: RED,BLUE,BLACK | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | RKKB, 3X0.75MM2,VIT MOQ=3000M | 050926-2 |
No
|
|
|
|
| RKKB, 3x0.75mm2,WHITE SPOOL B5, 60V, PVC, 70C, CORE COL: RED, BLUE, PURP | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | RKKB, 3X0.75MM2,VIT MOQ=3000M | 050926-1 |
No
|
|
|
|
| RKKB, 4x0.75mm2, GREY SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | FÄRGK:GRÅ,SVART,RÖD,BLÅ | 050932 | E4899010 |
Yes
|
|
|
| RKKB, 4x0.75mm2, BLACK SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | FÄRGK:GRÅ,SVART,RÖD,BLÅ | 050930 |
Yes
|
|
|
|
| RKKB, 4x0.75mm2, WHITE SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | MOQ 3000 M FÖRPACKNING 50M | 050931 |
No
|
|
|
|
| RKKB, 5x0.75mm2, GREY SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | FÄRGK:GRÅ,SVART,RÖD,BLÅ,GUL, | 050937 |
Yes
|
|
|
|
| RKKB, 7x0.75mm2, GREY SPOOL, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | 050939 |
Yes
|
|
|
||
| RKKB, 7x0.75mm2, BLACK SPOOL, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | 050939-1 |
Yes
|
|
|
||
| RKKB, 5x0.75mm2, BLACK SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | FÄRGK:GRÅ,SVART,RÖD,BLÅ,GUL, | 050935 |
Yes
|
|
|
|
| RKKB, 2x1.0mm2, BLACK SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | 050933 |
Yes
|
|
|
||
| RKKB, 2x1.5mm2, WHITE SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | 050941 |
Yes
|
|
|
||
| RKKB, 2x1.5mm2, BLACK SPOOL B4, 60V, PVC, 70C, RED/BLACK | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | 050940-2 |
Yes
|
|
|
||
| RKKB, 2x1.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | 050940 |
Yes
|
|
|
||
| RKKB, 2x1.5mm2, GREY SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | 050942 | E4899050 |
Yes
|
|
|
|
| RKKB, 3x1.5mm2, GREY SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | 050947 | E4899060 |
Yes
|
|
|
|
| RKKB, 3x1.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | 050945 |
Yes
|
|
|
||
| RKKB, 3x1.5mm2, WHITE SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | 050946 |
Yes
|
|
|
||
| RKKB, 2x2.5mm2, BLACK SPOOL B4, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | 050974 |
Yes
|
|
|
||
| RKKB, 2x2.5mm2, GREY SPOOL B4, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | 050977 | E4899130 |
Yes
|
|
|
|
| RKKB, 3x2.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | RKKB, 3X2.5MM2, SVART | 050988 |
No
|
|
|
|
| RKKB, 2x4.0mm2, GREY SPOOL B5, 60V, PVC, 70C, RED/BLACK | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | 050980 |
Yes
|
|
|
||
| RKKB, 15x1.5mm2 + 2x2.5mm2, BLACK SPOOL B5, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - RKKB, Multi-conductor, Red copper | FÄRGK:COLOUR CODING LIST | 050884-15 |
No
|
|
|
- Total: 35
Back to top
Do you need help finding the right product or other advice contact us.
