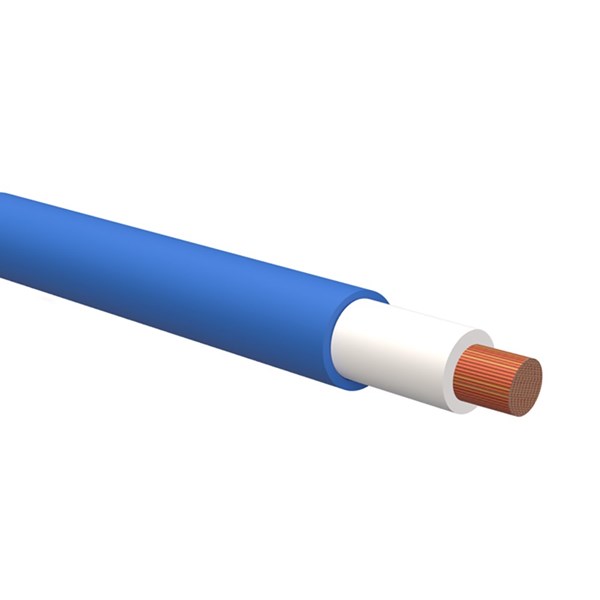

Svetskabel - Dubbelisolerad, trumma
Technical properties
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Yellow
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -45-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 80 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- No, No
- Conductor category:
- Class 6 = very flexible
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Yellow
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -40-80 °C
- Core colour:
- Yellow
- Conductor surface:
- Bare
- Packaging:
- Reel B5
- Min. permitted bending radius, stationary application/permanent installation:
- 43.2 mm, 50.8 mm, 58.4 mm, 64.8 mm, 90 mm
Show more
Item List
- Total: 5
- Total: 5
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 5
Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Nominal voltage | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|
WELDING CABLE, DOUBLE INSULATED, 16mm2, YELLOW DRUM , 600V, PVC, 80C | 16 mm² | 100 . | 10.8 mm | 43.2 mm | 16 mm | m | 600 V |
No
|
|
|
WELDING CABLE, DOUBLE INSULATED, 25mm2, YELLOW DRUM , 600V, PVC, 80C | 25 mm² | 50 . | 12.7 mm | 50.8 mm | 25 mm | m | 600 V |
No
|
|
|
WELDING CABLE, DOUBLE INSULATED, 35mm2, YELLOW DRUM , 600V, PVC, 80C | 35 mm² | 50 . | 14.6 mm | 58.4 mm | 35 mm | m | 600 V |
No
|
|
|
WELDING CABLE, DOUBLE INSULATED, 50mm2, YELLOW DRUM , 600V, PVC, 80C | 50 mm² | 50 . | 16.2 mm | 64.8 mm | 50 mm | m | 600 V |
No
|
|
|
WELDING CABLE, DOUBLE INSULATED, 70mm2, YELLOW DRUM, 600V, PVC, 80C | 70 mm² | 25 . | 22.5 mm | 90 mm | 70 mm | m | 600 V |
No
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
Product Description | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
WELDING CABLE, DOUBLE INSULATED, 16mm2, YELLOW DRUM , 600V, PVC, 80C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
WELDING CABLE, DOUBLE INSULATED, 25mm2, YELLOW DRUM , 600V, PVC, 80C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
WELDING CABLE, DOUBLE INSULATED, 35mm2, YELLOW DRUM , 600V, PVC, 80C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
WELDING CABLE, DOUBLE INSULATED, 50mm2, YELLOW DRUM , 600V, PVC, 80C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
WELDING CABLE, DOUBLE INSULATED, 70mm2, YELLOW DRUM, 600V, PVC, 80C | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
- Total: 5
Technical Properties
- Total: 5
Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Single insulated/Double insulated | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Packaging | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WELDING CABLE, DOUBLE INSULATED, 16mm2, YELLOW DRUM , 600V, PVC, 80C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Yellow | According to IEC/EN 60332-1-2 | -45-70 °C | Copper | No | 80 °C | No | N/A | None | N/A | No | 600 V | No | Class 6 = very flexible | Double insulated | Yellow | Polyvinyl chloride (PVC) | -40-80 °C | Yellow | Bare | No | Reel B5 | 43.2 mm |
No
|
|
|
WELDING CABLE, DOUBLE INSULATED, 25mm2, YELLOW DRUM , 600V, PVC, 80C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Yellow | According to IEC/EN 60332-1-2 | -45-70 °C | Copper | No | 80 °C | No | N/A | None | N/A | No | 600 V | No | Class 6 = very flexible | Double insulated | Yellow | Polyvinyl chloride (PVC) | -40-80 °C | Yellow | Bare | No | Reel B5 | 50.8 mm |
No
|
|
|
WELDING CABLE, DOUBLE INSULATED, 35mm2, YELLOW DRUM , 600V, PVC, 80C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Yellow | According to IEC/EN 60332-1-2 | -45-70 °C | Copper | No | 80 °C | No | N/A | None | N/A | No | 600 V | No | Class 6 = very flexible | Double insulated | Yellow | Polyvinyl chloride (PVC) | -40-80 °C | Yellow | Bare | No | Reel B5 | 58.4 mm |
No
|
|
|
WELDING CABLE, DOUBLE INSULATED, 50mm2, YELLOW DRUM , 600V, PVC, 80C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Yellow | According to IEC/EN 60332-1-2 | -45-70 °C | Copper | No | 80 °C | No | N/A | None | N/A | No | 600 V | No | Class 6 = very flexible | Double insulated | Yellow | Polyvinyl chloride (PVC) | -40-80 °C | Yellow | Bare | No | Reel B5 | 64.8 mm |
No
|
|
|
WELDING CABLE, DOUBLE INSULATED, 70mm2, YELLOW DRUM, 600V, PVC, 80C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Yellow | According to IEC/EN 60332-1-2 | -45-70 °C | Copper | No | 80 °C | No | N/A | None | N/A | No | 600 V | No | Class 6 = very flexible | Double insulated | Yellow | Polyvinyl chloride (PVC) | -40-80 °C | Yellow | Bare | No | Reel B5 | 90 mm |
No
|
|
|
- Total: 5
Other information
- Total: 5
Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
---|---|---|---|---|---|---|---|---|
WELDING CABLE, DOUBLE INSULATED, 16mm2, YELLOW DRUM , 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05001606-100 |
No
|
|
|
WELDING CABLE, DOUBLE INSULATED, 25mm2, YELLOW DRUM , 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05002506-50 |
No
|
|
|
WELDING CABLE, DOUBLE INSULATED, 35mm2, YELLOW DRUM , 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05003506-50 |
No
|
|
|
WELDING CABLE, DOUBLE INSULATED, 50mm2, YELLOW DRUM , 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05005006-50 |
No
|
|
|
WELDING CABLE, DOUBLE INSULATED, 70mm2, YELLOW DRUM, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Double insulated | 05007006-25 |
No
|
|
|
- Total: 5
