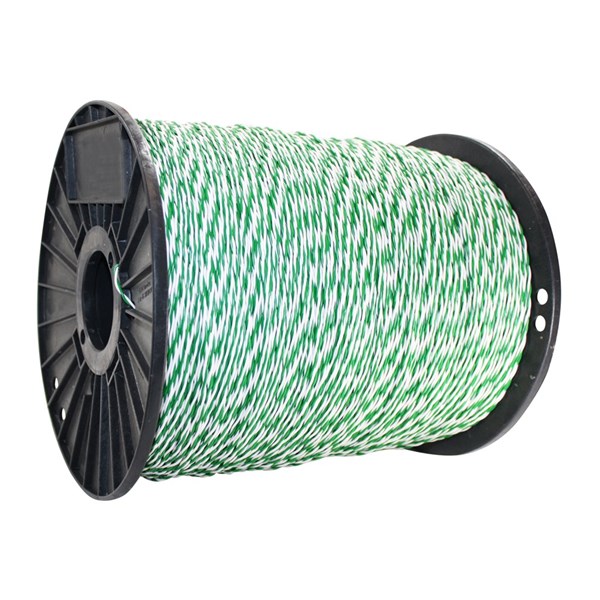

R2G4 - 400 m spool
Thin-walled car cable with PVC insulation and fine wire copper conductors for maximum 100ºC conductor temperature.
Packaging (OD x Hub x Width):
Spool B6: 250mm x 56mm x 95mm
Structure
Conductor: Blank stranded copper
Conductor insulation: PVC
Conductor identification: Multiple color combinations
Technical data:
Rating voltage: 100V
Temperature range: -40ºC to +100ºC (-40ºF to +212ºF)
Approvals: According to Volvo 7613 R2, 111 / 3
Technical properties
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -40-100 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 100 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Core colour:
- Several
- Conductor surface:
- Bare
- Min. permitted bending radius, stationary application/permanent installation:
- 8 mm
Show more
Item List
- Total: 8
- Total: 8
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 8
- Total: 8
Similar Options
Approvals
- Total: 8
| Product Description | Approved according to Volvo R2 7613, 111/3 | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Approved according to CE | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R2G4, 0.5mm2, VIOLET-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| R2G4, 0.5mm2, BLUE-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| R2G4, 0.5mm2, RED-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| R2G4, 0.5mm2, YELLOW-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| R2G4, 0.5mm2, BROWN-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| R2G4, 0.5mm2, ORANGE-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| R2G4, 0.5mm2, PINK-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
| R2G4, 0.5mm2, GREEN-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
|
No
|
|
|
- Total: 8
Technical Properties
- Total: 8
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Halogen free | Conductor category | Single insulated/Double insulated | Core colour | Conductor surface | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R2G4, 0.5mm2, VIOLET-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Single insulated | Several | Bare | 8 mm |
No
|
|
|
| R2G4, 0.5mm2, BLUE-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Single insulated | Several | Bare | 8 mm |
No
|
|
|
| R2G4, 0.5mm2, RED-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Single insulated | Several | Bare | 8 mm |
No
|
|
|
| R2G4, 0.5mm2, YELLOW-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Single insulated | Several | Bare | 8 mm |
No
|
|
|
| R2G4, 0.5mm2, BROWN-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Single insulated | Several | Bare | 8 mm |
No
|
|
|
| R2G4, 0.5mm2, ORANGE-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Single insulated | Several | Bare | 8 mm |
No
|
|
|
| R2G4, 0.5mm2, PINK-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Single insulated | Several | Bare | 8 mm |
No
|
|
|
| R2G4, 0.5mm2, GREEN-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Other | According to IEC/EN 60332-1-2 | -40-100 °C | Copper | No | 100 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Single insulated | Several | Bare | 8 mm |
No
|
|
|
- Total: 8
Other information
- Total: 8
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| R2G4, 0.5mm2, VIOLET-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, LILA-TWIST-VIT ,42 VARV/M | 050611-15-1500 |
No
|
|
|
| R2G4, 0.5mm2, BLUE-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, BLÅ-TWIST-VIT ,42 VARV/M | 050611-17-1500 |
No
|
|
|
| R2G4, 0.5mm2, RED-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, RÖD-TWIST-VIT ,42 VARV/M | 050611-28-1500 |
No
|
|
|
| R2G4, 0.5mm2, YELLOW-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, GUL-TWIST-VIT ,42 VARV/M | 050611-30-1500 |
No
|
|
|
| R2G4, 0.5mm2, BROWN-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, BRUN-TWIST-VIT ,42 VARV/M | 050611-33-1500 |
No
|
|
|
| R2G4, 0.5mm2, ORANGE-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, ORANGE-TWIST-VIT ,42 VARV/M | 050611-34-1500 |
No
|
|
|
| R2G4, 0.5mm2, PINK-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, ROSA-TWIST-VIT ,42 VARV/M | 050611-62-1500 |
No
|
|
|
| R2G4, 0.5mm2, GREEN-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m, | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
R2G4, Single Conductor, Red copper | R2G4, 0.5MM2, GRÖN-TWIST-VIT ,42 VARV/M | 050611-14-1500 |
No
|
|
|
- Total: 8
