050611-14-1500

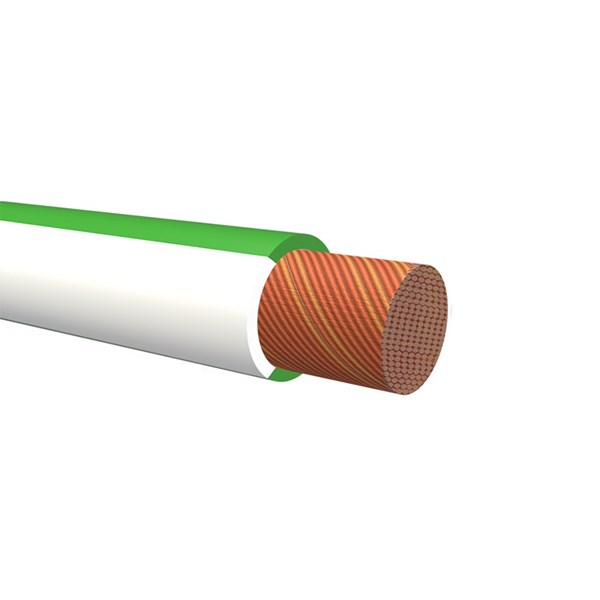

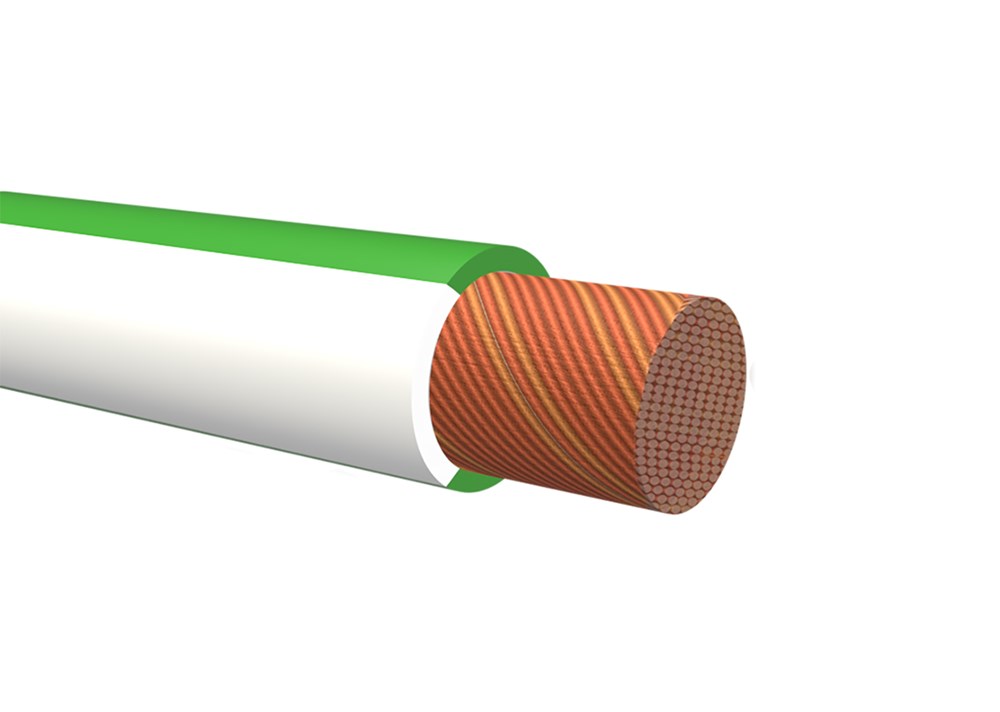

R2G4, 0.5mm2, GREEN-TWIST-WHITE SPOOL B5, 100V, PVC, 100C Moq 4500m Spool.1500m,

Sku

050611-14-1500

Availability:
No
  • Total: 1
Product Description
R2G4 - 400 m spool
  • Total: 1
  • Total: 1

Related items

R2G4 - 400 m spool

  • Total: 1
Number of cores 1 .
Material core insulation Polyvinyl chloride (PVC)
Specification core insulation Other
Core identification None
Protective conductor No
Material outer sheath None
Specification material outer sheath Other
Colour outer sheath Other
Flame retardant According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration -40-100 °C
Conductor material Copper
Twisted cores No
Max. conductor temperature 100 °C
Screen No
Protective barrier N/A
Armouring/reinforcement None
Insulation integrity N/A
Drain wire No
Halogen free No
Conductor category Class 5 = flexible
Single insulated/Double insulated Single insulated
Core colour Several
Conductor surface Bare
Min. permitted bending radius, stationary application/permanent installation 8 mm
Nominal cross section conductor 0.5 mm²
MOQ 1500 .
Outer diameter approx. 1.6 mm
Min. permitted bending radius, stationary application/permanent installation 8 mm
Diameter conductor 0.5 mm
Unit m
Barcode 733117640414
Country of origin SE
Item status Stock item, normally in stock with reservation for in between sales.
MOQ 1500 .
Stock code 050611-14-1500
Taric code 85444995
Unit m
Units per parcel 801304
Approved according to Volvo R2 7613, 111/3 Yes
Reaction-to-fire according to EN 13501-6: Class N/A
Reaction-to-fire according to EN 13501-6: Smoke production N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles N/A
Reaction-to-fire according to EN 13501-6: Acidity N/A
Halogen free No
Low smoke (according to EN 61034-2) No
Low temperature resistant (according to EN 60811-504+505+506) No
Oil resistant according to EN IEC 60811-404 No
Flame retardant According to IEC/EN 60332-1-2
Approved according to CE Yes
ETIM-Class EC003248 - Power cable < 1 kV, for permanent installation
ETIM-Release 9.0
Trademark NEMIQ
Product Group R2G4, Single Conductor, Red copper
Search Description R2G4, 0.5MM2, GRÖN-TWIST-VIT ,42 VARV/M
Alternative SKU 050611-14-1500
CA Proposition 65 No CA Prop65
Conflict Minerals N/A, Contains no conflict minerals
Extended Minerals N/A, contains no extended minerals
PFAS No PFAS
POPs No POPs
REACH No SVHC (240 Subs. 23 Jan 2024)
RoHS RoHS 3 (2015/863)
SCIP Not Applicable
US TSCA No (5 PBT Subs, Feb 2021)
