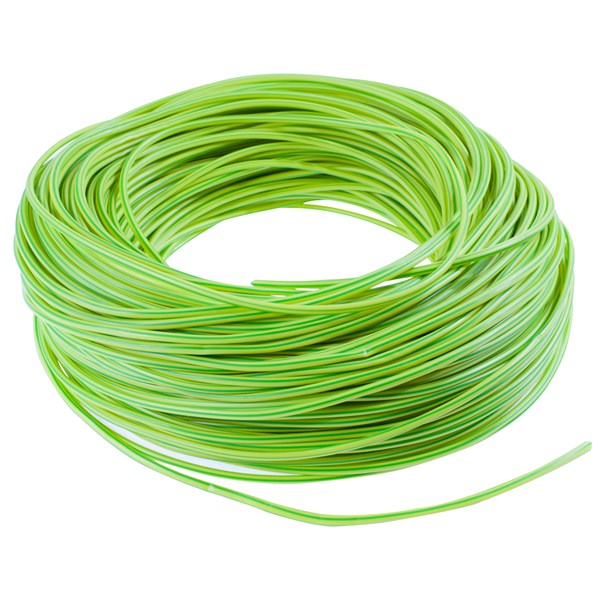

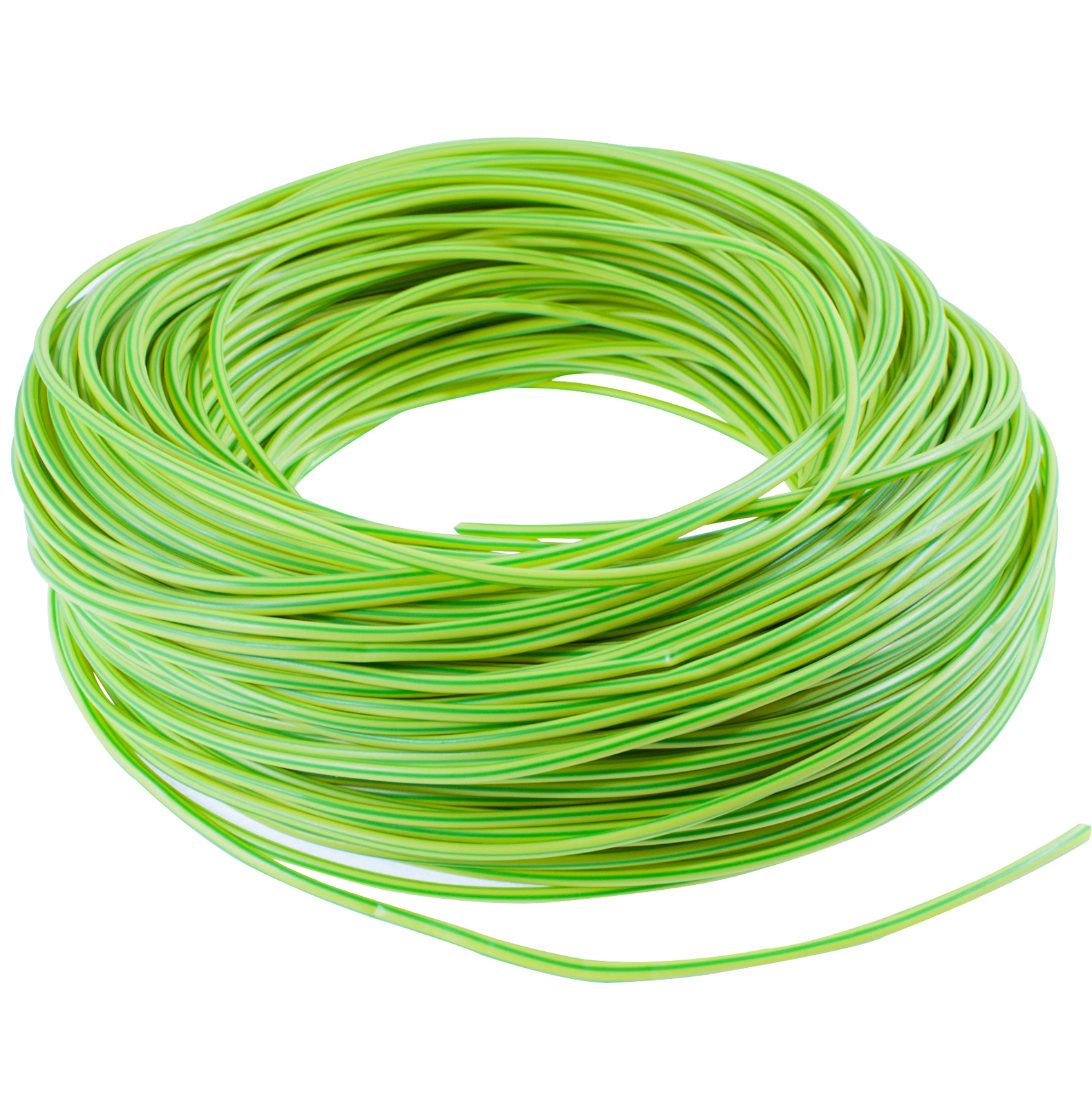

PE isolation tube
Tubing used for insulation and bundling of cables.
Is available in a variety of colors making it suitable also for identification.
Halogen free: Yes
Technical properties
- Heat-resistant:
- No
- Stretch sleeve:
- No
- Colour:
- Green/yellow
- Operating temperature:
- -20-80 °C
- Material:
- Polyethylene (PE)
Show more
Item List
- Total: 8
- Total: 8
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 8
| Product Description | MOQ | Unit | Inner diameter | Availability | ||
|---|---|---|---|---|---|---|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=3.1mm, OD=3.6mm | 100 . | m | 3.1 mm |
Yes
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=5.1mm, OD=5.7mm | 100 . | m | 5.1 mm |
Yes
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=10.1mm, OD=11mm | 50 . | m | 10.1 mm |
Yes
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=12.1mm, OD=13.04mm | 50 . | m | 12.1 mm |
Yes
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=14.1mm, OD=15.24mm | 50 . | m | 14.1 mm |
Yes
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=4.1mm, OD=4.64mm | 100 . | m | 4.1 mm |
No
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=6.1mm, OD=6.8mm | 100 . | m | 6.1 mm |
No
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=8.1mm, OD=8.9mm | 50 . | m | 8.1 mm |
Yes
|
|
|
- Total: 8
Similar Options
Approvals
- Total: 8
- Total: 8
Technical Properties
- Total: 8
| Product Description | Heat-resistant | Stretch sleeve | Colour | Operating temperature | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=3.1mm, OD=3.6mm | No | No | Green/yellow | -20-80 °C | Polyethylene (PE) |
Yes
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=5.1mm, OD=5.7mm | No | No | Green/yellow | -20-80 °C | Polyethylene (PE) |
Yes
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=10.1mm, OD=11mm | No | No | Green/yellow | -20-80 °C | Polyethylene (PE) |
Yes
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=12.1mm, OD=13.04mm | No | No | Green/yellow | -20-80 °C | Polyethylene (PE) |
Yes
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=14.1mm, OD=15.24mm | No | No | Green/yellow | -20-80 °C | Polyethylene (PE) |
Yes
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=4.1mm, OD=4.64mm | No | No | Green/yellow | -20-80 °C | Polyethylene (PE) |
No
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=6.1mm, OD=6.8mm | No | No | Green/yellow | -20-80 °C | Polyethylene (PE) |
No
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=8.1mm, OD=8.9mm | No | No | Green/yellow | -20-80 °C | Polyethylene (PE) |
Yes
|
|
|
- Total: 8
Other information
- Total: 8
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=3.1mm, OD=3.6mm | EC002254 - Cable insulation hose | 9.0 |
|
Cable insulation hose | HF-03MM-45-100 |
Yes
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=5.1mm, OD=5.7mm | EC002254 - Cable insulation hose | 9.0 |
|
Cable insulation hose | HF-05MM-45-100 |
Yes
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=10.1mm, OD=11mm | EC002254 - Cable insulation hose | 9.0 |
|
Cable insulation hose | HF-10MM-45-50 |
Yes
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=12.1mm, OD=13.04mm | EC002254 - Cable insulation hose | 9.0 |
|
Cable insulation hose | HF-12MM-45-50 |
Yes
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=14.1mm, OD=15.24mm | EC002254 - Cable insulation hose | 9.0 |
|
Cable insulation hose | HF-14MM-45-50 |
Yes
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=4.1mm, OD=4.64mm | EC002254 - Cable insulation hose | 9.0 |
|
Cable insulation hose | HF-04MM-45-100 |
No
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=6.1mm, OD=6.8mm | EC002254 - Cable insulation hose | 9.0 |
|
Cable insulation hose | HF-06MM-45-100 |
No
|
|
|
| PE-ISOLATION HOSE, HF, GREEN/YELLOW ID=8.1mm, OD=8.9mm | EC002254 - Cable insulation hose | 9.0 |
|
Cable insulation hose | HF-08MM-45-50 |
Yes
|
|
|
