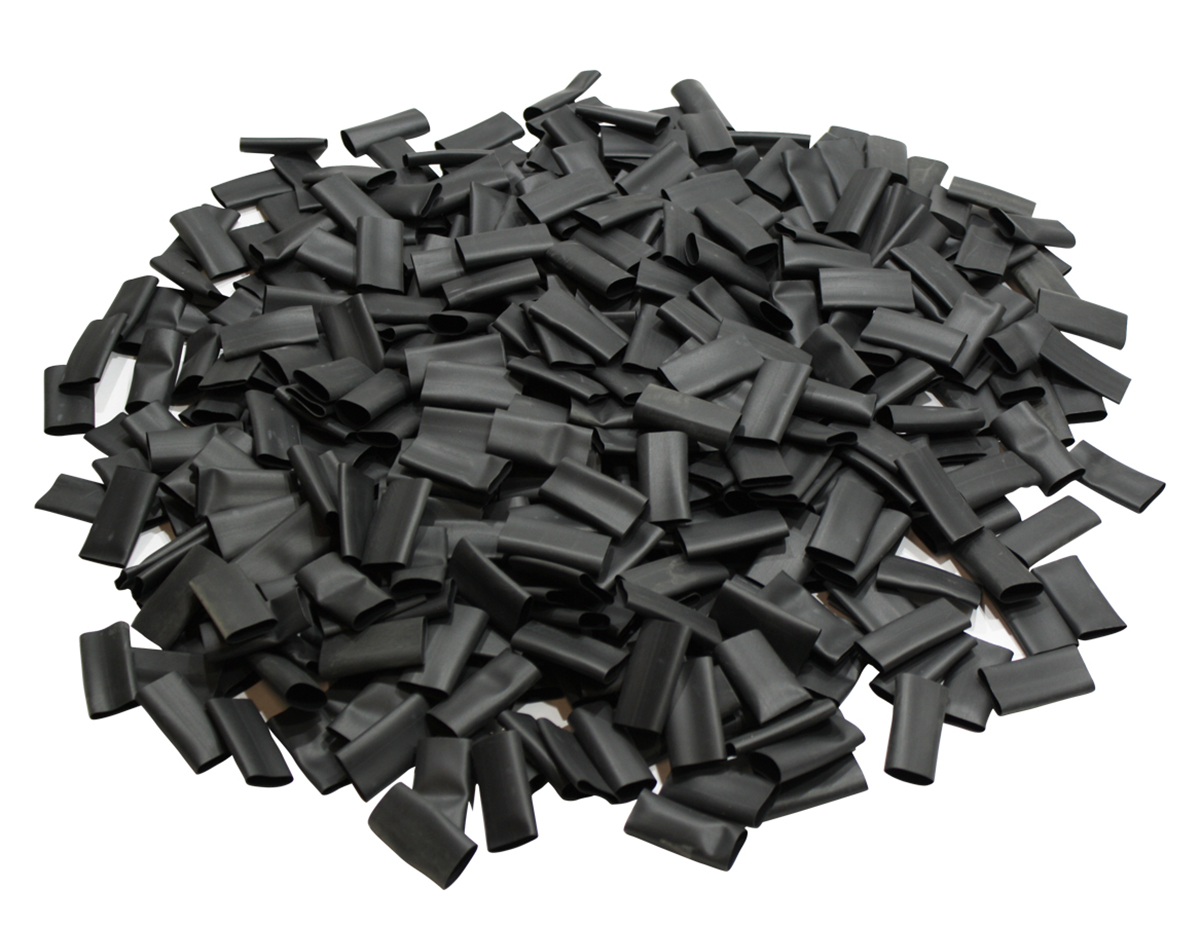

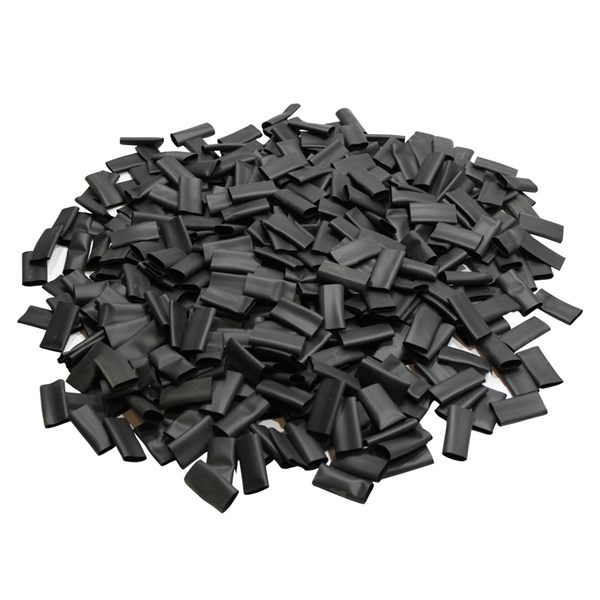

NHS, die-cut - Black
NHS Standardkrympslang med krympgrad 2:1.
Användningsområden:
Elektrisk isolering, dragavlastning, ledningsbuntning, mekaniskt skydd, färgmärkning av ledningar, kablar, och rör samt elektroniska komponenter.
Material: Polyolefin
Färg: Svart
Arbetstemperatur: Max +125°C
Lägsta krymptemperatur: +90°C
Väggtjocklek: Tunnväggig
Krympgrad: 2:1
Självslocknande: VW-1
Technical properties
- Model:
- Thin-walled
- Operating temperature:
- -55-125 °C
- Type:
- Heat-shrink
- Shrink rate:
- 2:1
- With inner glue:
- No
- Colour:
- Black
- Material:
- Polyolefin (PO-X)
- Halogen free:
- No
- Packaging:
- Cut to length
Show more
Item List
- Total: 7
- Total: 7
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 7
| Product Description | Wall thickness after shrinking | MOQ | Unit | Length | Inner diameter before heat-shrink | Inner diameter after heat-shrink | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=1.6mm BLACK, DIE-CUT, L=75mm, THIN-W | 0.35 mm | 2666 . | pcs | 0.075 m | 2 mm | 1 mm |
No
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=12.7mm BLACK, DIE-CUT, L=75mm, THIN-W | 0.65 mm | 1333 . | pcs | 0.075 m | 12.5 mm | 6.25 mm |
No
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=2.4mm BLACK, DIE-CUT, L=75mm, THIN-W | 0.38 mm | 2666 . | pcs | 0.075 m | 2.5 mm | 1.25 mm |
No
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=3.2mm BLACK, DIE-CUT, L=75mm, THIN-W | 0.4 mm | 2666 . | pcs | 0.075 m | 3.5 mm | 1.75 mm |
No
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=4.8mm BLACK, DIE-CUT, L=75mm, THIN-W | 0.55 mm | 1333 . | pcs | 0.075 m | 4.8 mm | 2.4 mm |
No
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=6.4mm BLACK, DIE-CUT, L=75mm, THIN-W | 0.55 mm | 1333 . | pcs | 0.075 m | 6.5 mm | 3.25 mm |
No
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=9.5mm BLACK, DIE-CUT, L=75mm, THIN-W | 0.6 mm | 1333 . | pcs | 0.075 m | 9.5 mm | 4.75 mm |
No
|
|
|
- Total: 7
Similar Options
Approvals
- Total: 7
- Total: 7
Technical Properties
- Total: 7
| Product Description | Model | Operating temperature | Type | Shrink rate | With inner glue | Colour | Material | Halogen free | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=1.6mm BLACK, DIE-CUT, L=75mm, THIN-W | Thin-walled | -55-125 °C | Heat-shrink | 2:1 | No | Black | Polyolefin (PO-X) | No | Cut to length |
No
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=12.7mm BLACK, DIE-CUT, L=75mm, THIN-W | Thin-walled | -55-125 °C | Heat-shrink | 2:1 | No | Black | Polyolefin (PO-X) | No | Cut to length |
No
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=2.4mm BLACK, DIE-CUT, L=75mm, THIN-W | Thin-walled | -55-125 °C | Heat-shrink | 2:1 | No | Black | Polyolefin (PO-X) | No | Cut to length |
No
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=3.2mm BLACK, DIE-CUT, L=75mm, THIN-W | Thin-walled | -55-125 °C | Heat-shrink | 2:1 | No | Black | Polyolefin (PO-X) | No | Cut to length |
No
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=4.8mm BLACK, DIE-CUT, L=75mm, THIN-W | Thin-walled | -55-125 °C | Heat-shrink | 2:1 | No | Black | Polyolefin (PO-X) | No | Cut to length |
No
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=6.4mm BLACK, DIE-CUT, L=75mm, THIN-W | Thin-walled | -55-125 °C | Heat-shrink | 2:1 | No | Black | Polyolefin (PO-X) | No | Cut to length |
No
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=9.5mm BLACK, DIE-CUT, L=75mm, THIN-W | Thin-walled | -55-125 °C | Heat-shrink | 2:1 | No | Black | Polyolefin (PO-X) | No | Cut to length |
No
|
|
|
