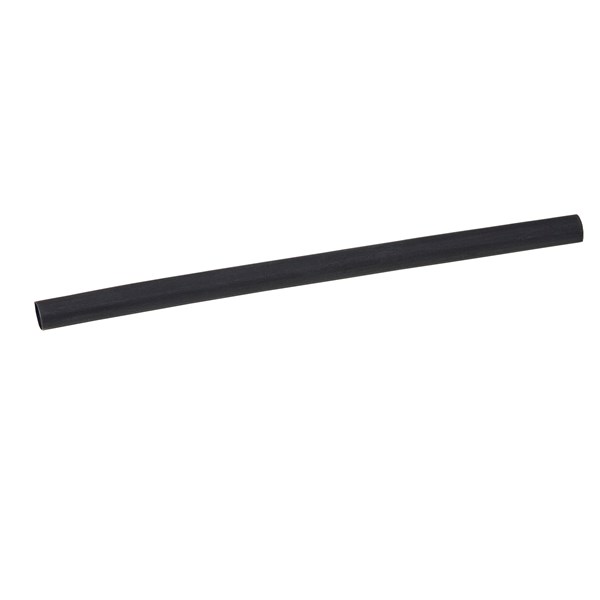

NELCON (CGPT), 2:1, without adhesive, die-cut
Nelcon is a strong, flexible, heat shrink tubing for universally use. Nelcon has good resistance to fluids and solvents, and good dielectric strength.
Shrink ratio at 2:1 and 3:1, and the tubes unique combination of chemical, electrical and physical properties it is suitable for a variety of uses.
Applications:
Electrical insulation, strain relief, bundling, mechanical protection, colour coding of wires, cables, tubes and electronic components.
Material: Polyolefin
Temperature range: -40º C to +135º C
Lowest shrink temperature: +120º C
Wall thickness: Thin wall
Shrink ratio: 2:1
Self-extinguishing: Yes
Technical properties
- Model:
- Thin-walled
- Operating temperature:
- -40-135 °C
- Transparent:
- No
- Type:
- Heat-shrink
- Shrink rate:
- 2:1
- With inner glue:
- No
- Printable:
- No
- Colour:
- White, Black
- Material:
- Polyolefin (PO-X)
- Halogen free:
- No
- Packaging:
- Cut to length
Show more
Item List
- Total: 3
- Total: 3
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 3
| Product Description | Wall thickness after shrinking | MOQ | Unit | Length | Nominal diameter inch | Inner diameter before heat-shrink | Inner diameter after heat-shrink | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=1.2mm WHITE, DIE-CUT, L=5mm, THIN-W | 0.45 mm | 10000 . | pcs | 0.005 m | 3/64 inch | 1.2 mm | 0.6 mm |
No
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=1.6mm BLACK, DIE-CUT, L=12mm, THIN-W | 0.45 mm | 25000 . | pcs | 0.012 m | 1/16 inch | 1.6 mm | 0.8 mm |
Yes
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=12.7mm BLACK, DIE-CUT, L=23mm, THIN-W | 0.65 mm | 2500 . | pcs | 0.023 m | 1/2 inch | 12.7 mm | 6.35 mm |
No
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | UL approval | Approved according to CSA | With approval according to UL | Availability | ||
|---|---|---|---|---|---|---|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=1.2mm WHITE, DIE-CUT, L=5mm, THIN-W |
|
|
|
No
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=1.6mm BLACK, DIE-CUT, L=12mm, THIN-W |
|
|
|
Yes
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=12.7mm BLACK, DIE-CUT, L=23mm, THIN-W |
|
|
|
No
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Model | Operating temperature | Transparent | Type | Shrink rate | With inner glue | Printable | Colour | Material | Halogen free | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=1.2mm WHITE, DIE-CUT, L=5mm, THIN-W | Thin-walled | -40-135 °C | No | Heat-shrink | 2:1 | No | No | White | Polyolefin (PO-X) | No | Cut to length |
No
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=1.6mm BLACK, DIE-CUT, L=12mm, THIN-W | Thin-walled | -40-135 °C | No | Heat-shrink | 2:1 | No | No | Black | Polyolefin (PO-X) | No | Cut to length |
Yes
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=12.7mm BLACK, DIE-CUT, L=23mm, THIN-W | Thin-walled | -40-135 °C | No | Heat-shrink | 2:1 | No | No | Black | Polyolefin (PO-X) | No | Cut to length |
No
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=1.2mm WHITE, DIE-CUT, L=5mm, THIN-W | EC000217 - Shrink tubing | 9.0 |
|
Die-Cut | NELCON1.2-5MMVIT |
No
|
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=1.6mm BLACK, DIE-CUT, L=12mm, THIN-W | EC000217 - Shrink tubing | 9.0 | Die-Cut | 5069806023 | NELCON1.6-12MM |
Yes
|
|
|
|
| SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=12.7mm BLACK, DIE-CUT, L=23mm, THIN-W | EC000217 - Shrink tubing | 9.0 | Die-Cut | A169646002 | NELCON12.7-23MM |
No
|
|
|
- Total: 3
