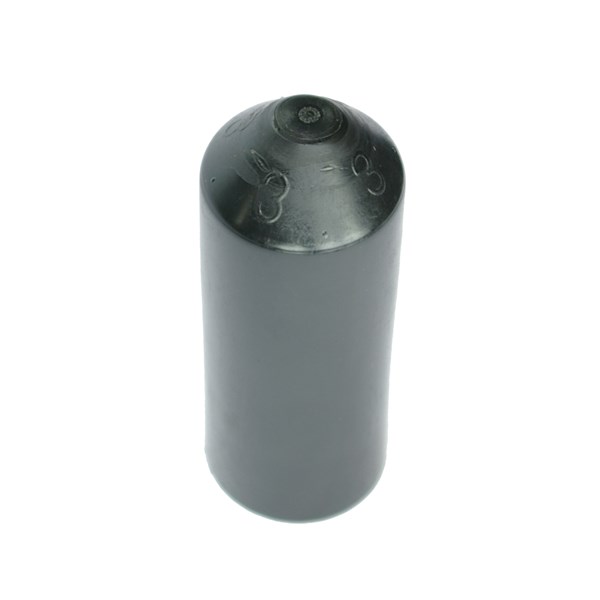

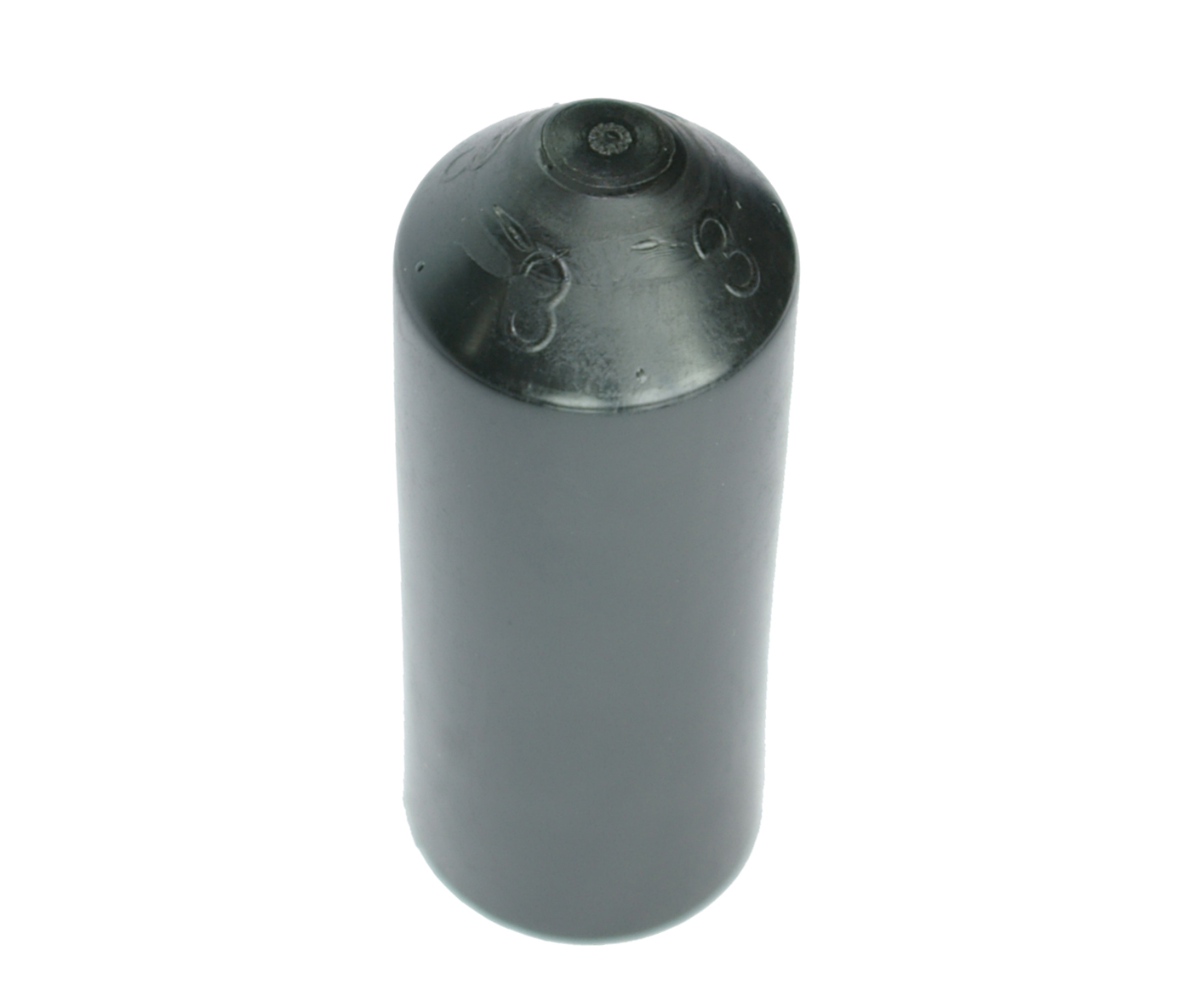

Ändhätta/kabelavslut med smältlim
Ändhätta som möjliggör skydd och tätning av kabelavslut från yttre miljöpåverkan.
UV-stabiliserad
Bra motståndskraft mot kemikalier och lösningsmedel
Technical properties
- Operating temperature:
- -40-100 °C
- Transparent:
- No
- Type:
- Heat-shrink
- Shrink rate:
- 2:1
- Colour:
- Black
- Material:
- Polyolefin (PO-X)
Show more
Item List
- Total: 10
- Total: 10
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 10
| Product Description | Total length after shrink | Wall thickness after shrinking | MOQ | Unit | Inner diameter before heat-shrink | Inner diameter after heat-shrink | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| END CAP, L=45mm, DIAMETER=15.0-4.5 BLACK | 45 mm | 2 mm | 150 . | pcs | 15 mm | 4.5 mm |
No
|
|
|
| END CAP, L=60mm, DIAMETER=20.0-6.0 BLACK | 60 mm | 2.7 mm | 150 . | pcs | 20 mm | 6 mm |
No
|
|
|
| END CAP, L=70mm, DIAMETER=25.0-9.0 BLACK | 70 mm | 2.7 mm | 100 . | pcs | 25 mm | 9 mm |
No
|
|
|
| END CAP, L=95mm, DIAMETER=36.0-15.0 BLACK | 95 mm | 2.8 mm | 100 . | pcs | 36 mm | 15 mm |
No
|
|
|
| END CAP, L=110mm, DIAMETER=63.0-24.0 BLACK | 110 mm | 3.6 mm | 50 . | pcs | 63 mm | 24 mm |
No
|
|
|
| END CAP, L=130mm, DIAMETER=80.0-40.0 BLACK | 130 mm | 3.6 mm | 30 . | pcs | 80 mm | 40 mm |
No
|
|
|
| END CAP, L=152mm, DIAMETER=102.0-60.0 BLACK | 152 mm | 3.6 mm | 20 . | pcs | 102 mm | 60 mm |
No
|
|
|
| END CAP, L=152mm, DIAMETER=124.0-60.0 BLACK | 152 mm | 3.6 mm | 20 . | pcs | 124 mm | 60 mm |
No
|
|
|
| END CAP, L=152mm, DIAMETER=148.0-57.0 BLACK | 152 mm | 4.5 mm | 10 . | pcs | 148 mm | 57 mm |
No
|
|
|
| END CAP, L=35mm, DIAMETER=10.0-4.0 BLACK | 35 mm | 2 mm | 200 . | pcs | 10 mm | 4 mm |
No
|
|
|
- Total: 10
Similar Options
Approvals
- Total: 10
- Total: 10
Technical Properties
- Total: 10
| Product Description | Operating temperature | Transparent | Type | Shrink rate | Colour | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| END CAP, L=45mm, DIAMETER=15.0-4.5 BLACK | -40-100 °C | No | Heat-shrink | 2:1 | Black | Polyolefin (PO-X) |
No
|
|
|
| END CAP, L=60mm, DIAMETER=20.0-6.0 BLACK | -40-100 °C | No | Heat-shrink | 2:1 | Black | Polyolefin (PO-X) |
No
|
|
|
| END CAP, L=70mm, DIAMETER=25.0-9.0 BLACK | -40-100 °C | No | Heat-shrink | 2:1 | Black | Polyolefin (PO-X) |
No
|
|
|
| END CAP, L=95mm, DIAMETER=36.0-15.0 BLACK | -40-100 °C | No | Heat-shrink | 2:1 | Black | Polyolefin (PO-X) |
No
|
|
|
| END CAP, L=110mm, DIAMETER=63.0-24.0 BLACK | -40-100 °C | No | Heat-shrink | 2:1 | Black | Polyolefin (PO-X) |
No
|
|
|
| END CAP, L=130mm, DIAMETER=80.0-40.0 BLACK | -40-100 °C | No | Heat-shrink | 2:1 | Black | Polyolefin (PO-X) |
No
|
|
|
| END CAP, L=152mm, DIAMETER=102.0-60.0 BLACK | -40-100 °C | No | Heat-shrink | 2:1 | Black | Polyolefin (PO-X) |
No
|
|
|
| END CAP, L=152mm, DIAMETER=124.0-60.0 BLACK | -40-100 °C | No | Heat-shrink | 2:1 | Black | Polyolefin (PO-X) |
No
|
|
|
| END CAP, L=152mm, DIAMETER=148.0-57.0 BLACK | -40-100 °C | No | Heat-shrink | 2:1 | Black | Polyolefin (PO-X) |
No
|
|
|
| END CAP, L=35mm, DIAMETER=10.0-4.0 BLACK | -40-100 °C | No | Heat-shrink | 2:1 | Black | Polyolefin (PO-X) |
No
|
|
|
- Total: 10
Other information
- Total: 10
| Product Description | ETIM-Class | ETIM-Release | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|
| END CAP, L=45mm, DIAMETER=15.0-4.5 BLACK | EC000218 - Shrink end cap | 9.0 | Molded parts & End caps | EC015-005 |
No
|
|
|
| END CAP, L=60mm, DIAMETER=20.0-6.0 BLACK | EC000218 - Shrink end cap | 9.0 | Molded parts & End caps | EC020-006 |
No
|
|
|
| END CAP, L=70mm, DIAMETER=25.0-9.0 BLACK | EC000218 - Shrink end cap | 9.0 | Molded parts & End caps | EC025-009 |
No
|
|
|
| END CAP, L=95mm, DIAMETER=36.0-15.0 BLACK | EC000218 - Shrink end cap | 9.0 | Molded parts & End caps | EC036-015 |
No
|
|
|
| END CAP, L=110mm, DIAMETER=63.0-24.0 BLACK | EC000218 - Shrink end cap | 9.0 | Molded parts & End caps | EC063-024 |
No
|
|
|
| END CAP, L=130mm, DIAMETER=80.0-40.0 BLACK | EC000218 - Shrink end cap | 9.0 | Molded parts & End caps | EC080-040 |
No
|
|
|
| END CAP, L=152mm, DIAMETER=102.0-60.0 BLACK | EC000218 - Shrink end cap | 9.0 | Molded parts & End caps | EC102-060 |
No
|
|
|
| END CAP, L=152mm, DIAMETER=124.0-60.0 BLACK | EC000218 - Shrink end cap | 9.0 | Molded parts & End caps | EC124-060 |
No
|
|
|
| END CAP, L=152mm, DIAMETER=148.0-57.0 BLACK | EC000218 - Shrink end cap | 9.0 | Molded parts & End caps | EC148-057 |
No
|
|
|
| END CAP, L=35mm, DIAMETER=10.0-4.0 BLACK | EC000218 - Shrink end cap | 9.0 | Molded parts & End caps | EC010-004 |
No
|
|
|
- Total: 10
