360 view
PBP-M20-LGY

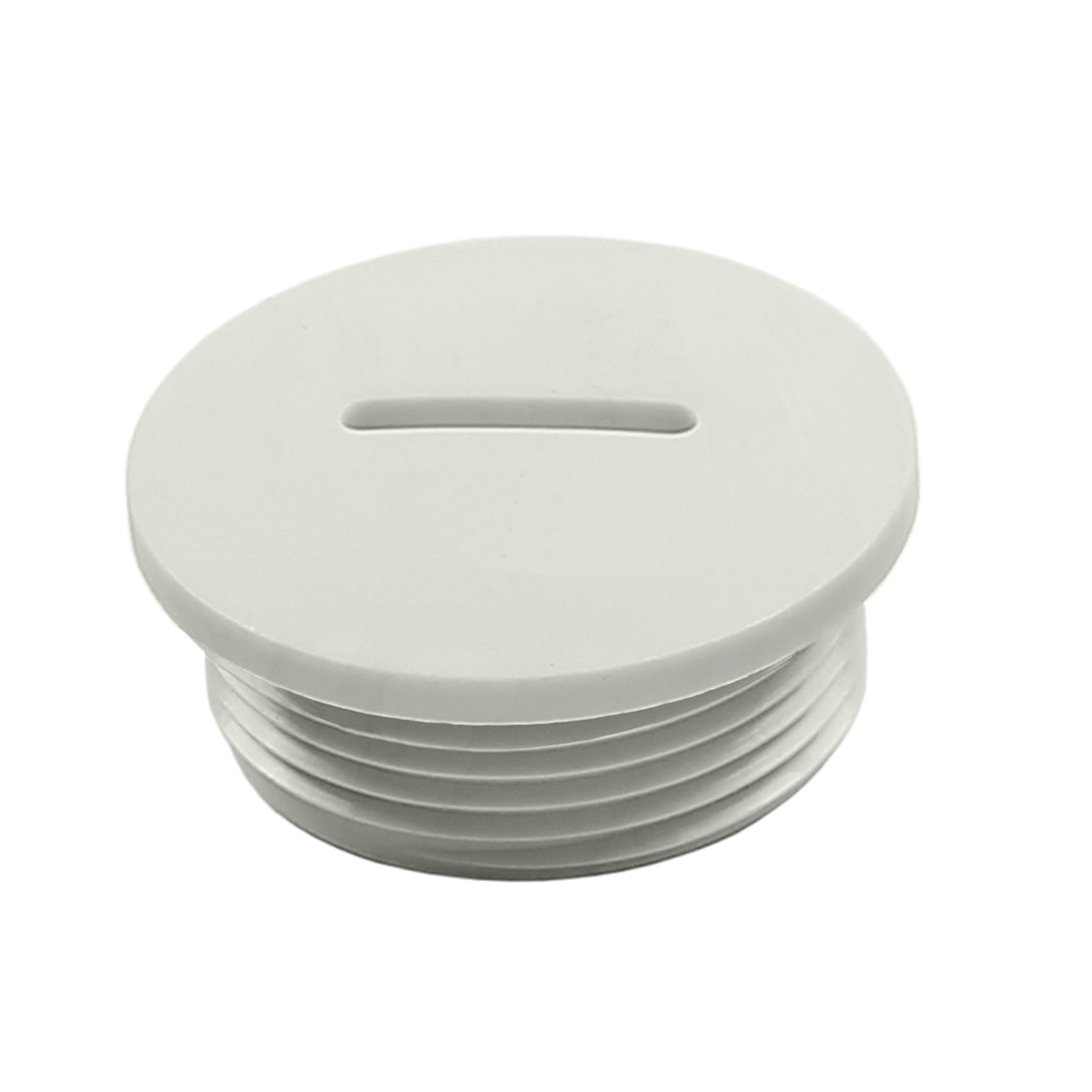

PLUG PA M20, GREY
PBP-M20-LGY
- Availability:
-
Yes
Product Properties
| Pressure-compensating | No |
|---|---|
| Material quality | Polyamide (PA) |
| RAL-number | 7035 . |
| Thread type | Metric |
| Glass-fibre reinforced | No |
| Shock resistant | No |
| Explosion-tested version | No |
| For Ex-zone gas | None |
| For Ex-Zone dust | None |
| Colour | Grey |
| Surface protection | Untreated |
| Operating temperature | -40-100 °C |
| Material | Plastic |
| Halogen free | Yes |
Dimensions
| D | 25 mm |
|---|---|
| H | 13 mm |
| AG | 20 mm |
| GL | 9 mm |
| MOQ | 50 . |
| Unit | pcs |
| Nominal thread size metric/PG | 20 . |
| Pitch thread | 1.5 mm |
| Thread length | 9 mm |
| Nominal thread size inch/gas pipe thread | N/A |
Logistics
| Barcode | 733117640807 |
|---|---|
| Country of origin | CN |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 50 . |
| Stock code | PBP-M20-LGY |
| Taric code | 39269097 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC000032 - Plug for cable screw gland |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Plug |
| Alternative SKU | PBP-M20-LGY |
Compliance
| PFAS | No PFAS |
|---|---|
| POPs | No POPs |
| RoHS | RoHS 3 (2015/863) |
