Metal

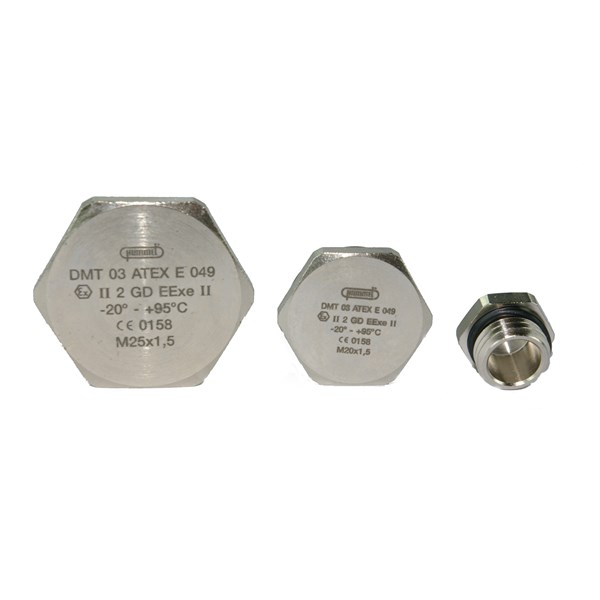

Blindplugg MS, sexkant, O-ring, Ex-klassad
Material:Förnicklad mässing
O-ring:NBR
Skyddsklass: IP 68 - 10 bar
Drifttemperatur:-20° C till +95° C
Technical properties
- Pressure-compensating:
- No
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- Metric, PG
- Glass-fibre reinforced:
- No
- Shock resistant:
- No
- Explosion-tested version:
- Yes
- For Ex-zone gas:
- 1, 2
- For Ex-Zone dust:
- 20, 21, 22
- Colour:
- Nickel
- Surface protection:
- Nickel-plated
- Material:
- Metal
- Halogen free:
- N/A
Show more
Item List
- Total: 6
- Total: 6
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 6
Product Description | MOQ | Unit | Nominal thread size metric/PG | Pitch thread | Nominal thread size inch/gas pipe thread | Availability | ||
---|---|---|---|---|---|---|---|---|
PLUG EX, ME, M12 M12 | 50 . | pcs | 12 . | 0-1.5 mm | N/A |
Yes
|
|
|
PLUG EX, ME, PG16 PG16 | 50 . | pcs | 16 . | 0-1.41 mm | N/A |
No
|
|
|
PLUG EX, ME, M16 M16 | 50 . | pcs | 16 . | 0-1.5 mm | N/A |
Yes
|
|
|
PLUG EX, ME, M20 M20 | 50 . | pcs | 20 . | 0-1.5 mm | N/A |
No
|
|
|
PLUG EX, ME, M25 M25 | 50 . | pcs | 25 . | 0-1.5 mm | N/A |
Yes
|
|
|
PLUG EX, ME, M32 M32 | 10 . | pcs | 32 . | 0-1.5 mm | N/A |
Yes
|
|
|
- Total: 6
Similar Options
Approvals
- Total: 6
Product Description | Availability | ||
---|---|---|---|
PLUG EX, ME, M12 M12 |
Yes
|
|
|
PLUG EX, ME, PG16 PG16 |
No
|
|
|
PLUG EX, ME, M16 M16 |
Yes
|
|
|
PLUG EX, ME, M20 M20 |
No
|
|
|
PLUG EX, ME, M25 M25 |
Yes
|
|
|
PLUG EX, ME, M32 M32 |
Yes
|
|
|
- Total: 6
Technical Properties
- Total: 6
Product Description | Pressure-compensating | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Explosion-tested version | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Material | Halogen free | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PLUG EX, ME, M12 M12 | No | Brass | 0 N/A | Metric | No | No | Yes | 1, 2 | 20, 21, 22 | Nickel | Nickel-plated | Metal | N/A |
Yes
|
|
|
PLUG EX, ME, PG16 PG16 | No | Brass | 0 N/A | PG | No | No | Yes | 1, 2 | 20, 21, 22 | Nickel | Nickel-plated | Metal | N/A |
No
|
|
|
PLUG EX, ME, M16 M16 | No | Brass | 0 N/A | Metric | No | No | Yes | 1, 2 | 20, 21, 22 | Nickel | Nickel-plated | Metal | N/A |
Yes
|
|
|
PLUG EX, ME, M20 M20 | No | Brass | 0 N/A | Metric | No | No | Yes | 1, 2 | 20, 21, 22 | Nickel | Nickel-plated | Metal | N/A |
No
|
|
|
PLUG EX, ME, M25 M25 | No | Brass | 0 N/A | Metric | No | No | Yes | 1, 2 | 20, 21, 22 | Nickel | Nickel-plated | Metal | N/A |
Yes
|
|
|
PLUG EX, ME, M32 M32 | No | Brass | 0 N/A | Metric | No | No | Yes | 1, 2 | 20, 21, 22 | Nickel | Nickel-plated | Metal | N/A |
Yes
|
|
|
- Total: 6
Other information
- Total: 6
Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
---|---|---|---|---|---|---|---|---|
PLUG EX, ME, M12 M12 | EC000032 - Plug for cable screw gland | 9.0 | Plug | 1.197.1200.50 |
Yes
|
|
|
|
PLUG EX, ME, PG16 PG16 | EC000032 - Plug for cable screw gland | 9.0 |
|
Plug | 1.197.1600.01 |
No
|
|
|
PLUG EX, ME, M16 M16 | EC000032 - Plug for cable screw gland | 9.0 |
|
Plug | 1.197.1600.50 |
Yes
|
|
|
PLUG EX, ME, M20 M20 | EC000032 - Plug for cable screw gland | 9.0 |
|
Plug | 1.197.2000.50 |
No
|
|
|
PLUG EX, ME, M25 M25 | EC000032 - Plug for cable screw gland | 9.0 |
|
Plug | 1.197.2500.50 |
Yes
|
|
|
PLUG EX, ME, M32 M32 | EC000032 - Plug for cable screw gland | 9.0 |
|
Plug | 1.197.3200.50 |
Yes
|
|
|
- Total: 6
