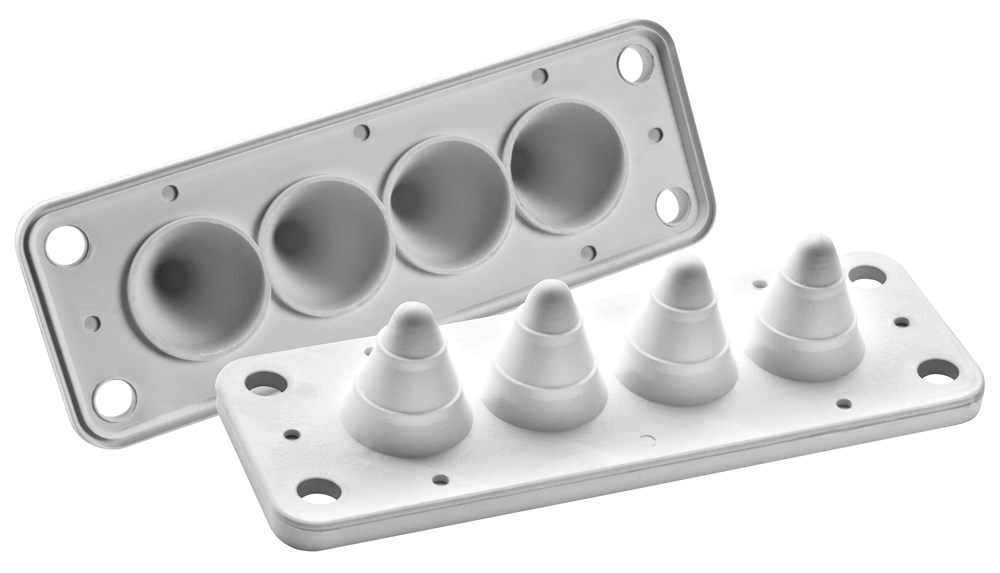

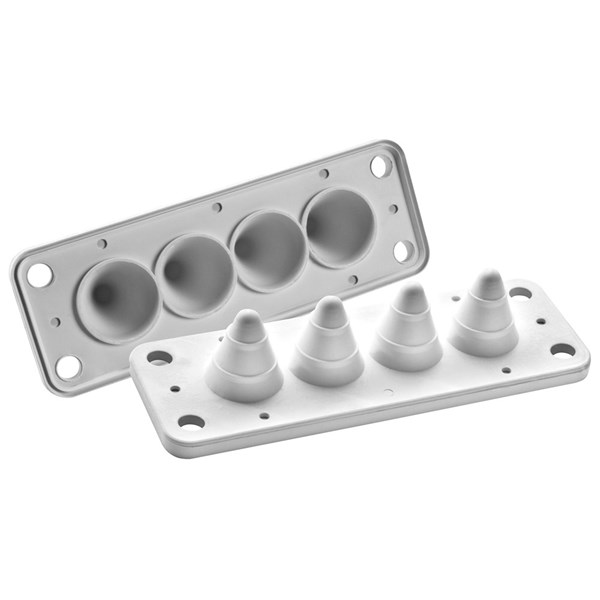

Multigate - MB 4
MB 4 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a B-standard cut-out (or FL 13)
MB 4 Multigate is metal reinforced cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit.
MB 4 Multigate is suitable for both outdoor and indoor use.
MB 4 Multigate gives protection for limited ingress of dust and against water splashed from all directions.
MB 4 Multigate is inspected and sertified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards
All article numbers ending with “F” include fastening rivets.
MB 4 Multigate will lead through and seal cables as follows: 10 - 25 mm 4 pcsTotal of 4 cables
Technical properties
- Model:
- Other
- Type:
- Straight
- Thread type:
- Metric
- Pre-stamping:
- No
- Number of connector holes:
- 4 .
- Surface protection:
- Untreated
- Material:
- Rubber
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Trelleborg_Multigate
Dimensions
- Total: 1
| Product Description | Depth | Suitable for nominal thread metric/PG | Width | Height | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| MULTIGATE, FL13, IP55, 4 CABLES, MB 4 4x10-25mm | 32 mm | 0 N/A | 138 mm | 32 mm | 100 . | pcs |
No
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| MULTIGATE, FL13, IP55, 4 CABLES, MB 4 4x10-25mm |
No
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Model | Type | Thread type | Pre-stamping | Number of connector holes | Surface protection | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| MULTIGATE, FL13, IP55, 4 CABLES, MB 4 4x10-25mm | Other | Straight | Metric | No | 4 . | Untreated | Rubber |
No
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| MULTIGATE, FL13, IP55, 4 CABLES, MB 4 4x10-25mm | EC000211 - Gland plate for small distribution boards/switchgear cabinets | 9.0 |
|
Cable gland plates | 100216, MB 4, MEMBRANFLÄNS | 100216 |
No
|
|
|
