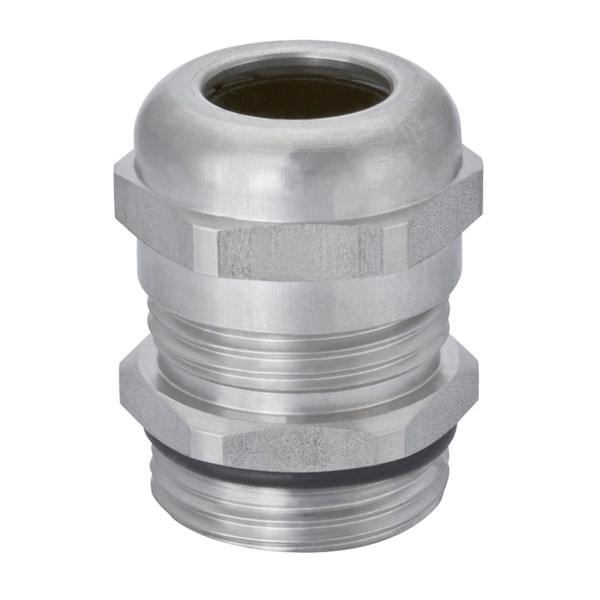

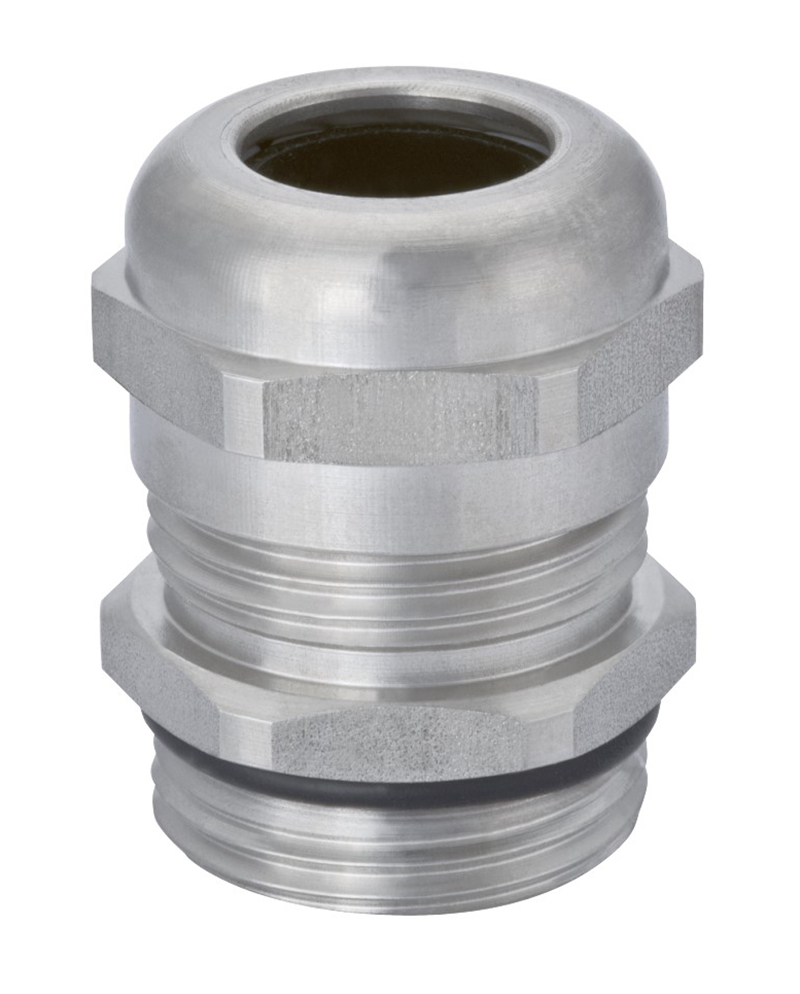

HSK-INOX - PG
Rostfri förskruvning i industri standard.
Material:1.4305
Kläminsats: PA
Formtätning: NBR
O-ring: NBR
Skyddsklass: IP 68-10 bar / IP 69K, inom angivet klämområde Drifttemperatur kontinuerligt: -40° C till +100° C
PG är ej VDE godkända.
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Stainless steel 304 (V2A)
- RAL-number:
- 0 N/A
- Thread type:
- PG
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Brass
- Surface protection:
- Untreated
- Operating temperature:
- -40-100 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 14 mm, 17 mm, 22 mm, 24 mm, 30 mm
Show more
Item List
- Total: 7
- Total: 7
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 7
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-INOX 1.4305 PG7, 3-6.5mm | 10 . | pcs | 3-6.5 mm | 7 . | 1.27 mm | 5 mm | 14 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG11, 3-7mm | 10 . | pcs | 3-7 mm | 11 . | 1.41 mm | 6 mm | 22 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG9, 4-8mm | 10 . | pcs | 4-8 mm | 9 . | 1.41 mm | 6 mm | 17 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG11, 5-10mm | 10 . | pcs | 5-10 mm | 11 . | 1.41 mm | 6 mm | 22 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG13.5, 6-12mm | 10 . | pcs | 6-12 mm | 13.5 . | 1.41 mm | 6.5 mm | 22 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG16, 10-14mm | 10 . | pcs | 10-14 mm | 16 . | 1.41 mm | 6.5 mm | 24 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG21, 13-18mm | 10 . | pcs | 13-18 mm | 21 . | 1.588 mm | 7 mm | 30 mm | Other |
Yes
|
|
|
- Total: 7
Similar Options
Approvals
- Total: 7
| Product Description | Degree of protection (IP) | Approved according to CE | Availability | ||
|---|---|---|---|---|---|
| CABLE GLAND, HSK-INOX 1.4305 PG7, 3-6.5mm | IP68 |
|
No
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG11, 3-7mm | IP68 |
|
No
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG9, 4-8mm | IP68 |
|
No
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG11, 5-10mm | IP68 |
|
Yes
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG13.5, 6-12mm | IP68 |
|
Yes
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG16, 10-14mm | IP68 |
|
No
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG21, 13-18mm | IP68 |
|
Yes
|
|
|
- Total: 7
Technical Properties
- Total: 7
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-INOX 1.4305 PG7, 3-6.5mm | No | IP68 | Yes | Straight | Stainless steel 304 (V2A) | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Untreated | -40-100 °C | Metal | Yes | 14 mm |
No
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG11, 3-7mm | No | IP68 | Yes | Straight | Stainless steel 304 (V2A) | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Untreated | -40-100 °C | Metal | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG9, 4-8mm | No | IP68 | Yes | Straight | Stainless steel 304 (V2A) | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Untreated | -40-100 °C | Metal | Yes | 17 mm |
No
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG11, 5-10mm | No | IP68 | Yes | Straight | Stainless steel 304 (V2A) | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Untreated | -40-100 °C | Metal | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG13.5, 6-12mm | No | IP68 | Yes | Straight | Stainless steel 304 (V2A) | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Untreated | -40-100 °C | Metal | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG16, 10-14mm | No | IP68 | Yes | Straight | Stainless steel 304 (V2A) | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Untreated | -40-100 °C | Metal | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG21, 13-18mm | No | IP68 | Yes | Straight | Stainless steel 304 (V2A) | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Untreated | -40-100 °C | Metal | Yes | 30 mm |
Yes
|
|
|
- Total: 7
Other information
- Total: 7
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-INOX 1.4305 PG7, 3-6.5mm | EC000441 - Cable gland | 9.0 |
|
Stainless steel, standard | 1.695.0700.01 |
No
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG11, 3-7mm | EC000441 - Cable gland | 9.0 |
|
Stainless steel, standard | 1.695.1100.15 |
No
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG9, 4-8mm | EC000441 - Cable gland | 9.0 |
|
Stainless steel, standard | 1.695.0900.01 |
No
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG11, 5-10mm | EC000441 - Cable gland | 9.0 |
|
Stainless steel, standard | 1.695.1100.01 |
Yes
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG13.5, 6-12mm | EC000441 - Cable gland | 9.0 |
|
Stainless steel, standard | 1.695.1300.01 |
Yes
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG16, 10-14mm | EC000441 - Cable gland | 9.0 |
|
Stainless steel, standard | 1.695.1600.01 |
No
|
|
|
| CABLE GLAND, HSK-INOX 1.4305 PG21, 13-18mm | EC000441 - Cable gland | 9.0 |
|
Stainless steel, standard | 1.695.2100.01 |
Yes
|
|
|
- Total: 7
