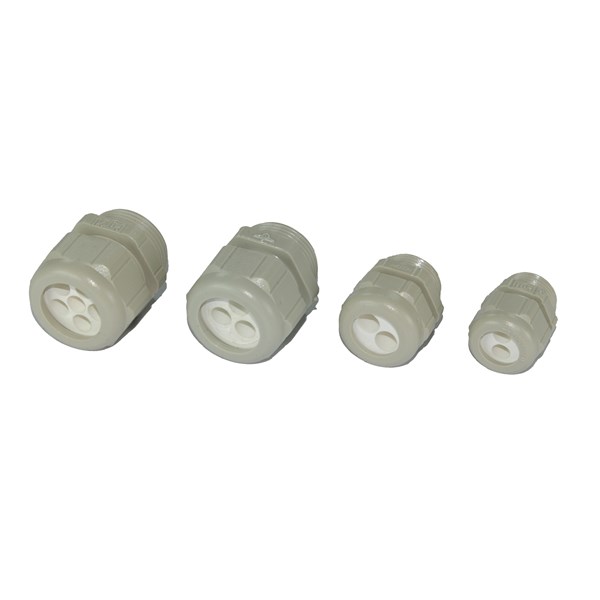

UNI-DICHT-T/MULTI
Kabelförskruvning avsedd för två eller flera kablar i en förskruvning. Platsbesparande vid montage av många kablar.
Material: Trogamid PA-6-(3)-T
Tätning:PVC
Skyddsklass: IP 65
Arbetstemperatur:-25º C till +75º C, kortfristigt +100º C
Färg:Grå RAL 7032
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP65
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Other
- RAL-number:
- 7032 .
- Thread type:
- PG
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Grey
- Surface protection:
- Untreated
- Operating temperature:
- -25-75 °C
- Material:
- Plastic
- Halogen free:
- Yes
- Wrench width:
- 27 mm, 33 mm
Show more
Item List
- Total: 3
- Total: 3
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 3
| Product Description | MOQ | Unit | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, UNI-DICHT-T/MULTI, GREY PG16, 2x8mm | 50 . | pcs | 16 . | 1.41 mm | 10 mm | 27 mm | Other |
Yes
|
|
|
| CABLE GLAND, UNI-DICHT-T/MULTI, GREY PG21, 6x6.54mm | 25 . | pcs | 21 . | 1.588 mm | 11 mm | 33 mm | Other |
No
|
|
|
| CABLE GLAND, UNI-DICHT-T/MULTI, GREY PG21, 3x7mm | 25 . | pcs | 21 . | 1.588 mm | 11 mm | 33 mm | Other |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|
| CABLE GLAND, UNI-DICHT-T/MULTI, GREY PG16, 2x8mm | IP65 |
Yes
|
|
|
| CABLE GLAND, UNI-DICHT-T/MULTI, GREY PG21, 6x6.54mm | IP65 |
No
|
|
|
| CABLE GLAND, UNI-DICHT-T/MULTI, GREY PG21, 3x7mm | IP65 |
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, UNI-DICHT-T/MULTI, GREY PG16, 2x8mm | No | IP65 | Yes | Straight | Other | 7032 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | None | None | Grey | Untreated | -25-75 °C | Plastic | Yes | 27 mm |
Yes
|
|
|
| CABLE GLAND, UNI-DICHT-T/MULTI, GREY PG21, 6x6.54mm | No | IP65 | Yes | Straight | Other | 7032 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | None | None | Grey | Untreated | -25-75 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, UNI-DICHT-T/MULTI, GREY PG21, 3x7mm | No | IP65 | Yes | Straight | Other | 7032 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | None | None | Grey | Untreated | -25-75 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|
| CABLE GLAND, UNI-DICHT-T/MULTI, GREY PG16, 2x8mm | EC000441 - Cable gland | 9.0 | Plastic, standard | 1.214.1604.14 |
Yes
|
|
|
| CABLE GLAND, UNI-DICHT-T/MULTI, GREY PG21, 6x6.54mm | EC000441 - Cable gland | 9.0 | Plastic, standard | 1.214.2104.14 |
No
|
|
|
| CABLE GLAND, UNI-DICHT-T/MULTI, GREY PG21, 3x7mm | EC000441 - Cable gland | 9.0 | Plastic, standard | 1.214.2105.14 |
Yes
|
|
|
- Total: 3
