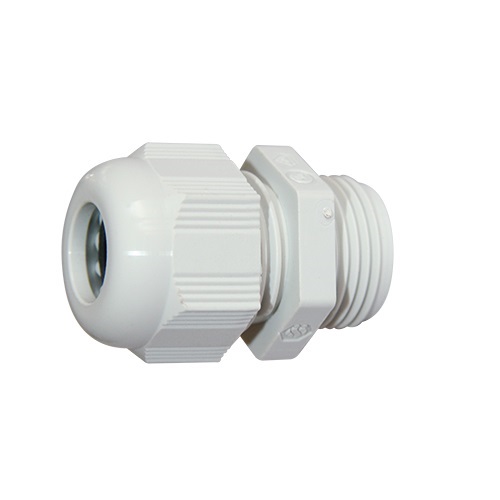

PLCG PRO, Cable gland grey
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Polyamide (PA)
- RAL-number:
- 7035 .
- Thread type:
- Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Separable screw gland:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Grey
- Surface protection:
- Untreated
- Operating temperature:
- -40-100 °C
- Material:
- Plastic
- Halogen free:
- Yes
- Wrench width:
- 15 mm, 19 mm, 22 mm, 24 mm, 27 mm, 33 mm, 42 mm, 53 mm, 60 mm, 70 mm
Show more
Item List
- Total: 10
- Total: 10
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 10
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Hexagon angular dimension | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KABELFÖRSKRUVNING, GRÅ, M12, 2.5-6.5mm | 50 . | pcs | 2.5-6.5 mm | 12 . | 1.5 mm | 8 mm | 15 mm | 15 mm | Other |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M16, 2.5-8.0mm | 50 . | pcs | 2.5-8 mm | 16 . | 1.5 mm | 10 mm | 19 mm | 19 mm | Other |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M16, 3.5-10.0mm | 50 . | pcs | 3.5-10 mm | 16 . | 1.5 mm | 10 mm | 22 mm | 22 mm | Other |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M20, 5.0-12.0mm | 50 . | pcs | 5-12 mm | 20 . | 1.5 mm | 10 mm | 24 mm | 24 mm | Other |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M20, 7.0-14.0mm | 50 . | pcs | 7-14 mm | 20 . | 1.5 mm | 10 mm | 27 mm | 27 mm | Other |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M25, 7.0-14.0mm | 25 . | pcs | 7-14 mm | 25 . | 1.5 mm | 10 mm | 33 mm | 33 mm | Other |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M32, 14.0-25.0mm | 20 . | pcs | 14-25 mm | 32 . | 1.5 mm | 10 mm | 42 mm | 42 mm | Other |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M40, 18.0-32.0mm | 10 . | pcs | 18-32 mm | 40 . | 1.5 mm | 10 mm | 53 mm | 53 mm | Other |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M50, 24.0-38.5mm | 5 . | pcs | 24-38.5 mm | 50 . | 1.5 mm | 12 mm | 60 mm | 60 mm | Other |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M63, 35.0-48.0mm | 5 . | pcs | 35-48 mm | 63 . | 1.5 mm | 12 mm | 70 mm | 70 mm | Other |
No
|
|
|
- Total: 10
Similar Options
Approvals
- Total: 10
| Product Description | Degree of protection (IP) | UL approval | Approved according to VDE | Approved according to DNV | Availability | ||
|---|---|---|---|---|---|---|---|
| KABELFÖRSKRUVNING, GRÅ, M12, 2.5-6.5mm | IP68 |
|
|
|
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M16, 2.5-8.0mm | IP68 |
|
|
|
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M16, 3.5-10.0mm | IP68 |
|
|
|
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M20, 5.0-12.0mm | IP68 |
|
|
|
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M20, 7.0-14.0mm | IP68 |
|
|
|
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M25, 7.0-14.0mm | IP68 |
|
|
|
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M32, 14.0-25.0mm | IP68 |
|
|
|
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M40, 18.0-32.0mm | IP68 |
|
|
|
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M50, 24.0-38.5mm | IP68 |
|
|
|
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M63, 35.0-48.0mm | IP68 |
|
|
|
No
|
|
|
- Total: 10
Technical Properties
- Total: 10
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Separable screw gland | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KABELFÖRSKRUVNING, GRÅ, M12, 2.5-6.5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M16, 2.5-8.0mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M16, 3.5-10.0mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M20, 5.0-12.0mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M20, 7.0-14.0mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M25, 7.0-14.0mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M32, 14.0-25.0mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M40, 18.0-32.0mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M50, 24.0-38.5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 60 mm |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M63, 35.0-48.0mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 70 mm |
No
|
|
|
- Total: 10
Other information
- Total: 10
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| KABELFÖRSKRUVNING, GRÅ, M12, 2.5-6.5mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PLCG-M12-N-LGY |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M16, 2.5-8.0mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PLCG-M16-N-LGY |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M16, 3.5-10.0mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PLCG-M16-W-LGY |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M20, 5.0-12.0mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PLCG-M20-N-LGY |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M20, 7.0-14.0mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PLCG-M20-W-LGY |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M25, 7.0-14.0mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PLCG-M25-N-LGY |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M32, 14.0-25.0mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PLCG-M32-N-LGY |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M40, 18.0-32.0mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PLCG-M40-N-LGY |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M50, 24.0-38.5mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PLCG-M50-N-LGY |
No
|
|
|
| KABELFÖRSKRUVNING, GRÅ, M63, 35.0-48.0mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PLCG-M63-N-LGY |
No
|
|
|
- Total: 10
