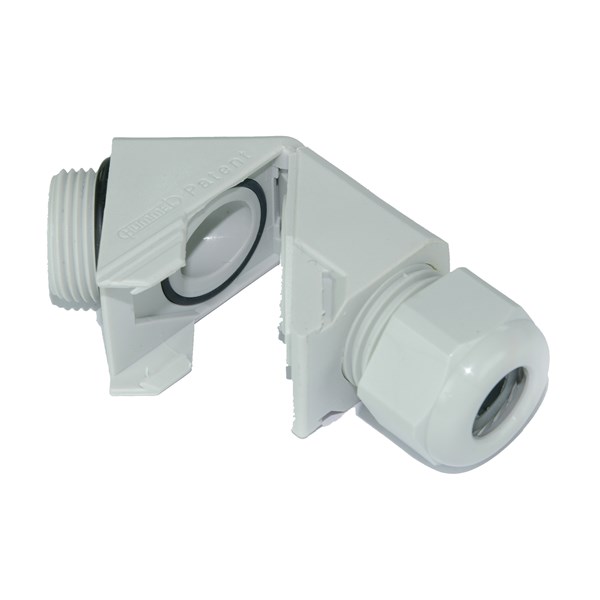

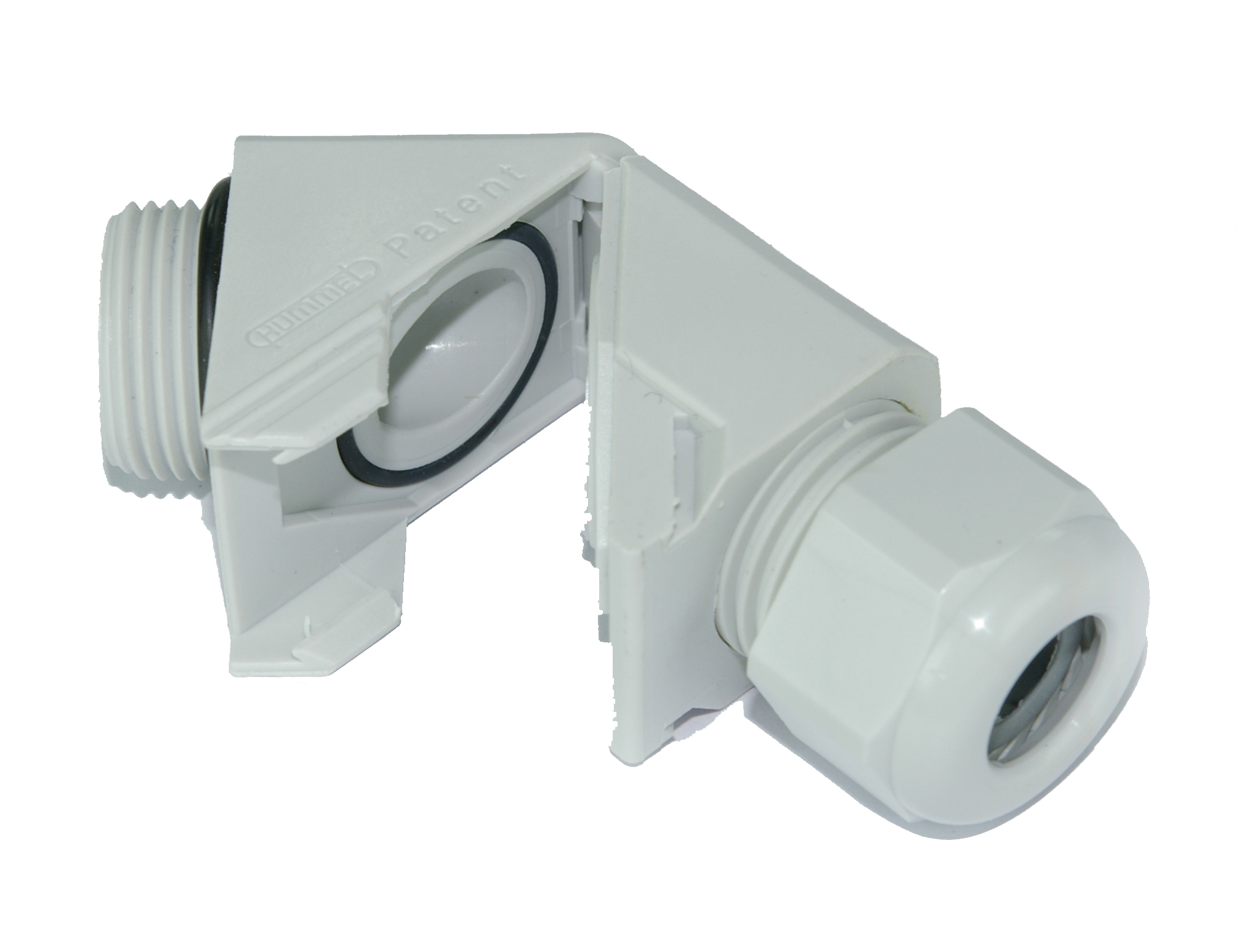

HSK-W Vinkelförskruvning
Vinkelförskruvning i polyamid.
Material:PA
Formtätning:NBR
Skyddsklass: IP 68 - 10 bar, inom angivet klämområde
vid användning av o-ring.
Drifttemperatur kontinuerligt: -40° C till +100° C
Färger GråRAL 7035
SvartRAL 9005
Fler storlekar finns på förfrågan.
PG är ej VDE godkända.
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- 90°-elbow
- Material quality:
- Polyamide (PA)
- RAL-number:
- 7035 ., 9005 .
- Thread type:
- PG, Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Grey, Black
- Surface protection:
- Untreated
- Operating temperature:
- -40-100 °C
- Material:
- Plastic
- Halogen free:
- Yes
- Wrench width:
- 19 mm, 22 mm, 24 mm, 27 mm, 33 mm, 42 mm
Show more
Item List
- Total: 19
- Total: 19
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 19
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-ANGLE, GREY M32, 13-20mm | 5 . | pcs | 13-20 mm | 32 . | 1.5 mm | 11 mm | 42 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY M16, 4-8mm | 25 . | pcs | 4-8 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY M16, 2-6mm | 25 . | pcs | 2-6 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY M20, 6-12mm | 25 . | pcs | 6-12 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY M20, 5-9mm | 25 . | pcs | 5-9 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY M32, 18-25mm | 5 . | pcs | 18-25 mm | 32 . | 1.5 mm | 11 mm | 42 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE GREY PG9, 4-8mm | 25 . | pcs | 4-8 mm | 9 . | 1.41 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG11, 5-10mm | 25 . | pcs | 5-10 mm | 11 . | 1.41 mm | 8 mm | 22 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG13.5, 6-12mm | 25 . | pcs | 6-12 mm | 13.5 . | 1.41 mm | 9 mm | 24 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG16, 10-14mm | 25 . | pcs | 10-14 mm | 16 . | 1.41 mm | 10 mm | 27 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG16, 7-12mm | 25 . | pcs | 7-12 mm | 16 . | 1.41 mm | 10 mm | 27 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG21, 13-18mm | 10 . | pcs | 13-18 mm | 21 . | 1.588 mm | 11 mm | 33 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG29, 18-25mm | 5 . | pcs | 18-25 mm | 29 . | 1.588 mm | 11 mm | 42 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK M16, 4-8mm | 25 . | pcs | 4-8 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK M32, 18-25mm | 5 . | pcs | 18-25 mm | 32 . | 1.5 mm | 11 mm | 42 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK M32, 13-20mm | 5 . | pcs | 13-20 mm | 32 . | 1.5 mm | 11 mm | 42 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK PG9, 4-8mm | 25 . | pcs | 4-8 mm | 9 . | 1.41 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK PG13.5, 5-9mm | 25 . | pcs | 5-9 mm | 13.5 . | 1.41 mm | 9 mm | 24 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK PG21, 13-18mm | 10 . | pcs | 13-18 mm | 21 . | 1.588 mm | 11 mm | 33 mm | Other |
No
|
|
|
- Total: 19
Similar Options
Approvals
- Total: 19
- Total: 19
Technical Properties
- Total: 19
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-ANGLE, GREY M32, 13-20mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY M16, 4-8mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY M16, 2-6mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY M20, 6-12mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY M20, 5-9mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY M32, 18-25mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE GREY PG9, 4-8mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG11, 5-10mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG13.5, 6-12mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG16, 10-14mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG16, 7-12mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG21, 13-18mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG29, 18-25mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK M16, 4-8mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK M32, 18-25mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK M32, 13-20mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK PG9, 4-8mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 9005 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK PG13.5, 5-9mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 9005 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK PG21, 13-18mm | No | IP68 | Yes | 90°-elbow | Polyamide (PA) | 9005 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
No
|
|
|
- Total: 19
Other information
- Total: 19
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-ANGLE, GREY M32, 13-20mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | FÖRSKRUVNING HSK-VINKEL, GRÅ | 1.313.3200.51 |
No
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY M16, 4-8mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.1600.50 |
No
|
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY M16, 2-6mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.1600.51 |
No
|
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY M20, 6-12mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.2000.50 |
No
|
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY M20, 5-9mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.2000.51 |
Yes
|
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY M32, 18-25mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.3200.50 |
Yes
|
|
|
|
| CABLE GLAND, HSK-ANGLE GREY PG9, 4-8mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.0900.14 |
Yes
|
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG11, 5-10mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.1100.14 |
No
|
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG13.5, 6-12mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.1300.14 |
Yes
|
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG16, 10-14mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.1600.14 |
Yes
|
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG16, 7-12mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.1600.15 |
Yes
|
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG21, 13-18mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.2100.14 |
No
|
|
|
|
| CABLE GLAND, HSK-ANGLE, GREY PG29, 18-25mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.2900.14 |
Yes
|
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK M16, 4-8mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.1601.50 |
Yes
|
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK M32, 18-25mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.3201.50 |
No
|
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK M32, 13-20mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.3201.51 |
No
|
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK PG9, 4-8mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.0901.14 |
Yes
|
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK PG13.5, 5-9mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.1301.15 |
No
|
|
|
|
| CABLE GLAND, HSK-ANGLE, BLACK PG21, 13-18mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.313.2101.14 |
No
|
|
|
- Total: 19
