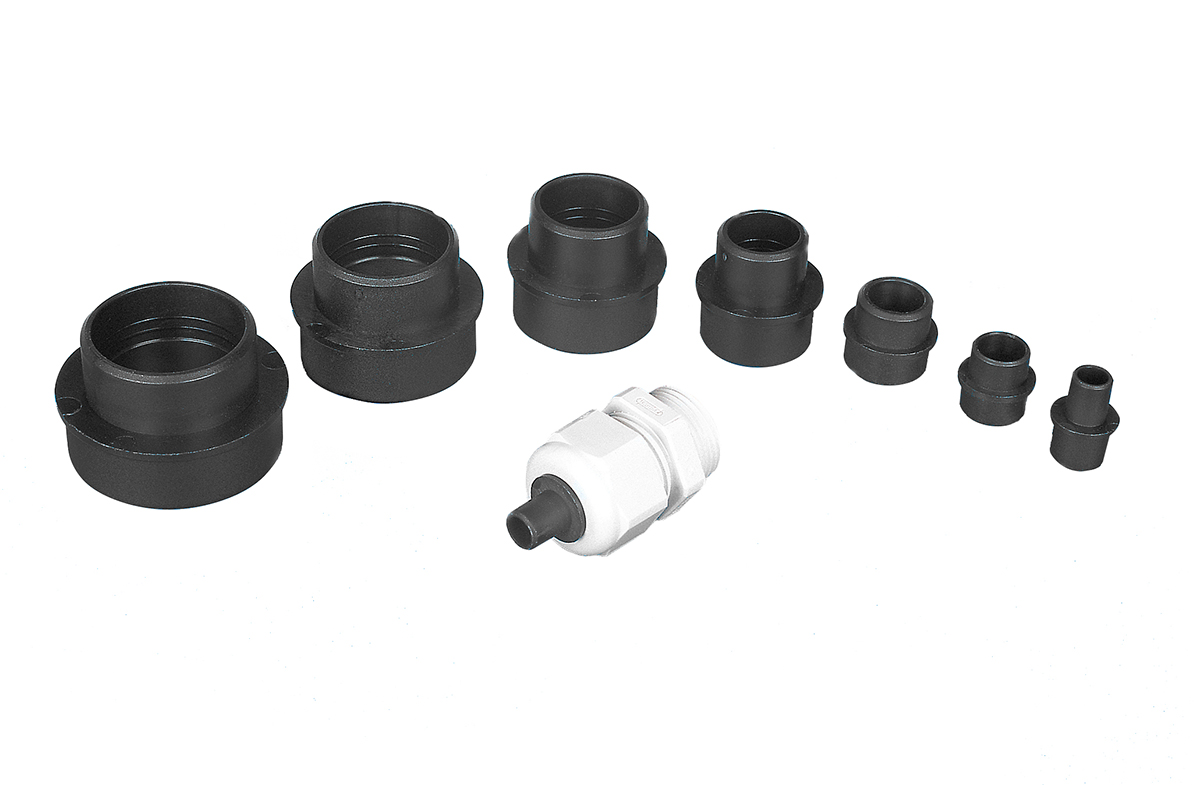

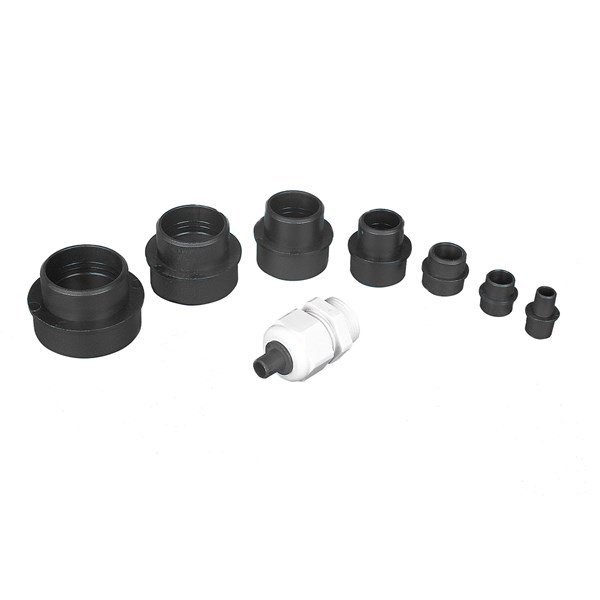

HSK-V
Förslutning för HSK-industri standardförskruvningar
Material:Polyamid
Drifttemperatur
kontinuerligt: -40º C till +100º C
Färger:Svart RAL 9005
Technical properties
- Pressure-compensating:
- No
- With strain relief:
- No
- Model:
- Straight
- Material quality:
- Polyamide (PA)
- RAL-number:
- 9005 .
- Thread type:
- None, PG
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Black
- Surface protection:
- Untreated
- Operating temperature:
- -40-100 °C
- Material:
- Plastic
- Halogen free:
- Yes
Show more
Item List
- Total: 7
- Total: 7
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 7
| Product Description | MOQ | Unit | Nominal thread size metric/PG | Pitch thread | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-V, BLACK PG9, M16, NPT 3/8" | 100 . | pcs | 0 N/A | Other |
No
|
|
|
|
| CABLE GLAND, HSK-V, BLACK PG11, M16 | 100 . | pcs | 11 . | 1.41 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-V, BLACK PG13,M20, NPT 1/2" | 100 . | pcs | 0 N/A | Other |
No
|
|
|
|
| CABLE GLAND, HSK-V, BLACK PG16, M20, NPT 1/2"/16 | 100 . | pcs | 0 N/A | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-V, BLACK PG21, M25, NPT 3/4" | 50 . | pcs | 0 N/A | Other |
No
|
|
|
|
| CABLE GLAND, HSK-V, BLACK PG29, M32, NPT 1"- 1 1/4" | 50 . | pcs | 0 N/A | Other |
No
|
|
|
|
| CABLE GLAND, HSK-V, BLACK PG36,M40, NPT 1 1/2" | 25 . | pcs | 0 N/A | Other |
No
|
|
|
- Total: 7
Similar Options
Approvals
- Total: 7
- Total: 7
Technical Properties
- Total: 7
| Product Description | Pressure-compensating | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-V, BLACK PG9, M16, NPT 3/8" | No | No | Straight | Polyamide (PA) | 9005 . | None | No | Yes | No | No | No | No | No | No | No | No | No | None | None | Black | Untreated | -40-100 °C | Plastic | Yes |
No
|
|
|
| CABLE GLAND, HSK-V, BLACK PG11, M16 | No | No | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | None | None | Black | Untreated | -40-100 °C | Plastic | Yes |
No
|
|
|
| CABLE GLAND, HSK-V, BLACK PG13,M20, NPT 1/2" | No | No | Straight | Polyamide (PA) | 9005 . | None | No | Yes | No | No | No | No | No | No | No | No | No | None | None | Black | Untreated | -40-100 °C | Plastic | Yes |
No
|
|
|
| CABLE GLAND, HSK-V, BLACK PG16, M20, NPT 1/2"/16 | No | No | Straight | Polyamide (PA) | 9005 . | None | No | Yes | No | No | No | No | No | No | No | No | No | None | None | Black | Untreated | -40-100 °C | Plastic | Yes |
Yes
|
|
|
| CABLE GLAND, HSK-V, BLACK PG21, M25, NPT 3/4" | No | No | Straight | Polyamide (PA) | 9005 . | None | No | Yes | No | No | No | No | No | No | No | No | No | None | None | Black | Untreated | -40-100 °C | Plastic | Yes |
No
|
|
|
| CABLE GLAND, HSK-V, BLACK PG29, M32, NPT 1"- 1 1/4" | No | No | Straight | Polyamide (PA) | 9005 . | None | No | Yes | No | No | No | No | No | No | No | No | No | None | None | Black | Untreated | -40-100 °C | Plastic | Yes |
No
|
|
|
| CABLE GLAND, HSK-V, BLACK PG36,M40, NPT 1 1/2" | No | No | Straight | Polyamide (PA) | 9005 . | None | No | Yes | No | No | No | No | No | No | No | No | No | None | None | Black | Untreated | -40-100 °C | Plastic | Yes |
No
|
|
|
- Total: 7
Other information
- Total: 7
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-V, BLACK PG9, M16, NPT 3/8" | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.280.0009.00 |
No
|
|
|
| CABLE GLAND, HSK-V, BLACK PG11, M16 | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.280.0011.00 |
No
|
|
|
| CABLE GLAND, HSK-V, BLACK PG13,M20, NPT 1/2" | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.280.0013.00 |
No
|
|
|
| CABLE GLAND, HSK-V, BLACK PG16, M20, NPT 1/2"/16 | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.280.0016.00 |
Yes
|
|
|
| CABLE GLAND, HSK-V, BLACK PG21, M25, NPT 3/4" | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.280.0021.00 |
No
|
|
|
| CABLE GLAND, HSK-V, BLACK PG29, M32, NPT 1"- 1 1/4" | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.280.0029.00 |
No
|
|
|
| CABLE GLAND, HSK-V, BLACK PG36,M40, NPT 1 1/2" | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.280.0036.00 |
No
|
|
|
- Total: 7
