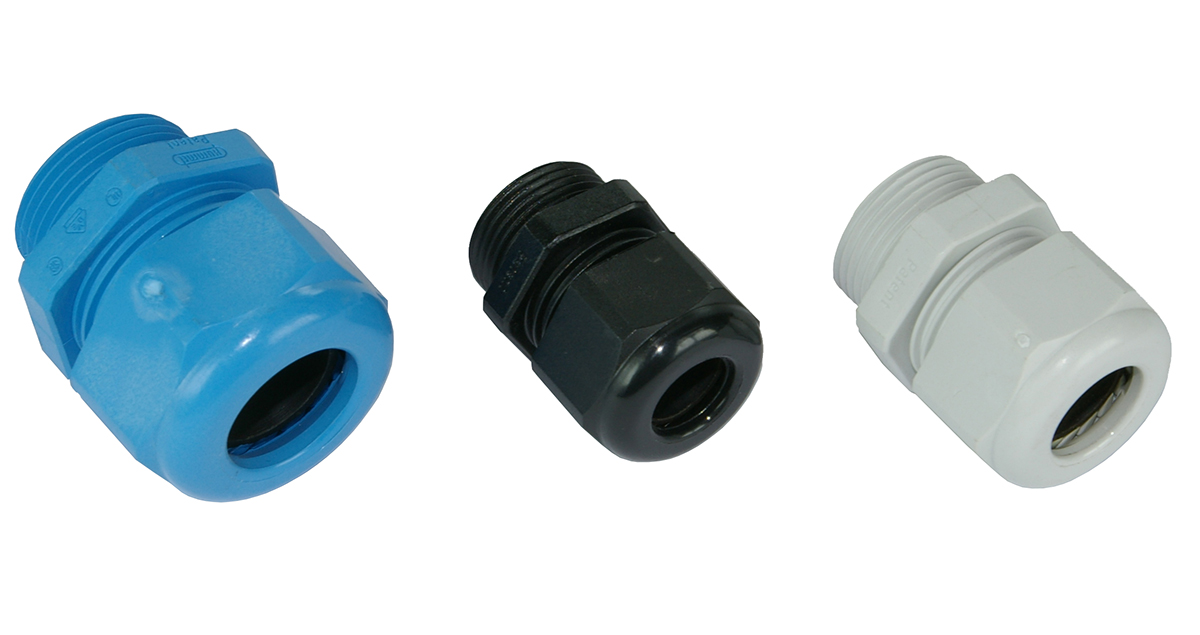

HSK-K industry standard, PA6
Material: PA (Nylon) V0 according to UL 94Seal: Buna-NProtection: IP 68 - 10 bar / IP 69K (NEMA 6 - 150 PSIG) within the specified clamping range only optional O-Ring.Operating temperature: -40 degrees Celsius to +100 degrees Celsius Colours: Grey RAL 7035 Black RAL 9005 Blue RAL 5012
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Polyamide (PA)
- RAL-number:
- 7035 ., 9005 ., 5012 .
- Thread type:
- Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Grey, Black, Blue
- Surface protection:
- Untreated
- Operating temperature:
- -40-100 °C
- Material:
- Plastic
- Halogen free:
- Yes
- Wrench width:
- 15 mm, 19 mm, 24 mm, 33 mm, 42 mm, 53 mm, 60 mm, 68 mm, 22 mm, 27 mm
Show more
Item List
- Total: 46
- Total: 46
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 46
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Hexagon angular dimension | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-K, GREY M12, 2-5mm | 50 . | pcs | 2-5 mm | 12 . | 1.5 mm | 8 mm | 15 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K, BLUE M12, 2-5mm | 50 . | pcs | 2-5 mm | 12 . | 1.5 mm | 8 mm | 15 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K, GREY M16, 2-6mm | 50 . | pcs | 2-6 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, GREY M50, 25-31mm | 5 . | pcs | 25-31 mm | 50 . | 1.5 mm | 13 mm | 60 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K, GREY M63, 29-35mm | 5 . | pcs | 29-35 mm | 63 . | 1.5 mm | 14 mm | 68 mm | 65 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M16, 5-10mm | 50 . | pcs | 5-10 mm | 16 . | 1.5 mm | 15 mm | 22 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLACK M32, 13-20mm | 25 . | pcs | 13-20 mm | 32 . | 1.5 mm | 11 mm | 42 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K, BLACK M40, 20-26mm | 10 . | pcs | 20-26 mm | 40 . | 1.5 mm | 13 mm | 53 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K, GREY M12, 3-6.5mm | 50 . | pcs | 3-6.5 mm | 12 . | 1.5 mm | 8 mm | 15 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLACK M12, 3-6.5mm | 50 . | pcs | 3-6.5 mm | 12 . | 1.5 mm | 8 mm | 15 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, GREY M16, 4-8mm | 50 . | pcs | 4-8 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLACK M16, 4-8mm | 50 . | pcs | 4-8 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K, GREY M20, 6-12mm | 50 . | pcs | 6-12 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, GREY M20, 5-9mm | 50 . | pcs | 5-9 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLACK M20, 6-12mm | 50 . | pcs | 6-12 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLUE M20, 6-12mm | 50 . | pcs | 6-12 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
No
|
|
|
|
| CABLE GLAND HSK-K, BLUE M20, 5-9mm | 50 . | pcs | 5-9 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, GREY M25, 13-18mm | 50 . | pcs | 13-18 mm | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K, GREY M25, 9-16mm | 50 . | pcs | 9-16 mm | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLACK M25, 13-18mm | 50 . | pcs | 13-18 mm | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLUE M25, 13-18mm | 50 . | pcs | 13-18 mm | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLUE M25, 9-16mm | 50 . | pcs | 9-16 mm | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, GREY M32, 18-25mm | 25 . | pcs | 18-25 mm | 32 . | 1.5 mm | 11 mm | 42 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K, GREY M32, 13-20mm | 25 . | pcs | 13-20 mm | 32 . | 1.5 mm | 11 mm | 42 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLACK M32, 18-25mm | 25 . | pcs | 18-25 mm | 32 . | 1.5 mm | 11 mm | 42 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLUE M32, 18-25mm | 25 . | pcs | 18-25 mm | 32 . | 1.5 mm | 11 mm | 42 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, GREY M40, 22-32mm | 10 . | pcs | 22-32 mm | 40 . | 1.5 mm | 13 mm | 53 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLACK M40, 22-32mm | 10 . | pcs | 22-32 mm | 40 . | 1.5 mm | 13 mm | 53 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, GREY M50, 32-38mm | 5 . | pcs | 32-38 mm | 50 . | 1.5 mm | 13 mm | 60 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K, BLACK M50, 32-38mm | 5 . | pcs | 32-38 mm | 50 . | 1.5 mm | 13 mm | 60 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, GREY M63, 37-44mm | 5 . | pcs | 37-44 mm | 63 . | 1.5 mm | 14 mm | 68 mm | 65 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK M63, 37-44mm | 5 . | pcs | 37-44 mm | 63 . | 1.5 mm | 14 mm | 68 mm | 65 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-K, GREY M16, 5-10mm | 50 . | pcs | 5-10 mm | 16 . | 1.5 mm | 8 mm | 22 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, GREY M20, 10-14mm | 50 . | pcs | 10-14 mm | 20 . | 1.5 mm | 9 mm | 27 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLACK M20, 10-14mm | 50 . | pcs | 10-14 mm | 20 . | 1.5 mm | 9 mm | 27 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K, BLUE M20, 10-14mm | 50 . | pcs | 10-14 mm | 20 . | 1.5 mm | 9 mm | 27 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLUE M12, 3-6.5mm | 50 . | pcs | 3-6.5 mm | 12 . | 1.5 mm | 8 mm | 15 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLACK M16, 2-6mm | 50 . | pcs | 2-6 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLUE M16, 4-8mm | 50 . | pcs | 4-8 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K, BLACK M20, 5-9mm | 50 . | pcs | 5-9 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K, BLACK M25, 9-16mm | 50 . | pcs | 9-16 mm | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLUE M32, 13-20mm | 25 . | pcs | 13-20 mm | 32 . | 1.5 mm | 11 mm | 42 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K, GREY M40, 20-26mm | 10 . | pcs | 20-26 mm | 40 . | 1.5 mm | 13 mm | 53 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLUE M40, 22-32mm | 10 . | pcs | 22-32 mm | 40 . | 1.5 mm | 13 mm | 53 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-K, BLUE M40, 20-26mm | 10 . | pcs | 20-26 mm | 40 . | 1.5 mm | 13 mm | 53 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K, BLACK M16, 5-10mm | 50 . | pcs | 5-10 mm | 16 . | 1.5 mm | 8 mm | 22 mm | Other |
Yes
|
|
|
- Total: 46
Similar Options
Approvals
- Total: 46
- Total: 46
Technical Properties
- Total: 46
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-K, GREY M12, 2-5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
No
|
|
|
| CABLE GLAND, HSK-K, BLUE M12, 2-5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 5012 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Blue | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
No
|
|
|
| CABLE GLAND, HSK-K, GREY M16, 2-6mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M50, 25-31mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 60 mm |
No
|
|
|
| CABLE GLAND, HSK-K, GREY M63, 29-35mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 68 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M16, 5-10mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M32, 13-20mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK M40, 20-26mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
No
|
|
|
| CABLE GLAND, HSK-K, GREY M12, 3-6.5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M12, 3-6.5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M16, 4-8mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M16, 4-8mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
No
|
|
|
| CABLE GLAND, HSK-K, GREY M20, 6-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M20, 5-9mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M20, 6-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M20, 6-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 5012 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Blue | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND HSK-K, BLUE M20, 5-9mm | No | IP68 | Yes | Straight | Polyamide (PA) | 5012 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Blue | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M25, 13-18mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-K, GREY M25, 9-16mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M25, 13-18mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M25, 13-18mm | No | IP68 | Yes | Straight | Polyamide (PA) | 5012 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Blue | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M25, 9-16mm | No | IP68 | Yes | Straight | Polyamide (PA) | 5012 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Blue | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M32, 18-25mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
No
|
|
|
| CABLE GLAND, HSK-K, GREY M32, 13-20mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M32, 18-25mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M32, 18-25mm | No | IP68 | Yes | Straight | Polyamide (PA) | 5012 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Blue | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M40, 22-32mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M40, 22-32mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M50, 32-38mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 60 mm |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK M50, 32-38mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 60 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M63, 37-44mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 68 mm |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK M63, 37-44mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 68 mm |
No
|
|
|
| CABLE GLAND, HSK-K, GREY M16, 5-10mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M20, 10-14mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M20, 10-14mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-K, BLUE M20, 10-14mm | No | IP68 | Yes | Straight | Polyamide (PA) | 5012 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Blue | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M12, 3-6.5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 5012 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Blue | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M16, 2-6mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M16, 4-8mm | No | IP68 | Yes | Straight | Polyamide (PA) | 5012 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Blue | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK M20, 5-9mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK M25, 9-16mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M32, 13-20mm | No | IP68 | Yes | Straight | Polyamide (PA) | 5012 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Blue | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
No
|
|
|
| CABLE GLAND, HSK-K, GREY M40, 20-26mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M40, 22-32mm | No | IP68 | Yes | Straight | Polyamide (PA) | 5012 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Blue | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M40, 20-26mm | No | IP68 | Yes | Straight | Polyamide (PA) | 5012 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Blue | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK M16, 5-10mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
Yes
|
|
|
- Total: 46
Other information
- Total: 46
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-K, GREY M12, 2-5mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.1200.51 |
No
|
|
|
| CABLE GLAND, HSK-K, BLUE M12, 2-5mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.1202.51 |
No
|
|
|
| CABLE GLAND, HSK-K, GREY M16, 2-6mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.1600.51 |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M50, 25-31mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.5000.51 |
No
|
|
|
| CABLE GLAND, HSK-K, GREY M63, 29-35mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.6300.51 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M16, 5-10mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.219.1601.30 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M32, 13-20mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.3201.51 |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK M40, 20-26mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.4001.51 |
No
|
|
|
| CABLE GLAND, HSK-K, GREY M12, 3-6.5mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.1200.50 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M12, 3-6.5mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.1201.50 |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M16, 4-8mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.1600.50 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M16, 4-8mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.1601.50 |
No
|
|
|
| CABLE GLAND, HSK-K, GREY M20, 6-12mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.2000.50 |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M20, 5-9mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.2000.51 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M20, 6-12mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.2001.50 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M20, 6-12mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.2002.50 |
No
|
|
|
| CABLE GLAND HSK-K, BLUE M20, 5-9mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.2002.51 |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M25, 13-18mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.2500.50 |
No
|
|
|
| CABLE GLAND, HSK-K, GREY M25, 9-16mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.2500.51 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M25, 13-18mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.2501.50 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M25, 13-18mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.2502.50 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M25, 9-16mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.2502.51 |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M32, 18-25mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.3200.50 |
No
|
|
|
| CABLE GLAND, HSK-K, GREY M32, 13-20mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.3200.51 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M32, 18-25mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.3201.50 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M32, 18-25mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.3202.50 |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M40, 22-32mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.4000.50 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M40, 22-32mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.4001.50 |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M50, 32-38mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.5000.50 |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK M50, 32-38mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.5001.50 |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M63, 37-44mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.6300.50 |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK M63, 37-44mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.6301.50 |
No
|
|
|
| CABLE GLAND, HSK-K, GREY M16, 5-10mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.219.1600.50 |
Yes
|
|
|
| CABLE GLAND, HSK-K, GREY M20, 10-14mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.219.2000.50 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M20, 10-14mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.219.2001.50 |
No
|
|
|
| CABLE GLAND, HSK-K, BLUE M20, 10-14mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.219.2002.50 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M12, 3-6.5mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.1202.50 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLACK M16, 2-6mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.1601.51 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M16, 4-8mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.1602.50 |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK M20, 5-9mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.2001.51 |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK M25, 9-16mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.2501.51 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M32, 13-20mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.3202.51 |
No
|
|
|
| CABLE GLAND, HSK-K, GREY M40, 20-26mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.4000.51 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M40, 22-32mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.4002.50 |
Yes
|
|
|
| CABLE GLAND, HSK-K, BLUE M40, 20-26mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.209.4002.51 |
No
|
|
|
| CABLE GLAND, HSK-K, BLACK M16, 5-10mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.219.1601.50 |
Yes
|
|
|
- Total: 46
Back to top
Do you need help finding the right product or other advice contact us.
