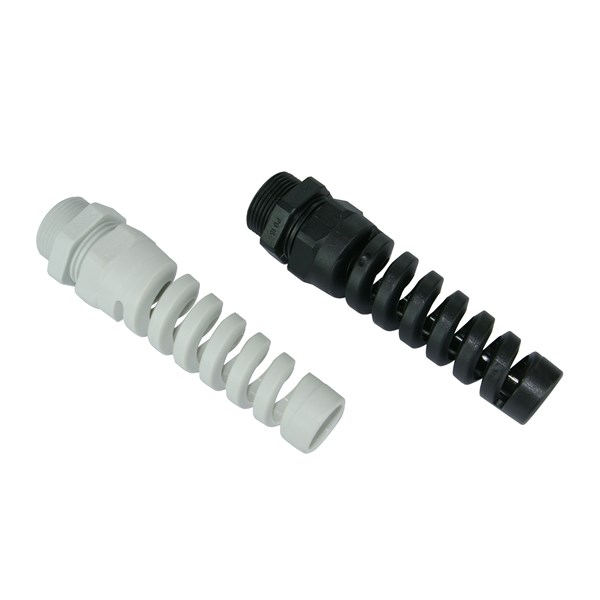

HSK-Flex, med böjskydd, PA6
Standardförskruvning med böjskydd i polyamid.
Material: PA
Formtätning: NBR
Skyddsklass: IP 68 - 10 bar, inom angivet klämområde vid användning av O-ring.
Drifttemperatur kontinuerligt: -40° C till +100° C
Färger: Grå RAL 7035, Svart RAL 9005
PG är ej VDE godkända.
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Polyamide (PA)
- RAL-number:
- 7035 ., 9005 .
- Thread type:
- PG, Metric, NPT
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- Yes
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Grey, Black
- Surface protection:
- Untreated
- Operating temperature:
- -40-100 °C
- Material:
- Plastic
- Halogen free:
- Yes
- Wrench width:
- 15 mm, 19 mm, 22 mm, 24 mm, 27 mm, 33 mm
Show more
Item List
- Total: 52
- Total: 52
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 52
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-FLEX, GREY M25, 13-18mm, LONG THREAD | 20 . | pcs | 13-18 mm | 1.5 mm | 15 mm | 33 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M25, 13-18mm, LONG THREAD | 20 . | pcs | 13-18 mm | 1.5 mm | 15 mm | 33 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK NPT 3/4'', 13-18mm | 20 . | pcs | 13-18 mm | 0 N/A | 1.814 mm | 14 mm | 33 mm | 3/4 inch |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK NPT 3/4'', 9-16mm | 20 . | pcs | 9-16 mm | 0 N/A | 1.814 mm | 14 mm | 33 mm | 3/4 inch |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M12, 2-5mm | 50 . | pcs | 2-5 mm | 12 . | 1.5 mm | 8 mm | 15 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M12, 3-6.5mm | 50 . | pcs | 3-6.5 mm | 12 . | 1.5 mm | 8 mm | 15 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M16, 2-6mm | 50 . | pcs | 2-6 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M16, 3-7mm | 50 . | pcs | 3-7 mm | 16 . | 1.5 mm | 8 mm | 22 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M16, 4-8mm | 50 . | pcs | 4-8 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M16, 5-10mm | 50 . | pcs | 5-10 mm | 16 . | 1.5 mm | 8 mm | 22 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M20, 5-9mm | 50 . | pcs | 5-9 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M20, 6-12mm | 50 . | pcs | 6-12 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M20, 7-12mm | 25 . | pcs | 7-12 mm | 20 . | 1.5 mm | 9 mm | 27 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M20, 10-14mm | 25 . | pcs | 10-14 mm | 20 . | 1.5 mm | 9 mm | 27 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M25, 9-16mm | 20 . | pcs | 9-16 mm | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M25, 13-18mm | 20 . | pcs | 13-18 mm | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M12, 2-5mm | 50 . | pcs | 2-5 mm | 12 . | 1.5 mm | 8 mm | 15 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M12, 3-6.5mm | 50 . | pcs | 3-6.5 mm | 12 . | 1.5 mm | 8 mm | 15 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M16, 2-6mm | 50 . | pcs | 2-6 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M16, 3-7mm | 50 . | pcs | 3-7 mm | 16 . | 1.5 mm | 8 mm | 22 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M16, 4-8mm | 50 . | pcs | 4-8 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M16, 5-10mm | 50 . | pcs | 5-10 mm | 16 . | 1.5 mm | 8 mm | 22 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M20, 5-9mm | 50 . | pcs | 5-9 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M20, 6-12mm | 50 . | pcs | 6-12 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M20, 7-12mm | 25 . | pcs | 7-12 mm | 20 . | 1.5 mm | 9 mm | 27 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M20, 10-14mm | 25 . | pcs | 10-14 mm | 20 . | 1.5 mm | 9 mm | 27 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M25, 9-16mm | 20 . | pcs | 9-16 mm | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M25, 13-18mm | 20 . | pcs | 13-18 mm | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG7, 2-5mm | 50 . | pcs | 2-5 mm | 7 . | 1.27 mm | 8 mm | 15 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG7, 3-6.5mm | 50 . | pcs | 3-6.5 mm | 7 . | 1.27 mm | 8 mm | 15 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG9, 2-6mm | 50 . | pcs | 2-6 mm | 9 . | 1.41 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG9, 4-8mm | 50 . | pcs | 4-8 mm | 9 . | 1.41 mm | 8 mm | 19 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG11, 3-7mm | 50 . | pcs | 3-7 mm | 11 . | 1.41 mm | 8 mm | 22 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG11, 5-10mm | 50 . | pcs | 5-10 mm | 11 . | 1.41 mm | 8 mm | 22 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG13, 5-9mm | 50 . | pcs | 5-9 mm | 13.5 . | 1.41 mm | 9 mm | 24 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG13, 6-12mm | 50 . | pcs | 6-12 mm | 13.5 . | 1.41 mm | 9 mm | 24 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG16, 7-12mm | 25 . | pcs | 7-12 mm | 16 . | 1.41 mm | 10 mm | 27 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG16, 10-14mm | 25 . | pcs | 10-14 mm | 16 . | 1.41 mm | 10 mm | 27 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG21, 9-16mm | 20 . | pcs | 9-16 mm | 21 . | 1.588 mm | 11 mm | 33 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG21, 13-18mm | 20 . | pcs | 13-18 mm | 21 . | 1.588 mm | 11 mm | 33 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG7, 2-5mm | 50 . | pcs | 2-5 mm | 7 . | 1.27 mm | 8 mm | 15 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG7, 3-6.5mm | 50 . | pcs | 3-6.5 mm | 7 . | 1.27 mm | 8 mm | 15 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG9, 4-8mm | 50 . | pcs | 4-8 mm | 9 . | 1.41 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG11, 5-10mm | 50 . | pcs | 5-10 mm | 11 . | 1.41 mm | 8 mm | 22 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG13, 6-12mm | 50 . | pcs | 6-12 mm | 13.5 . | 1.41 mm | 9 mm | 24 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG16, 7-12mm | 25 . | pcs | 7-12 mm | 16 . | 1.41 mm | 10 mm | 27 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG16, 10-14mm | 25 . | pcs | 10-14 mm | 16 . | 1.41 mm | 10 mm | 27 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG21, 13-18mm | 20 . | pcs | 13-18 mm | 21 . | 1.588 mm | 11 mm | 33 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG7, 3-6.5mm LONG THREAD | 50 . | pcs | 3-6.5 mm | 7 . | 1.27 mm | 15 mm | 15 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG11, 3-7mm, LONG THREAD | 50 . | pcs | 3-7 mm | 11 . | 1.41 mm | 15 mm | 22 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG11, 5-10mm, LONG THREAD | 50 . | pcs | 5-10 mm | 11 . | 1.41 mm | 15 mm | 22 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG13, 6-12mm, LONG THREAD | 50 . | pcs | 6-12 mm | 13.5 . | 1.41 mm | 15 mm | 24 mm | Other |
Yes
|
|
|
- Total: 52
Similar Options
Approvals
- Total: 52
- Total: 52
Technical Properties
- Total: 52
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-FLEX, GREY M25, 13-18mm, LONG THREAD | No | Yes | Straight | Polyamide (PA) | Metric | No | Yes | Yes | No | No | No | No | No | No | Sealing ring | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
|||||
| CABLE GLAND, HSK-FLEX, BLACK M25, 13-18mm, LONG THREAD | No | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | Yes | No | No | No | No | No | No | Sealing ring | None | Black | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
No
|
|
|
||||
| CABLE GLAND, HSK-FLEX, BLACK NPT 3/4'', 13-18mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | NPT | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK NPT 3/4'', 9-16mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | NPT | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M12, 2-5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M12, 3-6.5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M16, 2-6mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M16, 3-7mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M16, 4-8mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M16, 5-10mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M20, 5-9mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M20, 6-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M20, 7-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M20, 10-14mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M25, 9-16mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M25, 13-18mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M12, 2-5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M12, 3-6.5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M16, 2-6mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M16, 3-7mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M16, 4-8mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M16, 5-10mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M20, 5-9mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M20, 6-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M20, 7-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M20, 10-14mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M25, 9-16mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M25, 13-18mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG7, 2-5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG7, 3-6.5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG9, 2-6mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG9, 4-8mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG11, 3-7mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG11, 5-10mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG13, 5-9mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG13, 6-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG16, 7-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG16, 10-14mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG21, 9-16mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG21, 13-18mm | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG7, 2-5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG7, 3-6.5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG9, 4-8mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG11, 5-10mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG13, 6-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG16, 7-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG16, 10-14mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG21, 13-18mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG7, 3-6.5mm LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG11, 3-7mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG11, 5-10mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG13, 6-12mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
- Total: 52
Other information
- Total: 52
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-FLEX, GREY M25, 13-18mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | FÖRSKRUVNING, HSK-FLEX, GRÅ | 1.293.2500.30 |
Yes
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M25, 13-18mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | FÖRSKRUVNING, HSK-FLEX, SVART | 1.293.2501.30 |
No
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK NPT 3/4'', 13-18mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.3401.70 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK NPT 3/4'', 9-16mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.3401.71 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M12, 2-5mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1200.51 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M12, 3-6.5mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1200.50 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M16, 2-6mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1600.51 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M16, 3-7mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.294.1600.51 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M16, 4-8mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1600.50 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M16, 5-10mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.294.1600.50 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M20, 5-9mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.2000.51 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M20, 6-12mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.2000.50 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M20, 7-12mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.294.2000.51 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M20, 10-14mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.294.2000.50 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M25, 9-16mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.2500.51 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY M25, 13-18mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.2500.50 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M12, 2-5mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1201.51 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M12, 3-6.5mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1201.50 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M16, 2-6mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1601.51 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M16, 3-7mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.294.1601.51 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M16, 4-8mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1601.50 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M16, 5-10mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.294.1601.50 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M20, 5-9mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.2001.51 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M20, 6-12mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.2001.50 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M20, 7-12mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.294.2001.51 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M20, 10-14mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.294.2001.50 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M25, 9-16mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.2501.51 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK M25, 13-18mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.2501.50 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG7, 2-5mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.0700.15 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG7, 3-6.5mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.0700.14 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG9, 2-6mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.0900.15 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG9, 4-8mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.0900.14 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG11, 3-7mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1100.15 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG11, 5-10mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1100.14 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG13, 5-9mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1300.15 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG13, 6-12mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1300.14 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG16, 7-12mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1600.15 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG16, 10-14mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1600.14 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG21, 9-16mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.2100.15 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, GREY PG21, 13-18mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.2100.14 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG7, 2-5mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.0701.15 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG7, 3-6.5mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.0701.14 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG9, 4-8mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.0901.14 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG11, 5-10mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1101.14 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG13, 6-12mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1301.14 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG16, 7-12mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1601.15 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG16, 10-14mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1601.14 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG21, 13-18mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.2101.14 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG7, 3-6.5mm LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.0701.60 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG11, 3-7mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1101.61 |
No
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG11, 5-10mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1101.60 |
Yes
|
|
|
|
| CABLE GLAND, HSK-FLEX, BLACK PG13, 6-12mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.293.1301.60 |
Yes
|
|
|
- Total: 52
Back to top
Do you need help finding the right product or other advice contact us.
