905350115

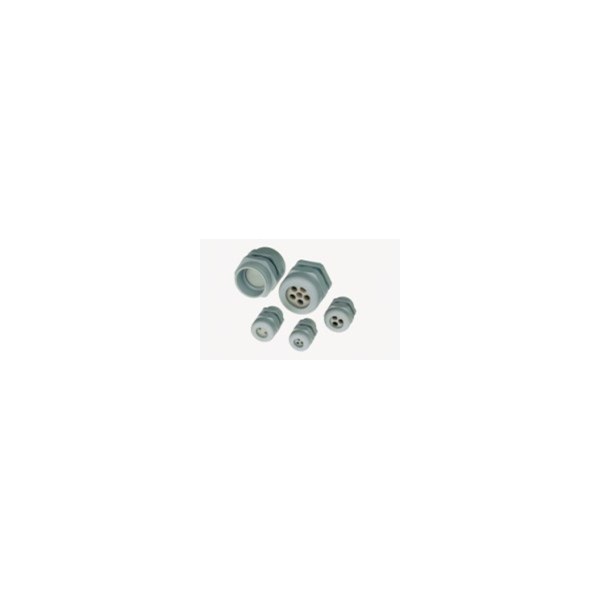

CABLE GLAND, WADI MULTI K, GREY PG11,2x6mm
905350115
- Availability:
-
Yes
Product Properties
| Pressure-compensating | No |
|---|---|
| Degree of protection (IP) | IP65 |
| With strain relief | Yes |
| Model | Straight |
| Material quality | Polyamide (PA) |
| RAL-number | 7035 . |
| Thread type | PG |
| Glass-fibre reinforced | No |
| Shock resistant | Yes |
| Bend radius protection/trumpet flare | No |
| With locknut | No |
| Snapping in opening | No |
| Multi seal area | No |
| Flat cable coupling | No |
| Explosion-tested version | No |
| For armoured cable | No |
| EMC-version | No |
| Screened | No |
| For Ex-zone gas | None |
| For Ex-Zone dust | None |
| Colour | Grey |
| Surface protection | Untreated |
| Operating temperature | -30-120 °C |
| Material | Plastic |
| Halogen free | Yes |
| Wrench width | 27 mm |
Dimensions
| MOQ | 50 . |
|---|---|
| Unit | pcs |
| Suitable for cable diameter | 5-6 mm |
| Nominal thread size metric/PG | 11 . |
| Pitch thread | 1.41 mm |
| Thread length | 8 mm |
| Wrench width | 27 mm |
| Nominal thread size inch/gas pipe thread | Other |
Logistics
| Barcode | 733117614168 |
|---|---|
| Country of origin | DE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 50 . |
| Stock code | 905350115 |
| Taric code | 85389099 |
| Unit | pcs |
Approvals
| Degree of protection (IP) | IP65 |
|---|
Other info
| ETIM-Class | EC000441 - Cable gland |
|---|---|
| ETIM-Release | 9.0 |
| Product Group | Plastic, standard |
| Search Description | FÖRSKRUVNING, WADI MULTI K, GRÅ |
| Alternative SKU | 905350115 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
