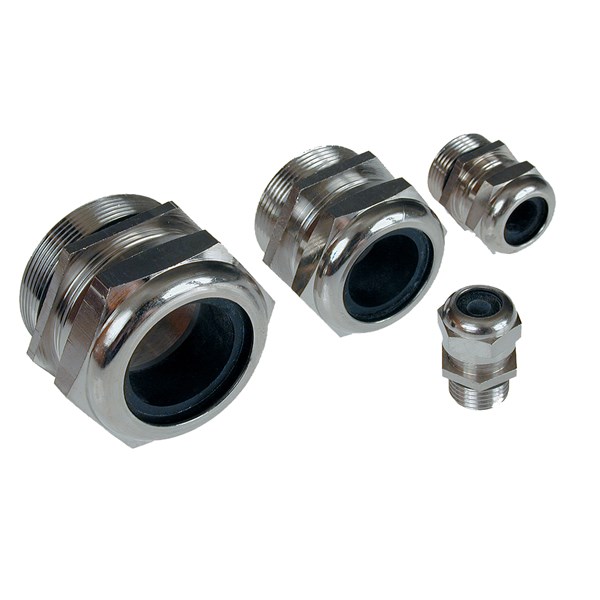

WADI, kabelförskruvning
Kabelförskruvning med lång anslutningsgänga för tjockväggiga anslutningar.
Med kontramutter kan denna förskruvning användas i kapslingar med väggtjocklek upp till 10 mm.
Ändelsen .01 har kort anslutningsgänga.
Material: Förnicklad mässing
Tätning: WADI-A: Perbunan/ Viton
WADI-B: Perbunan
Skyddsklass: IP 68
Drifttemperatur:
Viton: -40º C till +200º C, kortvarigt +300º C
Perbunan: -20º C till +100º C, kortvarigt +130º C
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- PG
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Brass
- Surface protection:
- Nickel-plated
- Operating temperature:
- -20-130 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 14 mm, 18 mm, 22 mm
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 4
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, WADI-B PG7, 3-5mm, LONG THREAD | 50 . | pcs | 3-5 mm | 7 . | 1.27 mm | 10 mm | 14 mm | Other |
Yes
|
|
|
| CABLE GLAND, WADI-B PG9, 4-6mm, LONG THREAD | 50 . | pcs | 4-6 mm | 9 . | 1.41 mm | 10 mm | 18 mm | Other |
Yes
|
|
|
| CABLE GLAND, WADI-B PG9, 7-10mm, LONG THREAD | 50 . | pcs | 7-10 mm | 9 . | 1.41 mm | 10 mm | 18 mm | Other |
Yes
|
|
|
| CABLE GLAND, WADI-B PG11, 5-12mm, LONG THREAD | 50 . | pcs | 5-12 mm | 11 . | 1.41 mm | 10 mm | 22 mm | Other |
No
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
| Product Description | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|
| CABLE GLAND, WADI-B PG7, 3-5mm, LONG THREAD | IP68 |
Yes
|
|
|
| CABLE GLAND, WADI-B PG9, 4-6mm, LONG THREAD | IP68 |
Yes
|
|
|
| CABLE GLAND, WADI-B PG9, 7-10mm, LONG THREAD | IP68 |
Yes
|
|
|
| CABLE GLAND, WADI-B PG11, 5-12mm, LONG THREAD | IP68 |
No
|
|
|
- Total: 4
Technical Properties
- Total: 4
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, WADI-B PG7, 3-5mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -20-130 °C | Metal | Yes | 14 mm |
Yes
|
|
|
| CABLE GLAND, WADI-B PG9, 4-6mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -20-130 °C | Metal | Yes | 18 mm |
Yes
|
|
|
| CABLE GLAND, WADI-B PG9, 7-10mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -20-130 °C | Metal | Yes | 18 mm |
Yes
|
|
|
| CABLE GLAND, WADI-B PG11, 5-12mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -20-130 °C | Metal | Yes | 22 mm |
No
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|
| CABLE GLAND, WADI-B PG7, 3-5mm, LONG THREAD | EC000441 - Cable gland | 9.0 | Metal, standard | 1.107.0701.60 |
Yes
|
|
|
| CABLE GLAND, WADI-B PG9, 4-6mm, LONG THREAD | EC000441 - Cable gland | 9.0 | Metal, standard | 1.107.0901.60 |
Yes
|
|
|
| CABLE GLAND, WADI-B PG9, 7-10mm, LONG THREAD | EC000441 - Cable gland | 9.0 | Metal, standard | 1.107.0902.60 |
Yes
|
|
|
| CABLE GLAND, WADI-B PG11, 5-12mm, LONG THREAD | EC000441 - Cable gland | 9.0 | Metal, standard | 1.107.1100.60 |
No
|
|
|
- Total: 4
