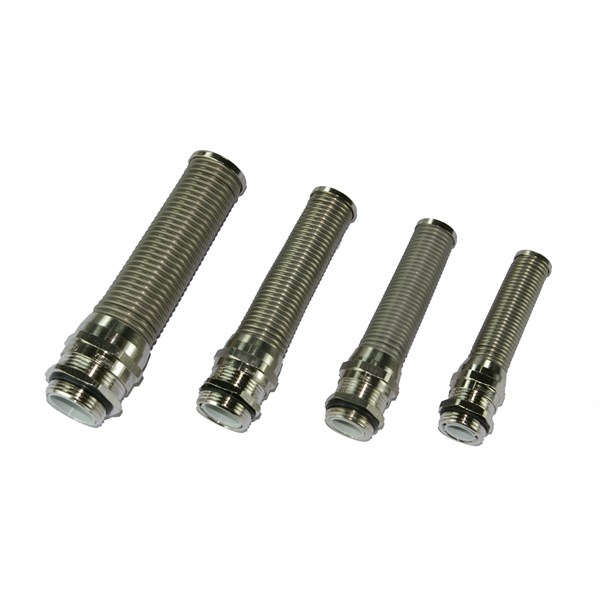

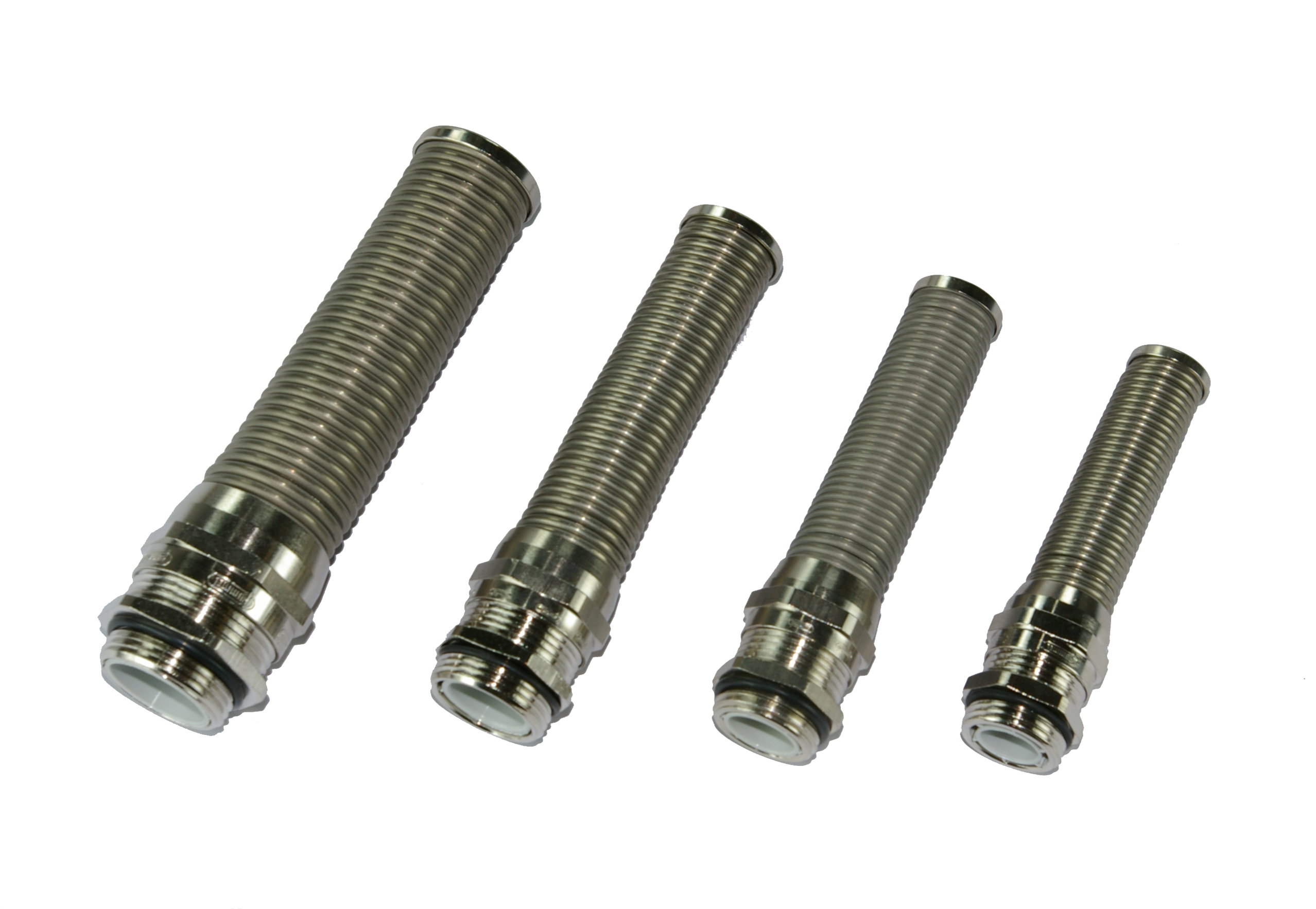

HSK-M-FLEX, med böjskydd
Kabelförskruvning med knäckskydd av mässing.
Material: Förnicklad mässing
Böjskydd: 1.4310
Tätningsinsats: Polyamid
Formtätning: NBR
O-ring: NBR
Skyddsklass: IP 68 - 10 bar, IP 69K inom angivet klämområde
Drifttemperatur kontinuerligt: -40° C till +100° C
PG är ej VDE godkända.
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- PG, Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- Yes
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Brass
- Surface protection:
- Nickel-plated
- Operating temperature:
- -40-100 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 20 mm, 14 mm, 24 mm, 19 mm, 22 mm, 30 mm
Show more
Item List
- Total: 8
- Total: 8
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 8
Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Nominal thread size inch/gas pipe thread | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|
CABLE GLAND, HSK-M-FLEX M12, 3-6.5mm | 50 . | pcs | 3-6.5 mm | 12 . | 1.5 mm | 5 mm | 14 mm | Other |
No
|
|
|
CABLE GLAND, HSK-M-FLEX M16, 4-8 mm | 50 . | pcs | 4-8 mm | 16 . | 1.5 mm | 6 mm | 19 mm | Other |
No
|
|
|
CABLE GLAND, HSK-M-FLEX M16, 5-10mm | 50 . | pcs | 5-10 mm | 16 . | 1.5 mm | 6 mm | 20 mm | Other |
No
|
|
|
CABLE GLAND, HSK-M-FLEX M20, 6-12mm | 50 . | pcs | 6-12 mm | 20 . | 1.5 mm | 6 mm | 22 mm | Other |
No
|
|
|
CABLE GLAND, HSK-M-FLEX M25, 13-18mm | 20 . | pcs | 13-18 mm | 25 . | 1.5 mm | 7 mm | 30 mm | Other |
Yes
|
|
|
CABLE GLAND, HSK-M-FLEX PG11, 5-10mm | 50 . | pcs | 5-10 mm | 11 . | 1.41 mm | 6 mm | 20 mm | Other |
Yes
|
|
|
CABLE GLAND, HSK-M-FLEX PG16, 7-12mm | 25 . | pcs | 7-12 mm | 16 . | 1.41 mm | 6.5 mm | 24 mm | Other |
Yes
|
|
|
CABLE GLAND, HSK-M-FLEX PG21, 13-18mm | 20 . | pcs | 13-18 mm | 21 . | 1.588 mm | 7 mm | 30 mm | Other |
No
|
|
|
- Total: 8
Similar Options
Approvals
- Total: 8
Product Description | Degree of protection (IP) | Approved according to CE | Availability | ||
---|---|---|---|---|---|
CABLE GLAND, HSK-M-FLEX M12, 3-6.5mm | IP68 |
|
No
|
|
|
CABLE GLAND, HSK-M-FLEX M16, 4-8 mm | IP68 |
|
No
|
|
|
CABLE GLAND, HSK-M-FLEX M16, 5-10mm | IP68 |
|
No
|
|
|
CABLE GLAND, HSK-M-FLEX M20, 6-12mm | IP68 |
|
No
|
|
|
CABLE GLAND, HSK-M-FLEX M25, 13-18mm | IP68 |
|
Yes
|
|
|
CABLE GLAND, HSK-M-FLEX PG11, 5-10mm | IP68 |
|
Yes
|
|
|
CABLE GLAND, HSK-M-FLEX PG16, 7-12mm | IP68 |
|
Yes
|
|
|
CABLE GLAND, HSK-M-FLEX PG21, 13-18mm | IP68 |
|
No
|
|
|
- Total: 8
Technical Properties
- Total: 8
Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CABLE GLAND, HSK-M-FLEX M12, 3-6.5mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 14 mm |
No
|
|
|
CABLE GLAND, HSK-M-FLEX M16, 4-8 mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 19 mm |
No
|
|
|
CABLE GLAND, HSK-M-FLEX M16, 5-10mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 20 mm |
No
|
|
|
CABLE GLAND, HSK-M-FLEX M20, 6-12mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 22 mm |
No
|
|
|
CABLE GLAND, HSK-M-FLEX M25, 13-18mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 30 mm |
Yes
|
|
|
CABLE GLAND, HSK-M-FLEX PG11, 5-10mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 20 mm |
Yes
|
|
|
CABLE GLAND, HSK-M-FLEX PG16, 7-12mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 24 mm |
Yes
|
|
|
CABLE GLAND, HSK-M-FLEX PG21, 13-18mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 30 mm |
No
|
|
|
- Total: 8
Other information
- Total: 8
Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
---|---|---|---|---|---|---|---|---|
CABLE GLAND, HSK-M-FLEX M12, 3-6.5mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.623.1200.50 |
No
|
|
|
CABLE GLAND, HSK-M-FLEX M16, 4-8 mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.623.1600.50 |
No
|
|
|
CABLE GLAND, HSK-M-FLEX M16, 5-10mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.623.1611.50 |
No
|
|
|
CABLE GLAND, HSK-M-FLEX M20, 6-12mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.623.2000.50 |
No
|
|
|
CABLE GLAND, HSK-M-FLEX M25, 13-18mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.623.2500.50 |
Yes
|
|
|
CABLE GLAND, HSK-M-FLEX PG11, 5-10mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.623.1100.01 |
Yes
|
|
|
CABLE GLAND, HSK-M-FLEX PG16, 7-12mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.623.1600.15 |
Yes
|
|
|
CABLE GLAND, HSK-M-FLEX PG21, 13-18mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.623.2100.01 |
No
|
|
|
- Total: 8
