1.107.0901.60

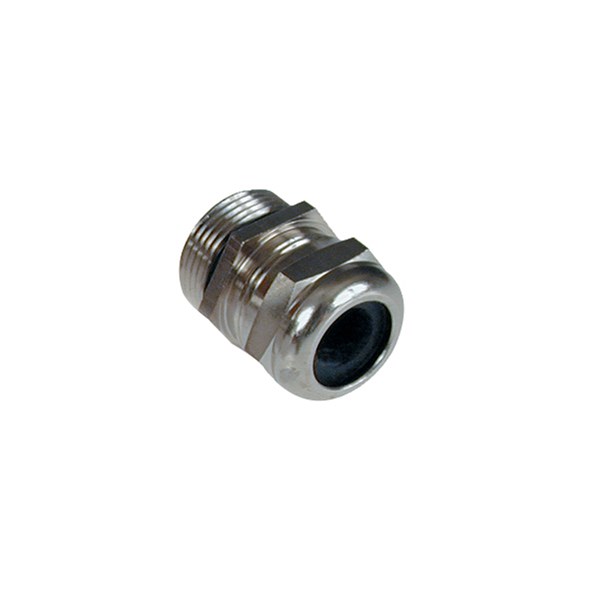

CABLE GLAND, WADI-B PG9, 4-6mm, LONG THREAD
1.107.0901.60
- Availability:
-
Yes
- Total: 1
Related items
WADI, kabelförskruvning
Kabelförskruvning med lång anslutningsgänga för tjockväggiga anslutningar.
Med kontramutter kan denna förskruvning användas i kapslingar med väggtjocklek upp till 10 mm.
Ändelsen .01 har kort anslutningsgänga.
Material: Förnicklad mässing
Tätning: WADI-A: Perbunan/ Viton
WADI-B: Perbunan
Skyddsklass: IP 68
Drifttemperatur:
Viton: -40º C till +200º C, kortvarigt +300º C
Perbunan: -20º C till +100º C, kortvarigt +130º C
- Total: 1
Product Properties
| Pressure-compensating | No |
|---|---|
| Degree of protection (IP) | IP68 |
| With strain relief | Yes |
| Model | Straight |
| Material quality | Brass |
| RAL-number | 0 N/A |
| Thread type | PG |
| Glass-fibre reinforced | No |
| Shock resistant | Yes |
| Bend radius protection/trumpet flare | No |
| With locknut | No |
| Snapping in opening | No |
| Multi seal area | No |
| Flat cable coupling | No |
| Explosion-tested version | No |
| For armoured cable | No |
| EMC-version | No |
| Screened | No |
| Type of sealing | Sealing ring |
| For Ex-zone gas | None |
| For Ex-Zone dust | None |
| Colour | Brass |
| Surface protection | Nickel-plated |
| Operating temperature | -20-130 °C |
| Material | Metal |
| Halogen free | Yes |
| Wrench width | 18 mm |
Dimensions
| MOQ | 50 . |
|---|---|
| Unit | pcs |
| Suitable for cable diameter | 4-6 mm |
| Nominal thread size metric/PG | 9 . |
| Pitch thread | 1.41 mm |
| Thread length | 10 mm |
| Wrench width | 18 mm |
| Nominal thread size inch/gas pipe thread | Other |
Logistics
| Barcode | 761157704216 |
|---|---|
| Country of origin | DE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 50 . |
| Stock code | 1.107.0901.60 |
| Taric code | 85389099 |
| Unit | pcs |
Approvals
| Degree of protection (IP) | IP68 |
|---|
Other info
| ETIM-Class | EC000441 - Cable gland |
|---|---|
| ETIM-Release | 9.0 |
| Product Group | Metal, standard |
| Alternative SKU | 1.107.0901.60 |
Compliance
| RoHS | RoHS 3 (2015/863) |
|---|
