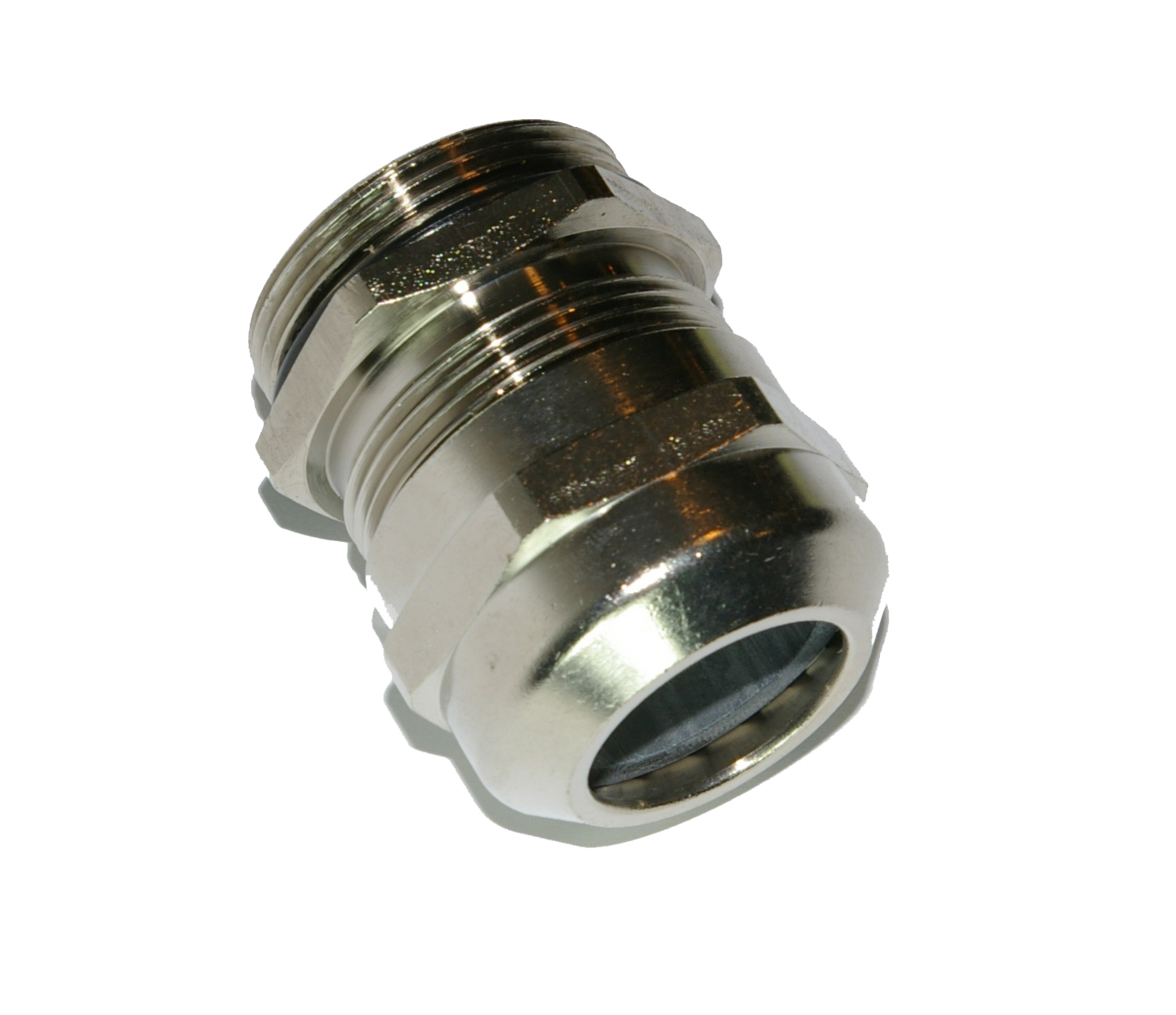

Ecotec, standard cable gland, metal
Material: Förnicklad mässing
Tätningsinsats:Polyamid
Formtätning: SBR
Skyddsklass:IP 68 inom angivet klämområde
Temperaturområde:-20° C till +80° C
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Other
- Surface protection:
- Nickel-plated
- Operating temperature:
- -20-80 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 14 mm, 44 mm, 54 mm
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents

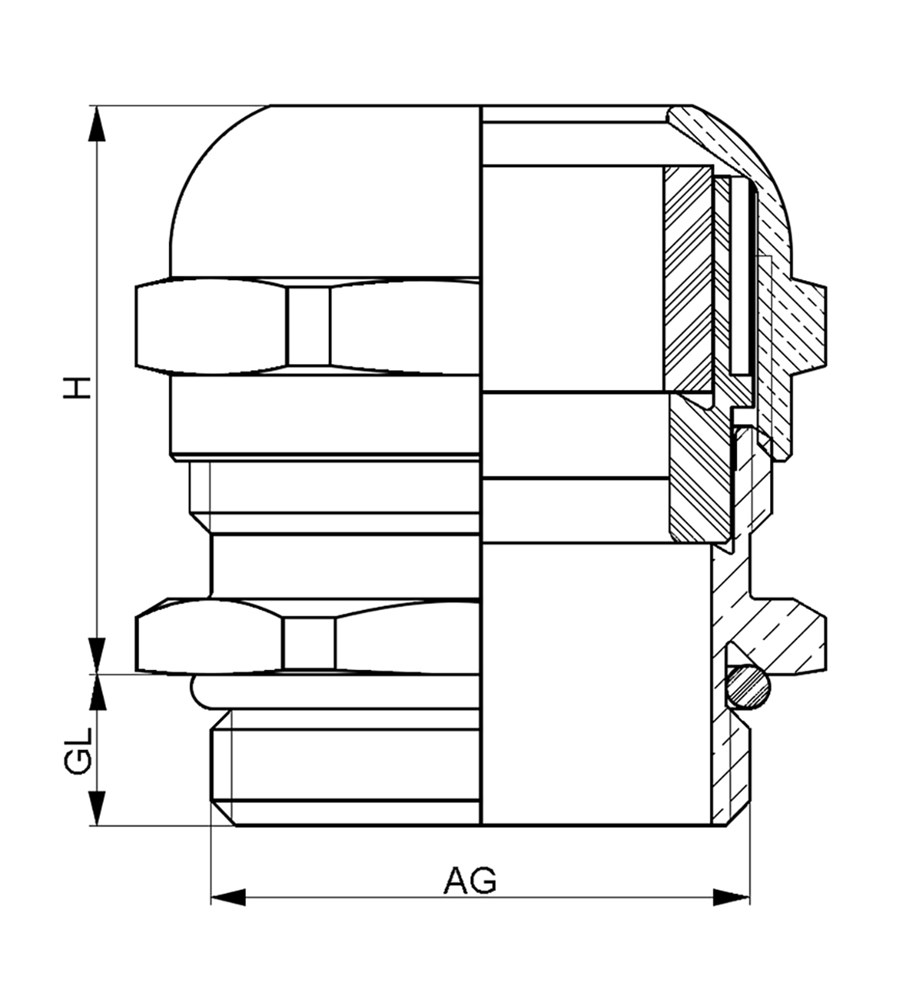

Dimensions
- Total: 3
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND ECOTEC ME M12, 3-6.5mm | 50 . | pcs | 3-6.5 mm | 12 . | 1.5 mm | 6 mm | 14 mm | Other |
Yes
|
|
|
| CABLE GLAND ECOTEC ME M40, 19-28mm | 10 . | pcs | 19-28 mm | 40 . | 1.5 mm | 8 mm | 44 mm | Other |
Yes
|
|
|
| CABLE GLAND ECOTEC ME M50, 27-35mm | 5 . | pcs | 27-35 mm | 50 . | 1.5 mm | 9 mm | 54 mm | Other |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Approved according to UR | Degree of protection (IP) | With approval according to UL | Availability | ||
|---|---|---|---|---|---|---|
| CABLE GLAND ECOTEC ME M12, 3-6.5mm |
|
IP68 |
|
Yes
|
|
|
| CABLE GLAND ECOTEC ME M40, 19-28mm |
|
IP68 |
|
Yes
|
|
|
| CABLE GLAND ECOTEC ME M50, 27-35mm |
|
IP68 |
|
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND ECOTEC ME M12, 3-6.5mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Other | Nickel-plated | -20-80 °C | Metal | Yes | 14 mm |
Yes
|
|
|
| CABLE GLAND ECOTEC ME M40, 19-28mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Other | Nickel-plated | -20-80 °C | Metal | Yes | 44 mm |
Yes
|
|
|
| CABLE GLAND ECOTEC ME M50, 27-35mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Other | Nickel-plated | -20-80 °C | Metal | Yes | 54 mm |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE GLAND ECOTEC ME M12, 3-6.5mm | EC000441 - Cable gland | 9.0 | Metal, standard | KABELFÖRSKRUVNING ECOTEC ME | MLCM12 |
Yes
|
|
|
| CABLE GLAND ECOTEC ME M40, 19-28mm | EC000441 - Cable gland | 9.0 | Metal, standard | KABELFÖRSKRUVNING ECOTEC ME | MLCM40 |
Yes
|
|
|
| CABLE GLAND ECOTEC ME M50, 27-35mm | EC000441 - Cable gland | 9.0 | Metal, standard | KABELFÖRSKRUVNING ECOTEC ME | MLCM50 |
Yes
|
|
|
- Total: 3
