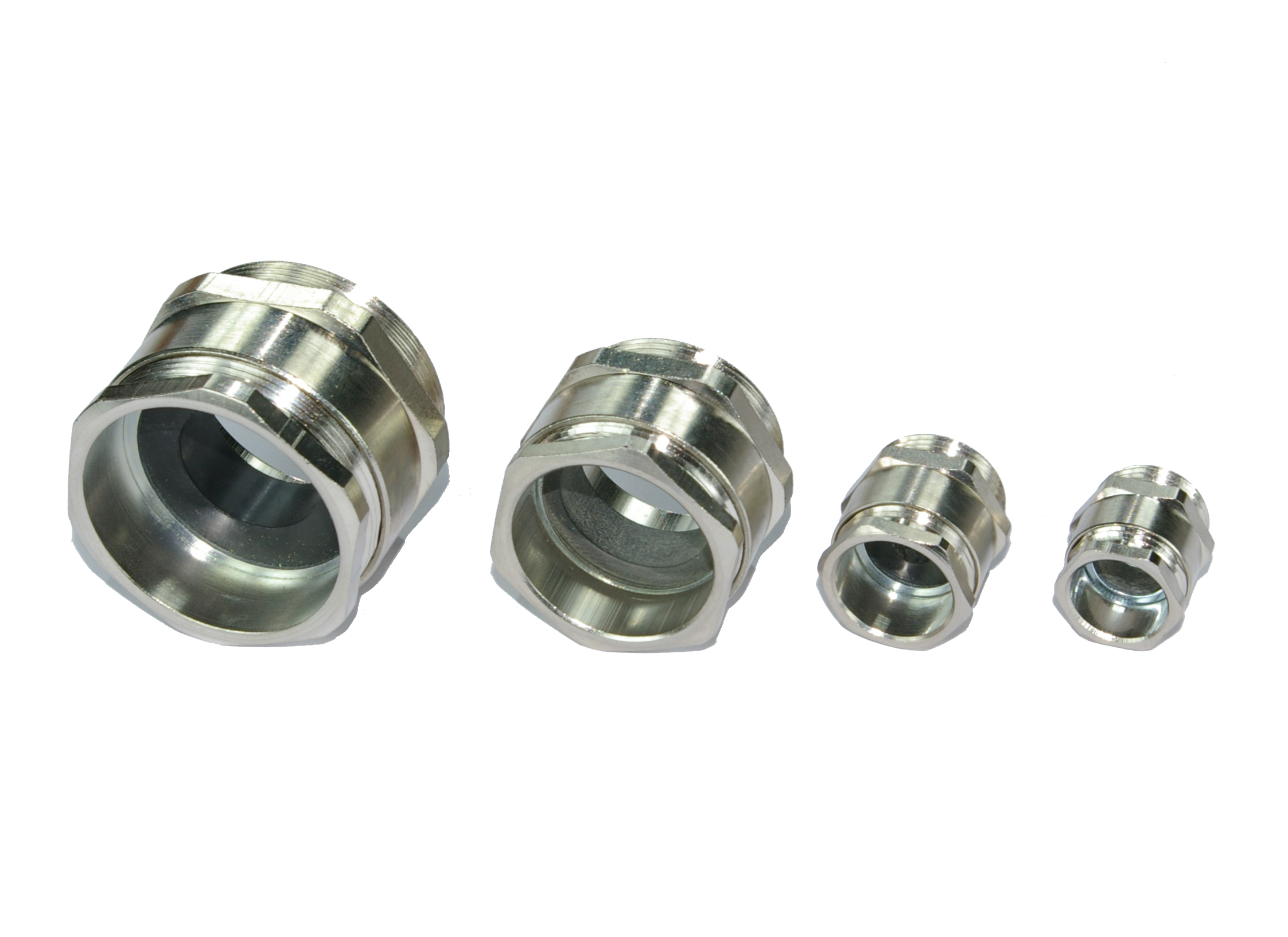

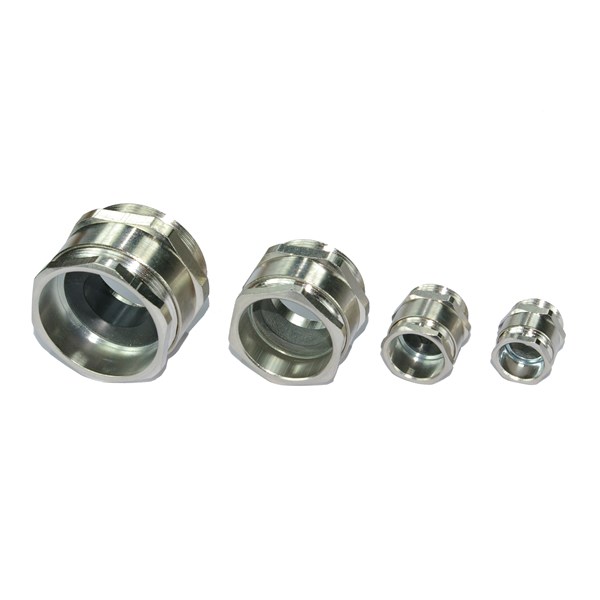

DIN 46320
Standardförskruvning tillverkad enligt DIN 46320-C4-Ms.
Material: Förnicklad mässing
Formtätning: NBR, SHORE 60
Skyddsklass: IP 54, med tätningsring IP 65
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP54
- With strain relief:
- No
- Model:
- Straight
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- PG, Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Cut-out ring, Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Brass, Other
- Surface protection:
- Nickel-plated
- Operating temperature:
- -40-100 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 15 mm, 20 mm, 18 mm, 22 mm, 28 mm, 37 mm, 27 mm
Show more
Item List
- Total: 11
- Total: 11
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 11
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Hexagon angular dimension | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, DIN46320-C4 MS PG11, 4-11mm, LONG THREAD | 50 . | pcs | 8-10 mm | 11 . | 1.41 mm | 15 mm | 20 mm | 18 mm | Other |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M20 (4-11.5) MS | 50 . | pcs | 4-11.5 mm | 20 . | 1.5 mm | 7 mm | 22 mm | 18 mm | Other |
No
|
|
|
| CABLE GLAND, DIN46320 MS M25, 6-15mm | 50 . | pcs | 6-15 mm | 25 . | 1.5 mm | 8 mm | 27 mm | 22 mm | Other |
No
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG16, 14-16mm | 50 . | pcs | 14-16 mm | 16 . | 1.41 mm | 6.5 mm | 22 mm | 24 mm | Other |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG9, 2-9mm | 100 . | pcs | 2-9 mm | 9 . | 1.41 mm | 6 mm | 15 mm | 17 mm | Other |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG11, 4-11mm | 50 . | pcs | 4-11 mm | 11 . | 1.41 mm | 6 mm | 18 mm | 20 mm | Other |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG13.5, 4.5-12mm | 50 . | pcs | 4.5-12 mm | 13.5 . | 1.41 mm | 6.5 mm | 20 mm | 22 mm | Other |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG16, 5.5-14.5mm | 50 . | pcs | 5.5-14.5 mm | 16 . | 1.41 mm | 6.5 mm | 22 mm | 24 mm | Other |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG21, 8-19mm | 50 . | pcs | 8-19 mm | 21 . | 1.588 mm | 7 mm | 28 mm | 30 mm | Other |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG29, 12-27mm | 25 . | pcs | 12-27 mm | 29 . | 1.588 mm | 8 mm | 37 mm | 40 mm | Other |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG16, 5.5-14.5mm, LONG THREAD | 50 . | pcs | 5.5-14.5 mm | 16 . | 1.41 mm | 15 mm | 22 mm | 24 mm | Other |
Yes
|
|
|
- Total: 11
Similar Options
Approvals
- Total: 11
| Product Description | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|
| CABLE GLAND, DIN46320-C4 MS PG11, 4-11mm, LONG THREAD | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M20 (4-11.5) MS | IP54 |
No
|
|
|
| CABLE GLAND, DIN46320 MS M25, 6-15mm | IP54 |
No
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG16, 14-16mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG9, 2-9mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG11, 4-11mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG13.5, 4.5-12mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG16, 5.5-14.5mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG21, 8-19mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG29, 12-27mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG16, 5.5-14.5mm, LONG THREAD | IP54 |
Yes
|
|
|
- Total: 11
Technical Properties
- Total: 11
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, DIN46320-C4 MS PG11, 4-11mm, LONG THREAD | No | IP54 | No | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Cut-out ring | None | None | Brass | Nickel-plated | -20-80 °C | Metal | Yes | 20 mm |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M20 (4-11.5) MS | No | IP54 | No | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Cut-out ring | None | None | Other | Nickel-plated | -20-80 °C | Metal | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, DIN46320 MS M25, 6-15mm | No | IP54 | No | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -20-80 °C | Metal | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG16, 14-16mm | No | IP54 | No | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -20-80 °C | Metal | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG9, 2-9mm | No | IP54 | No | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Cut-out ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG11, 4-11mm | No | IP54 | No | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Cut-out ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 18 mm |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG13.5, 4.5-12mm | No | IP54 | No | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Cut-out ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 20 mm |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG16, 5.5-14.5mm | No | IP54 | No | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Cut-out ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG21, 8-19mm | No | IP54 | No | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Cut-out ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 28 mm |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG29, 12-27mm | No | IP54 | No | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Cut-out ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 37 mm |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG16, 5.5-14.5mm, LONG THREAD | No | IP54 | No | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | No | No | No | No | Cut-out ring | None | None | Brass | Nickel-plated | -20-80 °C | Metal | Yes | 22 mm |
Yes
|
|
|
- Total: 11
Other information
- Total: 11
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, DIN46320-C4 MS PG11, 4-11mm, LONG THREAD | EC000441 - Cable gland | 9.0 | Metal, standard | FÖRSKRUVNING, DIN46320-C4 MS | 1.101.1100.15 |
Yes
|
|
|
|
| CABLE GLAND, DIN 46320 M20 (4-11.5) MS | EC000441 - Cable gland | 9.0 | Metal, standard | 924009820 |
No
|
|
|
||
| CABLE GLAND, DIN46320 MS M25, 6-15mm | EC000441 - Cable gland | 9.0 | Metal, standard | DIN 46320 MS M25 (6-15) | 1.101.2500.50 |
No
|
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG16, 14-16mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | FÖRSKRUVNING, DIN46320-C4 MS | 1.101.1600.01 |
Yes
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG9, 2-9mm | EC000441 - Cable gland | 9.0 | Metal, standard | FÖRSKRUVNING, DIN46320-C4 MS | 1.101.0901.01 |
Yes
|
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG11, 4-11mm | EC000441 - Cable gland | 9.0 | Metal, standard | FÖRSKRUVNING, DIN46320-C4 MS | 1.101.1101.01 |
Yes
|
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG13.5, 4.5-12mm | EC000441 - Cable gland | 9.0 | Metal, standard | FÖRSKRUVNING, DIN46320-C4 MS | 1.101.1301.01 |
Yes
|
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG16, 5.5-14.5mm | EC000441 - Cable gland | 9.0 | Metal, standard | FÖRSKRUVNING, DIN46320-C4 MS | 1.101.1601.01 |
Yes
|
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG21, 8-19mm | EC000441 - Cable gland | 9.0 | Metal, standard | FÖRSKRUVNING, DIN46320-C4 MS | 1.101.2101.01 |
Yes
|
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG29, 12-27mm | EC000441 - Cable gland | 9.0 | Metal, standard | FÖRSKRUVNING, DIN46320-C4 MS | 1.101.2901.01 |
Yes
|
|
|
|
| CABLE GLAND, DIN46320-C4 MS PG16, 5.5-14.5mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Metal, standard | FÖRSKRUVNING, DIN46320-C4 MS | 1.102.1601.01 |
Yes
|
|
|
- Total: 11
