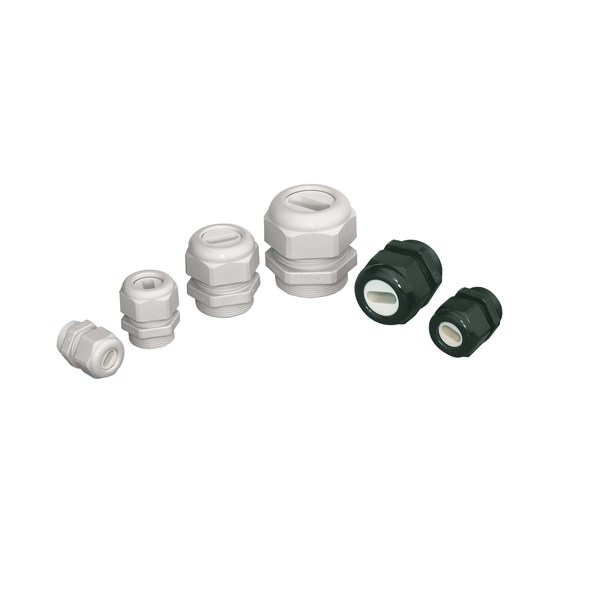

HSK-K-FLAKA, flat cable
Flatkabelförskruvning i industri standard.
Material: PA V0 enligt UL 94
Formtätning: Elastomer
Drifttemperatur
kontinuerligt:-40º C till +100º C
Färg:Grå RAL 7035
Technical properties
- Degree of protection (IP):
- IP65
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Polyamide (PA)
- RAL-number:
- 7035 .
- Thread type:
- PG, Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Flat cable coupling:
- Yes
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Light grey
- Surface protection:
- Untreated
- Operating temperature:
- -40-100 °C
- Material:
- Plastic
- Halogen free:
- Yes
- Wrench width:
- 27 mm, 33 mm, 42 mm, 53 mm, 60 mm, 65 mm, 68 mm
Show more
Item List
- Total: 19
- Total: 19
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 19
| Product Description | MOQ | Unit | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Hexagon angular dimension | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-K-FLAKA, GREY M20, 11.5x5mm | 50 . | pcs | 20 . | 1.5 mm | 9 mm | 27 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M25,14x6mm | 50 . | pcs | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M25, 14x7mm | 50 . | pcs | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M40, 28.5x10mm | 10 . | pcs | 40 . | 1.5 mm | 13 mm | 53 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M40, 29x5.5mm | 10 . | pcs | 40 . | 1.5 mm | 13 mm | 53 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M40, 30.5x12mm | 10 . | pcs | 40 . | 1.5 mm | 13 mm | 53 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M40, 31x7.5mm | 10 . | pcs | 40 . | 1.5 mm | 13 mm | 53 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY M50, 33.5x11.5mm | 5 . | pcs | 50 . | 1.5 mm | 13 mm | 60 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY M63, 38x12mm | 5 . | pcs | 63 . | 1.5 mm | 14 mm | 68 mm | 65 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG16, 11.5x5mm | 50 . | pcs | 16 . | 1.41 mm | 10 mm | 27 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG16, 14x6mm | 50 . | pcs | 16 . | 1.41 mm | 10 mm | 27 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG21, 14x6mm | 50 . | pcs | 21 . | 1.588 mm | 11 mm | 33 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG21, 14x7mm | 50 . | pcs | 21 . | 1.588 mm | 11 mm | 33 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG29, 22x8mm | 25 . | pcs | 29 . | 1.588 mm | 11 mm | 42 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG36 ,28.5x10mm | 10 . | pcs | 36 . | 1.588 mm | 13 mm | 53 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG36, 29x5.5mm | 10 . | pcs | 36 . | 1.588 mm | 13 mm | 53 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG36, 30.5x12mm | 10 . | pcs | 36 . | 1.588 mm | 13 mm | 53 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY PG42, 33.5x11.5mm | 5 . | pcs | 42 . | 1.588 mm | 13 mm | 60 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY PG48, 38x12mm | 5 . | pcs | 48 . | 1.588 mm | 14 mm | 65 mm | Other |
No
|
|
|
- Total: 19
Similar Options
Approvals
- Total: 19
- Total: 19
Technical Properties
- Total: 19
| Product Description | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-K-FLAKA, GREY M20, 11.5x5mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M25,14x6mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M25, 14x7mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M40, 28.5x10mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M40, 29x5.5mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M40, 30.5x12mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M40, 31x7.5mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY M50, 33.5x11.5mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 60 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY M63, 38x12mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 68 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG16, 11.5x5mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG16, 14x6mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG21, 14x6mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG21, 14x7mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG29, 22x8mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG36 ,28.5x10mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG36, 29x5.5mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG36, 30.5x12mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY PG42, 33.5x11.5mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 60 mm |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY PG48, 38x12mm | IP65 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | Yes | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 65 mm |
No
|
|
|
- Total: 19
Other information
- Total: 19
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-K-FLAKA, GREY M20, 11.5x5mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | FÖRSKRUVNING HSK-K-FLAKA, GRÅ | 1.587.2016.50 |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M25,14x6mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | FÖRSKRUVNING HSK-K-FLAKA, GRÅ, | 1.587.2500.50 |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M25, 14x7mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | FÖRSKRUVNING HSK-K-FLAKA, GRÅ, | 1.587.2501.50 |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M40, 28.5x10mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | FÖRSKRUVNING HSK-K-FLAKA, GRÅ, M40, | 1.587.4000.50 |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M40, 29x5.5mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | FÖRSKRUVNING HSK-K-FLAKA, GRÅ, | 1.587.4001.50 |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M40, 30.5x12mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | FÖRSKRUVNING HSK-K-FLAKA, GRÅ, | 1.587.4002.50 |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, M40, 31x7.5mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | FÖRSKRUVNING HSK-K-FLAKA, GRÅ, M40, | 1.587.4003.50 |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY M50, 33.5x11.5mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | 1.587.5000.50 |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY M63, 38x12mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | 1.587.6300.50 |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG16, 11.5x5mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | FÖRSKRUVNING HSK-K-FLAKA, GRÅ, | 1.587.1600.00 |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG16, 14x6mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | FÖRSKRUVNING HSK-K-FLAKA, GRÅ, | 1.587.1602.00 |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG21, 14x6mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | FÖRSKRUVNING HSK-K-FLAKA, GRÅ, | 1.587.2100.00 |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG21, 14x7mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | FÖRSKRUVNING HSK-K-FLAKA, GRÅ, | 1.587.2101.00 |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG29, 22x8mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | FÖRSKRUVNING HSK-K-FLAKA, GRÅ, | 1.587.2900.00 |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG36 ,28.5x10mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | FÖRSKRUVNING HSK-K-FLAKA, GRÅ, | 1.587.3600.00 |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG36, 29x5.5mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | FÖRSKRUVNING HSK-K-FLAKA, GRÅ, | 1.587.3601.00 |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY, PG36, 30.5x12mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | FÖRSKRUVNING HSK-K-FLAKA, GRÅ, | 1.587.3602.00 |
No
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY PG42, 33.5x11.5mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | 1.587.4200.00 |
No
|
|
|
|
| CABLE GLAND, HSK-K-FLAKA, GREY PG48, 38x12mm | EC000441 - Cable gland | 7.0 |
|
Flat cable | 1.587.4800.00 |
No
|
|
|
