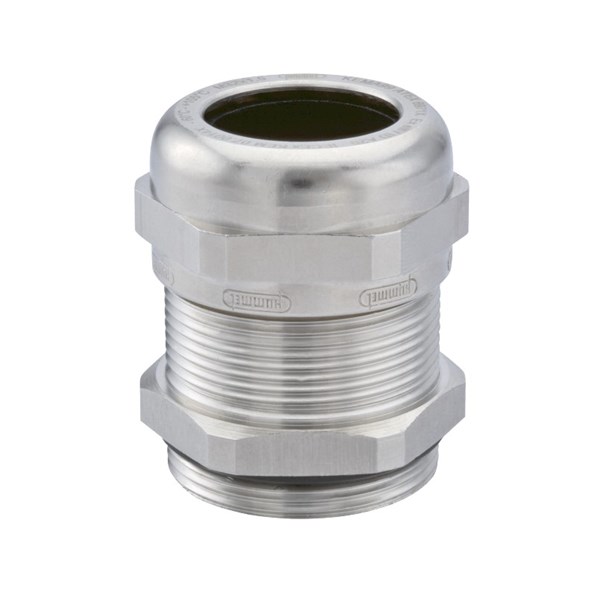

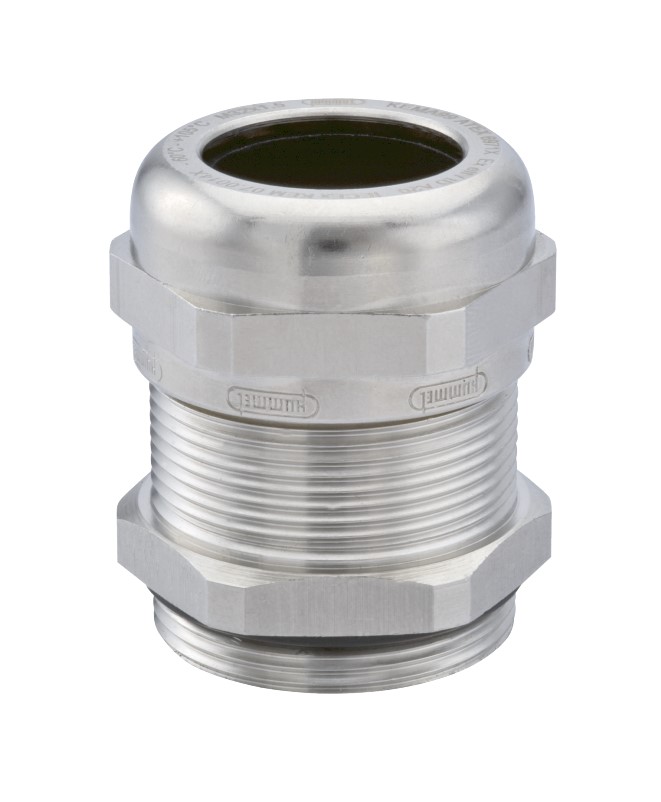

HSK-M-EMV-D-EX
EMC-compatible cable gland for the Ex-areas.
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- Yes
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- 1, 2
- For Ex-Zone dust:
- 20, 21, 22
- Colour:
- Brass
- Surface protection:
- Nickel-plated
- Operating temperature:
- -20-95 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 20 mm, 24 mm
Show more
Item List
- Total: 3
- Total: 3
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 3
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-M-EMV-D-EX M16, 5-10mm LONG THREAD | 50 . | pcs | 5-10 mm | 16 . | 1.5 mm | 10 mm | 20 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-D-EX M16, 5-10mm | 50 . | pcs | 5-10 mm | 16 . | 1.5 mm | 6 mm | 20 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-M-EMV-D-EX M20, 10-14mm | 50 . | pcs | 10-14 mm | 20 . | 1.5 mm | 10 mm | 24 mm | Other |
No
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|
| CABLE GLAND, HSK-M-EMV-D-EX M16, 5-10mm LONG THREAD | IP68 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-D-EX M16, 5-10mm | IP68 |
No
|
|
|
| CABLE GLAND, HSK-M-EMV-D-EX M20, 10-14mm | IP68 |
No
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-M-EMV-D-EX M16, 5-10mm LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Brass | Nickel-plated | -20-95 °C | Metal | Yes | 20 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-D-EX M16, 5-10mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 20 mm |
No
|
|
|
|
| CABLE GLAND, HSK-M-EMV-D-EX M20, 10-14mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 24 mm |
No
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-M-EMV-D-EX M16, 5-10mm LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Ex | FÖRSKRUVNING, HSK-M-EMV-D-EX | 1.636.1600.30 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-D-EX M16, 5-10mm | EC000441 - Cable gland | 9.0 |
|
Ex | FÖRSKRUVNING, HSK-M-EMV-D-EX | 1.636.1600.50 |
No
|
|
|
| CABLE GLAND, HSK-M-EMV-D-EX M20, 10-14mm | EC000441 - Cable gland | 9.0 | Ex | FÖRSKRUVNING, HSK-M-EMV-D-EX | 1.636.2000.30 |
No
|
|
|
- Total: 3
