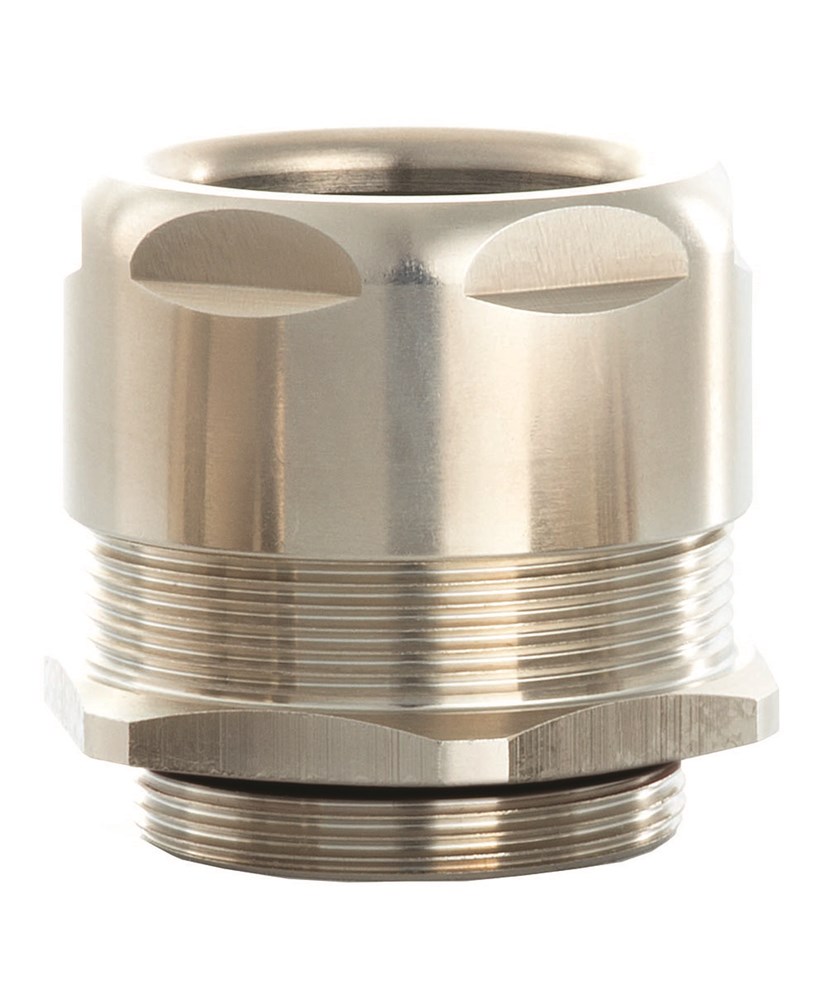

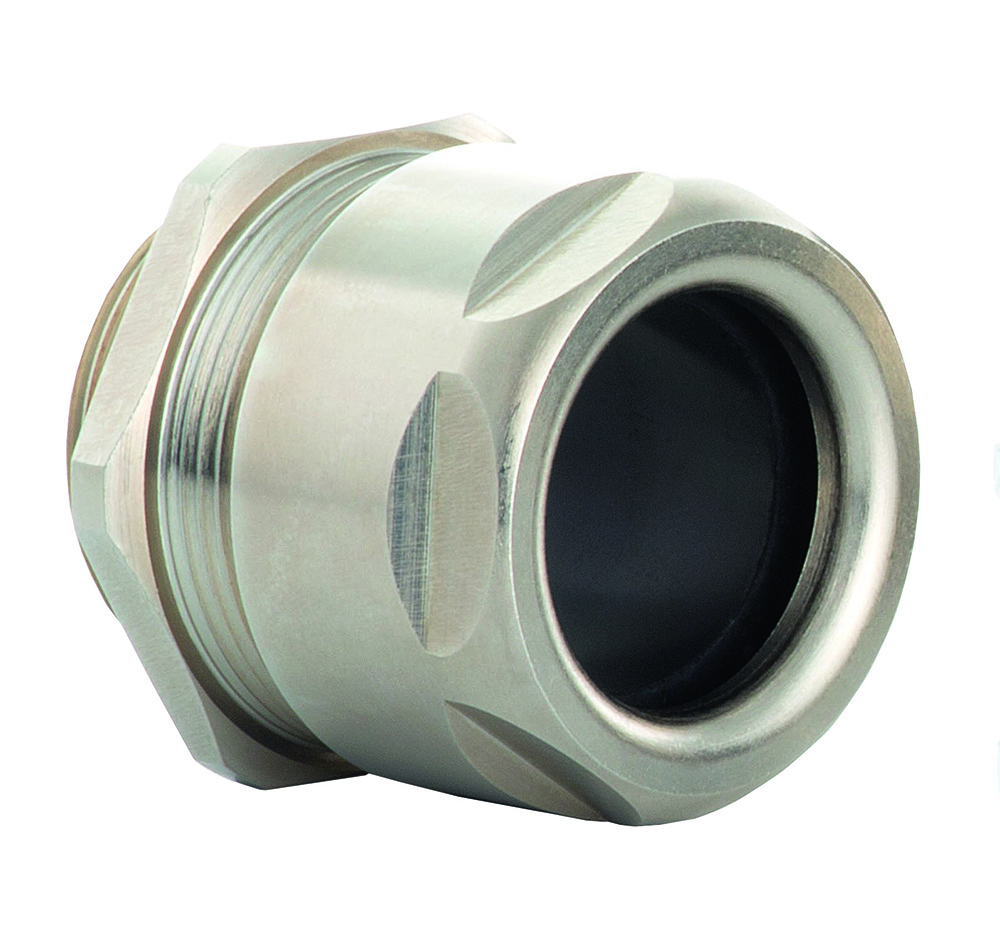

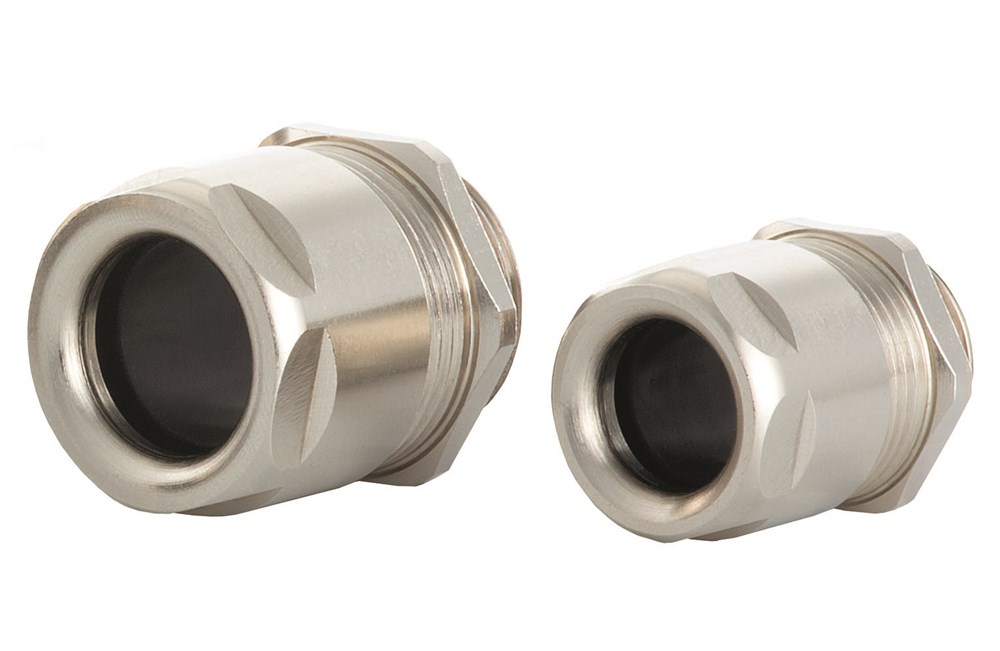

VariaPro Rail
VariaPro Rail meets all requirements for use in rail transport. It has successfully passed the tests of the fire protection standards DIN EN 45545-2 and DIN EN 45545-3. VariaPro Rail can be used without restriction in all trains on the European rail network. The slim structure meets the requirement for space saving installation. Added to this is the ease of installation of the cable gland.EMC connection as standardHigh fire protectionFire resistance E30Seal: EPDMExtremely high strain reliefImpact resistance 7 Joule according DIN IEC 62444
Material: Nickel plated brassSeal: EPDMO-Ring: EPDMProtection: IP 68 - 10 bar within the specific clamping rangeOperating Temperature: -40°C - 100°C
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- Yes
- Screened:
- Yes
- Type of sealing:
- Cut-out ring, Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Other
- Surface protection:
- Nickel-plated
- Operating temperature:
- -40-100 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 24 mm, 30 mm, 40 mm, 50 mm
Show more
Item List
- Total: 8
- Total: 8
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
VariaPro_Rail ENG
Dimensions
- Total: 8
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Hexagon angular dimension | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, VARIAPRO RAIL M20, 7-14mm | 25 . | pcs | 7-14 mm | 20 . | 1.5 mm | 6 mm | 24 mm | 22 mm | Other |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M20, 10-14mm | 25 . | pcs | 10-14 mm | 20 . | 1.5 mm | 6 mm | 24 mm | 22 mm | Other |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M25, 11-18mm | 25 . | pcs | 11-18 mm | 25 . | 1.5 mm | 7 mm | 30 mm | 27 mm | Other |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M25, 14.5-18mm | 25 . | pcs | 14.5-18 mm | 25 . | 1.5 mm | 7 mm | 30 mm | 27 mm | Other |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M32, 16-25mm | 10 . | pcs | 16-25 mm | 32 . | 1.5 mm | 8 mm | 40 mm | 36 mm | Other |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M32, 20.5-25mm | 10 . | pcs | 20.5-25 mm | 32 . | 1.5 mm | 8 mm | 40 mm | 36 mm | Other |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M40, 21-32mm | 5 . | pcs | 21-32 mm | 40 . | 1.5 mm | 8 mm | 50 mm | 46 mm | Other |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M40, 26.5-32mm | 5 . | pcs | 26.5-32 mm | 40 . | 1.5 mm | 8 mm | 50 mm | 46 mm | Other |
No
|
|
|
- Total: 8
Similar Options
Approvals
- Total: 8
| Product Description | Degree of protection (IP) | Approved according to CE | Availability | ||
|---|---|---|---|---|---|
| CABLE GLAND, VARIAPRO RAIL M20, 7-14mm | IP68 |
|
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M20, 10-14mm | IP68 |
|
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M25, 11-18mm | IP68 |
|
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M25, 14.5-18mm | IP68 |
|
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M32, 16-25mm | IP68 |
|
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M32, 20.5-25mm | IP68 |
|
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M40, 21-32mm | IP68 |
|
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M40, 26.5-32mm | IP68 |
|
No
|
|
|
- Total: 8
Technical Properties
- Total: 8
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, VARIAPRO RAIL M20, 7-14mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Cut-out ring | None | None | Other | Nickel-plated | -40-100 °C | Metal | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M20, 10-14mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Other | Nickel-plated | -40-100 °C | Metal | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M25, 11-18mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Cut-out ring | None | None | Other | Nickel-plated | -40-100 °C | Metal | Yes | 30 mm |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M25, 14.5-18mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Other | Nickel-plated | -40-100 °C | Metal | Yes | 30 mm |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M32, 16-25mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Cut-out ring | None | None | Other | Nickel-plated | -40-100 °C | Metal | Yes | 40 mm |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M32, 20.5-25mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Other | Nickel-plated | -40-100 °C | Metal | Yes | 40 mm |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M40, 21-32mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Cut-out ring | None | None | Other | Nickel-plated | -40-100 °C | Metal | Yes | 50 mm |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M40, 26.5-32mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Other | Nickel-plated | -40-100 °C | Metal | Yes | 50 mm |
No
|
|
|
- Total: 8
Other information
- Total: 8
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, VARIAPRO RAIL M20, 7-14mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.750.2000.50 |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M20, 10-14mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.750.2000.51 |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M25, 11-18mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.750.2500.50 |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M25, 14.5-18mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.750.2500.51 |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M32, 16-25mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.750.3200.50 |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M32, 20.5-25mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.750.3200.51 |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M40, 21-32mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.750.4000.50 |
No
|
|
|
| CABLE GLAND, VARIAPRO RAIL M40, 26.5-32mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.750.4000.51 |
No
|
|
|
- Total: 8
